Module 2
TRACE KTU
Fibers
•
TRACE KTU

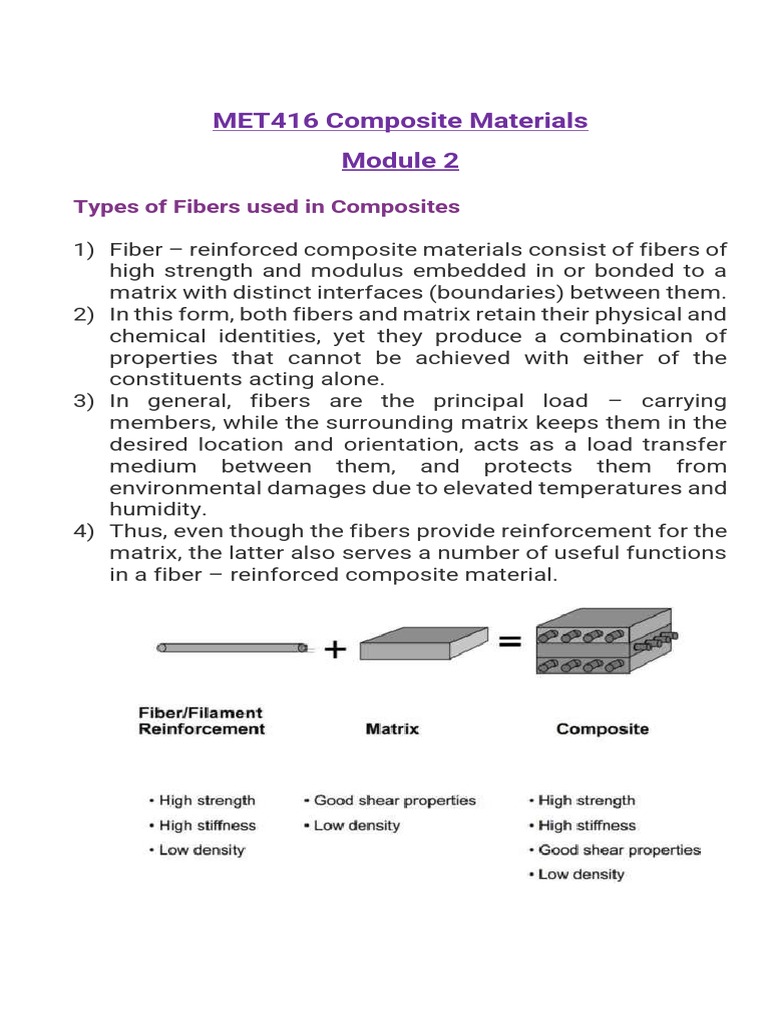

Fibers are the principal constituents in a fiber – reinforced
composite material.
• They occupy the largest volume fraction in a composite
laminate and share the major portion of the load acting on
a composite structure.
• Proper selection of the fiber type, fiber volume fraction,
fiber length, and fiber orientation is very important, since
it influences the following characteristics of a composite
laminate:
➢ Density
➢ Tensile strength and modulus
➢ Compressive strength and modulus
➢ Fatigue strength as well as fatigue failure mechanisms
➢ Electrical and thermal conductivities
➢ Cost
Carbon Fiber
TRACE KTU
TRACE KTU
•
TRACE KTU
ordered and to turns toward a true graphitic form.
Pitch, a by-product of petroleum refining or coal coking, is
a lower cost precursor than PAN.
• Heating to temperatures above 300 Deg. C, polymerizes
(joins) these molecules into long, two-dimensional sheet
like structures.
• While passing through the spinner et die, the meso-phase
pitch molecules become aligned in the filament direction.
• The filaments are cooled to freeze the molecular
orientation, and subsequently heated between 200 Deg. C
and 300 Deg. C in an oxygen containing atmosphere to
stabilize them and make them infusible (to avoid fusing
the filaments together).
• In the next step, the filaments are carbonized at
temperatures around 2000 Deg. C.
• The rest of the process of trans forming the structure to
graphitic form is similar to that followed for PAN
precursors.
Carbon Fibre Fabrication
Fiberization
TRACE KTU
Stabilization
Carbonization
TRACE KTU
outside air pressure and the points where the fibers enter
and exit the furnace are sealed to keep oxygen from
entering.
• As the fibers are heated, they begin to lose their non-
carbon atoms, plus a few carbon atoms, in the form of
various gases including water vapor, ammonia, carbon
monoxide, carbon dioxide, hydrogen, nitrogen, and others.
• As the non-carbon atoms are expelled, the remaining
carbon atoms form tightly bonded carbon crystals that are
aligned more or less parallel to the long axis of the fiber.
• In some processes, two furnaces operating at two
different temperatures are used to better control the rate
of heating during carbonization.
Graphitization
TRACE KTU
TRACE KTU
Arrangement of carbon atoms in a graphite crystal.
• High in stiffness
• High in tensile strength
• Has a low weight to strength ratio
• High in chemical resistance
• Temperature tolerant to excessive heat
• Has low thermal expansion
• Bike frames
• Aircraft Wings
• Automotive drive shafts
• Tubing
• Containers
• Propeller blades
• Car components
TRACE KTU
CF has a higher modulus and is used for manufacturing
in the aerospace industry.
TRACE KTU
TRACE KTU
TRACE KTU
A typical molecular structure of an amorphous glass
fiber containing silica network
TRACE KTU
TRACE KTU
Different Forms of Glass Fibre available in market
Natural Fibers
• Examples of natural fibers are jute, flax, hemp, ramie, sisal,
coconut fiber (coir), and banana fiber (abaca).
• All these fibers are grown as agricultural plants in various
parts of the world and are commonly used for making
ropes, carpet backing, bags, and so on.
• The components of natural fibers are cellulose
microfibrils dispersed in an amorphous matrix of lignin
and hemicellulose.
• Depending on the type of the natural fiber, the cellulose
content is in the range of 60 – 80 (weight %) and the lignin
content is in the range of 5 – 20 (weight %).
• In addition, the moisture content in natural fibers can be
up to 20 (weight %).
TRACE KTU
Types of Natural Fibers:
TRACE KTU
Boron Fiber Fabrication
• The CVD (Chemical Vapor Deposition) is a process in
which one material is deposited onto a substrate to
produce near theoretical density and small grain size for
the deposited material.
• In CVD the material is deposited on a thin filament.
• The material grows on this substrate and produces a
thicker filament.
TRACE KTU
Boron Fiber – Advantages & Disadvantages
Aramid Fiber
➢ Meta- aramid
➢ Para- aramid
TRACE KTU
TRACE KTU
TRACE KTU
a) Continuous long fibers b) whiskers/short fibers c)
particles
• High strength
• High Chemical Resistance
• High Thermal Resistance
Whiskers – Applications
Advantages:
Disadvantages:
• No unform properties
• Handling is difficult
