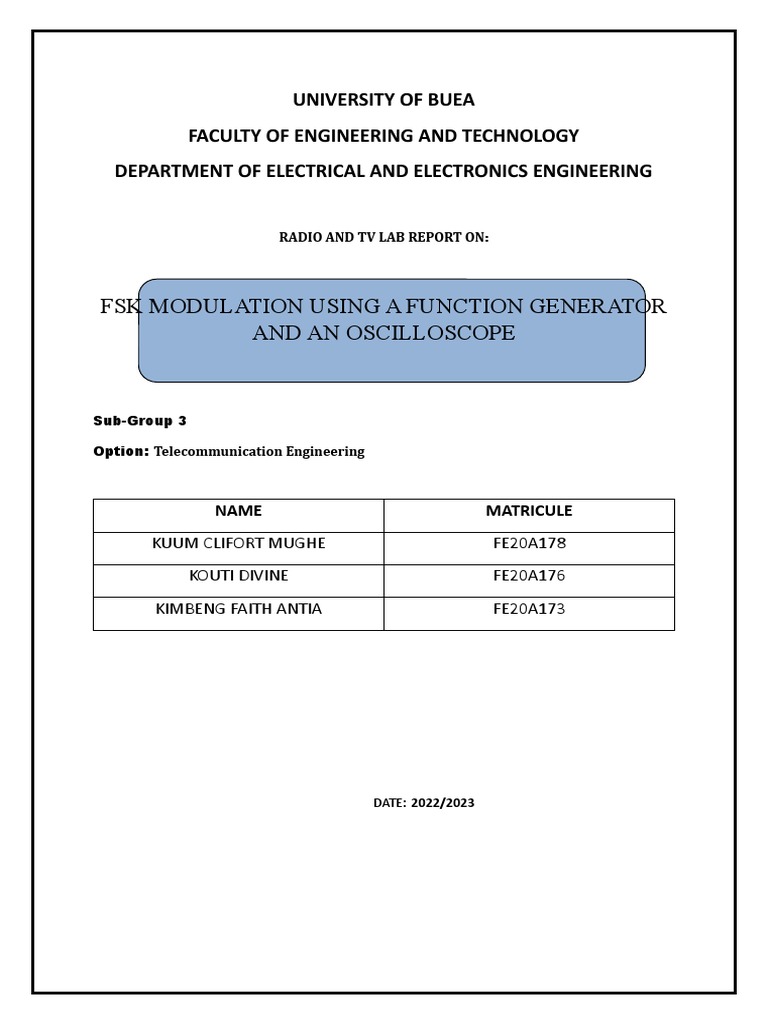

UNIVERSITY OF BUEA

FACULTY OF ENGINEERING AND TECHNOLOGY

DEPARTMENT OF ELECTRICAL AND ELECTRONICS ENGINEERING

RADIO AND TV LAB REPORT ON:

FSK MODULATION USING A FUNCTION GENERATOR

AND AN OSCILLOSCOPE

Sub-Group 3

Option: Telecommunication Engineering

NAME MATRICULE
KUUM CLIFORT MUGHE FE20A178
KOUTI DIVINE FE20A176
KIMBENG FAITH ANTIA FE20A173

DATE: 2022/2023
 PRACTICAL WORK

Introduction

Frequency-shift keying (FSK) is a method of transmitting digital signals over an analog

communication channel. In FSK modulation, the frequency of the carrier signal is varied to
represent digital data. In this lab, we will demonstrate FSK modulation using only an oscilloscope
and a function generator.

Aim: To implement FSK modulation using a function generator and an oscilloscope

Materials needed:
 Oscilloscope
 Function generator
 BNC cables

DIAGRAM:

Procedure

1. The function generator was connected to the oscilloscope using a BNC cable.
2. The function generator was set to produce a sine wave with a frequency of 8kHz and amplitude
of 1.
3. Corresponding waveform was observed on the oscilloscope.
4. The frequency of the function generator was change to 5kHz.
5. The waveform was observed on the oscilloscope.

Results

When the function generator produced a sine wave with a frequency of 8kHz, the waveform on
the oscilloscope appeared as follows:

Discussion

The results show that when the frequency of the function generator was changed from 8kHz to
5kHz, the waveform on the oscilloscope changed accordingly. This demonstrates FSK modulation,
where the frequency of the carrier signal is varied to represent digital data.

Conclusion
 In this lab, we demonstrated FSK modulation using only an oscilloscope and a function
generator. The results showed that the frequency of the carrier signal can be varied to represent
digital data. This simple setup can be used to demonstrate basic concepts of FSK modulation

SIMULATION

requirements
 Simulink software

DIAGRAM:

Procedure
1. Simulink was opened and a new model was created.
2. From the Simulink Library Browser, drag and drop a "Sine Wave" block onto the model.
3. Double-click the "Sine Wave" block to open its parameters.
4. Set the frequency of the sine wave to 1kHz and amplitude to 1.
5. From the Simulink Library Browser, drag and drop a "Frequency Shift Keying Modulator
Baseband" block onto the model.
6. Connect the output of the "Sine Wave" block to the input of the "Frequency Shift Keying
Modulator Baseband" block.
7. Double-click the "Frequency Shift Keying Modulator Baseband" block to open its parameters.
8. Set the "Mark Frequency" parameter to 1kHz and "Space Frequency" parameter to 2kHz.
9. From the Simulink Library Browser, drag and drop a "Scope" block onto the model.
10. Connect the output of the "Frequency Shift Keying Modulator Baseband" block to the input of
the "Scope" block.
11. Run the simulation.

Results
When the simulation was run, the waveform on the scope appeared as follows:

Discussion
The simulation results show that FSK modulation can be easily demonstrated using Simulink. The
parameters of the FSK modulator can be easily adjusted to demonstrate different frequencies and
data rates. Simulink can also be used to simulate other modulation techniques and
communication systems.
Conclusion
In this simulation, we demonstrated FSK modulation using Simulink. The simulation results
showed that the frequency of the carrier signal can be varied to represent digital data. Simulink
provides a powerful tool for simulating communication systems and demonstrating modulation
techniques. The simulation results can be used to design and optimize FSK communication
systems.
