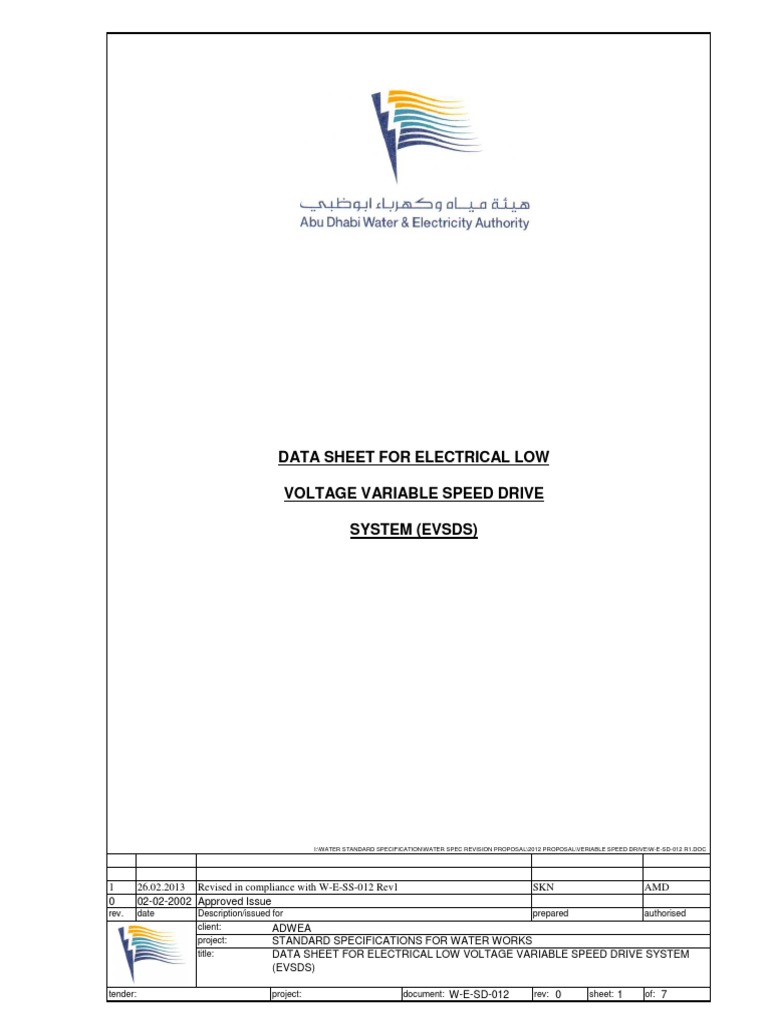

DATA SHEET FOR ELECTRICAL LOW
VOLTAGE VARIABLE SPEED DRIVE
SYSTEM (EVSDS)
I:\WATER STANDARD SPECIFICATION\WATER SPEC REVISION PROPOSAL\2012 PROPOSAL\VERIABLE SPEED DRIVE\W-E-SD-012 R1.DOC
1 26.02.2013 Revised in compliance with W-E-SS-012 Rev1 SKN AMD

0 02-02-2002 Approved Issue
rev. date Description/issued for prepared authorised
client: ADWEA
project: STANDARD SPECIFICATIONS FOR WATER WORKS
title: DATA SHEET FOR ELECTRICAL LOW VOLTAGE VARIABLE SPEED DRIVE SYSTEM
(EVSDS)
tender: project: document: W-E-SD-012 rev: 0 sheet: 1 of: 7

DATA SHEET FOR ELECTRICAL VARIABLE SPEED DRIVE SYSTEM (EVSDS)
Tag Nos. :
Item Description Unit Data to be filled in
1. Manufacturer
- Name *
- Country *
Local Agent
- Address *
- Telephone *
- Fax *
- Email *
2. Model No. *
3. Standard/Code Applicable IEC
4. Local Conditions
4.1 Location **
4.2 Climate
- Tropical/Arctic/Temperate/Coastal **
desert
o
- Ambient temperature C 46
- Relative humidity **
- Altitude **
4.3 Languages
- Labels English
- Rating plates English
- Documentation English
Notes (Common to all the pages):
1) * These variables to be filled by Vendor/Contractor.
2) ** These variables to be filled by the issuer.
3) All data sheets to be filled for each type/size/rating of equipments offered.
NAME OF TENDERER DATE STAMP & SIGNATURE
Client ADWEA
Project: STANDARD SPECIFICATIONS FOR WATER WORKS
Title: DATA SHEET FOR ELECTRICAL LOW VOLTAGE VARIABLE SPEED DRIVE SYSTEM
(EVSDS)

Tag Nos. :
4.4 Installation
- Indoor/Outdoor **
- Under sunshade/without sunshade **
- Area classification **
5. Design
5.1 System
- (3 phase + Neutral/1 phase + Neutral) **
- **
- Voltage V 400
- Frequency Hz 50
5.2 MOTOR
5.2.1 3 phase star/ 3 phase delta **
5.2.2 Rated Power kW **
5.2.3 Rated Voltage V 400

Rated Current A
5.2.4 Rated Frequency Hz 50
5.2.5 Rated Torque **
5.2.6 Type of driven equipment **
5.3 FREQUENCY CONVERTER
5.3.1 Function
- (Voltage inverter/ Current inverter) *
5.3.2 Input rectifier system

- (Active front end/Low harmonics) *
Client ADWEA
(EVSDS)

Tag Nos. :
5.3.3 DC busbar
- (Common / Separate) *
5.3.4 Bypass switch

- (Required / Not required) Required
5.3.5 Check synchronisation with bypass switch

- (Required / Not required) **
5.3.6 Output frequency range *
5.3.7 Harmonic current distortion compensation

by:
- (choke filter / Mains filter / Special *
transformer)
5.3.8 Radio interference protection according to

VDE 0875
- (Grade N / Grade K) *
5.3.9 Power factor *
5.3.10 Efficiency *
5.3.11 Memory for fault diagnostics

5.3.12 Flying restart facility

- (Required / Not required) Required
5.3.13 PI – Controller
5.3.14 Tachogenerator signal

Client ADWEA
(EVSDS)

Tag Nos. :
5.3.15 Acceleration time *
5.3.16 Starting time *
5.3.17 Deceleration time *
5.3.18 Braking module *

- (Required / Not required)
5.3.19 Control input signals :
Converter on/off
- (Local / Remote / Both) Both
Speed setting
- (Local / Remote / Both) Both
Digital port
- (Parallel / Serial) **
Signals
- (4-20 mA / 0-10 V) **
5.3.20 Control output signals required for CCS :
Alarms
- (NO / NC) **
Bypass closed
- (NO / NC) **
Converter running
- (NO / NC) **
Client ADWEA
(EVSDS)

Tag Nos. :
Converter standby
- (NO / NC) **
Frequency transmission
- (4-20 mA / 0-10 V) **
5.3.21 Harmonic contents (% of fundamental) *

- (Detailed table to be provided)
5.3.22 Reliability date of system elements *

- (Detailed table to be provided)
6.0 CONSTRUCTION
6.1 Converter Panel
6.1.1 Height x Width x Depth *
6.1.2 Mass *
6.1.3 Noise level at 1m dB <72
6.1.4 Cable entry

- (Bottom / Top) *
6.1.5 Cable size and length

- Incoming *
- Outgoing *
6.1.6 Ingress protection

- Open IP (min) IP 20
- Closed IP (min) IP 42
6.1.7 Ventilator in converter panel

- details *
Client ADWEA
(EVSDS)

Tag Nos. :
6.1.8 Anti condensation heater in panel

- details (with Hygrostat) *
6.1.9 Cooling of the converter

- details *
6.1.10 Panel heat load *

7. Paint Finish RAL 7032
8. Inspection and Testing
8.1 Inspection during manufacturing

- Witnessed / Not witnessed
8.2 Routine Tests

- All required ** Yes
- Certificate ** Yes/
- Witnessed/Not witnesses **
8.3 Type Tests

- All required ** Yes/No
- Certificate ** Yes/No
- Witnessed/Not witnesses **
8.4 Performance Tests

- All required Yes
- Certificate Yes
- Witnessed/Not witnesses
8.5 Testing equipments details *
9 Packing
- Requirement as specified
10 Documentation
- Requirement as specified
Client ADWEA
(EVSDS)
