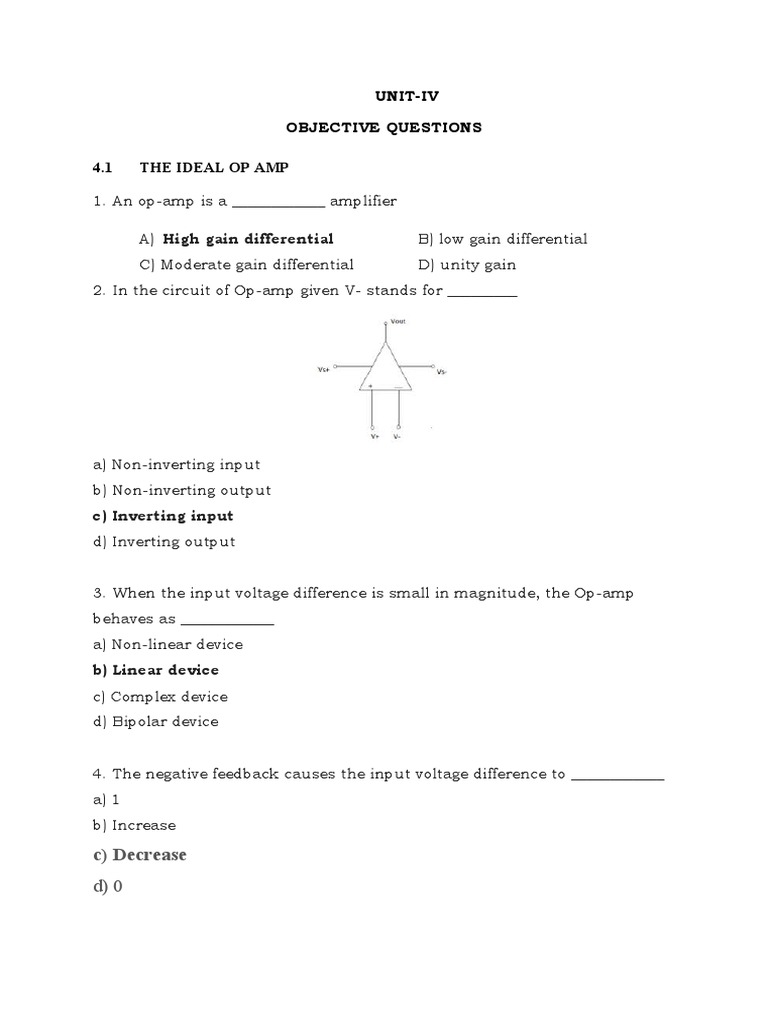

UNIT-IV

OBJECTIVE QUESTIONS

4.1 THE IDEAL OP AMP

1. An op-amp is a ____________ amplifier

A) High gain differential B) low gain differential

C) Moderate gain differential D) unity gain
2. In the circuit of Op-amp given V- stands for _________

a) Non-inverting input
b) Non-inverting output
c) Inverting input
d) Inverting output

3. When the input voltage difference is small in magnitude, the Op-amp

behaves as ____________
a) Non-linear device
b) Linear device
c) Complex device
d) Bipolar device

4. The negative feedback causes the input voltage difference to ____________

a) 1
b) Increase

c) Decrease
d) 0
5. The common-mode rejection ratio of an ideal op-amp is

A) very low B) Infinity C) always unity

D) unpredictable

6. The differential gain of an op-amp is

A) very high B) very low
C) dependent on input voltage D) about 100
7. The output resistance of an ideal operational amplifier is
A) Infinity B) Low C) Very low D) Zero

4.2 THE INVERTING CONFIGURATION

1. Find the gain for the following circuit.

a) -2 b) 2
c) -1 d) 1

2. Calculate the gain for the Op-amp given.

 a) 0.719 b) 2.572
c) 1.390 d) 1.237

3. The input applied to an Inverting amplifier is ______________

a) Equal to output
b) Equal to Inverted output
c) Not equal to output
d) Output is equal to input

4. In R1=10 kΩ, Rf = 100 kΩ, v1=1V. A load of 25 kΩ is connected to the output

terminal. Calculate i1 and vo.

a) 0.5mA, 10V
b) 0.1mA, 10V
c) 0.1mA, -10V
d) 0.5mA, -10V

5.  The advantage of a weighted summer operational amplifier is

a) It is capable of summing various input voltages together

b) Each input signal may be independently adjusted by adjusting the

corresponding input resistance
 c) If one needs both sign of a voltage signal then two operational
amplifiers are needed

d) All of the mentioned

6. The loop gain for an ideal operational amplifier with R1 = 10kΩ and R2
(negative feedback) = 1MΩ is
a) 20 db
b) 40 db
c) 60 db
d) 80 db

4.3 THE NON-INVERTING CONFIGURATION

1. The circuits of an inverting and Non-Inverting amplifying comprises of

__________ and _______ number of resistors.

a) 3, 2
b) 2, 3
c) 2, 2
d) 3, 3

2. For non-inverting amplifier the input and output is

a) out of phase
b) in phase
c) have phase difference 180º
d) have phase difference 90º

3. Op-amp is a

a) Voltage controlled Voltage Source (VCVS)

b) Voltage controlled current source (VCCS)
c) Current controlled Voltage source (CCVS)
d) Current controlled current source (CCCS)

4. The non-inverting closed loop configuration features a high resistance.

Therefore in many cases unity gain follower called buffer amplifier is often
used to

a) Connect a high resistance source to high resistance load

b) Connect low resistance source to low resistance load

c) Connect low resistance source to a high resistance source

d) Connect high resistance source to a low resistance load

5. The gain for an ideal non-inverting operational amplifier is (given R2 is the feedback
resistance)
a) R 2/R 1 – 1
b) R2 /R 1
c) -R2 /R 1
d) R 2/R1  + 1

6. Which of the following statement(s) is true for a voltage follower amplifier?

a) Input voltage is equal to output voltage

b) Input resistance is infinite and output resistance is zero
c) It has 100% negative feedback
d) All of the mentioned
