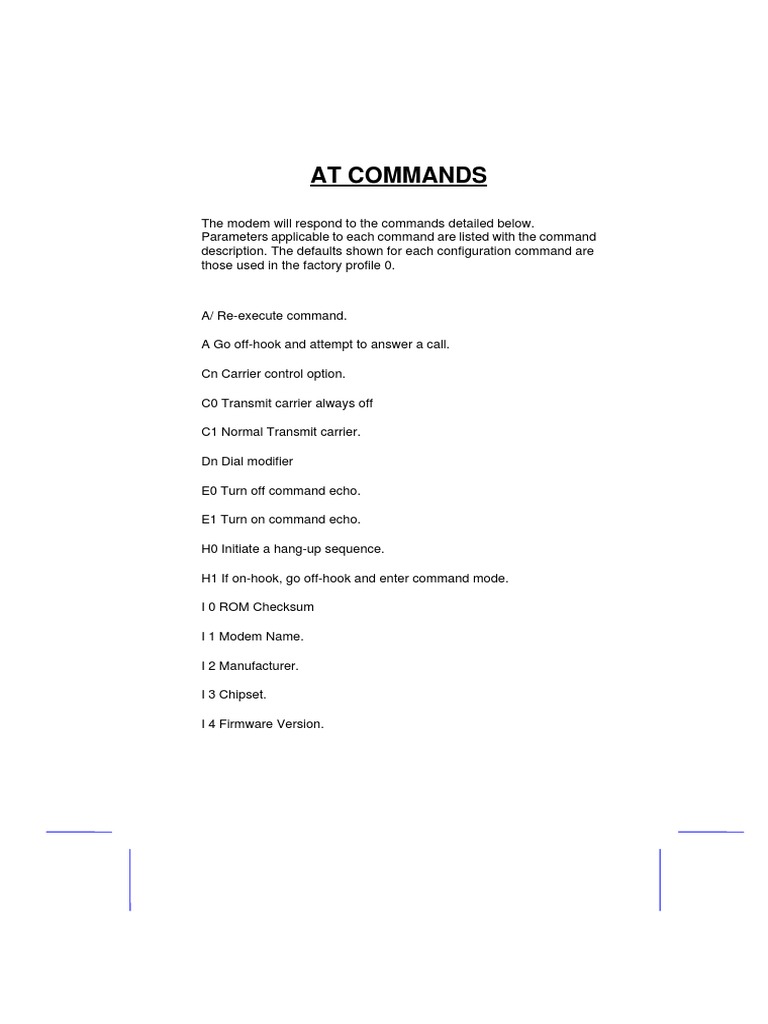

AT COMMANDS

The modem will respond to the commands detailed below.

Parameters applicable to each command are listed with the command
description. The defaults shown for each configuration command are
those used in the factory profile 0.

A/ Re-execute command.

A Go off-hook and attempt to answer a call.

Cn Carrier control option.

C0 Transmit carrier always off

C1 Normal Transmit carrier.

Dn Dial modifier

E0 Turn off command echo.

E1 Turn on command echo.

H0 Initiate a hang-up sequence.

H1 If on-hook, go off-hook and enter command mode.

I 0 ROM Checksum

I 1 Modem Name.

I 2 Manufacturer.

I 3 Chipset.

I 4 Firmware Version.
I 5 Modem Chip Hardware Configuration.

I 6 DSP Patch Level.

I12 Country Code.

L0 Set low speaker volume.

L1 Set low speaker volume(default).

L2 Set medium speaker volume.

L3 Set high speaker volume.

M0 Turn speaker off.

M1 Speaker on until carrier present.

M2 Speaker always on.

M3 Speaker off during dialing and speaker on until carrier present.

On Go online.

O0 Returns modem to Data mode.

O1 Retrains equalizer and then returns to Data mode

O3 Renegotiates rate and then returns to Data mode.

P Force pulse dialing.

Q0 Enable result codes .

Q1 Disable result codes .

Sn Select S-Register as default.

Sn? Return the value of S-Register n.

=v Set default S-Register to value v.

? Return the value of default S-Register.

T Force DTMF dialing.

V0 Choose number form

V1 Choose verbose form.

W0 DTE Data Rate.

W1 DTE Data Rate.

W2 Report DCE speed in EC mode.

W3 Modulation,DCE TX rate,Error Correction,Compression and DTE

data rate

X0 Report basic call progress result codes, i.e., OK, CONNECT, RING,
NO

CARRIER (also, for busy, if enabled, and dial tone detected), NO

ANSWER and ERROR.

X1 Report basic call progress result codes and connections speeds

(OK,CONNECT, RING, NO CARRIER (also, for busy, if enabled, and
dial tone not detected), NO ANSWER, CONNECT XXXX, and ERROR.

X2 Report basic call progress result codes and connections speeds,

i.e.,OK, CONNECT, RING, NO CARRIER (also, for busy, if enabled,
and dial tone not detected), NO ANSWER, CONNECT XXXX, and
ERROR.

X3 Report basic call progress result codes and connection rate, i.e.,
OK, CONNECT, RING, NO CARRIER, NO ANSWER, CONNECT
XXXX,BUSY and ERROR.
X4 Report all call progress result codes and connection rate, i.e.,
OK,CONNECT, RING, NO CARRIER, NO ANSWER, CONNECT
XXXX,BUSY, NO DIAL TONE and ERROR.

Y0 Disable long space disconnect before on-hook.

Y1 Enable long space disconnect before on-hook.

Z0 Restore stored profile 0 after warm reset

Z1 Restore stored profile 1 after warm reset

&C0 Force RLSD active regardless of the carrier state.

&C1 Allow RLSD to follow the carrier state.

&G0 Disable guard tone.

&G1 Disable guard tone.

&G2 Enable 1800 Hz guard tone.

&K0 Disable DTE/DCE flow control.

&K3 Enable RTS/CTS and XON/XOFF flow control.

&K4 Enable XON/XOFF and DTE/DCE flow control.

&P0 Set 10 pps pulse dial with 39% / 61% make/break.

&P1 Set 10 pps pulse dial with 33% / 67% make/break.

&S0 DSR is always active

&S1 DSR acts per V.25

&T0 Terminate test in progress.

&T1 Initiate local analog loopback.

&V Display current configurations.

&V0 View active profile and stored profile 0

&V1 View active profile and stored profile 1

&W Store the active profile in NVRAM profile 0.

&W0 Store in active profile 0.

&W1 Store in active profile 1.

&Y0 Recall stored profile 0 on power –up.

&Y1 Recall stored profile 1 on power –up.

&Zn Store telephone number(up to 30 digits)to location’n’(0-3)

%E0 Disable line quality monitor and auto retrain.

%E1 Enable line quality monitor and auto retrain.

%G0 Disabled.

%G1 Enabled.

AT+PCW

Defines the actions to be taken upon detection of call waiting

Values:

0 – user decision (default)

1 – Hang up

2 – Ignore call waiting

AT+PMH

Controls whether or not initiation of MOH procedures are enabled

during V.92 operation

Values:

0 – Enable (default)

1 – Disable

AT+PMHT

Controls whether or not the modem will grant or deny a MOH request
as well as setting the Modem-on-Hold-Timeout.

Values:

0 – Deny V.92 MOH Requests (default)

1~12 – Grant 10 seconds – 16 minutes timeout.

13 – Grant indefinite time

AT+PMHR

If in hold state, displays the current hold timeout.

If not in hold stats, initiates OGC and displays the server’s hold timeout.

AT+PMHF

If entered when call waiting arrives, performs the operations required to

accept the call waiting (e.g. flash)

AT+PHSW

This command causes the DCE to activate/de-activate the hook relay

for supporting the 2C relay.
0 – connects the telco terminals to the modem.

1 – connects the telco terminals to the phone terminals

AT+PIG

PCM Upstream Ignore:This command controls the use of PCM

upstream in a V.92 DCE.

0 – Enables V.92 modem on hold.

1 – Disables V.92 modem on hold.

AT+PQC

V.92 Phase 1 and Phase 2 Control: This command controls the global
enabling or disabling of the V.92 shortened Phase 1 and Phase 2
startup procedures, not the initiation thereof. This command is used in
conjunction with the +PSS command.

0 - Enable Short Phase 1 and Short Phase 2

1 - Enable Short Phase 1

2 - Enable Short Phase 2

3 - Disable short Phase 1 and Short Phase 2

AT+PSS

Use Short Sequence: This command causes a calling DCE to force

either a V.92 short or full startup sequence as defined by the +PQC
command on the next and subsequent connections.

0 -The DCEs decide whether or not to use the short startup

procedures. The short startup procedures shall only be used if enabled
by the +PQC command.
1 - Forces the use of the short startup procedures on the next and
subsequent connections if they are enabled by the +PQC command.

2 - Forces the use of the full startup procedures on the next and
subsequent connections independent of the setting of the +PQC
command.

Modem’s S-registers

Register Function Range / unit Default

S0 Number of Rings to Auto-Answer 0-255 / rings 0

S1 Ring Counter 0-255 / rings 0

S2 Escpae Character 0-127 / ASCII 43

S3 Carriage Return Character 0-127 / ASCII 13

S4 Line Feed Character 0-127 / ASCII 10

S5 Backspace Character 0-32,127 / ASCII

8

S6 Wait Time for Dial Tone 2-255 / s 2

S7 Wait Timer for Carrier 1-255 / s 60

S8 Pause Time for Dial Delay 0-255 / s 2

S9 Carrier Detect Response Time 1-255 / 0.1s 6

S10 Lost Carrier to Hang Up Delay 1-255 / 0.1s 14

S11 DTMF Tone Duration 50-255/0.001s 70

S12 Escpae Code Guard Time 0-255 / 0.02s 50

S13 Reserved

S14 General Bit Mapped Options 138

S15 Reserved

S16 General Bit Mapped Test Options 0

Register Function Range/Unit Default

S17 Reserved

S18 Test Timer 0-255 / s 0

S19 Reserved

S20 Reserved

S21 V.24/General Bit Mapped Options 48

S22 Speaker/Results Bit Mapped Options

118

S23 Reserved

S24 Reserved

S25 Delay To DTR 0-255 /0.01s

5

S26 Reserved

S27 Reserved
S28 Reserved

S29 Reserved

S30 Disconnect Inactivity Timer 0-255 /10s 0

S31 Reserved

S32 Reserved

S33 Sleep mode timer 0-90 / s 10

V.92 Modem Advanced Use
For V.92 User：Enable Call Waiting；Modem on Hold；V.92 phase
1 and phase 2 Control

Execute procedure：

Double Click on “My Computer” IconÆDouble Click on “Dia-up

Networking” itemÆ Right click ”My Connection” then select
“Properties”

In “Connect Using” the item select “536EP V.92 Modem” then Click
on “Configure” Tab

Click on “Connection” Tab

Click on “Advanced” Tab

The “Extra Settings” a grid to write in

“+PSS=0;+PCW=0;+PQC=0;+PMH=0” these commands.

Click “OK” Close all open windows
