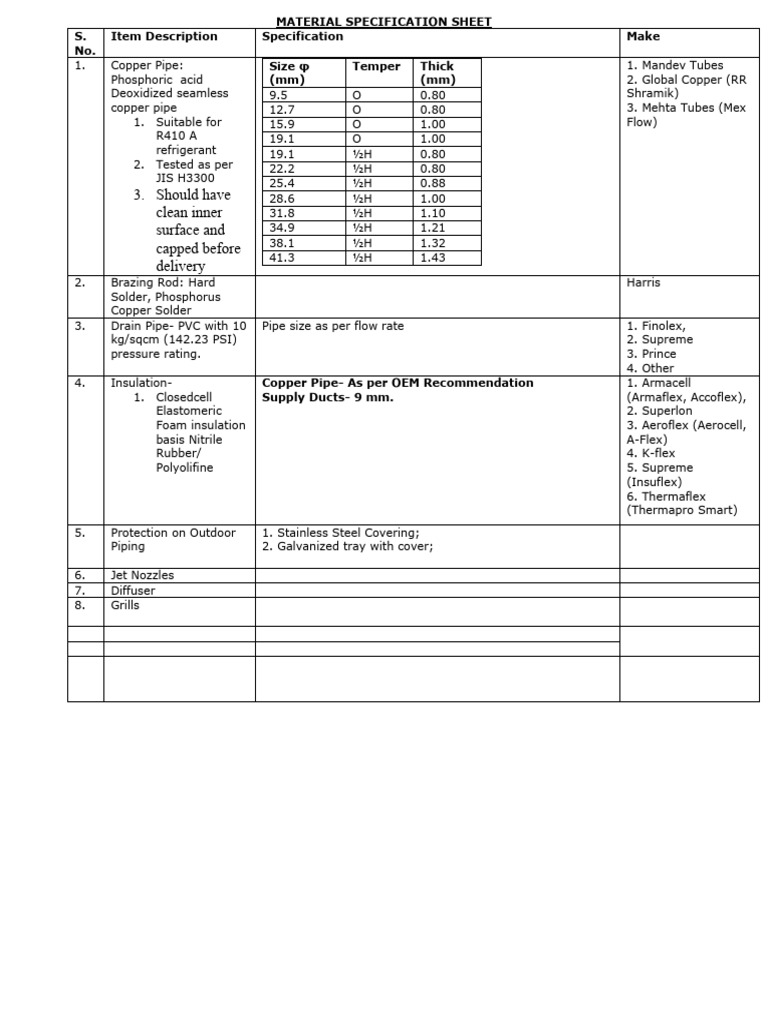

MATERIAL SPECIFICATION SHEET

S. Item Description Specification Make


No.
1. Copper Pipe: Size φ Temper Thick 1. Mandev Tubes
Phosphoric acid (mm) (mm) 2. Global Copper (RR
Deoxidized seamless 9.5 O 0.80 Shramik)
copper pipe 12.7 O 0.80 3. Mehta Tubes (Mex
1. Suitable for 15.9 O 1.00 Flow)
R410 A 19.1 O 1.00
refrigerant 19.1 ½H 0.80
2. Tested as per 22.2 ½H 0.80
JIS H3300 25.4 ½H 0.88
3. Should have 28.6 ½H 1.00
clean inner 31.8 ½H 1.10
surface and 34.9 ½H 1.21
38.1 ½H 1.32
capped before
41.3 ½H 1.43
delivery
2. Brazing Rod: Hard Harris
Solder, Phosphorus
Copper Solder
3. Drain Pipe- PVC with 10 Pipe size as per flow rate 1. Finolex,
kg/sqcm (142.23 PSI) 2. Supreme
pressure rating. 3. Prince
4. Other
4. Insulation- Copper Pipe- As per OEM Recommendation 1. Armacell
1. Closedcell Supply Ducts- 9 mm. (Armaflex, Accoflex),
Elastomeric 2. Superlon
Foam insulation 3. Aeroflex (Aerocell,
basis Nitrile A-Flex)
Rubber/ 4. K-flex
Polyolifine 5. Supreme
(Insuflex)
6. Thermaflex
(Thermapro Smart)
5. Protection on Outdoor 1. Stainless Steel Covering;
Piping 2. Galvanized tray with cover;

6. Jet Nozzles
7. Diffuser
8. Grills
