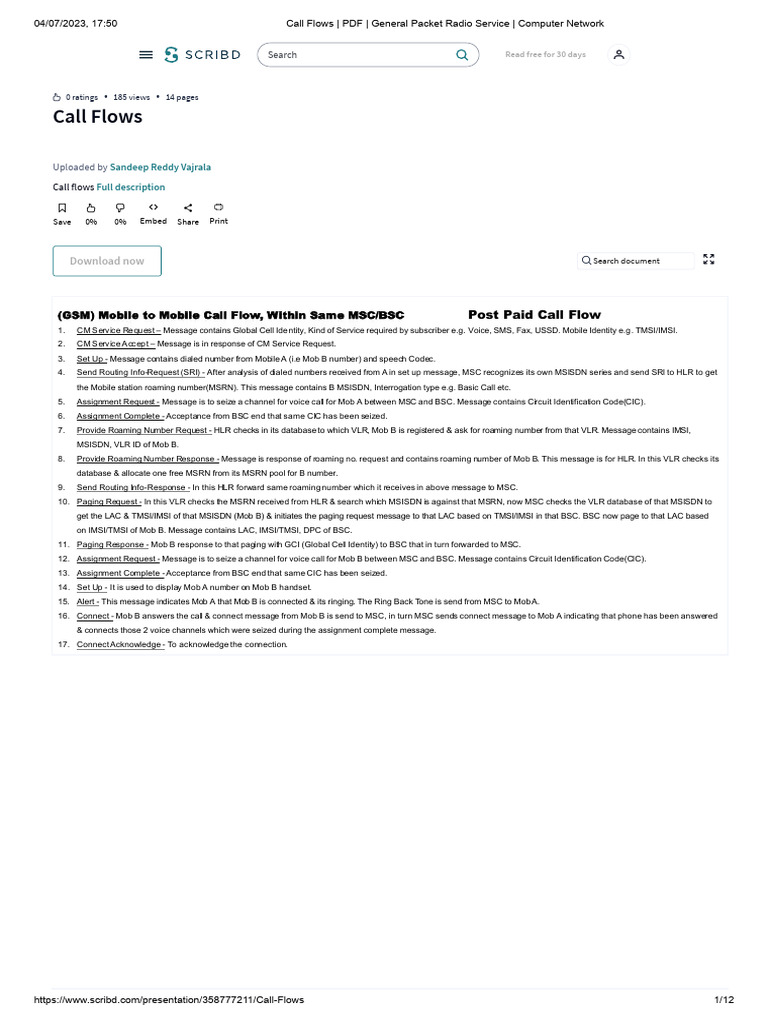

Post Paid Call Flow

1. CM Service Request – Message contains Global Cell Ide ntity, Kind of Service required by subscriber e.g. Voice, SMS, Fax, USSD. Mobile Identity e.g . TMSI/IMSI.
2. CM Service Accept – Message is in response of CM Service Request.
3. Set Up - Message contains dialed number from Mobile A (i.e Mob B number) and speech Codec.
4. Send Routing Info-Request (SRI) - After analysis of dialed numbers received from A in set up message, MSC recognizes its own MSISDN series and send SRI to HLR to get
the Mobile station roaming number(MSRN). This message contains B MSISDN, Interrogation type e.g. Basic Call etc.
5. Assignment Request - Message is to seize a channel for voice call for Mob A between MSC and BSC. Message contains Circuit Identification Code(CIC).
6. Assignment Complete - Acceptance from BSC end that same CIC has been seized.
7. Provide Roaming Number Request - HLR checks in its database to which VLR, Mob B is registered & ask for roaming number from that VLR. Message contains IMSI,
MSISDN, VLR ID of Mob B.
8. Provide Roaming Number Response - Message is response of roaming no. request and contains roaming number of Mob B. This message is for HLR. In this VLR checks its
database & allocate one free MSRN from its MSRN pool for B number.
9. Send Routing Info-Response - In this HLR forward same roaming number which it receives in above message to MSC.
10. Paging Request - In this VLR checks the MSRN received from HLR & search which MSISDN is against that MSRN, now MSC checks the VLR database of that MSISDN to
get the LAC & TMSI/IMSI of that MSISDN (Mob B) & initiates the paging request message to that LAC based on TMSI/IMSI in that BSC. BSC now page to that LAC based
on IMSI/TMSI of Mob B. Message contains LAC, IMSI/TMSI, DPC of BSC.
11. Paging Response - Mob B response to that paging with GCI (Global Cell Identity) to BSC that in turn forwarded to MSC.
12. Assignment Request - Message is to seize a channel for voice call for Mob B between MSC and BSC. Message contains Circuit Identification Code(CIC).
13. Assignment Complete - Acceptance from BSC end that same CIC has been seized.
14. Set Up - It is used to display Mob A number on Mob B handset.
15. Alert - This message indicates Mob A that Mob B is connected & its ringing. The Ring Back Tone is send from MSC to Mob A.
16. Connect - Mob B answers the call & connect message from Mob B is send to MSC, in turn MSC sends connect message to Mob A indicating that phone has been answered
& connects those 2 voice channels which were seized during the assignment complete message.
17. Connect Acknowledge - To acknowledge the connection.
https://www.scribd.com/presentation/358777211/Call-Flows 1/12
Post Paid Call Flow
A Mobile User calling a Land Line Subscriber.

1. MS after dialing a number & pressing SEND key, sends Channel Request(Chan_Req) message on RACH to ask for a signaling channel
(Radio Resources). [RACH - Random Access Channel]
2. The BSC allocates a Traffic Channel(TCH) using AGCH. TCH allocation assigns a specific Frequency & a Timeslot on that frequency.
[AGCH - Access Grant Channel]
3. The MS sends a call setup request through SDCCH, to the MSC/VLR. [SDCCH - slow dedicated control channel]. Over SDCCH, all
signaling takes place. This includes: marking the MS status as active in the VLR
4. Then comes Authentication Procedure which includes Ciphering (The channel is ciphered so as to protect the call), Equipment
Identification, etc.
5. The MSC/VLR instructs the BSC to allocate an Idle TCH (this message contains the dialed digits and other information needed for call
establishment). The BTS and MS are told to tune to the TCH.
6. The MSC allocates a voice circuit on one the digital trunks between the MSC and the BSS.
7. MSC informs the BSS about the allocated voice circuit. The call is also switched from signaling to voice.
8. The BSS notifies the Mobile about the changeover to voice mode.
9. The MSC routes the call and sends the call towards the called subscriber.
10. The PSTN indicates to the MSC that it has received all the digits and the called subscriber is being rung.
11. The MSC informs the mobile that the called subscriber is being alerted via a ring.
12. The called subscriber answers the call.
GSM Mobile Terminated Call

A Land Line Subscriber calling a Mobile Subscriber.
The main difference between a call to an MS and a call from an MS is that, the exact location of MS is unknown. Hence, the MS must be located
using paging before a connection can be established.
1. The PSTN subscriber dials the MS’s telephone number (MSISDN), the MSISDN is analyzed in the PSTN, which identifies that this is a call to
a mobile network subscriber. A connection is established to the MS’s home GMSC. The PSTN sends an Initial Address message (IAM) to
the GMSC.
2. The GMSC analyzes the MSISDN to find out which HLR, the MS is registered in, and queries the HLR for information about how to route
the call to the serving MSC/VLR. The HLR looks up the MSISDN and determines the IMSI and the SS7 address for the MSC/VLR that is
servicing the MS. The HLR also checks if the service, “call forwarding to C-number” is activated, if so, the call is rerouted by the GMSC to
that number.
3. The HLR then contacts the servicing MSC/VLR and asks it to assign a MSRN to the call. [MSRN - Mobile Station Routing Number].
4. The MSC/VLR returns an MSRN via HLR to the GMSC.
5. The GMSC sends an Initial Addressing message (IAM) to the servicing MSC/VLR and uses the MSRN to route the call to the MSC/VLR.
Once the servicing MSC/VLR receives the call, the MSRN can be released and may be made available for reassignment.
6. The MSC/VLR then orders all of its BSCs and BTSs to page the MS. Since the MSC/VLR does not know exactly which BSC and BTS the MS is
monitoring, the page will be sent out across the entire Location Area(LA).
7. When the MS detects the paging message to the BTS’s in the desired LA. The BTS’s transmit the message over the air interface using PCH.
To page the MS, the network uses an IMSI or TMSI valid only in the current MSC/VLR service area.
8. When the MS detects the paging message, it sends a request on RACH for a SDCCH.
9. The BSC provides a SDCCH, using AGCH.
10. SDCCH is used for the call set-up procedures. Over SDCCH all signaling preceding a call takes place. This includes: Marking the MS as
“active” in the VLR. Authentication procedure (Start ciphering, Equipment identification).
11. The MSC/VLR instructs the BSC/TRC to allocate an idle TCH. The BTS and MS are told to tune to the TCH. The mobile phone rings. If the
subscriber answers, the connection is established.
Mobile Originated (MO) SMS Flow

SMS MO Call Flow :-
1.The mobile station transfers the short message to the MSC.
2.The MSC queries the VLR to verify that the message transfer does not violate the supplementary services invoked or the restri ctions imposed on the subscriber.
3.The MSC sends the short message to the SMS-IWMSC ( Inter-Working MSC for SMS) using the “forward Short Message” operation.
4.The SMS-IWMSC delivers the short message to the SMSC ( Short Message Service Centre).
5.The SMSC acknowledges the successful outcome of the “ forward Short Message” operation to the MSC.
6.The MSC returns the outcome of the short message operation to the mobile station.
Mobile Terminated (MT) SMS Flow

SMS MT Call Flow :-
1. The Short Message is transferred from SMSC to SMS-GMSC.
2. SMS-GMSC queries the HLR (SRI) & receives the routing information for the mobile subscriber (SRI-ACK).
3. The SMS-GMSC sends the short message to the MSC using "Forward Short Message" (FSM) operation.
4. The MSC retrieves the subscriber information from the VLR. This operation may include the Authentication Procedure.
5. The MSC transfers short message to the Mobile Station (MS).
6. The MSC returns the outcome of the "Forward Short Message" operation to the SMS-GMSC (FSM-ACK).
7. If requested by the SMSC, it returns a status report indicating Delivery of the Short Message.
GPRS Call Flow

1. GPRS (General Packet Radio Service) is a packet based communication service for mobile devices that allows data to be sent and received across
a mobile telephone network. It's a step towards 3G and is often referred to as 2.5G.
2. It’s an upgrade to the existing network that sits along side the GSM network. Many of the devices such as the BTS and BSC are still used. Often
devices need to be upgraded be it software, hardware or both. When deploying GPRS many of the software changes can be made remotely.
3. There are however 2 New Functional Elements which play a major role in how GPRS works - SGSN & GGSN. In simple terms there are in practice
two different networks working in parallel, GSM and GPRS.
4. In any GSM network there will be several BSC’s. When implementing GPRS a software and hardware upgrade of this unit is required. The hardware
upgrade consists of adding a PCU (Packet Control Unit). This extra piece of hardware differentiates data destined for the standard GSM network or
Circuit Switched Data and data destined for the GPRS network or Packet Switched Data.
5. PCU can be a separate entity.
SGSN (Serving GPRS Support Node) - It takes care of some important tasks, including Routing, Handover and IP address assignment. Its a
logical connection to the GPRS device. One job of the SGSN is to make sure the connection is not interrupted as you make your journey
passing from cell to cell. It works out which BSC to “route” your connection through. If the user moves into a segment of the network that is
managed by a different SGSN it will perform a handoff to the new SGSN, this is done extremely quickly and generally the user will not notice
this has happened. Any packets that are lost during this process are retransmitted. The SGSN converts mobile data into IP and is connected
to the GGSN via a tunneling protocol.
GGSN (Gateway GPRS support node) - It is the “last port of call” in the GPRS network before a connection between an ISP (Internet
Service Provider) or corporate network’s router occurs. The GGSN is basically a gateway, router and firewall. It also confirms user details with
RADIUS servers for security, which are usually situated in the IP network and outside of the GPRS network.
The connection between the two GPRS Support Nodes is made with a protocol called GPRS Tunneling Protocol (GTP). GTP sits on
top of TCP/IP and is also responsible for the collection of mediation and billing information. GPRS is billed on per megabyte basis.
GPRS Call Flow
GPRS Call Scenario :-
1. A subscriber accesses the Internet with GPRS mobile phone to set the APN (Access Point Names) & gateway IP address defined on subscription. In fact, APN is a
logical name indicating the e xternal data network in GGSN. A subscriber can select different GGSNs via different APNs. Currently, however, only one APN can be
activated at a time. The purpose of se lecting different APNs is to access the externa l network via different GGSNs, because without GGSN, a subscriber cann ot access
the PDN (Public Data Network). An APN consists of a fully qualified DNS (Domain Name Server) name e.g. airtellive.com.cn., which should be parsed by DNS to get the
real IP address of GGSN.
2. The call reaches the SGSN of the GPRS network. The SGSN triggers the service in the corresponding SCP (Service Control Point) according to subscriber's
authentication information on the HLR interconnected to the corresponding home SCP for processing.
3. The DNS parses the APN and get the IP address of the GGSN.
4. The call is routed to the GGSN according to the IP address.
5. The GGSN assigns the IP address to the subscriber.
6. After SCP verifies the subscriber, the subscriber begins to transmit data and log in to the external web sites via the gateway whose IP address is set in the mobile
phone.
7. The subscriber may select the service from the portal web site to connect the SP/CP web site that provides the service, or enter the IP address of the SP/CP in the
mobile phone to access the SP/CP web site.
Normal Prepaid (IN) Call Flow

The above flow describes a basic direct dial call scenario with normal call termination:
1. Mobile A starts a new call by dialing Mobile B.
2. The MSC sends an IDP (Initial Detection Point) event, which notifies the IN-SCP of the new call.
IDP Message Contains :- A-Party no, B-Party no., Service key=90, A Party Location, Time stamp.
3. The IN SCP processes the request and after authorizing the user, the IN SCP sends 3 IN messages to the MSC -
•AC (Apply Charging) :- Check the A-Party Balance / tariff related facilities & provides maximum granted time for a
call.
•CIQ (Call Information Query) :- IN request from the MSC for call information, likeCAET - Call Attempt Elapsed Time
(time between call ringing & user picks the call), CCET - Call Connect Elapsed Time (Duration of a call), CST - Call
Stop Time (exact time when call disconnect), RC - Release Cause (Exact release cause due to which call got
disconnected).
•RRBCSM (Request Report Basic Call State Module) :- IN again request from MSC for detailed Release Cause.
4. Connect :- After getting everything OK i.e. all request from IN side have been done then IN sends a Connect message to
MSC for further call processing & connect the call.
5. Activity Test :- After IN provides "connect" message to MSC, its a sort of ping message which is unidirectional, sent by IN
to MSC, to know the progress of a call.
6. Once the connection is made, an event report (for answer event) is sent to SDP via IN-SCP for preventing any revenue
loss.
7. After conversation, when call gets disconnected, a new event report is sent to SDP via IN- SCP, which in turn instructs to
release the call.
8. Once the call is released, a new Apply Charging Report (ACR) is sent to IN-SCP, which contains full time usage data of a
call. This report is sent to SDP for accurate & final call charging.
9. CIR (Call Information Report) :- By using the details which was noted in CIQ message, MSC makes a report i.e. CIR (which
contains CAET, CCET, CST, RC) & sends to SDP via IN-SCP.
10. ERB (Evert Report BCSM) :- Another report send by MSC to IN, which contains actual release cause in details, which
may be - Abandon, B-Party Busy, B-Party no answer, B-Party not reachable, route selection failure, disconnect.
11. Finally signaling terminates, which ends the call.
SIP (Session Initiation Protocol) Call Flow

•S cenari o:
A Number wants to call B Number which is catered by PSTN B.
PSTN A to MSS X protocol used in ISUP.
•MSS X to MSS Y protoco l used in SIP.
•MSS Y to PSTN B protocol is ISUP.
1) After receiving IAM from PSTN A with called party number as B number MSS X after number analysis detects the B number has to be routed to MSS Y which is connected
by SIP. MSS X send a INVITE message.
Major components of INVITE are "Called Party", "Calling Party", "Bearer information", "Codec".
2) MSS Y receives INVITE and responds with 100 (Trying) message.

This response indicates that the request has been received by the next-hop server and that some unspecified action is being taken on behalf of this call (for example, a
database is being consulted). At the same time after number analysis its send IAM to PSTN B.
3) MSS Y send 183 message to MSS X. This message is called as Session progress indicated that session is in progress. In response to 183 MSS A sends PRACK. PRACK
(PRovisional ACKnowledgement) is like any another request within a dialog.
** PRACK is response for 1XX mesages
ACK is response for 2XX messages.
4) After analysis of B number PSTN B sends ACM with "Called Party status indicator = no indication" to MSS Y. MSS Y sends 200 message to MSS X in turn MSS X forwards
ACM message to PSTN A.
5) When B number starts ringing PSTN B send CPG message with "Called Party status indicator = Subscriber free". Indicates that subscriber is free and ringing.
MSS Y send 180 ringing message to MSS X.
Which is communicated to PSTN A in CPG message and A number can hear a ringtone.
6) B number answers the call in respon se PSTN B send ANM message to MSS Y. MSS Y send 200(With ANM) message to MSS X. MSS X respon ds with ACK , also
forwards ANM message to PSTN A. At this point of time speech path is through.
7) After conversation A number releases the call. REL is send from PSTN A to MSS X in response MSS X sends BYE message to MSS Y. MSS Y send the REL message to
PSTN B.
8) PSTN B release the resources and resp ond with RLC message to MSS Y. MSS Y relays the 200(with RLC) message to MSS X. RLC is then forwarded to PSTN A. This
complete the release of all resources used for call.
SIP (Session Initiation Protocol) Call Flow
Roaming Call Flow

Pos tpaid S ubscr iber MT Call Flow :-
1. Mobile (MS A) dials Mobile (MS B) Number (which is of Circle 2 but currently in roaming at Circle 1).
2. "Connect" msg is sent from MS A to MSC A, which analyze B-Number & found it's of different circle, so it route the call to GMSC A.
3. After receiving IAM from GMSC A, GMSC B initiates the SRI request to HLR B.
4. In Normal Scenario, i.e. Postpaid MT call flow, GMSC B will initiate the SRI query to HLR B & HLR B will ask for PRN from MSC B (in which
MS B currently present), & MSC B will respond to that query by providing MSRN number to GMSC B via HLR B, but here,
5. Since MS B is in Roaming at Circle 1, so HLR B will ask for PRN from MSC C, via GMSC B & GMSC C.
6. MSC C provides the MSRN to GMSC A via GMSC C & GMSC B
7. After receiving MSRN by GMSC A, MSC A routes the call to MSC C.
8. Now, ISUP msgs (IAM, ACM, ANM, REL, RLC) is sent from MSC A to MSC B, to complete the call.
Reward Your Curiosity

Everything you want to read.
Anytime. Anywhere. Any device.
Read free for 30 days
No Commitment. Cancel anytime.
Share this document

    
You might also like
Document 7 pages
GSM - SMS - Call flow basics

Antony Jeba Valan
No ratings yet
Document 19 pages
call flow.
madhunath
No ratings yet
Ebook 49 pages
Mobile Network Optimization: A Guide for 2G and 3G Mobile Network Optimization

Emmanuel Usuah
 3.5/5 (3)
Document 17 pages
Signal Tracing
madhunath
No ratings yet
Document 4 pages
call flow
Sarwar Pasha Mohammed
No ratings yet
Document 6 pages
Gsm Call Setup

Arockiaruby Ruby
No ratings yet
Document 5 pages
MTS
ishita
No ratings yet
Document 20 pages
GSM CALL FLOW

Ajit Chauhan
100% (2)
Document 4 pages
New Microsoft Word Document

nagendra_badam
No ratings yet
Document 2 pages

E-Trần Cm
No ratings yet
Document 1 page
MT1
nilanshumanas
No ratings yet
Document 5 pages
Naeem
Kiramat Aziz
No ratings yet
Related titles
Document Document Ebook Document Document
GSM - SMS - Call call flow. Mobile Network Signal Tracing call flow
flow basics Added by madhunath Optimization: A… Added by madhunath Added by Sarwar…
Added by Antony Je… Emmanuel Usuah
0 ratings 0 ratings 0 ratings 0 ratings

3.5/5
About Support Legal Social
About Scribd Help / FAQ Terms Instagram
Press Accessibility Privacy Twitter
Our blog Purchase help Copyright Facebook
Join our team! AdChoices Cookie Preferences Pinterest
Contact us Publishers Do not sell or share my

personal information
Invite friends
Gifts
Scribd for enterprise
Get our free apps
Audiobooks • Books • Documents • Magazines • Podcasts • Sheet music • Snapshots
Language: English
Copyright © 2023 Scribd Inc.

Call Flows

Uploaded by

Document Information

Original Description:

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

Call Flows

Uploaded by

Copyright:

Available Formats

04/07/2023, 17:50 Call Flows | PDF | General Packet Radio Service | Computer Network

Search Read free for 30 days

· 185 views · 14 pages

Uploaded by Sandeep Reddy Vajrala

Call flows Full description

Download now  Search document 

Post Paid Call Flow

Post Paid Call Flow

A Mobile User calling a Land Line Subscriber.

GSM Mobile Terminated Call

GSM Mobile Terminated Call

Mobile Originated (MO) SMS Flow

Mobile Terminated (MT) SMS Flow

GPRS Call Flow

GPRS Call Flow

GPRS Call Scenario :-

Normal Prepaid (IN) Call Flow

1. Mobile A starts a new call by dialing Mobile B.

11. Finally signaling terminates, which ends the call.

SIP (Session Initiation Protocol) Call Flow

2) MSS Y receives INVITE and responds with 100 (Trying) message.

SIP (Session Initiation Protocol) Call Flow

Roaming Call Flow

Reward Your Curiosity

Read free for 30 days

No Commitment. Cancel anytime.

Share this document

You might also like

GSM - SMS - Call flow basics

Mobile Network Optimization: A Guide for 2G and 3G Mobile Network Optimization

Gsm Call Setup

GSM CALL FLOW

New Microsoft Word Document

GSM Mobile Terminated Call

Document Document Ebook Document Document

0 ratings 0 ratings 0 ratings 0 ratings

About Support Legal Social

About Scribd Help / FAQ Terms Instagram

Press Accessibility Privacy Twitter

Our blog Purchase help Copyright Facebook

Join our team! AdChoices Cookie Preferences Pinterest

Contact us Publishers Do not sell or share my

Scribd for enterprise

Get our free apps

Audiobooks • Books • Documents • Magazines • Podcasts • Sheet music • Snapshots

Copyright © 2023 Scribd Inc.

You might also like
