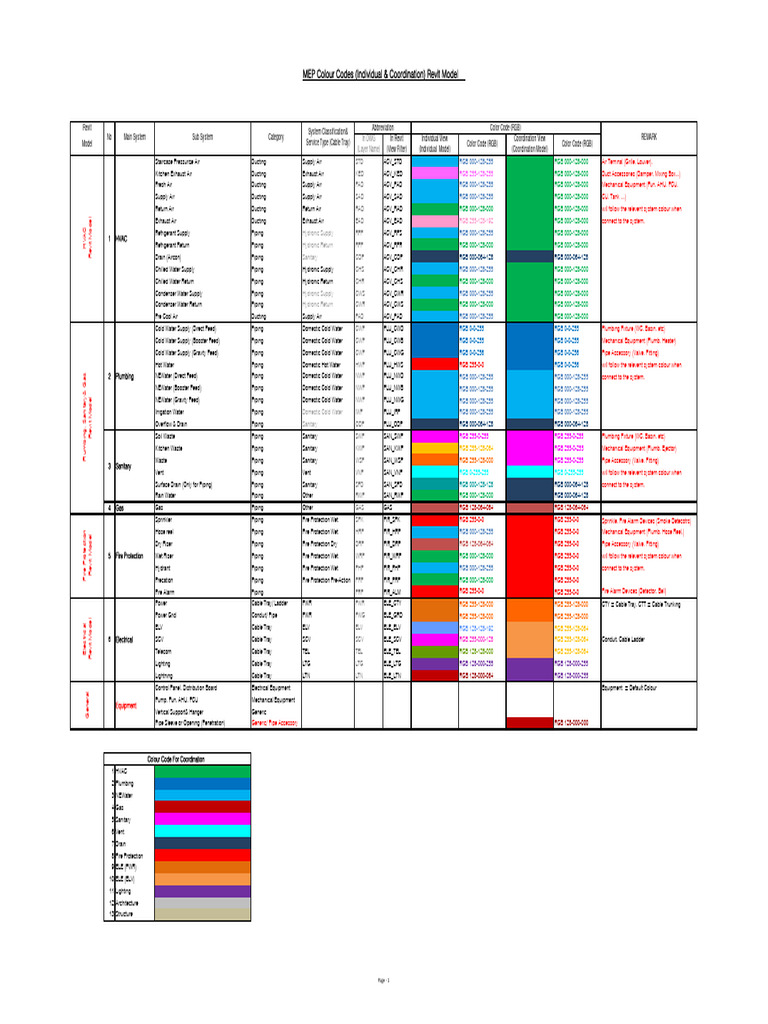

MEP Colour Codes (Individual & Coordination) Revit Model

Revit Abbreviation Color Code (RGB)

System Classification&
No Main System Sub System Category In DWG In Revit Individual View Coordination View REMARK
Model Service Type (Cable Tray) Color Code (RGB) Color Code (RGB)
(Layer Name) (View Filter) (Individual Model) (Coordination Model)
Staircase Pressurize Air Ducting Supply Air STD ACV_STD RGB 000-128-255 RGB 000-128-000 Air Teminal (Grille, Louver),
Kitchen Exhaust Air Ducting Exhaust Air KED ACV_KED RGB 255-128-255 RGB 000-128-000 Duct Accessories (Damper, Mixing Box,..)
Fresh Air Ducting Supply Air FAD ACV_FAD RGB 000-128-255 RGB 000-128-000 Mechanical Equipment (Fun, AHU, FCU,
Supply Air Ducting Supply Air SAD ACV_SAD RGB 000-128-255 RGB 000-128-000 CU, Tank …)
Return Air Ducting Return Air RAD ACV_RAD RGB 000-128-000 RGB 000-128-000 will follow the relevent system colour when
Exhaust Air Ducting Exhaust Air EAD ACV_EAD RGB 255-128-192 RGB 000-128-000 connect to the system.
Revit Model
HVAC

Refrigerant Supply Piping Hydronic Supply RFP ACV_RFS RGB 000-128-255 RGB 000-128-000
1 HVAC
Refrigerant Return Piping Hydronic Return RFP ACV_RFR RGB 000-128-000 RGB 000-128-000
Drain (Aircon) Piping Sanitary CDP ACV_CDP RGB 000-064-128 RGB 000-064-128
Chilled Water Supply Piping Hydronic Supply CHS ACV_CHR RGB 000-128-255 RGB 000-128-000
Chilled Water Return Piping Hydronic Return CHR ACV_CHS RGB 000-128-000 RGB 000-128-000
Condenser Water Supply Piping Hydronic Supply CWS ACV_CWR RGB 000-128-255 RGB 000-128-000
Condenser Water Return Piping Hydronic Return CWR ACV_CWS RGB 000-128-000 RGB 000-128-000
Pre Cool Air Ducting Supply Air PAD ACV_PAD RGB 000-128-255 RGB 000-128-000
Cold Water Supply (Direct Feed) Piping Domestic Cold Water CWP PLU_CWD RGB 0-0-255 RGB 0-0-255 Plumbing Fixture (WC, Basin, etc)
Cold Water Supply (Booster Feed) Piping Domestic Cold Water CWP PLU_CWB RGB 0-0-255 RGB 0-0-255 Mechanical Equipment (Plumb, Heater)
Cold Water Supply (Gravity Feed) Piping Domestic Cold Water CWP PLU_CWG RGB 0-0-256 RGB 0-0-256 Pipe Accessory (Valve, Fitting)
Hot Water Piping Domestic Hot Water HWP PLU_HWS RGB 255-0-0 RGB 0-0-256 will follow the relevent system colour when
2 Plumbing NEWater (Direct Feed) Piping Domestic Cold Water NWP PLU_NWD RGB 000-128-255 RGB 000-128-255 connect to the system.
Plumbing, Sanitary& Gas

NEWater (Booster Feed) Piping Domestic Cold Water NWP PLU_NWB RGB 000-128-255 RGB 000-128-255
NEWater (Gravity Feed) Piping Domestic Cold Water NWP PLU_NWG RGB 000-128-255 RGB 000-128-255
Revit Model

Irrigation Water Piping Domestic Cold Water IWP PLU_IRP RGB 000-128-255 RGB 000-128-255
Overflow & Drain Piping Sanitary ODP PLU_ODP RGB 000-064-128 RGB 000-064-128
Soil Waste Piping Sanitary SWP SAN_SWP RGB 255-0-255 RGB 255-0-255 Plumbing Fixture (WC, Basin, etc)
Kitchen Waste Piping Sanitary KWP SAN_KWP RGB 255-128-064 RGB 255-0-255 Mechanical Equipment (Plumb, Ejector)
Waste Piping Sanitary WSP SAN_WSP RGB 255-128-000 RGB 255-0-255 Pipe Accessory (Valve, Fitting)
3 Sanitary
Vent Piping Vent VNP SAN_VNP RGB 0-255-255 RGB 0-255-255 will follow the relevent system colour when
Surface Drain (Only for Piping) Piping Sanitary SFD SAN_SFD RGB 000-128-128 RGB 000-064-128 connect to the system.
Rain Water Piping Other RWP SAN_RWP RGB 000-128-000 RGB 000-064-128
4 Gas Gas Piping Other GAS GAS RGB 128-064-064 RGB 128-064-064
Sprinkler Piping Fire Protection Wet SPK FIR_SPK RGB 255-0-0 RGB 255-0-0 Sprinkle, Fire Alarm Devices (Smoke Detecotrs)
Hose reel Piping Fire Protection Wet HRP FIR_HRP RGB 000-128-255 RGB 255-0-0 Mechanical Equipment (Plumb, Hose Reel,)
Fire Protection
Revit Model

Dry Riser Piping Fire Protection Dry DRP FIR_DRP RGB 128-064-064 RGB 255-0-0 Pipe Accessory (Valve, Fitting)
5 Fire Protection Wet Riser Piping Fire Protection Wet WRP FIR_WRP RGB 000-128-000 RGB 255-0-0 will follow the relevent system colour when
Hydrant Piping Fire Protection Wet FHP FIR_FHP RGB 000-128-255 RGB 255-0-0 connect to the system.
Precation Piping Fire Protection Pre-Action PRP FIR_PRP RGB 000-128-000 RGB 255-0-0
Fire Alarm Piping PRP FIR_ALM RGB 255-0-0 RGB 255-0-0 Fire Alarm Devices (Detector, Bell)
Power Cable Tray/ Ladder PWR PWR ELE_CTY RGB 255-128-000 RGB 255-128-000 CTY = Cable Tray, CTT = Cable Trunking
Power Grid Conduit/ Pipe PWR PWG ELE_GRD RGB 255-128-000 RGB 255-128-000
Revit Model

ELV Cable Tray ELV ELV ELE_ELV RGB 128-128-192 RGB 255-128-064
Electrical

6 Electrical SCV Cable Tray SCV SCV ELE_SCV RGB 255-000-128 RGB 255-128-064 Conduit, Cable Ladder
Telecom Cable Tray TEL TEL ELE_TEL RGB 128-128-000 RGB 255-128-064
Lighting Cable Tray LTG LTG ELE_LTG RGB 128-000-255 RGB 128-000-255
Lightning Cable Tray LTN LTN ELE_LTN RGB 128-000-064 RGB 128-000-255
Control Panel, Distribution Board Electrical Equipment Equipment = Default Colour
General

Pump, Fun, AHU, FCU Mechanical Equipment

Equipment
Vertical Support& Hanger Generic
Pipe Sleeve or Opening (Penetration) Generic/ Pipe Accessory RGB 128-000-000

Colour Code For Coordination

1 HVAC
2 Plumbing
3 NEWater
4 Gas
5 Sanitary
6 Vent
7 Drain
8 Fire Protection
9 ELE (PWR)
10 ELE (ELV)
11 Lighting
12 Architecture
13 Structure
