This document provides the technical specifications for a CNC vertical turning lathe. Key specifications include a maximum swing diameter of 1000mm, maximum turning diameter of 800mm, spindle speed of 1000 RPM, Fanuc control system, accuracy of 10 microns for positioning and 5 microns for repeatability. The lathe is to include accessories such as a voltage stabilizer, coolant system, lubrication system, and more.
This document provides the technical specifications for a CNC vertical turning lathe. Key specifications include a maximum swing diameter of 1000mm, maximum turning diameter of 800mm, spindle speed of 1000 RPM, Fanuc control system, accuracy of 10 microns for positioning and 5 microns for repeatability. The lathe is to include accessories such as a voltage stabilizer, coolant system, lubrication system, and more.
This document provides the technical specifications for a CNC vertical turning lathe. Key specifications include a maximum swing diameter of 1000mm, maximum turning diameter of 800mm, spindle speed of 1000 RPM, Fanuc control system, accuracy of 10 microns for positioning and 5 microns for repeatability. The lathe is to include accessories such as a voltage stabilizer, coolant system, lubrication system, and more.

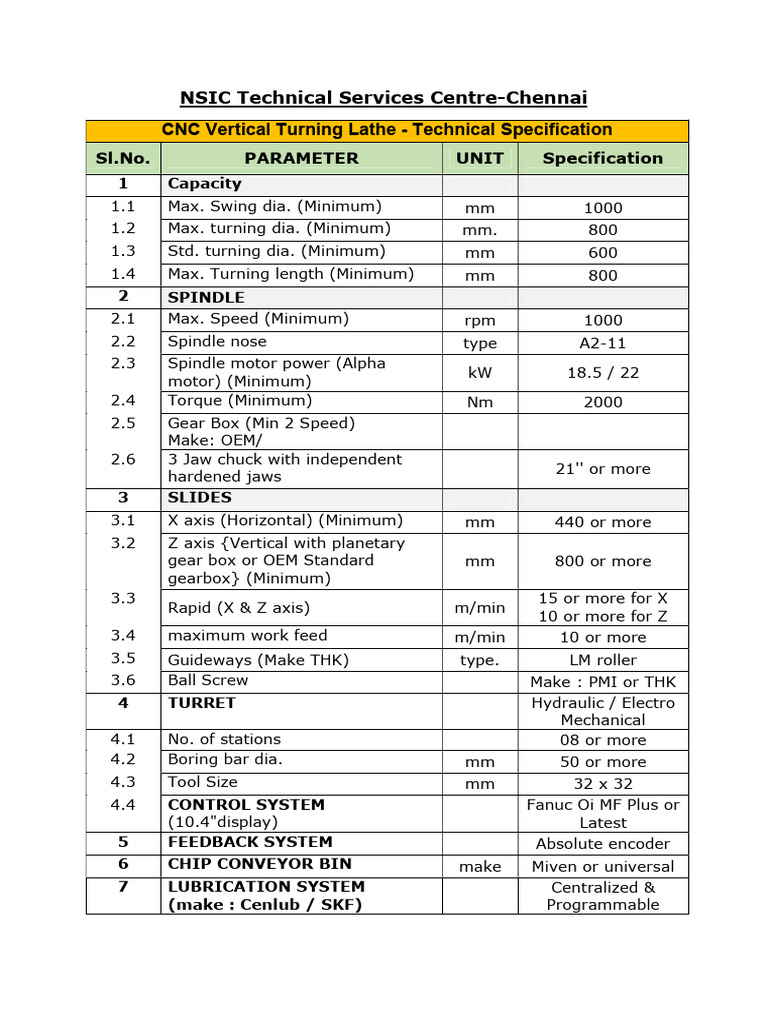

Sl.No. PARAMETER UNIT Specification 1 Capacity 1.1 Max. Swing dia. (Minimum) mm 1000 1.2 Max. turning dia. (Minimum) mm. 800 1.3 Std. turning dia. (Minimum) mm 600 1.4 Max. Turning length (Minimum) mm 800 2 SPINDLE 2.1 Max. Speed (Minimum) rpm 1000 2.2 Spindle nose type A2-11 2.3 Spindle motor power (Alpha kW 18.5 / 22 motor) (Minimum) 2.4 Torque (Minimum) Nm 2000 2.5 Gear Box (Min 2 Speed) Make: OEM/ 2.6 3 Jaw chuck with independent 21'' or more hardened jaws 3 SLIDES 3.1 X axis (Horizontal) (Minimum) mm 440 or more 3.2 Z axis {Vertical with planetary gear box or OEM Standard mm 800 or more gearbox} (Minimum) 3.3 15 or more for X Rapid (X & Z axis) m/min 10 or more for Z 3.4 maximum work feed m/min 10 or more 3.5 Guideways (Make THK) type. LM roller 3.6 Ball Screw Make : PMI or THK 4 TURRET Hydraulic / Electro Mechanical 4.1 No. of stations 08 or more 4.2 Boring bar dia. mm 50 or more 4.3 Tool Size mm 32 x 32 4.4 CONTROL SYSTEM Fanuc Oi MF Plus or (10.4"display) Latest 5 FEEDBACK SYSTEM Absolute encoder 6 CHIP CONVEYOR BIN make Miven or universal 7 LUBRICATION SYSTEM Centralized & (make : Cenlub / SKF) Programmable 7.1 Tank capacity (Minimum) liters 3 8 COOLANT SYSTEM Programmable 8.1 Tank capacity (Minimum) liters 200 8.2 Motor kW 1.1 9 Hydraulic Power pack (Make : Yuken/ Veljan or OEM) 9.1 Tank capacity (Minimum) lit 40 9.2 Motor kW 1.5 10 Voltage stabiliser Aple / Neel / Servomax make 11 OTHER ESSENTIAL ACCESSORIES Ensure sufficient illumination of total 11.1 Work light encapsulated work space Tower Lamp Three position 11.2 tower lamp 12 Power Source 415 x 50 Hz, 12.1 Power Supply VAC (3 phase) 12.2 Power requirement kVA 50 13 ACCURACY as per ISO 230-2
13.1 Positioning (X,Z Axes) (Minimum) microns 10
Repeatability (X,Z Axes) 13.2 microns 5 (Minimum) 14 Machine casting should confirm to computer-optimized cast iron FG 300 as per Honeycomb single bed structure. (Test report for confirming relevant IS standards has to be produced at the time of delivery). 15 Machine shall have Simple and reliable turret mechanism which change tools swiftly, also it should employ with a small memory to recall shortest path during tool change. 16 The spindle cartridge has to be assembled in the temperature control environment. The bearings should be of make of FAG/NSK/NACHI and are to be preloaded till optimum limit. The bearing must have at least p4 class accuracy (Test report from OEM has to be produced along with the machine). The spindle should be manufactured in its own facility (OEM Make only) in a temperature controlled environment. 17 The machine should have low-friction linear Motion guide ways (Roller Type) for all the axis traverses. The seating and locating surface are precision machined to a tolerance of within 10 microns. The LM guides should have stick-slip free movement (THK Make Only) 18 Scraper Type Chip Conveyor, rear mounted including Interface with drum filtration (Miven/Universal Make) 19 All guide ways should be well covered by telescopic covers to avoid dust/chip/coolant etc. 20 Ball screws should have Pre-tensioned double nut C3 Class (Make: THK/PMI). The ball screw remains supported at both ends by angular contact ball bearings (Make: FAG/NSK/NACHI). 21 Adequate coolant, Lubricant has to be supplied with the Machine. 22 Test report of Ball screw and guideway should be provided from THK/PMI at the time of PDI 23 STANDARD ACCESSORIES 23.1 Voltage Stabilizer 23.2 Coolant Gun 23.3 Air Gun 23.4 PCMCIA Card 23.5 Hand held Manual pulse generator 23.6 Automatic centralized lubrication system (with lubricant) 23.7 Coolant system (with coolant) 23.8 Splash Guard 23.9 Built in AC for the Control Panel 23.10 Machine lamp 23.11 Graphic display (Display screen 10.4" Color LCD) 23.12 Process completion lamp 23.13 Leveling pads 23.14 Coolant wash (for chip cleaning) 23.15 Maintenance tool kit. 23.16 Machine Instruction manual 1-Set (Soft copy & Hard copy) 23.17 Machine Maintenance manual and Spare manual 1-Set (Soft copy & Hard copy) 23.18 Maintenance tools 1-Set 23.19 Warranty for CNC System (Including all Electrical Systems) 23.20 Additional 1 Year Warranty + 3 Years AMC 23.21 Peripheral interface RS232 C 23.22 Fault diagnosis using ladder diagram 23.23 Stored stroke check for over travel protection. 23.24 Manual data input alphanumeric keyboard 23.25 Selection menu switch 23.26 Power failure detection module 23.27 Air compressor (LG make or equivalent) 23.28 Full Packing 23.29 Electronic Hand wheel 23.30 3 Jaw Power operated high speed chuck nominal 400 or 15 inches with closed center chucking cylinder.
