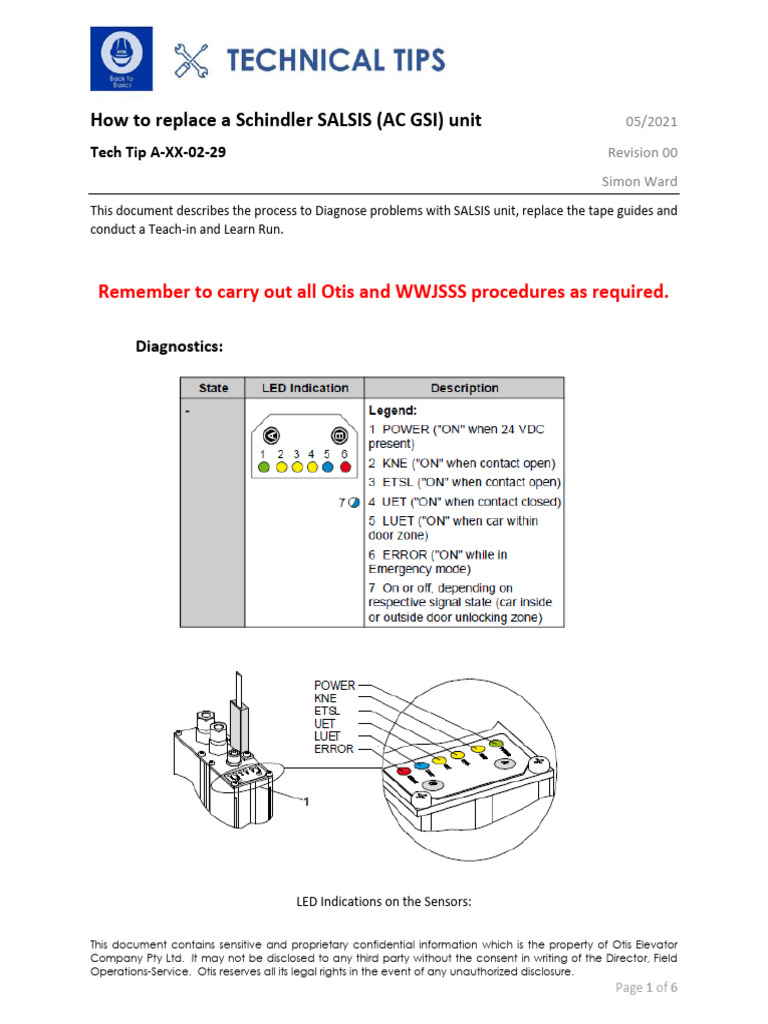

How to replace a Schindler SALSIS (AC GSI) unit 05/2021

Tech Tip A-XX-02-29 Revision 00

Simon Ward
This document describes the process to Diagnose problems with SALSIS unit, replace the tape guides and
conduct a Teach-in and Learn Run.

Remember to carry out all Otis and WWJSSS procedures as required.

Diagnostics:

LED Indications on the Sensors:

This document contains sensitive and proprietary confidential information which is the property of Otis Elevator
Company Pty Ltd. It may not be disclosed to any third party without the consent in writing of the Director, Field
Operations-Service. Otis reserves all its legal rights in the event of any unauthorized disclosure.
Page 1 of 6
What do the LEDs mean ?

1) = Elevator Status: B: for blocked and N: for normal operation.

Page 2 of 6
Page 3 of 6
How to Reset the SALSIS:
1. Switch off the main power supply and the battery supply to the car.
▪ MX-GC Version 07: Unplug ASIXB.HK
▪ MX 7.2: Unplug and then reinsert plug MXMAIN.HK
2. After about 5 seconds switch on the main power supply and battery supply to the car.
3. Reset travel control as per below:

• Switch JRH switch to recall.

• Press in the JHM button (stop switch)
• Press both the up and down travel control buttons in at the same time.
• Release JHM button (stop switch)

Page 4 of 6
 How to “Teach in the SALSIS unit:
1. To drive the car on recall you will need to use the “Install Mode” On the MX-GC there is
a JMOF switch to toggle it to Install mode. On the MX7.2 you will need to LOGIN to the
SMLCD – Commands – Services – MOF to turn Install Mode on [The Lift Status will
indicate “INSTALL”]

2. Access the SALSIS unit and press the two buttons together on the AC GSI main sensor
for at least 2 seconds.

3. Using the RECALL buttons drive the car down to the buffer then up until the Counterweight hits
the buffer then back down so you can access the car if required [ This process allows the SALSIS
to learn the floor magnet positions] Verify that the blue LUET LED lights up as you pass each
floor.

Measuring Travel (Learn Run)

1. The car can be positioned at any point within the normal travel range.
2. Activate the measuring travel on the SMLCD – see step 3.
3. Login – Commands – Special Trips – JLF – OK.
4. Measuring travel will terminate the SALSIS teach in mode automatically.
5. Now follow the instructions on the SMLCD.
6. Set JMOF/MOF to 0
7. Set JRH to NORMAL and the car will start the learn run.
8. Once complete the car will indicate NORMAL status on the SMLCD.
9. Call the car to the top floor and then after checking inside the car place on RECALL.
10. GOTO to Commands – Drive End Commission -OK (this saves any changes you have made)
11. Return car to normal and test run.

Handy Tip: If you GOTO Commands – Special Trips – KFM then set to ON you can then stop the doors from opening and
take the car out of the group – handy for testing, just don’t forget to turn off !

Page 5 of 6
Replacement of the SALSIS tape guides:

1. If the SALSIS guide width is worn more than 2mm then the guides should be replaced.
2. Using a cross head screwdriver loosen the locking plate on top of the SALSIS (a) and rotate the
duct out.

3. Slide the duct and plate out. Separate the duct and the plate and remove them from the tape (b)

4. Fit the new duct around the tape (c)

5. Slide the new duct into place and make sure that the cutout is in the duct and lines up with the
locking plate (d)
6. Turn the locking plate into the duct cutout and tighten the locking plate into position (e)

------------------------------------------------------------------------------------------------------------------------------------------
