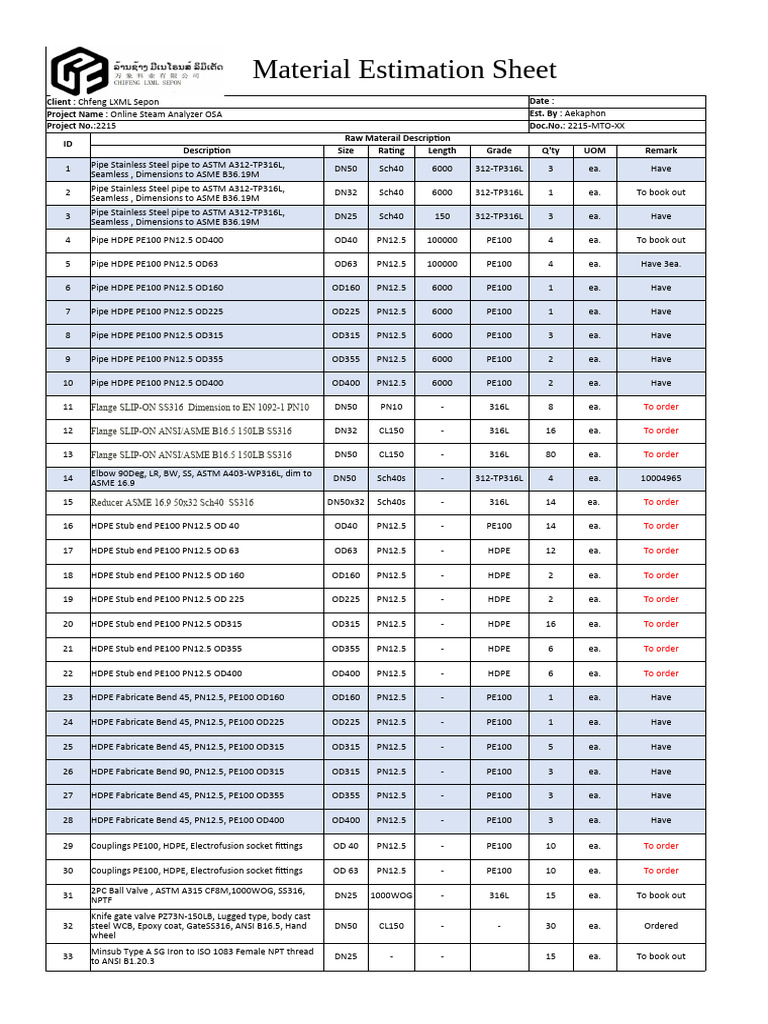

Material Estimation Sheet

Client : Chfeng LXML Sepon Date :

Project Name : Online Steam Analyzer OSA Est. By : Aekaphon
Project No.:2215 Doc.No.: 2215-MTO-XX
Raw Materail Description
ID
Description Size Rating Length Grade Q'ty UOM Remark
1 Pipe Stainless Steel pipe to ASTM A312-TP316L, DN50 Sch40 6000 312-TP316L 3 ea. Have
Seamless , Dimensions to ASME B36.19M
2 Pipe Stainless Steel pipe to ASTM A312-TP316L, DN32 Sch40 6000 312-TP316L 1 ea. To book out
Seamless , Dimensions to ASME B36.19M
3 Pipe Stainless Steel pipe to ASTM A312-TP316L, DN25 Sch40 150 312-TP316L 3 ea. Have
Seamless , Dimensions to ASME B36.19M
4 Pipe HDPE PE100 PN12.5 OD400 OD40 PN12.5 100000 PE100 4 ea. To book out

5 Pipe HDPE PE100 PN12.5 OD63 OD63 PN12.5 100000 PE100 4 ea. Have 3ea.

6 Pipe HDPE PE100 PN12.5 OD160 OD160 PN12.5 6000 PE100 1 ea. Have

7 Pipe HDPE PE100 PN12.5 OD225 OD225 PN12.5 6000 PE100 1 ea. Have

8 Pipe HDPE PE100 PN12.5 OD315 OD315 PN12.5 6000 PE100 3 ea. Have

9 Pipe HDPE PE100 PN12.5 OD355 OD355 PN12.5 6000 PE100 2 ea. Have

10 Pipe HDPE PE100 PN12.5 OD400 OD400 PN12.5 6000 PE100 2 ea. Have

11 Flange SLIP-ON SS316 Dimension to EN 1092-1 PN10 DN50 PN10 - 316L 8 ea. To order

12 Flange SLIP-ON ANSI/ASME B16.5 150LB SS316 DN32 CL150 - 316L 16 ea. To order

13 Flange SLIP-ON ANSI/ASME B16.5 150LB SS316 DN50 CL150 - 316L 80 ea. To order

Elbow 90Deg, LR, BW, SS, ASTM A403-WP316L, dim to

14 DN50 Sch40s - 312-TP316L 4 ea. 10004965
ASME 16.9

15 Reducer ASME 16.9 50x32 Sch40 SS316 DN50x32 Sch40s - 316L 14 ea. To order

16 HDPE Stub end PE100 PN12.5 OD 40 OD40 PN12.5 - PE100 14 ea. To order

17 HDPE Stub end PE100 PN12.5 OD 63 OD63 PN12.5 - HDPE 12 ea. To order

18 HDPE Stub end PE100 PN12.5 OD 160 OD160 PN12.5 - HDPE 2 ea. To order

19 HDPE Stub end PE100 PN12.5 OD 225 OD225 PN12.5 - HDPE 2 ea. To order

20 HDPE Stub end PE100 PN12.5 OD315 OD315 PN12.5 - HDPE 16 ea. To order

21 HDPE Stub end PE100 PN12.5 OD355 OD355 PN12.5 - HDPE 6 ea. To order

22 HDPE Stub end PE100 PN12.5 OD400 OD400 PN12.5 - HDPE 6 ea. To order

23 HDPE Fabricate Bend 45, PN12.5, PE100 OD160 OD160 PN12.5 - PE100 1 ea. Have

24 HDPE Fabricate Bend 45, PN12.5, PE100 OD225 OD225 PN12.5 - PE100 1 ea. Have

25 HDPE Fabricate Bend 45, PN12.5, PE100 OD315 OD315 PN12.5 - PE100 5 ea. Have

26 HDPE Fabricate Bend 90, PN12.5, PE100 OD315 OD315 PN12.5 - PE100 3 ea. Have

27 HDPE Fabricate Bend 45, PN12.5, PE100 OD355 OD355 PN12.5 - PE100 3 ea. Have

28 HDPE Fabricate Bend 45, PN12.5, PE100 OD400 OD400 PN12.5 - PE100 3 ea. Have

29 Couplings PE100, HDPE, Electrofusion socket fittings OD 40 PN12.5 - PE100 10 ea. To order

30 Couplings PE100, HDPE, Electrofusion socket fittings OD 63 PN12.5 - PE100 10 ea. To order

2PC Ball Valve , ASTM A315 CF8M,1000WOG, SS316,

31 DN25 1000WOG - 316L 15 ea. To book out
NPTF
Knife gate valve PZ73N-150LB, Lugged type, body cast
32 steel WCB, Epoxy coat, GateSS316, ANSI B16.5, Hand DN50 CL150 - - 30 ea. Ordered
wheel
Minsub Type A SG Iron to ISO 1083 Female NPT thread
33 DN25 - - 15 ea. To book out
to ANSI B1.20.3
 Gasket Ring type, CNAF, Klingersil C8200, Dim to ASME
34 DN32 CL150 - C8200 14 ea. Have
B16.21 , 1.5mm thick
Gasket Ring type, CNAF, Klingersil C8200, Dim to EN
35 DN50 PN10 - C8200 7 ea. Have
1514-1 PN10
Gasket Ring type, CNAF, Klingersil C8200, Dim to ASME
36 DN50 CL150 - C8200 82 ea. Have
B16.21 , 1.5mm thick
Gasket Ring type, CNAF, Klingersil C8200, Dim to ASME
37 DN150 CL151 - C8201 3 ea. Have
B16.21 , 1.5mm thick
Gasket Ring type, CNAF, Klingersil C8200, Dim to ASME
38 DN200 CL152 - C8202 3 ea. Have
B16.21 , 1.5mm thick
Gasket Ring type, CNAF, Klingersil C8200, Dim to ASME
39 DN300 CL153 - C8203 21 ea. To order
B16.21 , 1.5mm thick
Gasket Ring type, CNAF, Klingersil C8200, Dim to ASME
40 DN350 CL154 - C8204 9 ea. Have
B16.21 , 1.5mm thick
Gasket Ring type, CNAF, Klingersil C8200, Dim to ASME
41 DN400 CL155 - C8205 8 ea. Have
B16.21 , 1.5mm thick
Gasket Ring type, CNAF, Klingersil C8200, Dim to ASME
42 DN500 CL156 - C8206 2 ea. Have 20ea
B16.21 , 1.5mm thick

Stud bolts, ASTM A193 B7 Hot Dip Galvanized

43 1/2"x70mm , washers and two heavy hex nuts, to A194 M14 B7 70 Galvanized 56 ea. To order
Gr 2H.Hot Dip Galvanized

Stud bolts, ASTM A193 B7 Hot Dip Galvanized

44 5/8"x85mm , washers and two heavy hex nuts, to A194 M16 B7 85 Galvanized 308 ea. To order
Gr 2H.Hot Dip Galvanized

Stud bolts, ASTM A193 B7 Hot Dip Galvanized

45 5/8"x150mm ,washers and two heavy hex nuts, to A194 M16 B7 150 Galvanized 60 ea. To order
Gr 2H.Hot Dip Galvanized

Stud bolts, ASTM A193 B7 Hot Dip Gavanized

46 3/4"x140mm , washers and two heavy hex nuts, to A194 M20 B7 140 Galvanized 48 ea. To order
Gr 2H.Hot Dip Galvanized
Stud bolts, ASTM A193 B7 Hoy Dip Galvanized
47 7/8"x160mm ,washers and two heavy hex nuts, to A194 M24 B7 160 Galvanized 252 ea. To order
Gr 2H.Hot Dip Galvanized

Stud bolts, ASTM A193 B7 Hot Dip Galvanized

48 1"x190mm , washers and two heavy hex nuts, to A194 M27 B7 190 Galvanized 236 ea. To order
Gr 2H.Hot Dip Galvanized.

Stud bolts, ASTM A193 B7 Hot Dip Galvanized

49 M33 B7 220 Galvanized 40 ea. To order
1 1/4"x220mm , washers and two heavy hex nuts, to
A194 Gr 2H.Hot Dip Galvanized
Backing Flange, CS ASTM A105N, ASME B16.5, Dims to
50 DN32 CL150 - - 14 ea. Have 4ea.
match Flange Adaptor

Backing Flange, CS ASTM A105N, ASME B16.5, Dims to

51 DN63 CL150 - - 12 ea. Have 16 ea.
match Flange Adaptor

Backing Flange, CS ASTM A105N, ASME B16.5, Dims to

52 DN160 CL150 - - 2 ea. Have 10ea.
match Flange Adaptor

Backing Flange, CS ASTM A105N, ASME B16.5, Dims to

53 DN225 CL150 - - 2 ea. Have 10ea.
match Flange Adaptor

Backing Flange, CS ASTM A105N, ASME B16.5, Dims to

54 DN315 CL150 - - 28 ea. Have 12ea.
match Flange Adaptor

Backing Flange, CS ASTM A105N, ASME B16.5, Dims to

55 DN355 CL150 - - 6 ea. Have 20ea.
match Flange Adaptor

Backing Flange, CS ASTM A105N, ASME B16.5, Dims to

56 DN400 CL150 - - 6 ea. Have 8ea.
match Flange Adaptor
Stock No.

10014831

10002748

10001363

10001865
1

2
 Material Estimation Sheet
Client : Chfeng LXML Sepon Date :
Project Name : Online Steam Analyzer OSA Est. By : Aekaphon
Project No.:2215 Doc.No.:
Item Description Size Rating Length Grade Q'ty UOM Remark
Pipe Stainless Steel pipe to ASTM A312-
312-
TP316L, Seamless , Dimensions to ASME DN50 Sch40s 600 1 ea.
TP316L
B36.19M
Pipe Stainless Steel pipe to ASTM A312-
312-
TP316L, Seamless , Dimensions to ASME DN40 Sch40s 150 1 ea. To book out
TP316L 10014831
B36.19M
Pipe Stainless Steel pipe to ASTM A312-
312-
TP316L, Seamless , Dimensions to ASME DN25 Sch40s 300 1 ea.
TP316L
B36.19M
Pipe HDPE PE100 PN12.5 OD400 OD50 PN10 12,656 PE100 ea. To book out 10002748
Pipe HDPE PE100 PN12.5 OD63 OD355 PN10 6000 PE100 1 ea.

Pipe HDPE PE100 PN12.5 OD160 DN50 PN10 - 316L 1 ea.

Pipe HDPE PE100 PN12.5 OD225 DN50 CL150 - 316L 4 ea.

Pipe HDPE PE100 PN12.5 OD315 DN50x40 Sch40s - 316L 2 ea.

Pipe HDPE PE100 PN12.5 OD355 DN40 CL151 - 316L 2 ea.

Pipe HDPE PE100 PN12.5 OD400 OD50 PN10 - HDPE 2 ea.
HDPE Stub end ISO 4427 PE100 PN10 OD 355 OD355 PN10 - PE100 2 ea. To order

Steam 1 HDPE Fabricate Bend 45, PN10, PE100 OD355 OD355 PN10 - PE100 1 ea. To order
PSA350
Backing Flange, CS ASTM A105N, ASME
DN40 CL150 - 2 ea. To order
B16.5, Dims to match Flange Adaptor
Backing Flange, CS ASTM A105N, ASME
DN355 CL150 - 2 ea.
B16.5, Dims to match Flange Adaptor
2PC Ball Valve , ASTM A315 CF8M,1000WOG,
DN25 1000WOG - 316L 1 ea. To order
SS316, NPTF
HDPE Stub end PE100 PN12.5 OD 40 DN50 CL150 - 2 ea. To order
HDPE Stub end PE100 PN12.5 OD 63 DN25 - Gavanize 1 ea. To order
HDPE Stub end PE100 PN12.5 OD 160 DN350 CL150 - C8200 3 ea. To order
HDPE Stub end PE100 PN12.5 OD 225 DN50 PN10 - C8200 1 ea. To order
HDPE Stub end PE100 PN12.5 OD315 DN50 CL150 - C8200 5 ea. To order
HDPE Stub end PE100 PN12.5 OD355 DN40 CL150 - C8200 2 ea. To order
HDPE Stub end PE100 PN12.5 OD400 M16 B7 85 SS 16 ea. To order
Stud bolts, ASTM A193 Gr.B7 5/8"x150mm ,
two Stainless Steel washers and two heavy M16 B7 150 SS 4 ea.
hex nuts, to A194 Gr 2H.
Stud bolts, ASTM A193 Gr.B7 1/2"x70mm ,
two Stainless Steel washers and two heavy M14 B7 70 SS 8 ea.
hex nuts, to A194 Gr 2H.
Stud bolts, ASTM A193 Gr.B7 1"x190mm ,
two Stainless Steel washers and two heavy M27 B7 190 SS 36 ea.
hex nuts, to A194 Gr 2H.
Pipe Stainless Steel pipe to ASTM A312-
312-
TP316L, Seamless , Dimensions to ASME DN50 Sch40s 1800 1 ea.
TP316L
B36.19M
Pipe Stainless Steel pipe to ASTM A312-
312-
TP316L, Seamless , Dimensions to ASME DN25 Sch40s 450 1 ea.
TP316L
B36.19M
Pipe HDPE ISO 4427 PE100 PN10 OD63 OD63 PN10 10000 PE100 ea.
Pipe HDPE ISO 4427 PE100 PN10 OD315 OD315 PN10 6000 PE100 2 ea. To order
Flange SLIP-ON ANSI/ASME B16.5 150LB DN50 CL150 - 316L 24 ea. To order
SS316
Flange SLIP-ON ANSI/ASME B16.5 150LB DN300 CL150 - 316L 12 ea. To book out
SS316
HDPE Stub end ISO 4427 PE100 PN10 OD 63 OD63 PN10 - HDPE 6 ea. Ordered
HDPE Stub end ISO 4427 PE100 PN10 OD 315 O315 PN10 - PE100 12 ea. To book out

HDPE Fabricate Bend 90, PN10, PE100 OD315 OD315 PN10 - PE100 3 ea.

HDPE Fabricate Bend 45, PN10, PE100 OD315 OD315 PN10 - PE100 3 ea.

Backing Flange, CS ASTM A105N, ASME

DN63 CL150 - 6 ea.
B16.5, Dims to match Flange Adaptor
Steam 2,3,4 Backing Flange, CS ASTM A105N, ASME
SKA 300 B16.5, Dims to match Flange Adaptor DN315 CL150 - 24 ea.
Steam 2,3,4
SKA 300

2PC Ball Valve , ASTM A315 CF8M,1000WOG,

DN25 1000WOG - 316L 3 ea.
SS316, NPTF
Knife gate valve PZ73N-150LB, Lugged type,
body cast steel WCB, Epoxy coat, GateSS316, DN50 CL150 - 6 ea. To order
ANSI B16.5, Hand wheel
Minsub Type A SG Iron to ISO 1083 Female
DN25 - Gavanize 3 ea.
NPT thread to ANSI B1.20.3
Gasket Ring type, CNAF, Klingersil C8200, Dim
DN50 CL150 - C8200 21 ea.
to ASME B16.21 , 1.5mm thick
Gasket Ring type, CNAF, Klingersil C8200, Dim
DN300 CL150 - C8200 15 ea.
to ASME B16.21 , 1.5mm thick
Stud bolts, ASTM A193 Gr.B7 5/8"x150mm ,
two Stainless Steel washers and two heavy M16 B7 150 SS 12 ea. To order
hex nuts, to A194 Gr 2H.
Stud bolts, ASTM A193 Gr.B7 5/8"x85mm ,
two Stainless Steel washers and two heavy M16 B7 85 SS 72 ea. To order
hex nuts, to A194 Gr 2H.
Stud bolts, ASTM A193 Gr.B7 7/8"x160mm ,
two Stainless Steel washers and two heavy M24 B7 160 SS 180 ea. To order
hex nuts, to A194 Gr 2H.
Pipe Stainless Steel pipe to ASTM A312-
312-
TP316L, Seamless , Dimensions to ASME DN50 Sch40s 600 1 ea. To order
TP316L
B36.19M
Pipe Stainless Steel pipe to ASTM A312-
312-
TP316L, Seamless , Dimensions to ASME DN25 Sch40s 150 1 ea. To order
TP316L
B36.19M
Pipe HDPE ISO 4427 PE100 PN10 OD50 OD50 PN10 71,190 PE100 ea. To order
Pipe HDPE ISO 4427 PE100 PN10 OD225 OD225 PN10 6,000 PE100 1 ea. To order
Flange SLIP-ON SS316 Dimension to EN DN50 PN10 - 316L 1 ea.
1092-1 PN10
Flange SLIP-ON ANSI/ASME B16.5 150LB DN50 CL150 - 316L 4 ea.
SS316

Reducer ASME 16.9 50x40 Sch40 SS316 DN50x40 Sch40s - 316L 2 ea.
Flange SLIP-ON ANSI/ASME B16.5 150LB DN40 CL150 - 316L 2 ea.
SS316

HDPE Fabricate Bend 45, PN10, PE100 OD355 OD355 PN10 - PE100 1 ea.
HDPE Stub end ISO 4427 PE100 PN10 OD 50 OD50 PN10 - HDPE 2 ea.
HDPE Stub end ISO 4427 PE100 PN10 OD 225 OD225 PN10 - PE100 2 ea.

Backing Flange, CS ASTM A105N, ASME

DN40 CL150 - 2 ea.
B16.5, Dims to match Flange Adaptor
Backing Flange, CS ASTM A105N, ASME
DN225 CL150 - 2 ea.
B16.5, Dims to match Flange Adaptor
2PC Ball Valve , ASTM A315 CF8M,1000WOG,
DN25 1000WOG - 316L 1 ea.
Steam 5 SS316, NPTF
PSA200
Knife gate valve PZ73N-150LB, Lugged type,
body cast steel WCB, Epoxy coat, GateSS316, DN50 CL150 - 2 ea.
ANSI B16.5, Hand wheel

Minsub Type A SG Iron to ISO 1083 Female

DN25 - - Gavanize 1 ea.
NPT thread to ANSI B1.20.3

Stud bolts, ASTM A193 Gr.B7 1/2"x70mm ,

two Stainless Steel washers and two heavy M14 B7 70 ss 8 ea.
hex nuts, to A194 Gr 2H.
Stud bolts, ASTM A193 Gr.B7 5/8"x150mm ,
two Stainless Steel washers and two heavy M16 B7 150 ss 4 ea.
hex nuts, to A194 Gr 2H.
Stud bolts, ASTM A193 Gr.B7 5/8"x85mm ,
two Stainless Steel washers and two heavy M16 B7 85 ss 36 ea.
hex nuts, to A194 Gr 2H.
Stud bolts, ASTM A193 Gr.B7 3/4"x140mm ,
two Stainless Steel washers and two heavy M20 B7 140 ss 24 ea.
hex nuts, to A194 Gr 2H.
Gasket Ring type, CNAF, Klingersil C8200, Dim
DN225 CL150 - C8200 3 ea.
to ASME B16.21 , 1.5mm thick
Gasket Ring type, CNAF, Klingersil C8200, Dim
DN50 PN10 - C8200 1 ea.
to EN 1514-1 PN10
Gasket Ring type, CNAF, Klingersil C8200, Dim
DN50 CL150 - C8200 5 ea.
to ASME B16.21 , 1.5mm thick
Gasket Ring type, CNAF, Klingersil C8200, Dim
DN40 CL150 - C8200 2 ea.
to ASME B16.21 , 1.5mm thick
 Pipe Stainless Steel pipe to ASTM A312-
312-
TP316L, Seamless , Dimensions to ASME DN50 Sch40s 600 1 ea.
TP316L
B36.19M
Pipe Stainless Steel pipe to ASTM A312-
312-
TP316L, Seamless , Dimensions to ASME DN40 Sch40s 150 1 ea.
TP316L
B36.19M
Pipe Stainless Steel pipe to ASTM A312-
312-
TP316L, Seamless , Dimensions to ASME DN25 Sch40s 150 1 ea.
TP316L
B36.19M
Pipe HDPE ISO 4427 PE100 PN10 OD50 OD50 PN10 82,654 PE100 ea.
Elbow 90Deg, LR, BW, SS, ASTM A403- 312-
DN50 Sch40s - 4 ea.
WP316L, dim to ASME 16.9 TP316L
Reducer ASME 16.9 50x40 Sch40 SS316 DN50x40 Sch40s 316L 2 ea.
Flange SLIP-ON SS316 Dimension to EN DN50 PN10 - 316L 2 ea.
1092-1 PN10
Flange SLIP-ON ANSI/ASME B16.5 150LB DN50 CL150 - 316L 8 ea.
SS316
Flange SLIP-ON ANSI/ASME B16.5 150LB DN40 CL150 - 316L 2 ea.
SS317

HDPE Fabricate Bend 45, PN10, PE100 OD355 OD355 PN10 - PE100 2 ea.
HDPE Stub end ISO 4427 PE100 PN10 OD 50 OD50 PN10 - HDPE 2 ea.
HDPE Stub end ISO 4427 PE100 PN10 OD 315 O315 PN10 - HDPE 4 ea.

Backing Flange, CS ASTM A105N, ASME

DN40 CL150 - 2 ea.
B16.5, Dims to match Flange Adaptor
Backing Flange, CS ASTM A105N, ASME
Steam 6 PSA B16.5, Dims to match Flange Adaptor DN315 CL150 - 4 ea.
300
2PC Ball Valve , ASTM A315 CF8M,1000WOG,
DN25 1000WOG - 316L 2 ea.
SS316, NPTF
Knife gate valve PZ73N-150LB, Lugged type,
body cast steel WCB, Epoxy coat, GateSS316, DN50 CL150 - 4 ea.
ANSI B16.5, Hand wheel
Minsub Type A SG Iron to ISO 1083 Female
DN25 - - Gavanize 2 ea.
NPT thread to ANSI B1.20.3
Gasket Ring type, CNAF, Klingersil C8200, Dim DN40 CL150 - C8200 4 ea.
to ASME B16.21 , 1.5mm thick
Gasket Ring type, CNAF, Klingersil C8200, Dim
DN50 PN10 - C8200 1 ea.
to EN 1514-1 PN10
Gasket Ring type, CNAF, Klingersil C8200, Dim
DN50 CL150 - C8200 8 ea.
to ASME B16.21 , 1.5mm thick
Gasket Ring type, CNAF, Klingersil C8200, Dim
DN300 CL150 - C8200 6 ea.
to ASME B16.21 , 1.5mm thick
Stud bolts, ASTM A193 Gr.B7 1/2"x70mm ,
two Stainless Steel washers and two heavy M14 B7 70 SS 8 ea.
hex nuts, to A194 Gr 2H.
Stud bolts, ASTM A193 Gr.B7 5/8"x150mm ,
two Stainless Steel washers and two heavy M16 B7 150 SS 8 ea.
hex nuts, to A194 Gr 2H.
Stud bolts, ASTM A193 Gr.B7 5/8"x85mm ,
two Stainless Steel washers and two heavy M16 B7 85 SS 32 ea.
hex nuts, to A194 Gr 2H.
Stud bolts, ASTM A193 Gr.B7 7/8"x160mm ,
two Stainless Steel washers and two heavy M24 B7 160 SS 72 ea.
hex nuts, to A194 Gr 2H.
Pipe Stainless Steel pipe to ASTM A312-
312-
TP316L, Seamless , Dimensions to ASME DN50 Sch40s 1,200 1 ea.
TP316L
B36.19M
Pipe Stainless Steel pipe to ASTM A312-
312-
TP316L, Seamless , Dimensions to ASME DN25 Sch40s 300 1 ea.
TP316L
B36.19M
Pipe HDPE ISO 4427 PE100 PN10 OD 400 OD400 PN10 6,000 PE100 1 ea.
Pipe HDPE ISO 4427 PE100 PN10 OD63 OD63 PN10 10000 PE100 ea.
Flange SLIP-ON ANSI/ASME B16.5 150LB DN50 CL150 - 316L 12 ea.
SS316
Flange SLIP-ON SS316 Dimension to EN DN50 PN10 - 316L 1 ea.
1092-1 PN10
HDPE Stub end ISO 4427 PE100 PN10 OD 63 OD63 PN10 - HDPE 3 ea.
HDPE Stub end ISO 4427 PE100 PN10 OD 400 O400 PN10 - PE100 4 ea.

HDPE Fabricate Bend 45, PN10, PE100 OD355 OD355 PN10 - PE100 2 ea.

Backing Flange, CS ASTM A105N, ASME

DN63 CL150 - 3 ea.
B16.5, Dims to match Flange Adaptor

Steam 7 LSA
400
 Backing Flange, CS ASTM A105N, ASME
Steam 7 LSA B16.5, Dims to match Flange Adaptor DN400 CL150 - 4 ea.
400
Gasket Ring type, CNAF, Klingersil C8200, Dim DN400 CL150 - C8200 5 ea.
to ASME B16.21 , 1.5mm thick
Gasket Ring type, CNAF, Klingersil C8200, Dim DN50 CL150 - C8200 13 ea.
to ASME B16.21 , 1.5mm thick
2PC Ball Valve , ASTM A315 CF8M,1000WOG,
DN25 1000WOG - 316L 2 ea.
SS316, NPTF
Knife gate valve PZ73N-150LB, Lugged type,
body cast steel WCB, Epoxy coat, GateSS316, DN50 CL150 - 4 ea.
ANSI B16.5, Hand wheel
Minsub Type A SG Iron to ISO 1083 Female
DN25 - - Gavanize 2 ea.
NPT thread to ANSI B1.20.3

Stud bolts, ASTM A193 Gr.B7 5/8"x85mm ,

two Stainless Steel washers and two heavy M16 B7 85 ss 44 ea.
hex nuts, to A194 Gr 2H.
Stud bolts, ASTM A193 Gr.B7 5/8"x150mm ,
two Stainless Steel washers and two heavy M16 B7 150 ss 8 ea.
hex nuts, to A194 Gr 2H.

Stud bolts, ASTM A193 Gr.B7 1"x190mm ,

two Stainless Steel washers and two heavy M27 B7 190 ss 80 ea.
hex nuts, to A194 Gr 2H.
Pipe Stainless Steel pipe to ASTM A312-
312-
TP316L, Seamless , Dimensions to ASME DN50 Sch40s 600 1 ea.
TP316L
B36.19M
Pipe Stainless Steel pipe to ASTM A312-
312-
TP316L, Seamless , Dimensions to ASME DN25 Sch40s 150 1 ea.
TP316L
B36.19M
Pipe HDPE ISO 4427 PE100 PN10 OD50 OD50 PN10 38,481 PE100 ea.
Pipe HDPE ISO 4427 PE100 PN10 OD 400 OD400 PN10 6,000 PE100 1 ea.
Flange SLIP-ON SS316 Dimension to EN DN50 PN10 - 316L 1 ea.
1092-1 PN10
Flange SLIP-ON ANSI/ASME B16.5 150LB DN50 CL150 - 316L 4 ea.
SS316

Reducer ASME 16.9 50x40 Sch40 SS316 DN50x40 Sch40s - 316L 2 ea.
Flange SLIP-ON ANSI/ASME B16.5 150LB DN40 CL150 - 316L 2 ea.
SS316

HDPE Fabricate Bend 45, PN10, PE100 OD355 OD400 PN10 - PE100 1 ea.
HDPE Stub end ISO 4427 PE100 PN10 OD 40 OD40 PN10 - HDPE 2 ea.
HDPE Stub end ISO 4427 PE100 PN10 OD 400 O400 PN10 - PE100 2 ea.

Backing Flange, CS ASTM A105N, ASME

DN50 CL150 - 2 ea.
B16.5, Dims to match Flange Adaptor
Backing Flange, CS ASTM A105N, ASME
DN400 CL150 - 2 ea.
B16.5, Dims to match Flange Adaptor
Steam 8 PSA 2PC Ball Valve , ASTM A315 CF8M,1000WOG, DN25 1000WOG - 316L 1 ea.
400 SS316, NPTF
Knife gate valve PZ73N-150LB, Lugged type,
body cast steel WCB, Epoxy coat, GateSS316, DN50 CL150 - 2 ea.
ANSI B16.5, Hand wheel
Minsub Type A SG Iron to ISO 1083 Female
DN25 - - Gavanize 1 ea.
NPT thread to ANSI B1.20.3
Gasket Ring type, CNAF, Klingersil C8200, Dim DN40 CL150 - C8200 2 ea.
to ASME B16.21 , 1.5mm thick
Gasket Ring type, CNAF, Klingersil C8200, Dim
DN50 PN10 - C8200 1 ea.
to EN 1514-1 PN10
Gasket Ring type, CNAF, Klingersil C8200, Dim DN50 CL150 - C8200 5 ea.
to ASME B16.21 , 1.5mm thick
Gasket Ring type, CNAF, Klingersil C8200, Dim DN400 CL150 - C8200 3 ea.
to ASME B16.21 , 1.5mm thick
Stud bolts, ASTM A193 Gr.B7 1/2"x70mm ,
two Stainless Steel washers and two heavy M14 B7 70 SS 8 ea.
hex nuts, to A194 Gr 2H.
Stud bolts, ASTM A193 Gr.B7 5/8"x150mm ,
two Stainless Steel washers and two heavy M16 B7 150 SS 4 ea.
hex nuts, to A194 Gr 2H.
Stud bolts, ASTM A193 Gr.B7 5/8"x85mm ,
two Stainless Steel washers and two heavy M16 B7 85 SS 16 ea.
hex nuts, to A194 Gr 2H.

Stud bolts, ASTM A193 Gr.B7 1"x190mm ,

two Stainless Steel washers and two heavy M27 B7 190 ss 48 ea.
hex nuts, to A194 Gr 2H.
 Pipe Stainless Steel pipe to ASTM A312-
312-
TP316L, Seamless , Dimensions to ASME DN50 Sch40s 600 1 ea.
TP316L
B36.19M
Pipe Stainless Steel pipe to ASTM A312-
312-
TP316L, Seamless , Dimensions to ASME DN40 Sch40s 150 1 ea.
TP316L
B36.19M
Pipe Stainless Steel pipe to ASTM A312-
312-
TP316L, Seamless , Dimensions to ASME DN25 Sch40s 300 1 ea.
TP316L
B36.19M
Pipe HDPE ISO 4427 PE100 PN10 OD50 OD50 PN10 26,769 PE100 ea.
Pipe HDPE ISO 4427 PE100 PN10 OD355 OD355 PN10 6,000 PE100 1 ea.
Flange SLIP-ON SS316 Dimension to EN DN50 PN10 - 316L 1 ea.
1092-1 PN10
Flange SLIP-ON ANSI/ASME B16.5 150LB DN50 CL150 - 316L 4 ea.
SS316

Reducer ASME 16.9 50x40 Sch40 SS316 DN50x40 Sch40s - 316L 2 ea.
Flange SLIP-ON ANSI/ASME B16.5 150LB DN40 CL151 - 316L 2 ea.
SS316
HDPE Stub end ISO 4427 PE100 PN10 OD 50 OD50 PN10 - HDPE 2 ea.
HDPE Stub end ISO 4427 PE100 PN10 OD 355 OD355 PN10 - PE100 2 ea.

HDPE Fabricate Bend 45, PN10, PE100 OD355 OD355 PN10 - PE100 1 ea.

Backing Flange, CS ASTM A105N, ASME

DN40 CL150 - 2 ea.
B16.5, Dims to match Flange Adaptor
Backing Flange, CS ASTM A105N, ASME
Steam 9 PSA B16.5, Dims to match Flange Adaptor DN355 CL150 - 2 ea.
350
2PC Ball Valve , ASTM A315 CF8M,1000WOG,
DN25 1000WOG - 316L 1 ea.
SS316, NPTF
Knife gate valve PZ73N-150LB, Lugged type,
body cast steel WCB, Epoxy coat, GateSS316, DN50 CL150 - 2 ea.
ANSI B16.5, Hand wheel
Minsub Type A SG Iron to ISO 1083 Female
DN25 - Gavanize 1 ea.
NPT thread to ANSI B1.20.3
Gasket Ring type, CNAF, Klingersil C8200, Dim
DN350 CL150 - C8200 3 ea.
to ASME B16.21 , 1.5mm thick
Gasket Ring type, CNAF, Klingersil C8200, Dim
DN50 PN10 - C8200 1 ea.
to EN 1514-1 PN10
Gasket Ring type, CNAF, Klingersil C8200, Dim
DN50 CL150 - C8200 4 ea.
to ASME B16.21 , 1.5mm thick
Gasket Ring type, CNAF, Klingersil C8200, Dim
DN40 CL150 - C8200 2 ea.
to ASME B16.21 , 1.5mm thick
Stud bolts, ASTM A193 Gr.B7 5/8"x85mm ,
two Stainless Steel washers and two heavy M16 B7 85 SS 16 ea.
hex nuts, to A194 Gr 2H.
Stud bolts, ASTM A193 Gr.B7 5/8"x150mm ,
two Stainless Steel washers and two heavy M16 B7 150 SS 4 ea.
hex nuts, to A194 Gr 2H.
Stud bolts, ASTM A193 Gr.B7 1/2"x70mm ,
two Stainless Steel washers and two heavy M14 B7 70 SS 8 ea.
hex nuts, to A194 Gr 2H.
Stud bolts, ASTM A193 Gr.B7 1"x190mm ,
two Stainless Steel washers and two heavy M27 B7 190 SS 36 ea.
hex nuts, to A194 Gr 2H.
Pipe Stainless Steel pipe to ASTM A312-
312-
TP316L, Seamless , Dimensions to ASME DN50 Sch40s 600 1 ea.
TP316L
B36.19M
Pipe Stainless Steel pipe to ASTM A312-
312-
TP316L, Seamless , Dimensions to ASME DN40 Sch40s 200 1 ea.
TP316L
B36.19M
Pipe Stainless Steel pipe to ASTM A312-
312-
TP316L, Seamless , Dimensions to ASME DN25 Sch40s 300 1 ea.
TP316L
B36.19M
Pipe HDPE ISO 4427 PE100 PN10 OD50 OD50 PN10 42,550 PE100 ea.
Pipe HDPE ISO 4427 PE100 PN10 OD160 OD160 PN10 6,000 PE100 1 ea.
Flange SLIP-ON SS316 Dimension to EN DN50 PN10 - 316L 1 ea.
1092-1 PN10
Flange SLIP-ON ANSI/ASME B16.5 150LB DN50 CL150 - 316L 4 ea.
SS316

Reducer ASME 16.9 50x40 Sch40 SS316 DN50x40 Sch40s - 316L 2 ea.
Flange SLIP-ON ANSI/ASME B16.5 150LB DN40 CL151 - 316L 2 ea.
SS316
HDPE Stub end ISO 4427 PE100 PN10 OD 50 OD50 PN10 - HDPE 2 ea.
 HDPE Stub end ISO 4427 PE100 PN10 OD 160 OD160 PN10 - PE100 2 ea.

HDPE Fabricate Bend 45, PN10, PE100 OD160 OD160 PN10 - PE100 1 ea.

Backing Flange, CS ASTM A105N, ASME

DN40 CL150 - 2 ea.
B16.5, Dims to match Flange Adaptor
Backing Flange, CS ASTM A105N, ASME
Steam10 PSA B16.5, Dims to match Flange Adaptor DN160 CL150 - 2 ea.
150
2PC Ball Valve , ASTM A315 CF8M,1000WOG,
DN25 1000WOG - 316L 1 ea.
SS316, NPTF
Knife gate valve PZ73N-150LB, Lugged type,
body cast steel WCB, Epoxy coat, GateSS316, DN50 CL150 - 2 ea.
ANSI B16.5, Hand wheel
Minsub Type A SG Iron to ISO 1083 Female
DN25 - Gavanize 1 ea.
NPT thread to ANSI B1.20.3
Gasket Ring type, CNAF, Klingersil C8200, Dim
DN150 CL150 - C8200 3 ea.
to ASME B16.21 , 1.5mm thick
Gasket Ring type, CNAF, Klingersil C8200, Dim
DN50 PN10 - C8200 1 ea.
to EN 1514-1 PN10
Gasket Ring type, CNAF, Klingersil C8200, Dim
DN50 CL150 - C8200 4 ea.
to ASME B16.21 , 1.5mm thick
Gasket Ring type, CNAF, Klingersil C8200, Dim
DN40 CL150 - C8200 2 ea.
to ASME B16.21 , 1.5mm thick
Stud bolts, ASTM A193 Gr.B7 5/8"x85mm ,
two Stainless Steel washers and two heavy M16 B7 85 SS 16 ea.
hex nuts, to A194 Gr 2H.
Stud bolts, ASTM A193 Gr.B7 5/8"x150mm ,
two Stainless Steel washers and two heavy M16 B7 150 SS 4 ea.
hex nuts, to A194 Gr 2H.
Stud bolts, ASTM A193 Gr.B7 1/2"x70mm ,
two Stainless Steel washers and two heavy M14 B7 70 SS 8 ea.
hex nuts, to A194 Gr 2H.

Stud bolts, ASTM A193 Gr.B7 3/4"x140mm ,

two Stainless Steel washers and two heavy M20 B7 140 SS 24 ea.
hex nuts, to A194 Gr 2H.
Pipe Stainless Steel pipe to ASTM A312-
312-
TP316L, Seamless , Dimensions to ASME DN50 Sch40s 600 1 ea.
TP316L
B36.19M
Pipe Stainless Steel pipe to ASTM A312-
312-
TP316L, Seamless , Dimensions to ASME DN40 Sch40s 150 1 ea.
TP316L
B36.19M
Pipe Stainless Steel pipe to ASTM A312-
312-
TP316L, Seamless , Dimensions to ASME DN25 Sch40s 300 1 ea.
TP316L
B36.19M
Pipe HDPE ISO 4427 PE100 PN10 OD50 OD50 PN10 45,836 PE100 ea.
Pipe HDPE ISO 4427 PE100 PN10 OD355 OD355 PN10 6,000 PE100 1 ea.
Flange SLIP-ON SS316 Dimension to EN DN50 PN10 - 316L 1 ea.
1092-1 PN10
Flange SLIP-ON ANSI/ASME B16.5 150LB DN50 CL150 - 316L 4 ea.
SS316

Reducer ASME 16.9 50x40 Sch40 SS316 DN50x40 Sch40s - 316L 2 ea.
Flange SLIP-ON ANSI/ASME B16.5 150LB DN40 CL151 - 316L 2 ea.
SS316
HDPE Stub end ISO 4427 PE100 PN10 OD 50 OD50 PN10 - HDPE 2 ea.
HDPE Stub end ISO 4427 PE100 PN10 OD 355 OD355 PN10 - PE100 2 ea.

HDPE Fabricate Bend 45, PN10, PE100 OD355 OD355 PN10 - PE100 1 ea.

Backing Flange, CS ASTM A105N, ASME

DN40 CL150 - 2 ea.
B16.5, Dims to match Flange Adaptor
Backing Flange, CS ASTM A105N, ASME
Steam 11 DN355 CL150 - 2 ea.
B16.5, Dims to match Flange Adaptor
PSA350
2PC Ball Valve , ASTM A315 CF8M,1000WOG,
DN25 1000WOG - 316L 1 ea.
SS316, NPTF
Knife gate valve PZ73N-150LB, Lugged type,
body cast steel WCB, Epoxy coat, GateSS316, DN50 CL150 - 2 ea.
ANSI B16.5, Hand wheel
Minsub Type A SG Iron to ISO 1083 Female
DN25 - Gavanize 1 ea.
NPT thread to ANSI B1.20.3
Gasket Ring type, CNAF, Klingersil C8200, Dim
DN350 CL150 - C8200 3 ea.
to ASME B16.21 , 1.5mm thick
Gasket Ring type, CNAF, Klingersil C8200, Dim
DN50 PN10 - C8200 1 ea.
to EN 1514-1 PN10
 Gasket Ring type, CNAF, Klingersil C8200, Dim
DN50 CL150 - C8200 4 ea.
to ASME B16.21 , 1.5mm thick
Gasket Ring type, CNAF, Klingersil C8200, Dim
DN40 CL150 - C8200 2 ea.
to ASME B16.21 , 1.5mm thick
Stud bolts, ASTM A193 Gr.B7 5/8"x85mm ,
two Stainless Steel washers and two heavy M16 B7 85 SS 16 ea.
hex nuts, to A194 Gr 2H.
Stud bolts, ASTM A193 Gr.B7 5/8"x150mm ,
two Stainless Steel washers and two heavy M16 B7 150 SS 4 ea.
hex nuts, to A194 Gr 2H.
Stud bolts, ASTM A193 Gr.B7 1/2"x70mm ,
two Stainless Steel washers and two heavy M14 B7 70 SS 8 ea.
hex nuts, to A194 Gr 2H.
Stud bolts, ASTM A193 Gr.B7 1"x190mm ,
two Stainless Steel washers and two heavy M27 B7 190 SS 36 ea.
hex nuts, to A194 Gr 2H.
Pipe Stainless Steel pipe to ASTM A312-
312-
TP316L, Seamless , Dimensions to ASME DN50 Sch40s 1200 1 ea.
TP316L
B36.19M
Pipe Stainless Steel pipe to ASTM A312-
312-
TP316L, Seamless , Dimensions to ASME DN25 Sch40s 300 1 ea.
TP316L
B36.19M
Pipe HDPE ISO 4427 PE100 PN10 OD63 OD63 PN10 10000 PE100 ea.
Flange SLIP-ON ANSI/ASME B16.5 150LB DN50 CL150 - 316L 12 ea.
SS316
Flange SLIP-ON SS316 Dimension to EN DN50 PN10 - 316L 1 ea.
1092-1 PN10
HDPE Stub end ISO 4427 PE100 PN10 OD 63 OD63 PN10 - HDPE 3 ea.
Backing Flange, CS ASTM A105N, ASME
DN63 CL150 - 3 ea.
B16.5, Dims to match Flange Adaptor
Gasket Ring type, CNAF, Klingersil C8200, Dim DN500 CL150 - C8200 2 ea.
to ASME B16.21 , 1.5mm thick
Gasket Ring type, CNAF, Klingersil C8200, Dim DN50 CL150 - C8200 13 ea.
to ASME B16.21 , 1.5mm thick
Steam 12 LSA
500 2PC Ball Valve , ASTM A315 CF8M,1000WOG,
DN25 1000WOG - 316L 2 ea.
SS316, NPTF
Knife gate valve PZ73N-150LB, Lugged type,
body cast steel WCB, Epoxy coat, GateSS316, DN50 CL150 - - 4 ea.
ANSI B16.5, Hand wheel

Minsub Type A SG Iron to ISO 1083 Female

DN25 - - Gavanize 2 ea.
NPT thread to ANSI B1.20.3

Stud bolts, ASTM A193 Gr.B7 5/8"x85mm ,

two Stainless Steel washers and two heavy M16 B7 85 ss 44 ea.
hex nuts, to A194 Gr 2H.
Stud bolts, ASTM A193 Gr.B7 5/8"x150mm ,
two Stainless Steel washers and two heavy M16 B7 150 ss 8 ea.
hex nuts, to A194 Gr 2H.

Stud bolts, ASTM A193 Gr.B7 1 1/4"x220mm ,

two Stainless Steel washers and two heavy M33 B7 220 SS 40 ea.
hex nuts, to A194 Gr 2H.
1

1
2
2
2
2
2
2
2

2
1

2
2
2
