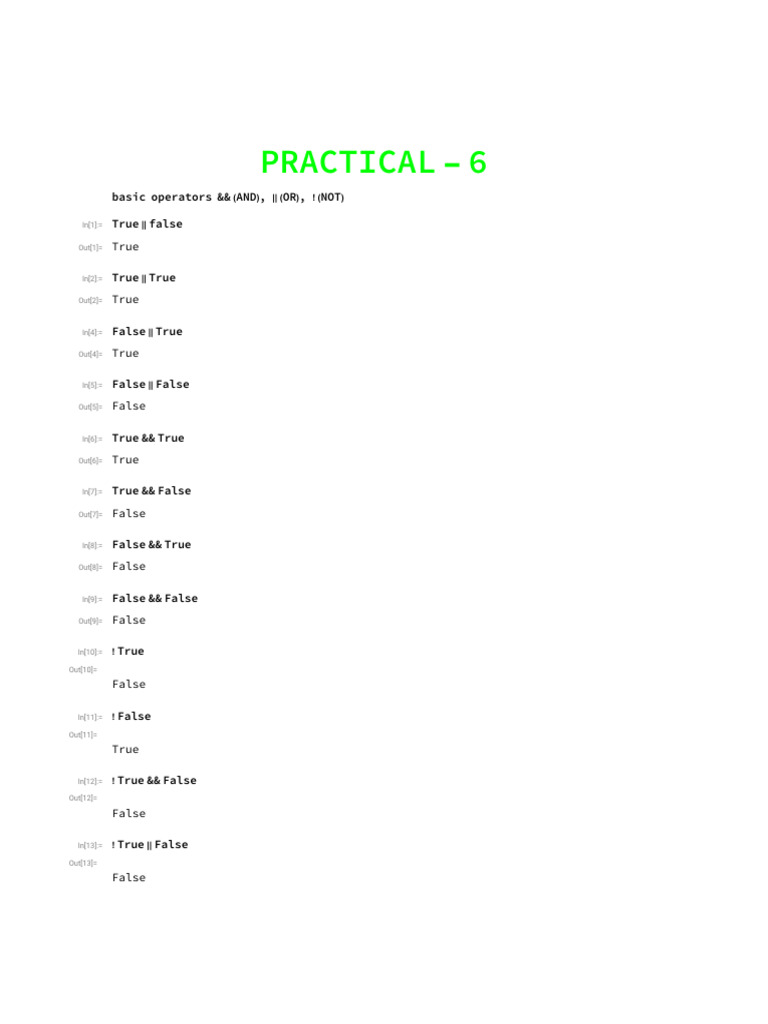

PRACTICAL - 6

basic operators && (AND), || (OR), ! (NOT)

In[1]:= True || false

Out[1]= True

In[2]:= True || True

Out[2]= True

In[4]:= False || True

Out[4]= True

In[5]:= False || False

Out[5]= False

In[6]:= True && True

Out[6]= True

In[7]:= True && False

Out[7]= False

In[8]:= False && True

Out[8]= False

In[9]:= False && False

Out[9]= False

In[10]:= ! True
Out[10]=
False

In[11]:= ! False
Out[11]=
True

In[12]:= ! True && False

Out[12]=

False

In[13]:= ! True || False

Out[13]=

False
2

In[14]:= True && ! True

Out[14]=

False

In[15]:= True ∧ False

Out[15]=

False

In[16]:= True ∨ False

Out[16]=

True

In[17]:= ¬ True
Out[17]=

False

REPRESENTING BOOLEAN FUNCTIONS

1. f (x, y, z) = xy + yz + zx

In[18]:= f[x_ , y _, z_] := (x ∧ y) ∨ (y ∧ z) ∨ (z ∧ x);

In[19]:= f[p, q, r]
Out[19]=

(p && q) || (q && r) || (r && p)

In[20]:= f[True, False, True]

Out[20]=

True

In[21]:= f[True, q, r]
Out[21]=

q || (q && r) || r

In[22]:= f[True, q, r] // Simplify

Out[22]=

q || r

2. g (x, y) = ! (! x + y) x + ! ! ! y + xy + x ! y

In[23]:= g[x_ , y _] := ! ((! (x ∨ y) ∧ x) ∨ ! ! ! y) ∨ (x ∧ y) ∨ (x ∧ ! y)

 3

In[24]:= g[False, False]

Out[24]=

False

In[25]:= g[False, True]

Out[25]=

True

In[26]:= gTrue, False

Out[26]=
True

In[27]:= g[True, True]

Out[27]=
True

3. h (x, y, z) = x (! (y + z)) + (xy + ! z) x

In[28]:= h[x_ , y _, z_] := (x ∧ (! (y ∨ z))) ∨ ((x ∧ y) ∨ ! z) ∧ x;

In[29]:= h[0, 0, 0] // Simplify

Out[29]=

False

In[30]:= h[1, 0, 0] // Simplify

Out[30]=
True

In[31]:= h[0, 1, 0] // Simplify

Out[31]=
False

In[32]:= h[0, 0, 1] // Simplify

Out[32]=
False

In[33]:= h[1, 1, 0] // Simplify

Out[33]=

True

In[34]:= h[1, 0, 1] // Simplify

Out[34]=

False
4

In[35]:= h[1, 1, 1] // Simplify

Out[35]=

True

TABLE FORM
1. FOR BOOLEAN POLYNOMIAL FUNCTION f :

In[37]:= BooleanTable[{p, q, r, f[p, q, r]}, {p, q, r}] // TableForm

Out[37]//TableForm=
True True True True
True True False True
True False True True
True False False False
False True True True
False True False False
False False True False
False False False False

In[38]:= Boole[BooleanTable[{p, q, r, f[p, q, r]}, {p, q, r}]] // TableForm

Out[38]//TableForm=
1 1 1 1
1 1 0 1
1 0 1 1
1 0 0 0
0 1 1 1
0 1 0 0
0 0 1 0
0 0 0 0

In[39]:= TableForm[Boole[BooleanTable[{p, q, r, f[p, q, r]}, {p, q, r}]],

TableHeadings → {None, {p, q, r, f}}]
Out[39]//TableForm=
p q r f
1 1 1 1
1 1 0 1
1 0 1 1
1 0 0 0
0 1 1 1
0 1 0 0
0 0 1 0
0 0 0 0

2. FOR BOOLEAN POLYNOMIAL FUNCTION g :

 5

In[40]:= TableForm[Boole[BooleanTable[{p, q, g[p, q]}, {p, q}]],

TableHeadings → {None, {p, q, g}}]
Out[40]//TableForm=
p q g
1 1 1
1 0 1
0 1 1
0 0 0

3. FOR BOOLEAN POLYNOMIAL FUNCTION h :

In[41]:= TableForm[Boole[BooleanTable[{p, q, r, h[p, q, r]}, {p, q, r}]],
TableHeadings → {None, {p, q, r, h}}]
Out[41]//TableForm=
p q r h
1 1 1 1
1 1 0 1
1 0 1 0
1 0 0 1
0 1 1 0
0 1 0 0
0 0 1 0
0 0 0 0

PRACTICAL - 7
1. DUAL OF A GIVEN BOOLEAN POLYNOMIAL / EXPRESSION.
In[1]:= dual[expr_] := expr /. {And → Or, Or → And, False → True, True → False}

In[2]:= dual1 = dual[(x && ! y) || (y && ! z) || (! x && z)]

Out[2]= (x || ! y) && (y || ! z) && (! x || z)

In[3]:= dual2 = dual[(! x && y) || (! y && z) || (x && ! z)]

Out[3]= (! x || y) && (! y || z) && (x || ! z)

2. WHETHER OR NOT TWO BOOLEAN

POLYNOMIALS ARE EQUIVALENT.
In[4]:= distributiveL = x && (y || z);
distributiveR = (x && y) || (x && z);
6

In[6]:= TautologyQ[Equivalent[distributiveL, distributiveL, distributiveR], x, y, z]

Out[6]= True

In[7]:= TautologyQ[Equivalent[x || (x && y), y], {x, y}]

Out[7]= False

In[8]:= f1[x_ , y _] := ! (x && y);

f2[x_ , y _] := ! x || ! y;

In[10]:= TautologyQ[Equivalent[f1[x, y], f2[x, y]], {x, y}]

Out[10]=

True

3. DISJUNCTIVE NORMAL
FORM CONJUNCTIVE NORMAL FORM
FROM A GIVEN BOOLEAN EXPRESSION.
In[11]:= example3 = (x || y) && ! z
Out[11]=

(x || y) && ! z

In[12]:= BooleanConvert[example3, "DNF"]

Out[12]=

(x && ! z) || (y && ! z)

In[13]:= BooleanConvert[example3]
Out[13]=

(x && ! z) || (y && ! z)

In[14]:= BooleanConvert[example3, "CNF"]

Out[14]=

(x || y) && ! z

4. DISJUNCTIVE NORMAL FORM

CONJUNCTIVE NORMAL FORM WHEN THE GIVEN BOOLEAN

FUNCTION IS EXPRESSED BY A TABLE OF VALUES.

 7

In[15]:= BFexample = BooleanFunction[{{1, 1, 1} → 0, {1, 1, 0} → 1, {1, 0, 1} → 0,

{1, 0, 0} → 1, {0, 1, 1} → 0, {0, 1, 0} → 0, {0, 0, 1} → 1, {0, 0, 0} → 0}]
Out[15]=

Number of variables: 3
BooleanFunction 
Function index: 82

In[16]:= BFexample[True, False, True]

Out[16]=
False

In[29]:= BooleanFunction[{{1, 1, 1} → 0, {1, 1, 0} → 1, {1, 0, 1} → 0,

{1, 0, 0} → 1, {0, 1, 1} → 0, {0, 1, 0} → 1, {0, 0, 1} → 1, {0, 0, 0} → 0}, {x, y, z}]
Out[29]=

(x && ! z) || (! x && ! y && z) || (y && ! z)

In[30]:= BooleanFunction[{{1, 1, 1} → 0, {1, 1, 0} → 1, {1, 0, 1} → 0, {1, 0, 0} → 1,

{0, 1, 1} → 0, {0, 1, 0} → 1, {0, 0, 1} → 1, {0, 0, 0} → 0}, {x, y, z}, "CNF"]
Out[30]=

(! x || ! z) && (x || y || z) && (! y || ! z)

In[19]:= BooleanTable[{x, y}, {x, y}] // TableForm

Out[19]//TableForm=
True True
True False
False True
False False

In[28]:= BooleanFunction[{0, 1, 0, 1, 0, 1, 1, 0}, {x, y, z}]

Out[28]=
(x && ! z) || (! x && ! y && z) || (y && ! z)

PRACTICAL - 8
8

Representing a given circuit diagram

expressed using gates in the form of boolean expression :

1.

In[1]:= G4 = ¬ a;

In[2]:= G5 = ¬ c;

In[3]:= G3 = G4 ∧ G5 ∧ c;

In[4]:= G2 = a ∧ b;

In[5]:= G1 = G2 ∨ G3;

In[6]:= G1
Out[6]= (a && b) || (! a && ! c && c)

In[8]:= G2 = A ∧ B ∧ C;

In[9]:= G4 = ¬ C;

In[10]:= G3 = A ∧ B ∧ G4;

In[11]:= G5 = ¬ A;
 9

In[12]:= G6 = ¬ C;

In[13]:= G7 = G5 ∧ B ∧ G6;

In[14]:= G1 = G2 ∨ G3 ∨ G7;

In[15]:= G1
Out[15]=

(A && B && C) || (A && B && ! C) || (! A && B && ! C)

In[27]:= G1 = ¬ x;

In[28]:= G2 = G1 ∧ x;

In[29]:= G3 = ¬ G2;

In[50]:= G4 = G3 ∨ G3;

In[40]:= G5 = ¬ w;

In[41]:= G6 = y ∧ G5;

In[42]:= G7 = y ∧ w;

In[43]:= G8 = ¬ z;

G9 = G7 ∨ G8;

In[35]:= G10 = G6 ∨ G9;

In[45]:= G11 = G4 ∨ G10;

In[46]:= G11
Out[46]=

! (! x && x) || ! (! x && x) || (y && ! w) || (y && w) || ! z

10

PRACTICAL - 9

In[47]:= BooleanMinimize[(a ∧ b) ∨ (! a ∧ b ∧ ! c)]

Out[47]=

(a && b) || (b && ! c)

In[48]:= BooleanMinimize[(a ∧ b) ∨ (! a ∧ b ∧ ! c), "CNF"]

Out[48]=

(a || ! c) && b

In[49]:= Simplify[(a ∧ b) ∨ (! a ∧ b ∧ ! c)]

Out[49]=

(a || ! c) && b
