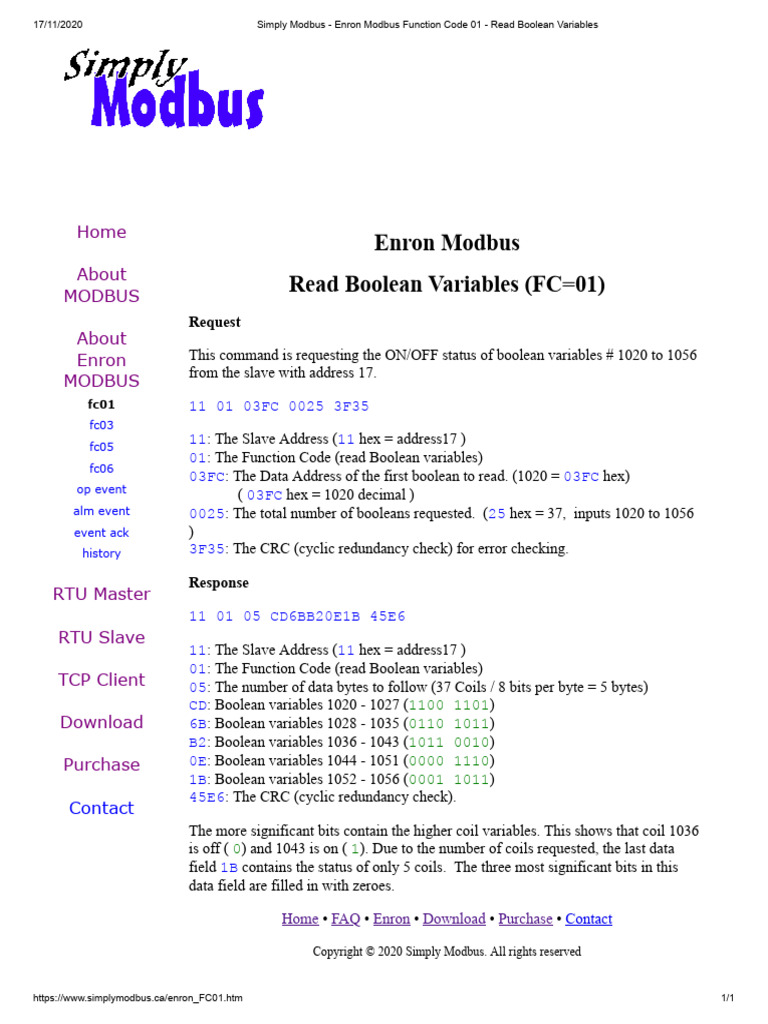

Read Boolean Variables (FC=01)
Request
About
Enron This command is requesting the ON/OFF status of boolean variables # 1020 to 1056
from the slave with address 17.
MODBUS
fc01 11 01 03FC 0025 3F35
fc03
fc05
11: The Slave Address (11 hex = address17 )
01: The Function Code (read Boolean variables)
fc06
03FC: The Data Address of the first boolean to read. (1020 = 03FC hex)
op event ( 03FC hex = 1020 decimal )
alm event 0025: The total number of booleans requested. (25 hex = 37, inputs 1020 to 1056
event ack )
history 3F35: The CRC (cyclic redundancy check) for error checking.

Response
RTU Master
11 01 05 CD6BB20E1B 45E6
RTU Slave
11: The Slave Address (11 hex = address17 )
01: The Function Code (read Boolean variables)
TCP Client 05: The number of data bytes to follow (37 Coils / 8 bits per byte = 5 bytes)
CD: Boolean variables 1020 - 1027 (1100 1101)
Download 6B: Boolean variables 1028 - 1035 (0110 1011)
B2: Boolean variables 1036 - 1043 (1011 0010)
Purchase 0E: Boolean variables 1044 - 1051 (0000 1110)
1B: Boolean variables 1052 - 1056 (0001 1011)
45E6: The CRC (cyclic redundancy check).
Contact
The more significant bits contain the higher coil variables. This shows that coil 1036
is off ( 0) and 1043 is on ( 1). Due to the number of coils requested, the last data
field 1B contains the status of only 5 coils. The three most significant bits in this
data field are filled in with zeroes.
