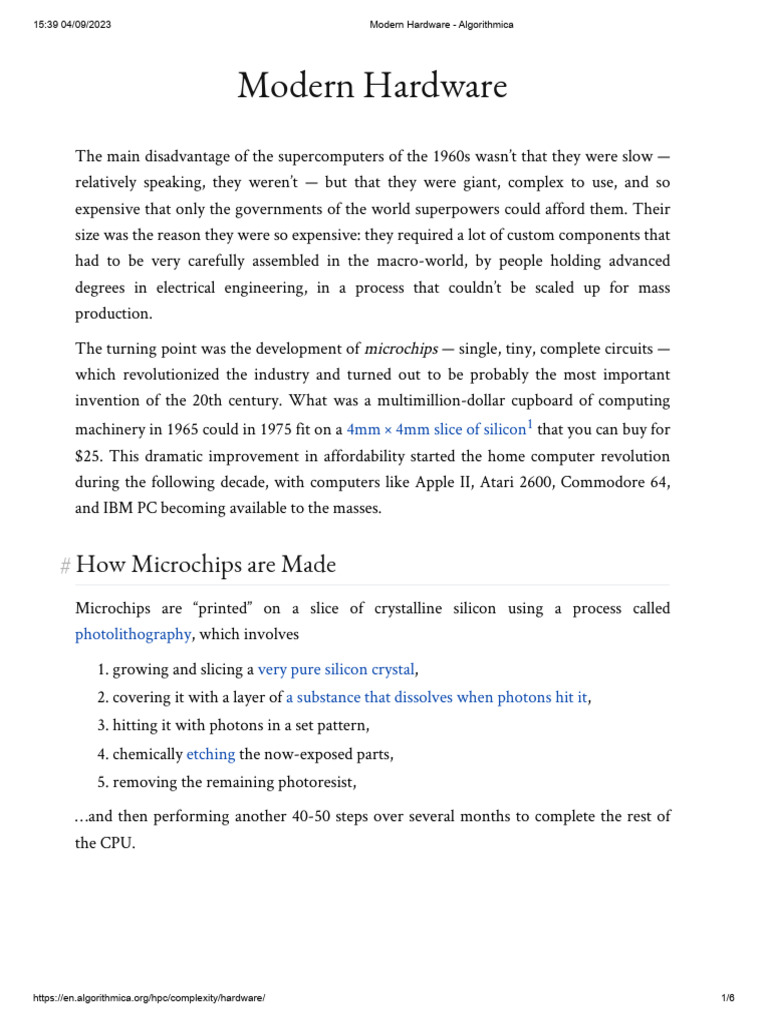

Modern Hardware
The main disadvantage of the supercomputers of the 1960s wasn’t that they were slow —
relatively speaking, they weren’t — but that they were giant, complex to use, and so
expensive that only the governments of the world superpowers could afford them. Their
size was the reason they were so expensive: they required a lot of custom components that
had to be very carefully assembled in the macro-world, by people holding advanced
degrees in electrical engineering, in a process that couldn’t be scaled up for mass
production.

The turning point was the development of microchips — single, tiny, complete circuits —
which revolutionized the industry and turned out to be probably the most important
invention of the 20th century. What was a multimillion-dollar cupboard of computing
machinery in 1965 could in 1975 fit on a 4mm × 4mm slice of silicon1 that you can buy for
$25. This dramatic improvement in affordability started the home computer revolution
during the following decade, with computers like Apple II, Atari 2600, Commodore 64,
and IBM PC becoming available to the masses.

# How Microchips are Made

Microchips are “printed” on a slice of crystalline silicon using a process called
photolithography, which involves

1. growing and slicing a very pure silicon crystal,

2. covering it with a layer of a substance that dissolves when photons hit it,
3. hitting it with photons in a set pattern,
4. chemically etching the now-exposed parts,
5. removing the remaining photoresist,
…and then performing another 40-50 steps over several months to complete the rest of
the CPU.

https://en.algorithmica.org/hpc/complexity/hardware/ 1/6
15:39 04/09/2023 Modern Hardware - Algorithmica

Consider now the “hit it with photons” part. For that, we can use a system of lenses that
projects a pattern onto a much smaller area, effectively making a tiny circuit with all the
desired properties. This way, the optics of the 1970s were able to fit a few thousand
transistors on the size of a fingernail, which gives microchips several key advantages that
macro-world computers didn’t have:
higher clock rates (that were previously limited by the speed of light);
the ability to scale the production;
much lower material and power usage, translating to much lower cost per unit.

Apart from these immediate benefits, photolithography enabled a clear path to improve
performance further: you can just make lenses stronger, which in turn would create
smaller, but functionally identical devices with relatively little effort.

# Dennard Scaling

https://en.algorithmica.org/hpc/complexity/hardware/ 2/6
15:39 04/09/2023 Modern Hardware - Algorithmica

Consider what happens when we scale a microchip down. A smaller circuit requires
proportionally fewer materials, and smaller transistors take less time to switch (along
with all other physical processes in the chip), allowing reducing the voltage and increasing
the clock rate.

A more detailed observation, known as the Dennard scaling, states that reducing
transistor dimensions by 30%

doubles the transistor density (0.72 ≈ 0.5),

1
increases the clock speed by 40% ( 0.7
​ ≈ 1.4),
and leaves the overall power density the same.
Since the per-unit manufacturing cost is a function of area, and the exploitation cost is
mostly the cost of power2, each new “generation” should have roughly the same total cost,
but 40% higher clock and twice as many transistors, which can be promptly used, for
example, to add new instructions or increase the word size — to keep up with the same
miniaturization happening in memory microchips.
Due to the trade-offs between energy and performance you can make during the design,
the fidelity of the fabrication process itself, such as “180nm” or “65nm,” directly translating
to the density of transistors, became the trademark for CPU efficiency3.

Throughout most of the computing history, optical shrinking was the main driving force
behind performance improvements. Gordon Moore, the former CEO of Intel, predicted
in 1975 that the transistor count in microprocessors will double every two years. His
prediction held to this day and became known as Moore’s law.

https://en.algorithmica.org/hpc/complexity/hardware/ 3/6
15:39 04/09/2023 Modern Hardware - Algorithmica

Both Dennard scaling and Moore’s law are not actual laws of physics, but just
observations made by savvy engineers. They are both destined to stop at some point due
to fundamental physical limitations, the ultimate one being the size of silicon atoms. In
fact, Dennard scaling already did — due to power issues.

Thermodynamically, a computer is just a very efficient device for converting electrical

power into heat. This heat eventually needs to be removed, and there are physical limits
to how much power you can dissipate from a millimeter-scale crystal. Computer
engineers, aiming to maximize performance, essentially just choose the maximum
possible clock rate so that the overall power consumption stays the same. If transistors
become smaller, they have less capacitance, meaning less required voltage to flip them,
which in turn allows increasing the clock rate.

Around 2005–2007, this strategy stopped working because of leakage effects: the circuit
features became so small that their magnetic fields started to make the electrons in the
neighboring circuitry move in directions they are not supposed to, causing unnecessary
heating and occasional bit flipping.

The only way to mitigate this is to increase the voltage; and to balance off power
consumption you need to reduce clock frequency, which in turn makes the whole process
progressively less profitable as transistor density increases. At some point, clock rates
could no longer be increased by scaling, and the miniaturization trend started to slow
down.

https://en.algorithmica.org/hpc/complexity/hardware/ 4/6
15:39 04/09/2023 Modern Hardware - Algorithmica

# Modern Computing
Dennard scaling has ended, but Moore’s law is not dead yet.
Clock rates plateaued, but the transistor count is still increasing, allowing for the creation
of new, parallel hardware. Instead of chasing faster cycles, CPU designs started to focus on
getting more useful things done in a single cycle. Instead of getting smaller, transistors
have been changing shape.

This resulted in increasingly complex architectures capable of doing dozens, hundreds, or

even thousands of different things every cycle.

Die shot of a Zen CPU core by AMD (~1,400,000,000 transistors)

Here are some core approaches making use of more available transistors that are driving
recent computer designs:

https://en.algorithmica.org/hpc/complexity/hardware/ 5/6
15:39 04/09/2023 Modern Hardware - Algorithmica

Overlapping the execution of instructions so that different parts of the CPU are kept
busy (pipelining);
Executing operations without necessarily waiting for the previous ones to complete
(speculative and out-of-order execution);
Adding multiple execution units to process independent operations simultaneously
(superscalar processors);
Increasing the machine word size, to the point of adding instructions capable of
executing the same operation on a block of 128, 256, or 512 bits of data split into
groups (SIMD);
Adding layers of cache on the chip to speed up RAM and external memory access
time (memory doesn’t quite follow the laws of silicon scaling);
Adding multiple identical cores on a chip (parallel computing, GPUs);
Using multiple chips in a motherboard and multiple cheaper computers in a data
center (distributed computing);
Using custom hardware to solve a specific problem with better chip utilization
(ASICs, FPGAs).

For modern computers, the “let’s count all operations” approach for predicting algorithm
performance isn’t just slightly wrong but is off by several orders of magnitude. This calls
for new computation models and other ways of assessing algorithm performance.

1. Actual sizes of CPUs are about centimeter-scale because of power management, heat
dissipation, and the need to plug it into the motherboard without excessive
swearing. ↩︎

2. The cost of electricity for running a busy server for 2-3 years roughly equals the cost
of making the chip itself. ↩︎

3. At some point, when Moore’s law started to slow down, chip makers stopped
delineating their chips by the size of their components — and it is now more like a
marketing term. A special committee has a meeting every two years where they take
the previous node name, divide it by the square root of two, round to the nearest
integer, declare the result to be the new node name, and then drink lots of wine.
The “nm” doesn’t mean nanometer anymore. ↩︎
