Troubleshooting
C11, C13, C15, and C18 Industrial Engines
Media Number -M0073474-05 Publication Date -01.08.2017 Date Updated -10.08.2017

i06730612

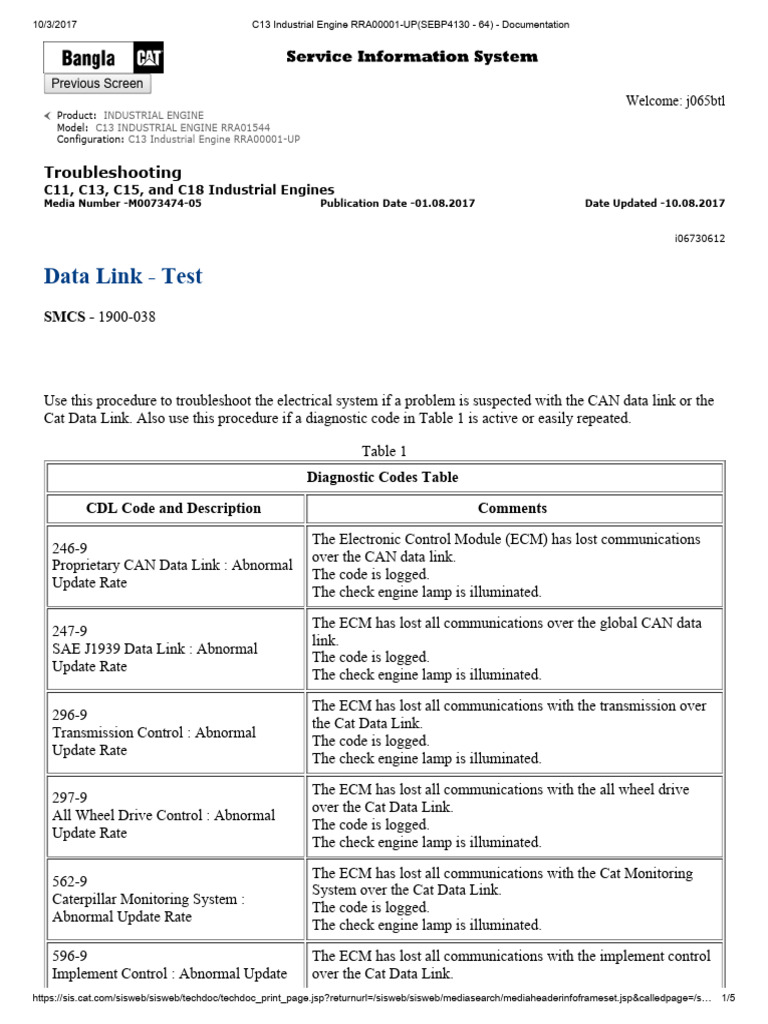

Data Link - Test

SMCS - 1900-038

Use this procedure to troubleshoot the electrical system if a problem is suspected with the CAN data link or the
Cat Data Link. Also use this procedure if a diagnostic code in Table 1 is active or easily repeated.

Table 1
Diagnostic Codes Table
CDL Code and Description Comments
The Electronic Control Module (ECM) has lost communications
246-9
over the CAN data link.
Proprietary CAN Data Link : Abnormal
The code is logged.
Update Rate
The check engine lamp is illuminated.
The ECM has lost all communications over the global CAN data
247-9
link.
SAE J1939 Data Link : Abnormal
The code is logged.
Update Rate
The check engine lamp is illuminated.

The ECM has lost all communications with the transmission over
296-9
the Cat Data Link.
Transmission Control : Abnormal
The code is logged.
Update Rate
The check engine lamp is illuminated.
The ECM has lost all communications with the all wheel drive
297-9
over the Cat Data Link.
All Wheel Drive Control : Abnormal
The code is logged.
Update Rate
The check engine lamp is illuminated.
The ECM has lost all communications with the Cat Monitoring
562-9
System over the Cat Data Link.
Caterpillar Monitoring System :
The code is logged.
Abnormal Update Rate
The check engine lamp is illuminated.
596-9 The ECM has lost all communications with the implement control
Implement Control : Abnormal Update over the Cat Data Link.
https://sis.cat.com/sisweb/sisweb/techdoc/techdoc_print_page.jsp?returnurl=/sisweb/sisweb/mediasearch/mediaheaderinfoframeset.jsp&calledpage=/s… 1/5
10/3/2017 C13 Industrial Engine RRA00001-UP(SEBP4130 - 64) - Documentation

Rate The code is logged.

The check engine lamp is illuminated.
The Electronic Control Module (ECM) has lost communications
639-9
over the J1939 data link.
J1939 Network #1 : Abnormal Update
The code is logged.
Rate
The check engine lamp is illuminated.
1603-9
The code is logged.
Machine Control Module : Abnormal
The check engine lamp is illuminated.
Update Rate
The ECM has lost communications with the Machine Security
1639-2
System Module (MSSM) over the Cat Data Link.
Machine Security System Module :
The code is logged.
Erratic, Intermittent, or Incorrect
The check engine lamp is illuminated.
The ECM has lost all communications with the Cat Monitoring
1639-9
System over the Cat Data Link.
Machine Security System Module :
The code is logged.
Abnormal Update Rate
The check engine lamp is illuminated.

The ECM has lost all communications with the DPF #1 Soot
3397-9
Loading Sensor over the Cat Data Link.
DPF #1 Soot Loading Sensor :
The code is logged.
Abnormal Update Rate
The check engine lamp is illuminated.
The ECM has lost all communications with the ARD combustion
3472-9
air controller over the Cat Data Link.
ARD Air Pressure Control System :
The code is logged.
Abnormal Update Rate
The check engine lamp is illuminated.

Note: If a 1639-2 diagnostic code is active, verify that the following information is correct before proceeding
with this procedure:

The part number of the flash software for the Machine ECM

The part number of the flash software for the Machine Security System ECM

The part number of the Machine ECM

The part number of the Machine Security System ECM

https://sis.cat.com/sisweb/sisweb/techdoc/techdoc_print_page.jsp?returnurl=/sisweb/sisweb/mediasearch/mediaheaderinfoframeset.jsp&calledpage=/s… 2/5
10/3/2017 C13 Industrial Engine RRA00001-UP(SEBP4130 - 64) - Documentation

Illustration 1 g02112358
Schematic for the Cat Data Link and the CAN data link

Probable Causes
Short circuit

Open circuit

Termination resistors

Recommended Actions
Table 2
Troubleshooting Test Steps Values Results

1. Check for a Short Circuit Short Result: Each check of the resistance indicates
circuit an open circuit.
A. Turn the keyswitch to OFF.
Proceed to Test Step 2
B. Thoroughly inspect the connectors that are
associated with the data link circuits. Refer to Result: At least one check of the resistance
Troubleshooting, "Electrical Connectors - does not indicate an open circuit. There is a
Inspect". short circuit in the harness or in a connector.

C. Disconnect the P1 and the P2 ECM Repair: Repair the connectors and/or the
connector. wiring. Replace parts, if necessary. Verify that

https://sis.cat.com/sisweb/sisweb/techdoc/techdoc_print_page.jsp?returnurl=/sisweb/sisweb/mediasearch/mediaheaderinfoframeset.jsp&calledpage=/s… 3/5
10/3/2017 C13 Industrial Engine RRA00001-UP(SEBP4130 - 64) - Documentation

D. Disconnect Cat ET from the service tool the original problem is resolved.
connector.

E. Measure the resistance between the points

that are listed below. Be sure to wiggle the
wires in the harnesses as you make each
resistance measurement.

- P1-8 to all P1 connector terminals and

negative ground
- P1-9 to all P1 connector terminals and
negative ground
- P1-50 to all P1 connector terminals and
negative ground
- P1-34 to all P1 connector terminals and
negative ground
- P2-12 to all P2 connector terminals and
negative ground
- P2-11 to all P2 connector terminals and
negative ground

2. Check for an Open Circuit

A. Fabricate a jumper wire that is long enough

to create a test circuit across two terminals.
Create a short circuit between terminals D and
E on the service tool connector. Result: Each check of the resistance indicates
a short circuit.
B. Measure the resistance between P1-8 and
P1-9. Remove the jumper wire from the service tool
connector. Proceed to Test Step 3.
C. Fabricate a jumper wire that is long enough
to create a test circuit across two terminals. Result: At least one of the resistance
Create a short circuit between terminals G and measurements indicates an open circuit.
Open
F on the service tool connector.
circuit
Repair: Remove the jumper wire from the
D. Measure the resistance between P1-50 and ECM connector. Determine the cause of the
P1-34). open circuit. Repair the problem, when
possible. Replace parts, if necessary.
E. Fabricate a jumper wire that is long enough
to create a test circuit across two terminals. Use If the problem is not resolved, proceed to Test
the jumper wire to create a short circuit Step 3.
between terminals 23 and 24 on the Clean
Emissions Module (CEM) connector.

F. Measure the resistance between P2-12 and

P2-11.

3. Check the Termination Resistors for the Resistance Result: The termination resistors are OK.
CAN Data Link There is an intermittent problem in a

https://sis.cat.com/sisweb/sisweb/techdoc/techdoc_print_page.jsp?returnurl=/sisweb/sisweb/mediasearch/mediaheaderinfoframeset.jsp&calledpage=/s… 4/5
10/3/2017 C13 Industrial Engine RRA00001-UP(SEBP4130 - 64) - Documentation

connector or in the harness.

Note: Perform this test only if you are
troubleshooting a problem with the CAN data
link.
A. At the service tool connector, measure the
resistance between the terminals for the CAN
data link. The resistance should be between
45Ω to 75Ω.
Repair: Repair the problem.
Result: The resistance is approximately
120Ω. There is a problem with a termination
resistor.
Repair: At least one measurement is less than
5Ω. The wiring for a data link has a short
circuit. Determine the cause of the missing
termination resistor. Repair the problem,
when possible. Replace parts, if necessary.
Verify that the problem is resolved.

Result: The resistance is greater than 140Ω.

There is a problem with both termination
resistors.

Repair: Determine the cause of the problem.

Repair the problem, when possible. Replace
parts, if necessary.

If the problem is not resolved, contact your Technical Communicator (TC). For further assistance, the TC can
confer with the Dealer Solutions Network (DSN).
