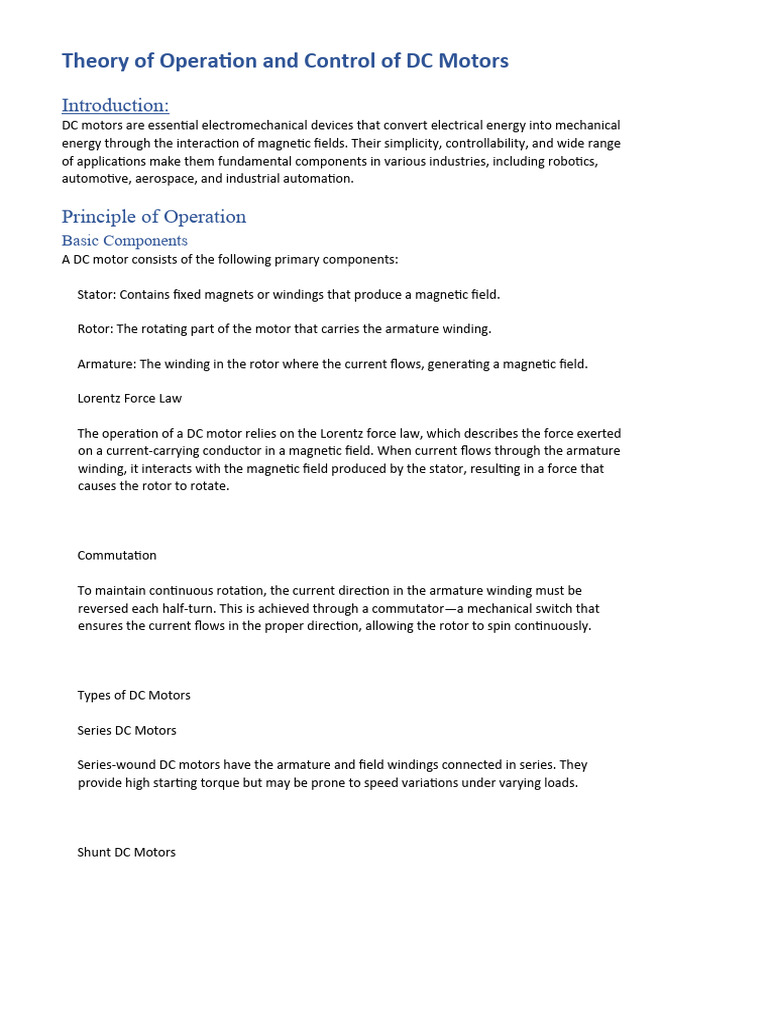

Theory of Operation and Control of DC Motors

Introduction:
DC motors are essential electromechanical devices that convert electrical energy into mechanical
energy through the interaction of magnetic fields. Their simplicity, controllability, and wide range
of applications make them fundamental components in various industries, including robotics,
automotive, aerospace, and industrial automation.

Principle of Operation
Basic Components
A DC motor consists of the following primary components:

Stator: Contains fixed magnets or windings that produce a magnetic field.

Rotor: The rotating part of the motor that carries the armature winding.

Armature: The winding in the rotor where the current flows, generating a magnetic field.

Lorentz Force Law

The operation of a DC motor relies on the Lorentz force law, which describes the force exerted
on a current-carrying conductor in a magnetic field. When current flows through the armature
winding, it interacts with the magnetic field produced by the stator, resulting in a force that
causes the rotor to rotate.

Commutation

To maintain continuous rotation, the current direction in the armature winding must be
reversed each half-turn. This is achieved through a commutator—a mechanical switch that
ensures the current flows in the proper direction, allowing the rotor to spin continuously.

Types of DC Motors

Series DC Motors

Series-wound DC motors have the armature and field windings connected in series. They
provide high starting torque but may be prone to speed variations under varying loads.

Shunt DC Motors
Shunt-wound DC motors have the armature and field windings connected in parallel. They offer
relatively constant speed characteristics and are suitable for applications requiring stable speed
control.

Compound DC Motors

Compound-wound DC motors combine elements of both series and shunt motors, providing
characteristics of both high starting torque and stable speed control.

Control Techniques

Speed Control

Speed control in DC motors can be achieved using various methods:

Voltage Control: Adjusting the applied voltage to the motor can directly impact its speed.

Field Flux Control: Changing the field winding's current alters the motor's speed.

Pulse Width Modulation (PWM): By rapidly switching the supply voltage on and off, an average
voltage is applied, controlling the motor speed.

Direction Control

Reversing the direction of a DC motor is typically achieved by changing the polarity of either the
armature or field winding. This is commonly done using a DPDT (Double-Pole, Double-Throw)
switch or an H-bridge circuit in electronic motor control systems.

Applications:
DC motors find applications in numerous fields, including:

Industrial Automation: Conveyor belts, pumps, and fans.

Automotive: Window regulators, windshield wipers, and electric vehicles.

Robotics: Robot joints, grippers, and locomotion systems.

Aerospace: Actuators, control surfaces, and satellite positioning systems.

Conclusion:
DC motors operate on the principles of electromagnetism and the interaction between magnetic
fields and current-carrying conductors. Their versatility, controllability, and wide-ranging
applications make them indispensable in modern technology and industry.
Theory of Operation and Performance of Single-Phase
Transformers
Introduction

Single-phase transformers are vital components in electrical systems used to step up or step
down voltage levels efficiently. They operate on the principles of electromagnetic induction and
are crucial in transmitting electrical power across different voltage levels while minimizing
losses.

Principle of Operation

Basic Components

A single-phase transformer consists of:

1. Core: Usually made of laminated steel to reduce eddy current losses and enhance
magnetic flux.

2. Primary and Secondary Windings: Coils wound around the core, isolated from each other,
responsible for inducing voltage across the transformer.

Electromagnetic Induction

When an alternating current (AC) flows through the primary winding, it generates a varying
magnetic field around the core. This changing magnetic field induces an electromotive force
(EMF) in the secondary winding, leading to the transformation of voltage and current levels.

Performance Characteristics

Voltage Transformation

The turns ratio between the primary and secondary windings determines the voltage
transformation ratio of the transformer. For an ideal transformer (with no losses), the ratio of
primary to secondary turns equates to the ratio of primary to secondary voltages.

Efficiency

Efficiency in transformers is crucial to minimize energy losses. Factors affecting efficiency

include core losses (eddy current and hysteresis losses) and copper losses (resistive losses in the
windings). Higher efficiency transformers reduce energy wastage.

Regulation

Transformer regulation refers to the ability to maintain a nearly constant secondary voltage
despite variations in load. A transformer with good regulation will have a minimal change in
secondary voltage when the load changes.

Types of Single-Phase Transformers

Step-Up Transformers

Step-up transformers increase the voltage from the primary to the secondary winding and are
commonly used in power transmission from power plants to distribution networks.

Step-Down Transformers

Conversely, step-down transformers decrease the voltage from the primary to the secondary
winding and are used to deliver safe voltage levels to consumers.

Applications

Single-phase transformers have diverse applications across industries, including:

 Power Distribution: Transmitting electricity from power stations to homes and businesses.

 Voltage Regulation: Stabilizing voltage levels in electronic devices and equipment.

 Isolation: Providing electrical isolation between primary and secondary circuits for safety.

Conclusion

Single-phase transformers play a crucial role in electrical systems by facilitating the efficient
transmission and regulation of voltage levels. Understanding their operation, performance
characteristics, and types is fundamental in designing and maintaining electrical networks for
various applications.
