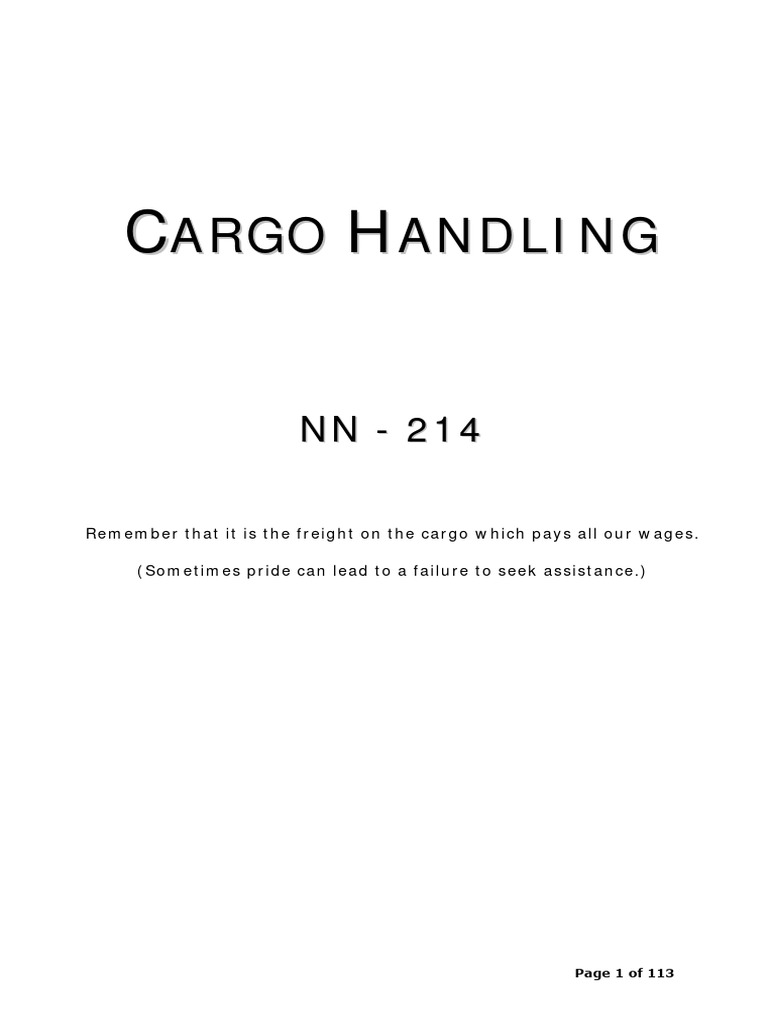

NN - 214
Remember that it is the freight on the cargo which pays all our wages.
Page 1 of 113
Index
CHAPTER 6 Dunnage
Page 2 of 113
2
CHAPTER 1
SHIP’S CARGO GEAR & CARGO SLINGS
Definition:-
Shipboard lifting gear is the equipment onboard the ship, which is designated to
lift cargo from shore, and land it in the ship’s holds and vice versa, this operation
is called loading and discharging cargo.
Introduction:-
There are four main types of lifting gear on Dry Cargo ships; under each type
there are many designs with a variety of lifting capacity, which varies between 3
tons up to 400 ton on unspecialized ships, and can exceed that on heavy lift
ships.
The four main shipboard-based lifting gears are
1) Union Purchase
2) Single Swinging Derrick
3) Cranes, Deck cranes both level-luffing.
4) Shipboard Gantry System
The Union Purchase was the most common type of shipboard lifting equipment
since the wooden ships up to the early 70s of the last century. It was then
gradually replaced by swinging derricks and cranes, by the early 80s the cranes
was the dominate lifting gear of choice for all new built while the swinging
derricks was only fitted onboard ships designed for heavy-lift. By late 1990s that
again was changed when cranes manufactures was able to produce cranes with
the lifting capacity of over 400 Tons per crane, coupled with greater reliability
and nearly maintenance free crane designs, eliminated the need for the swinging
derricks (Swinging Derricks is still fitted on heavy-lift ships).
The shipboard gantry system, was introduces in the barge-carrying ship “LASH”,
in this concept, the container is itself a floating vessel, usually about 60 feet long
by about 30 feet wide, which is loaded aboard the ship by a high-capacity
shipboard gantry crane.
The same concept was introduced on General Cargo and container vessels, and
was successful on reefer container vessels with the capacity of 2000 TEU.
The Union Purchase rig consist of two derricks, One derrick, called the 'ship
derrick' is positioned over the hatch-opening (hatchway) in order to allow a direct
vertical lead to the cargo within the hold and the other, called the 'off-shore
derrick' is positioned clear of the rail to allow of discharge to the berth or lighter
(barge).
Page 3 of 113
3
Figure (1): Union Purchase rig with a three guys layout
Page 4 of 113
4
Union Purchase Gears and accessory gears:-
Bull Assembly
Bull chain
Bull wire (rope)
Bail
In order to hoist or lower the cargo boom, bull wire will be connected to the
winch, after the desired height is achieved, the bull chain is connected to the
deck through the shackle and the pad eye, then disconnect the bull wire from the
winch.
Page 5 of 113
5
1.1.2 Single Swinging Derrick Conventional heavy lift boom
Swinging derrick rig consist of one derrick placed in the centre of the vessel, it
was named swinging because the derrick swing back and forth between the
hatchway and the dockside (or lighter) during Loading/Discharging.
Page 6 of 113
6
then connected to the runner winch, dimension of the wire and size and number
of block sheaves depend on the load design of the derrick.
vi. Guys (Outboard and inboard)
The guy is the assembly used to swing the cargo boom (derrick) in the desired
position.
There are two guys (Outboard and inboard), each guy consist of:-
Two steel wire pendants, tackle & wire, deck block and winch
The steel wire pendant are attached to the derrick head and the ship’s deck, in-
between the pendants the tackle is attached. The guy wire passes through two
multi sheave steel blocks, and the wire is guided through the deck block (single
sheave) and then connected to the guy winch, dimension of the wire and size and
number of block sheaves depend on the load design of the derrick.
Heavier hoisting capacities are also available for specialized ships and cargoes;
they reached the staggering hoisting capacity of 400 tons.
These crane types are suitable for relatively fast moving general, bulk and
container cargoes.
Cranes is mounted on a vertical pillar structure, from the deck. Visibility and line
of vision is important, if not vital, to crane operators.
Effective hoisting, slewing and luffing are the three essentials of good crane work
and are the activities needful of attention by Cargo Officers, depending upon the
type of labour employed as cab operators. Unnecessary acceleration, retardation,
sudden and rapid restriction increases the normal stresses provided by a load
upon the cargo gear, apart from its effect upon the mechanism of the crane,
however robust this may be.
Modern deck cranes incorporate these three functions by automatic lever controls
in the operator's cab
Page 7 of 113
7
Figure (4): Modern crane (capacity 400 Figure (5): Both Level-Luffing Cranes
Tons)
Page 8 of 113
8
1.1.4 Gantry
Other crane design is the gantry crane, similar to shore based container gantry
crane.
This design is not wide spread onboard vessels as the traditional one.
The ship is equipped with two rails near the bulwark running the full length of the
main deck from under the forecastle up to the superstructure, this enable to
position the gantry crane exactly on top of the cargo.
This design achieved very good loading/discharging rate with light homogeneous
cargo, capacity of these cranes varies but the most common is between 20 to 30
Ton.
Page 9 of 113
9
1.2 Ancillary equipment (Slings):-
Cargo slinging utilizes rope, wire and chain, used either singly or made up into
relevant patterns.
Although specialized cargoes such as containers, bulks, timber and steel, etc.,
require unique discharging methods.
Page 10 of 113
10
The following list, though not exhaustive, indicates a fair range of slinging
requirements.
TYPE OF
CARGOES TO LIFT
SLING(S)
Automatic
Bulk cargoes
grabs.
Fragile cargo such as bags of
Board Sling
cement
Boxes Explosives
Canvas slings. Bagged cargo
Can hooks. Barrels & Drums
Packaged timber, timber logs,
Chain slings.
beans/girders ex hatch beams.
Car Slings Motor cars and Lorries
Container
Containers
Spreader
Electro Iron and steel products, scrap
magnets iron.
Fibre straps. Bales of pulp
Looped rope Cases, two slings end looped
slings. together on the hook.
Metal cradles. Loose, round timber.
Paper rolls, where not lifted by
Metal frames.
hydraulic suction methods.
Metal stirrups Pallets
Inhomogeneous packages of
Net slings,
various 'small' sizes. Pallets with
wire or rope
homogeneous loads
Paper rolls, where not lifted by
Nylon straps.
hydraulic suction methods.
Plate Clamps. Steel plates
Wide applications, including
general loads of cases, crates,
Rope slings.
bagged cargo, packaged unit
loads, pallets, packaged timber.
Spiked clamps Heavy cases
Small cases and packages,
Trays
cartons, strapped units
Tongs Log timber
Wire slings Heavy crates/cases,
(Snotter). beams/girders, pallets, etc.
Wire spreaders
Locomotives and similar cargo
(Heavy Lift).
Page 11 of 113
11
In this chapter will cover the following slings:-
1.2.2 Rope sling: This is formed by joining the ends of a piece of 25-30 mm rope
about 10-12 metres in length with a short splice. The sling is in very common
use. Bags, baled goods, barrels and cases may all be slung with this.
1.2.3 Canvas sling: This is formed by sewing a piece of canvas between the parts
of a rope sling. It is used for bagged grain, rice, coffee and similar cargoes where
the contents of the bag are small. Any spillage is retained in the canvas and is
not wasted. The stress on the outside bags is spread more evenly and thus the
chance of splitting is reduced.
1.2.4 Board sling: Is similar to the canvas sling but wood is used in place of the
canvas. This is used for slinging fragile cargo such as bags of cement.
1.2.5 Snotter: May be made of either rope or wire by forming an eye at each end
of a If. 20mm wire or 50~60 mm rope 4~6 metres in length. It is used for
slinging cases, bales, wet hides and timber.
1.2.6 Chain sling: Consists of a length of chain with a large ring at one end and a
hook HI smaller ring at the other end. It is used for lifting heavy logs, bundles of
iron and most steelwork. Care must always be taken that no kinks are allowed to
form in the chain when goods are being lifted.
Page 12 of 113
12
1.2.7 Plate clamps: There are various types of plate clamp, but the principle is
that the plate is gripped when the weight is taken, so that there is no chance of
the plate slipping c n could do if a chain sling was used.
1.2.8 Can hooks: The hook slips under the lip of the drum or barrel. There are
frequently four or five sets of hooks on a ring, which enable drums and barrels to
be handled very rapidly. They are not to be recommended for handling heavy
barrels as there is a possibility that the staves will be pulled out.
1.2.9 Trays: May be square, rectangular or round. They are slung by short pieces
of rope, called legs, attached to the corners. Used for small cases and drums.
1.2.10 Boxes: Similar to the tray but a wooden side is fixed around it. Used
for handling explosives.
Page 13 of 113
13
1.2.11 Nets: Used for handling small packages and mails, A wooden board is
sometimes placed in the net if there is a risk of the packages being crushed. A
canvas net sling is sometimes used for slinging frozen meat.
1.2.12 Car slings: There are many types of these. All are designed for the
rapid handling of cars and Lorries. It is essential that spreaders should be fitted
otherwise there is a possibility that the bodywork of the vehicle will be damaged
(cave in). When heavy Lorries and buses or big chassis are to be slung, wire
slings are usually attached direct to the ends of the axles.
1.2.13 Heavy Lift Slings: Are used for the handling of locomotives and
similar cargo. A large beam is employed to separate the slings which are of large
gauge wire. The slings are attached to the ends of the beam.
Page 14 of 113
14
CHAPTER 2
CARGO HANDLING SAFETY
2.1 Introduction
Seamanship has been defined as the application of common sense and
experience in the marine environment.
Safety in Port comprise of many aspects, in this chapter will only consider safety
aspects of cargo handling, which are divided as follows:-
2.1 Basics of cargo handling Safety
2.2 Safety of personnel
2.3 Safety clothing and equipment
2.4 Safety precautions during Opening and Closing Hatch Covers
2.5 Safe operation of cargo-handling equipment
2.6 Safety during cargo operation
2.7 Other Safety precautions
2.2 Reference
OOW should read and understand the ILO code of practice entitled Accident
prevention on board ship at sea and in port (ILO copyright 1996); which is the
source or the foundation of all national and international regulation.
Page 15 of 113
15
2.4 Safety clothing
The OOW should always ensure that all personnel employed on the ship wear
clothing and other relevant protection which is suitable for the job they are
performing, and the location in which they are working.
a) The OOW must personally supervise all stages of opening and closing hatches.
b) Track-ways should be clear of obstructions, and all personnel should stand
well clear.
c) Secure hatch covers after opening.
d) No-one is permitted to stand on a hatch cover whilst it is moving.
e) Secure Hatch Cover after opening.
f) Guards must be erected around all openings, however temporary.
Page 16 of 113
16
tested regularly; and must not be over-ridden or switched off, except under
specific permitted circumstances; over-ride keys should not be given out to
stevedores..
g) Vents used to provide cooling air to the lifting equipment’s motors must be
open.
h) Sufficient power must be available at all times.
i) Winch-Brakes should be examined and tested regularly.
j) Lubricating and hydraulic oil levels must be checked before operating and
topped up as required.
k) Crane’s windows should be cleaned regularly.
If the OOW detects any faults in the ship's equipment, he shall immediately
suspend using the faulty gear and inform the Chief Officer.
a) The operation should be conducted with due care, and without undue haste.
b) The safe working load of the equipment must not be exceeded.
The OOW should check not only the weight of items of cargo but also the
weight of mobile cargo-handling equipment, such as fork lifts and bulldozers,
which is to be lifted by the ship's gear. Often such equipment has a
detachable counterweight to avoid overstressing the lifting gear.
c) The OOW must be sure that all parts of the system are operating within their
designed limits.
d) Use appropriate slings to the type of and packing of cargo
e) The equipment must be operated by a skilled and experienced person.
f) If the operator cannot see the entire operation (e.g., from the quay to the
bottom of the hold) then a signalman must be positioned to cover his blind
area.
g) Controls must never be left unattended, unless switched off.
h) Equipment should be operated smoothly, without any jerking; in particular the
load should be taken up gradually, as snatching produces excessive strains
and stresses in the equipment.
i) The load must not be left suspended, but should be rested on deck, or some
other adequate support, if there is an unexpected delay. This does NOT apply
to very heavy lifts, which should be returned to their original position if delays
arise.
j) Appropriate communication must be used, with all signals clearly understood
by all concerned.
k) Slack wires should be avoided, and any slack turns on a barrel must be
removed as soon as they are noticed, as there is a danger they may pull out
suddenly under load, and maybe cause an accident.
l) Cargo should not be dragged over other cargo or allowed to collide with parts
of the ship's structure or fittings.
m) Employ any specialised equipment available for that type of cargo.
n) Handling-instruction labels on the cargo must be obeyed.
o) Operations such as changing the gearing, or twinning two systems, must only
be performed under the direct supervision of the OOW, who should check the
manuals or consult the Chief Officer if he is not sure of the procedures or
operational requirements.
Page 17 of 113
17
2.8 Other Safety precautions
Page 18 of 113
18
2.9 Communication
The ship's officers should be familiar with the IMO Ship/Shore Safety Checklist.
Page 19 of 113
19
CHAPTER 3
INSPECTION AND PREPARATION OF CARGO HOLDS
Page 20 of 113
20
3.2.2 Hold cleaning procedure
The amount of cleaning with a cargo space will depend upon the nature of the
previous cargo and that which is to be loaded; hold which is ready to receive
cargo should be clean and dry, well ventilated and free from any odour.
The bilges (bilge well) are small collecting space for any water in the hold, there
are two bilges in each hold located in the aft end of the hold, one to the port side
and one to the starboard
Any water accidentally enters the hold or as a result of sweat, will drain to the
bilges carrying with it dust, cargo residues and cargo odour.
Over time (in the long run) dust and cargo residues will form solid mass blocking
bilge suction pipes, so piping out bilge water will be impossible, over flow of the
bilge water will occur contaminating the cargo.
The cargo residue especially if it was Hygroscopic Cargo in contact with water will
start decomposing (rotting-decay) giving terrible odour (smell); this smell will be
transferred to odour contracting cargo such as coffee, resulting in contaminated
cargo which will be refused by the receiver resulting on cargo damage claim on
the vessel.
Some examples for the cargoes which taint easily are tea, flour, tobacco and
coffee.
Page 21 of 113
21
CHAPTER 4
SEGREGATION AND SEPARATION OF CARGO
A) Cargo Segregation
The reasons for segregation are that one type of cargo will damage other cargos
if stowed in the same compartment.
Page 22 of 113
22
B) Cargo Separations
Page 23 of 113
23
CHAPTER 5
VENTILATION AND CONTROL
5.1 General
Ships are fitted with either natural or mechanical ventilation systems. In addition
to minimising the onset and degree of sweat, ventilation may also serve to
remove taint and disperse any gases which some cargoes may emit.
The process requires close monitoring throughout the voyage as the moisture
content of the cargo coupled with variations in air temperature, cargo
temperature and sea temperature can dramatically influence the amounts of
water vapour retained by and released into the air inside a hold.
In ventilating practice the ship’s officer can collect only limited evidence of hold
atmospheric conditions through the use of wet and dry bulb temperature
readings in a few locations in the holds and on the open deck.
If there is any circulation of air in the hold it can be assumed that the former will
be representative of overall hold conditions unless the thermometers are placed
close to ventilator inlets.
Comparing the dew points of the hold air and the outside air enables decisions to
be taken as to whether or not to continue ventilating, these reading and duration
of ventilation per hatch will be reordered in the Ventilation Log
Page 24 of 113
24
5.3 Natural Laws of Air Circulation
Warm air, like any other gas that has been heated, tends to expand and rise.
Cool air is heavier than warm air and therefore tends to fall and take the place of
the lighter rising warm air. This difference in the densities of air at different
temperatures produce a circulation within a cargo hold. The air in the lower
portions of the space is relatively warmer than in the higher portions and will rise
in conformity with the natural laws of air circulation.
Modern vessels of all types invariably are now fitted with systems of mechanically
activated air conditioning and ventilation facilities, some more elaborate than
others, depending upon the class of vessel, types of cargoes carried and trades in
which they are involved.
Page 25 of 113
25
According to SOLAS regulation, the ventilation rate of the mechanical ventilation
system should be at least two air changes per hour, based on the empty cargo
space.
Modern vessels have a closed circuit ventilation fitted with humidity and
temperature control (fitted with dryers, heating and cooling systems)
Some of this systems is computer controlled to raise or lower hold temperature
as required to adjust for climate change due to ships route, and also lower
humidity in the holds to prevent condensation.
We can replace the basic rules by more detailed consideration of the physical
conditions in the hold and outside.
The last two named are slow changing and exercise a considerable control over
the conditions of the hold, and in particular the cargo temperature is crucial.
Page 26 of 113
26
5.7 Combined cargoes
Problems may arise if hygroscopic and non-hygroscopic cargoes with different
inherent temperatures are loaded into the same compartment. Their ventilation
requirements may differ, resulting in damage to one or other of the products in
spite of normal routines being followed. As far as possible, hygroscopic and non-
hygroscopic cargoes should not be stowed together.
Page 27 of 113
27
CHAPTER 6
DUNNAGE
6.1 General
Dunnage used must be Clean, Dry and free from stain and odour
Page 28 of 113
28
6.4 Problems arises from the use of timber dunnage
Dunnage used must be Clean, Dry and free from stain and odour
A) INSECTS
Timber rough and can retain moisture, these two factors can provide a haven for
insects which may migrate and infest a produce cargo.
B) MOISTURE.
Moisture can migrate from dunnage into hydroscopic cargoes, such as rice,
coffee, cocoa, sugar, tobacco, paper, etc. and damage them; so use only clean
and dry dunnage.
C) ROUGH SURFACES / EDGES
Timber which is rough sawn may tear bagged cargo, and damage other delicate
cargoes.
D) SAWDUST
Sawdust resulting from cutting timber in the hold may contaminate cargoes, and
can catch fire.
E) DISPOSAL of contaminated dunnage
Dunnage is one of the main reasons of cargo contamination, a leak from the
previous cargo will contaminate the dunnage, type of contamination depend on
the nature of the previous cargo, this contamination will be transferred to the
next cargo if the same dunnage is used.
All dirty (contaminated) dunnage is collected during hold cleaning and transferred
to the deck before loading commence, and will be discharged to garbage
contractor.
i) Some countries (USA) prohibit the landing of any timber.
ii) Some countries prohibit the landing of contaminated timber.
iii) Discharge is expensive (for example: Gearless Bulk carriers at berths
with no cranes).
iv) Discharge is impossible (or example: Vessel at anchor).
v) Shore transportation is difficult to arrange or expensive.
F) RECYCLING.
It is common (economic) practice to reuse uncontaminated dunnage; in order to
reuse, the following steps is essential:
− Remove nails.
− Separate by type and length
− Separate Wet and dry
− Bundle
− Stow in a sheltered area, away from rain/sea.
Page 29 of 113
29
6.5 Spar Ceiling
Spar ceiling, or cargo battens as they are called in some trades, comprises
portable wooden battens fitted to the inner edges of the frames of the ship's
structure so to form a sheathing to the ship's side. Normally spar ceiling is made
up of 4 cm (1½ in) boards of about 15 cm (6 in) wide and arranged horizontally
in convenient lengths attached to the frames by angle brackets and spaced about
23 cm (9 in) apart. In some cases vertical sections are made up to fit in between
the frame spaces.
The space so formed between the spar ceiling and the ship's side helps to provide
an air space around the cargo and thereby improves ventilation.
Page 30 of 113
30
CHAPTER 7
STOWAGE PRINCIPLES & STOWAGE PLANNING
7.1 General
7.1.1 Reference
IMO produced the “IMO Code of Safe Practice for cargo stowage and securing”,
all officers must be familiar with this code and refer to it for cargo stowing
regulations and guidance.
7.1.2 Definitions
MEASUREMENT CARGO
Is the cargo on which freight is usually charged on the volume occupied by the
cargo; this cargo is usually light and bulky stowing at more than 1.2 m3/tonne
(40 cu.ft./ton) but may also be heavy castings of an awkward shape where a lot
of space is occupied.
BALE CAPACITY:
Cubic capacity of a vessel’s cargo holds to carry packaged dry cargo such as
bales/pallets.
The cubic capacity of a cargo hold measured from the inside of the cargo battens,
frames, bulkhead stiffeners or spar ceilings, i.e. the spaces between the frames
are not filled; the bale capacity is generally less than the hold's grain capacity.
GRAIN CAPACITY
Cubic capacity of a vessel’s cargo holds, when the length, breadth and depth are
measured right up to the plating; in this case, the cargo is free-flowing and is
capable of filling the spaces between the ship's frames; an allowance is made for
the volume occupied by frames and beams.
BROKEN STOWAGE
Space lost between boxes, between vehicles, around obstructions and over
(above) cargo/vehicles due to irregular shapes/configuration, separation
Page 31 of 113
31
requirements and fire lanes, and is expressed as percentage of the total volume
of the hold.
The percentage that has to be allowed varies with the type of cargo and with the
shape of the hold. It is greatest when large cases have to be stowed in an end
hold.
CANALS TONNAGE
Suez and Panama Canal authorities each have its own calculation method to
obtain the Gross & Net tonnage; and they are named after them:
Suez Canal Gross Tonnage Suez Canal Net Tonnage
Panama Canal Gross Tonnage Panama Canal Net Tonnage
7.2 Stowing
Page 32 of 113
32
− The cargo can be safely stowed and secured onboard the ship and transported
under all expected conditions during the intended voyage.
He will hand a copy of this initial stowage plan to the stevedores to start loading
and a copy to the OOW oversee the proper execution of the plan
OOW must bring any discrepancies immediately to the attention of the Chief
Officer.
The OOW will enter the data of cargo loaded in a working copy of the final
stowage plan (Loaded Plan)
Normally the actual loading is always differs from the planned, due to the
following reasons:-
i) Cargo measurement differs than what was stated in the “Cargo booking
list”.
ii) Cancellation of some cargo.
iii) The effect of the unavailability of specific cargo handling equipment.
Therefore after loading completion Chief Officer will prepare Final Stowage Plan
(Loaded Plan) (see section 7.3.3).
Page 33 of 113
33
7.3.2 Factors to be considered in the preparation of stowage plan
1) Stability:
In order for the Vessel to be seaworthy, it must retain proper stability the whole
voyage “that includes loading, sea voyage and discharging”.
− Transverse stability “Suitable GM”
− Transverse stability “No list”
− Longitudinal stability “Suitable trim”
− Any special requirements are met; such as:
a) Trimming of bulk cargoes
b) Timber cargo stability requirements
c) Grain cargo stability requirement.
2) Structural limitations:
− Allowable deck load (Deck Strength) “t/m2 - Tones per Square metre”; on
container vessels the expression “Container stack weight per slot”
− Bending moments “within the allowable range”
− Shear forces “within the allowable range”
Ballast water can be used “if the deadweight permits” to offset any sever stresses
on the hull, always considering the huge amount of consumables “FO, DO and
FW” during long voyages
Page 34 of 113
34
5) Lifting gear
Cargo weight compared to the SWL of the ships’ lifting gear.
Cranes or derricks capacity varies from one hold to another, heavy cargo
should be loaded in the holds with the corresponding capacity cranes, to avoid
using shore or floating cranes which are costly to hire.
6) Draught (Draft)
Allowable draft at both loading and discharging ports.
7) Deck Cargoes
The stowage of deck cargoes should take account of the requirements for safe
access to crew quarters, for crew working the ship, mooring stations, for
boarding of pilots, and access to safety equipment.
This is achieved by leaving a walkway around the deck or by constructing a
catwalk on top of deck cargo.
8) Cargo Securing
It is wrong to assume that the weight of the cargo will keep it in position, so all
cargo must be secured, if cargo start moving it will slam against the ship and
adjacent cargo, damaging:
i) Itself
ii) The ship
iii) Adjacent cargo
The cheapest way to secure cargo is by achieving a solid stow, this is possible
with homogeneous cargo.
With cargos, which are different in type and shape, a good stowage plan will
utilize cargo weight and shape to minimize the securing cost without
compromising the safety, some examples are:
i) Heavy or long cargo, such as beams and pipes, should be stowed fore
and aft.
ii) Steel coils are usually stowed on the round, in athwart-ships rows, with
their core axis fore and aft.
Page 35 of 113
35
− Against toppling “collapse”
Dunnage should be so arranged that the cargo is well supported
− Against heat
Stow the Cargo that is liable to be damaged by heat away from:
i) Engine-room bulkhead
ii) Fuel Oil tanks “which will be heated during the voyage”
iii) Unventilated compartments
iv) Immediately under-deck, which is normally heated by the sun
− Against rasping
Sensitive cargoes, can be damaged when they start rasping (rubbing) against
the ship's structure due to vibration, this can be prevented by using plywood
or flat-dunnage between the cargo and the hull.
11) Ventilation
− Cargos with different ventilation requirements should be stowed in separate
holds.
− Ventilation channels must be available around the cargo, this is achieved by:
i) Constructed using dunnage “as in bagged rice)
ii) Gaps between cargos
− Ventilation inlets and outlets should not be blocked by cargo
Page 36 of 113
36
13) Loading/Discharging time:
In order to achieve the perfect stow vessel will consume time for
Loading/Discharging operation, so it is ship’s time VERSES Cargo-Carrying
capacity
Good stowage plan shall consider the time factor for loading/discharging with
the cargo quantity factor, it is not desirable to squeeze in additional tonnage
with the loss of valuable time: In order to maximise vessels earnings a
compromise between efficient space deployment and time deployment is
required
Page 37 of 113
37
CHAPTER 8
CARGO SECURING
8.1 General
8.1.1 Definitions
Cargo Securing Devices are all fixed and portable devices used to secure and
support cargo units.
Maximum Securing Load (MSL) is a term used to define the allowable load
capacity for a device used to secure cargo to a ship. Safe Working Load (SWL)
may be substituted for MSL for securing purposes, provided this is equal to or
exceeds the strength defined by MSL.
Standardized Cargo means cargo for which the ship is provided with an approved
securing system based upon cargo units of specific types.
Semi-standardized Cargo means cargo for which the ship is provided with a
securing system capable of accommodating a limited variety of cargo units, such
as vehicles, trailers, etc.
Non-standardized Cargo means cargo which requires individual stowage and
securing arrangements.
8.1.2 Reference
In 1991 the IMO Assembly adopted the Code of Safe Practice for Cargo Stowage
and Securing. Its purpose is to provide an international standard to promote the
safe stowage and securing of cargoes by:
− Drawing the attention of ship-owners and ship operators to the need to ensure
that the ship is suitable for its intended purpose
− Providing advice to ensure that the ship is equipped with proper cargo
securing means
− Providing general advice concerning the proper stowage and securing of
cargoes to minimize the risks to the ship and personnel
− Providing specific advice on those cargoes which are known to create
difficulties and hazards with regard to their stowage and securing
− Advising on actions which may be taken in heavy sea conditions
− Advising on actions which may be taken to remedy the effects of cargo
shifting.
While the ship at sea, it is subjected to external forces which result in six type
of motion transferred to all cargo onboard; in addition to these forces deck-cargo
are subjected to the wind-force, the slamming of waves and the lifting force of
water when seas is shipping on deck.
If the cargo is not properly secured, it will move, endangering the
seaworthiness of the vessel and damaging the cargo and/or the ship's
structure and fittings; also deck cargo could be lost overboard.
In extreme cases the ship could capsize or the cargo could pierce the hull (side
shell), causing the ship to founder (sink).
Page 38 of 113
38
8.1.4 Cargo Securing Principles
The IMO Code of Safe Practice for Cargo Stowage and Securing states the
following general principles:
− All cargoes should be stowed and secured in such a way that the ship and
persons on board are not put at risk.
− The safe stowage and securing of cargoes depend on proper planning,
execution and supervision.
− Personnel commissioned to tasks of cargo stowage and securing should be
properly qualified and experienced.
− Personnel planning and supervising the stowage and securing of cargo should
have a sound practical knowledge of the application and content of the Cargo
Securing Manual, if provide.
− Decisions taken for measures of stowage and securing cargo should be based
on the most severe weather conditions which may be expected by experience
for the intended voyage, taking into account the following factors:
− Duration of the voyage.
− Geographical area of the voyage.
− Sea conditions which may be expected.
− Size, design and characteristics of the ship.
− Dynamic forces under the expected conditions.
− Types of cargo
− Intended stowage pattern.
− Mass of the cargo.
− Ship-handling decisions taken by the Master, especially in bad weather
conditions, should take into account the type and stowage position of the
cargo and the securing arrangements.
Page 39 of 113
39
8.2 Ship's motion and Acting forces
Page 40 of 113
40
Roll, pitch and yaw are rotational motions.
Surge, sway and pitch are linear motions.
Page 41 of 113
41
8.3 Cargo securing manual
8.3.1 Requirements
The Cargo Securing Manual is mandatory on all types of ships engaged in the
carriage of all cargoes other than solid and liquid bulk cargoes.
In accordance with the International Convention for the Safety of Life at Sea,
1974 (SOLAS) chapters VI, VII and the Code of Safe Practice for Cargo Stowage
and Securing, cargo units, including containers shall be stowed and secured
throughout the voyage in accordance with a Cargo Securing Manual, approved by
the Administration.
The Cargo Securing Manual specifies arrangements and cargo securing devices
provided on board the ship for the correct application to and the securing of
cargo units, containers, vehicles and other entities, based on transverse,
longitudinal and vertical forces which may arise during adverse weather and sea
conditions."
The Securing Manual is specially written for each individual ship, so naturally the
contents will vary according to the ship type, but to ensure international
uniformity the IMO guidelines state that the contents will be as follows:-
Chapter 1
Details of fixed cargo securing arrangements and their location, including
their type and strength
Chapter 2
Location and stowage of portable cargo securing gear
Chapter 3
Details of portable cargo securing gear, inventory of items provided,
including their strength and use.
Page 42 of 113
42
Chapter 4
Correct application of portable securing gear on various cargo units, vehicles
and other entities.
Chapter 5
Indication of the magnitude of forces expected to act on cargo units in
various positions onboard the ship.
It is important that the officers on board are fully aware of the correct
application, use and limitations of the securing gear, and the order of the forces
involved.
The crew and other persons employed for the securing of cargoes should also be
instructed in the correct application and use of the cargo securing gear on board
the ship.
Page 43 of 113
43
8.4 Securing
8.4.1 Types of securing arrangements
1) Lashing
Rope, wire, webbing, banding, strapping or chain. Tightened with
turnbuckles, or other patent tensioning devices. (Lashing is often used to
describe all securing arrangements.)
2) Tomming “chocking”
Constructing a framework of square-section softwood, to chock off the cargo
against ship's structure or other cargo.
3) Filling
Use of air bags, empty pallets, old tyres, etc. to fill the voids between items
of cargo, and between cargo and the ship's structure.
4) Anti-skid
Flat boards used to increase friction.
5) Binding
Stabilise a stow with dunnage to make several units into one block, also
stowing bags or cartons in different directions in each layer to form a self-
locking block (a 'brick wall' effect).
6) Structural alterations
Very heavy and/or awkwardly shaped cargo may be secured by welding the
unit directly to the ship's structure, or by fabricating a steel framework or
other support or chock which is permanently attached to the ship's
structure.
Page 44 of 113
44
8.4.2 Securing Cargo Basics
Seas and oceans catch the unwary “reckless - careless” and rarely give a second
chance, so the lashings must be suitable before departure.
1) All stowing and securing cargo will be under duty officer supervision.
2) Apply dunnage under the cargo to increase friction and prevent cargo from
moving.
3) Apply vertical dunnage at the extreme ends of the cargo (forward, aft and
both sides), to prevent cargo from moving and prevent contact between
cargo and ship’s hull.
4) Stow longitudinally or latterly according to its type, to minimise cargo
moving.
5) Solid stow, the cheapest and most efficient way of securing is by stowing the
cargos in a tight stow, provided the cargo is adequately packaged, and there
are no heavy units.
6) Select suitable lashing material (turnbuckle, shackles, wire-clips, lashing
wire, securing belt, inflatable bags, wedges, etc) according to the cargo’s
type, weight and expected forces.
7) Number and length of lashing points shall be determined by the cargo’s
weight, acting forces and vulnerability.
i) Lashings should be sufficient to prevent the load from moving when the
ship rolls through 30 degrees with 13 second roll periods.
ii) Lashings should be as short as possible.
iii) Fixed securing points on the cargo should always be used.
iv) All lashings must be secured to suitably strong points of the ships
structure “lashing points”.
v) The total load on lashing points must not exceed their designed limit.
8) Lashings must be capable of being checked and tightened on passage.
9) Lay out the securing system before the cargo is loaded. Bundles can best be
secured by loading them on top of wire rope lashing which has previously
been laid on the deck. This is then tightened and secured above the cargo.
10) If necessary weld extra lashing eyes to the deck to achieve number of
lashing points determined, all the usual welding precautions should be
taken.
11) Stow cargo bearing in mind not to hinder crew movement, stores access,
emergency stations, tank sounding, fire fighting equipments, etc.
12) If cargo will not completely fill the hold, a wooden barrier will be build to
prevent cargo from moving or tipping.
13) Tie down the cargo, use the friction with the floor, normally the Cargo will lift
before it shifts.
14) All spaces between cargo shall be shored (filled with wood or inflating bags)
15) Use lashing nets with small boxes and cartons.
16) Space due to ship’s hold curvature shall blocked by wooden structure
“Tomming or chocking”.
17) OOW must be vigilant, he must check cargo securing individually (one by
one - wire by wire) not at the end of the stowing and securing operation,
you cannot be too careful.
Page 45 of 113
45
8.4.3 Strength of lashings
Under-deck Cargo
The holding power of the lashings (the sum of the breaking strains of all the
components of the lashing system) should be twice the weight of the unit.
Deck Cargo
The holding power of the lashings holding the cargo vertically downwards should
be three times the weight of the unit.
Page 46 of 113
46
CHAPTER 9
CARGO DOCUMENTS
9.1 General
The golden RULE is that the junior officer (OOW) refers all visitors with
paperwork to the Chief Officer or Master, but he may sign the documents if:
1. He is authorised to do so.
The OOW shall not sign any documents brought on board unless he has been
specifically authorised by clear instructions from the Master/Chief Officer; in rare
cases if not signing means stoppage of cargo, OOW may sign with a clear remark
“FOR RECEIPT ONLY”.
5. Financial documents
It is a requirement of ship-owners that the clause “subject to owner's approval”
is inserted on all financial documents.
It will be used by the C/O to calculate the actual cargo figures per hold in-order
to calculate ship’s stability.
Page 47 of 113
47
A copy of the final stowage plan will collected by the local agent at the
discharging port, he will in turn presented to the Port authority, custom and
stevedores
The Final Stowage Plan shall contain the following data particulars:-
B) As a total:-
1) Total cargo for each loading port
2) Total cargo for each discharging port
3) Total cargo onboard
4) Total cargo for each hold
It is a receipt signed by the chief officer of a vessel and handed to the shipper
acknowledging receiving certain cargo on board; on this document, remarks can be
made as to the quantity and condition of the cargo.
The shipper will hand-over the Mate’s Receipt to the shipping line or his agent in
exchange for the bill of lading.
Page 48 of 113
48
If the OOW detects any damage or shortage before or during loading, he shall
report it to the C/O, so he can clause the Mate’s receipt.
In practice nowadays with ultra high loading rates, the ship hires an independent
tally to insure that quantity is correct.
For some delicate cargo (easily damaged), such as steel cargo, the ship appoints
an approved cargo surveyor (approved by the ship’s P&I Club) to assist the Chief
Officer in writing the condition remarks.
Definitions:-
− The person sending the goods is the "shipper"
− The company or agent transporting the goods is the "carrier"
− The person for whom the goods are destined is the "consignee".
The bill of lading is a document issued by the carrier “The Shipping Company” or
the Master of the vessel or his Agent once the cargo has been loaded. It is the
formal document based on the mate's receipt.
The bill of lading is then sent to the consignee (the buyer of the cargo) by the
shipper upon payment for the goods, and constitutes proof that the recipient is
entitled to the goods when received.
The consignee will hand over the original bill of lading to the Master before start
discharging.
It describes the conditions under which the goods are accepted by the carrier and
details the nature, quantity and quality of the goods.
Page 49 of 113
49
The bill of lading will include the following particulars:-
1) Vessel name
2) Shipper
3) Consignee
4) Notify Party/Address
5) Port & Country of loading
6) Port & Country of discharge
7) Shipper's description of goods.
8) Number and kind of packages.
9) Gross weight, kg.
10) Measurement, m3.
11) Identifying marks.
12) Date shipped on board.
13) Where loaded onboard (on deck or under deck))
14) Cargo condition and remarks.
15) Number of original Bills of Lading
16) Freight
17) Freight payment terms, such as:-
− Pre-Paid
− Collect
− As per charter party
− In accordance with the Contract
A "clean" Bill of Lading is one which describes the cargo as being in "apparent
good order and condition", without containing adverse remarks as far as would
be apparent from the type of inspection which a reasonable carrier could be
expected to make.
When the cargo is not in apparent good order and condition, the carrier is
entitled to insist on the Bill of Lading being claused.
Page 50 of 113
50
A letter of indemnity is issued by a person who declares that he is taking full
financial responsibility for certain circumstances. It claims that the person signing
the letter will bear any costs resulting from the Master complying with his
request (A clean Bill of Lading)
The shipper may offer a letter of indemnity to the Master in return for a clean bill
of lading when the Master wishes to add clauses about the condition of the cargo.
To issue a clean bill in these circumstances is considered fraud, and such a letter
of indemnity is unenforceable.
The ‘cargo manifest’ is used in all forms of transport and includes the particulars
of the all cargo (goods) loaded on a particular ship.
In practice at the loading port, the ship’s agent will prepare a cargo manifest for
each discharging port
1) Vessel name
2) Port of loading
3) Port of discharge
4) Bills of Lading numbers
5) Shipper
6) Consignee
7) Shipper's description of goods.
8) Number and kind of packages.
9) Gross weight, kg.
10) Measurement, m3.
11) Freight
The Master is solely responsible of the accuracy of the cargo manifest, and he will
be accountable in front of the custom authority for any mistakes in its content,
he may be faced with smuggling charges with heavy penalties and in extreme
cases even jail.
Page 51 of 113
51
9.6 Other documents
The OOW should be aware of the functions of:
1. Boat-note
2. Letter of Credit (L/C)
3. Letter of indemnity (LOI)
4. Letters of protest
5. Note of protest
6. Certificate of origin
7. Shipper's declaration
8. Dangerous goods declaration
9. Certificate of moisture content
10. Phyto-sanitary certificate
11. Hold cleanliness certificate
12. Certificate of readiness to load
13. Certificates of loading, and fitness to proceed to sea
14. Certificates of stowage, trimming and lashing
15. Certificate of fumigation
16. Certificate of hatch sealing
17. Empty hold certificate/Certificate of discharge
18. Temperature control sheets
19. Ventilation control sheets
The Chief Officer or the Master should be able to explain the use and contents
of any of these documents, which are unfamiliar to the junior officer.
Page 52 of 113
52
CHAPTER 10
BAGGED CARGO
10.1 General
General cargo ships are normally constructed so that one ton of cargo occupies
about 1.39-1.67 cubic meters of space when loaded to full bale cubic and
deadweight capacity.
Fig. x Fig. x
Mechanical loading (At Pier side). Mechanical loading (In Cargo Hold).
10.1.2 Stowage methods:-
There are three stowage methods (as shown in Fig. 2), choosing which method
depends on type of cargo and amount of ventilation required.
1) Full bag method.
2) Half bag method.
3) Cross tier method.
Fig. x Fig. x
Methods of stowing bagged cargo Typical stowage of bagged cargo
Page 53 of 113
53
10.2 Cotton
Bales vary in size and weight between 100 and 330 kg depending on country of
origin.
Cotton
Cotton, wet
Page 54 of 113
54
4) Strict rules must be enforced against smoking in the Cargo Holds and around
Ship’s Deck; all fire fighting equipment must be ready for immediate use.
5) All previous wooden dunnage should be sent up on deck and only that
dunnage which is absolutely clean;, dry and free from any stains, retained for
use with the cotton. This selection also applies to any mats and separation
cloths. Fresh dunnage should be well seasoned and clean to the above
standard.
6) Closing Hatch cover after completion of loading, restricts fire spreading
7) All ventilator cowls (Inlets) must be covered with a thickness of wire gauze
(Spark arrestor).
8) Hatch covers to all decks should be in good condition and ready for immediate
closing in case of rain.
9) Inspect and operate all fire detection and extinguishing apparatuses before
loading.
10) Ensure that the port marks of the bales are not obliterated. With large
consignments, obliteration results in considerable delay to consignees apart
from hindering discharge.
Page 55 of 113
55
10.3 Rice
Types of rice:-
− Paddy rice: unprepared rice which is still firmly enclosed in its glumes.
− Brown rice: rice which has had its glumes removed but is otherwise
unprepared. The glumes are removed in the exporting countries by hulling.
The majority of the silver skin is still attached to the hulled rice grain. Brown
rice is shipped only in small batches.
− White or polished rice: prepared rice which has had the silver skin and seed
coat beneath it removed by polishing. An unbalanced diet consisting of hulled
and polished rice, from which the protein- and vitamin-rich silver skin
enclosing the grains has been removed may lead to beriberi (Vitamin B1
deficiency).
− Cargo rice: rice which is provided for maritime transport and consists of 80%
white rice and 20% paddy rice. Due to this mixing ratio, the rice remains drier
and harder during maritime transport, because the coarse-hulled paddy grains
cause loosening and thus better airing of the rice batches. For this reason,
cargo rice is the least susceptible to damage.
20 % 80 %
Cargo Rice
Rice Cargo calls for a very elaborate and efficient system of ventilation, for the
following reasons:-
a) In rice, metabolic processes continue even after harvesting. The rice grains
absorb oxygen and excrete carbon dioxide (CO2) (TLV: 0.49 vol. %).
b) Rice moisture content, at the beginning of the season particularly, leads to the
sweating of the hold. Condensation will therefore drip on the cargo from
certain points, unless adequate precautions are taken.
c) Rice cargo is liable to heat fairly quickly, and this fact, associated with loss of
moisture, explains the losses of weight in transit varying from 1 ~ 3 per cent,
The heating causes an increased risk of germination (premature sprouting)
and considerable depreciation of the product.
Page 56 of 113
56
Precaution Necessary when Loading Rice
1) Rice bags are filled with a mixture of rice (80 per cent) and paddy (rice with
husks) (20 per cent). The latter prevents the rice grains forming an aggregate
which is impervious to ventilation air currents.
2) One of the leading causes of damage is the chewing damage caused by the
cereal pests; A certificate of origin and health should be required from the
shipper, as a rule, rice is fumigated with methyl bromide.
3) Rice is highly odour-sensitive, segregation from all odour omitting cargos
(such as rubber) is essential
4) Using hooks for stowing, may result in damage (tears) to the bags and thus to
losses of volume. Plate or bag hooks, which, due to their shape, distribute the
load and reduce the risk of damage, should thus be used.
5) The floor of the hold should be covered with 7.5 cm x 7.5 cm battens, laid
athwart-ship, and 30 cm x 4 cm boards fore and aft, laid with a space of 10
cm between boards. This will ensure efficient air passages without causing the
bottom bags to split, a result which would certainly occur if the boards were
spaced too far apart.
6) Spar ceiling should be covered with bamboos, arranged either vertically or in
criss-cross fashion, and all other ironwork covered with bamboo mats. The
whole of the bottom dunnage should also be covered with bamboo mats.
7) Temporary vertical and horizontal box ventilators are fitted in position as
follows:
a) One at each corner of the hatchway and one at the middle of the hatch-
coaming on each side, making six in all for the hatchway.
b) Two are fitted at each end of the hold, one to port and one to starboard,
the last mentioned leading to permanent ventilator shafts (see diagram).
c) Two or three tiers of bags are laid to cover the bottom of the hold, followed
by a system of box frame wooden ventilators laid in positions with a five
bag horizontal interspaces.
d) These are arranged so as to interconnect and also lead the air current into
the vertical ventilators.
e) The system of box frame ventilators is repeated with every three tier of
bags. (See diagram of Box Frame Ventilator).
8) This type of cargo requires continuous mechanical ventilation during the
voyage to prevent condensation during the long voyages.
9) During short voyages, natural ventilation and opening the hatch covers will be
effective.
Page 57 of 113
57
Fig. x: Arrangement of Box Ventilators to Connect and Lead into the Vertical
Shaft Ventilators
Page 58 of 113
58
CHAPTER 11
DRY BULK CARGO
11.1 General
11.1.1 Resolutions and codes governing the carriage of dry bulk cargo at sea:
− “The Code of Safe Practice for Solid Bulk Cargoes” – adopted 1965.
− “International Code for the Safe Carriage of Grain” – adopted .
− “Code of Practice for the Safe Loading and Unloading of Bulk Carriers” - adopted
by the IMO in November 1997.
− IMO Resolution A.713(17), which contains interim measures designed to improve
the safety of ships carrying solid bulk cargoes.
The Code of Safe Practice for Solid Bulk Cargoes deals with three basic types of
cargo: those which may liquefy; materials which possess chemical hazards; and
materials which fall into neither of these categories but many nevertheless pose
some dangers, as stated above.
Page 59 of 113
59
11.1.4.1 General precautions
Despite the efforts of IMO and its Member Governments, the number of bulk
carriers sinking during the late 1980s and early 1990s, sometimes without trace,
began to cause serious alarm. As a result, resolution (A.713(17)) which contains
interim measures designed to improve the safety of ships carrying solid bulk
cargoes, was duly adopted.
Safety of personnel
The Code gives details of Health hazards which exist. Some cargoes are liable
to:-
a) Oxidation which may result in the reduction of the oxygen supply.
b) The emission of toxic fumes.
c) Create dust
d) Self-heating.
e) Emit toxic fumes when wet.
f) Emit flammable gases, which create a danger of explosion
The shipper should inform the master of chemical hazards which may exist and
the Code gives details of precautions which should be taken.
Health hazards can arise because of dust, and some cargoes can or.
Page 60 of 113
60
11.2 Coal Cargoes
IMO Classification:
Appendix B in the BC Code; materials possessing Chemical Hazards
General Precautions
The risk of explosion becomes greater with broken coal especially during loading,
so general precautions associated with the coal cargo shall be:
a) Keep as cool as possible.
b) Only surface ventilation.
Where it is possible to use ventilators which project well above the upper deck,
as for example, those which are fitted through deck houses, these should be
devoted to coal ventilation. These ventilators are less liable to damage from
heavy seas which might fracture less protected coamings and so allow water to
Page 61 of 113
61
enter the holds. Masts and derrick posts fitted as ventilators are ideal in this
respect.
Each compartment in which coal is stowed should be provided with at least two
ventilators, one at each end of the compartment.
These shall be so arranged that one shall be an 'inlet' and the other an 'outlet' so
that a continuous and unrestricted flow of air passes over the surface of the coal.
During fine weather it is advisable to open up hatch coverings in order to
facilitate the 'surface ventilation'.
Precautions before and during loading, and until the cargo is discharged, the
master shall ensure that:
1) Before coal is loaded ensure that all cargo spaces and bilge wells are clean
and dry; any residue of waste material or previous cargo shall be removed,
the cargo battens (or spar ceiling) removed (if left in place they would allow
air to circulate between the cargo and the ship's side).
2) All electrical cables and artificial lighting must be of an approved type and free
of defects (Regularly inspected) in vessels engaged in coal cargoes; otherwise
electric power supply should be disconnected in the cargo spaces and the
adjacent compartments.
3) Avoid breaking up the coal during loading; the risk of oxidisation/explosion
becomes greater with broken coal.
4) Cargo shall be trimmed as practically as possible.
5) Trimming helps to cut oxidation by reducing the surface area exposed to the
atmosphere.
6) The atmosphere in the space above the cargo in each cargo space should be
regularly monitored as appropriate for the presence of methane, oxygen and
carbon monoxide.
The ship shall be suitably fitted and carry on board appropriate instruments
for measuring the following, without requiring entry into the cargo space,
where practicable:
i. Concentration of methane in the atmosphere (Explosimeter or
Methanometer type).
ii. Concentration of oxygen in the atmosphere.
iii. Concentration of carbon monoxide in the atmosphere.
iv. pH value of cargo hold bilge samples, as appropriate.
v. Temperature monitoring during the voyage.
These instruments shall be regularly serviced and calibrated. Ship personnel
shall be trained in the use of such instruments.
7) The master should ensure that enclosed working spaces, e.g. storerooms,
carpenter's shop, passage ways, tunnels, etc., are regularly monitored for the
presence of methane, oxygen and carbon monoxide. Such spaces should be
adequately ventilated.
8) The ship shall carry on board self-contained breathing apparatus required by
SOLAS regulation II-2/17. The self-contained breathing apparatus shall be
worn only by personnel trained in its use;
Page 62 of 113
62
9) Smoking and the use of naked flames shall not be permitted in the cargo
areas and adjacent spaces and appropriate warning notices shall be posted in
conspicuous places.
10) The coal cargo shall not be stowed adjacent to hot areas;
11) Prior to departure the surface of the cargo shall be trimmed reasonably
level to the boundaries of the cargo space to avoid the formation of gas
pockets and to prevent air from permeating the body of the coal.
12) All access openings leading into the cargo space shall be adequately
sealed;
13) When the coal is carried in both lower holds and 'tween decks, the
ventilators should be independent. That is to say, each compartment should
have its own 'inlet' and 'outlet' ventilators in order to promote independent
surface ventilation.
14) Unless expressly directed otherwise, all holds should be surface ventilated
for the first 24 hours after departure from the loading port. During this period,
one measurement should be taken from one sample point per hold. If after 24
hours the methane concentrations are at an acceptably low level, the
ventilators should be closed. If not, they should remain open until acceptably
low levels are obtained. In either event measurements should be continued on
a daily basis.
15) All reasonable means should be taken to keep the compartments cool;
awnings can be used to great advantage in tropical latitudes, while the
covering of the whole of the upper deck with wooden dunnage would
considerably lessen heating from the sun's rays. Any temperature over 25°C is
considered critical with a mass of coal. Spontaneous heating is accelerated at
38°C with some varieties of coal.
16) Regular hold bilge testing should be systematically carried out. If the pH
monitoring indicates that a corrosion risk exists, the master should ensure
that all bilges are kept dry during the voyage in order to avoid possible
accumulation of acids on tank tops and in the bilge system.
17) Before discharging of the coal. The compartments need to be well
ventilated before men can safely enter them, and it should be realized that the
sudden influx of air to coal compartments immediately before discharge may
have disastrous results. Careful ventilation should be directed towards
removing the gases from the cargo compartments and the adjacent spaces.
Page 63 of 113
63
11.3 Grain Cargos
Grain includes; corn, wheat, rye, barley, oats, peas, rice and all other grain.
Trimming Grain
1) In every filled compartment, bulk grain shall be trimmed in such a manner
that all spaces under the decks and hatch covers are filled to the greatest
possible extent.
2) In every partly filled compartment, all free grain surfaces shall be leveled
after loading.
Letter of Authorization
No ship, shall be loaded with bulk grain unless a document of authorization has
been issued in respect of that ship; the document of authorization shall be issued
by:-
i) The Administration.
ii) An organization recognized by the Administration.
iii) A contracting government on behalf of the Administration.
Every ship that is to be loaded with bulk grain shall be provided with information
sufficient to allow the master to determine in all reasonable loading conditions
the heeling moments due to grain shift
Page 64 of 113
64
The grain loading stability information shall be approved by:-
i) The Administration.
ii) An organization recognized by the Administration.
iii) A contracting government on behalf of the Administration.
This document has to be verified by the shore authorities before they will
authorise loading. The leading grain exporting countries have their own forms,
copies of which are usually kept on board most bulk carriers.
These forms require the compilation of grain shift moments, and comparing the
actual values to maximum limits given in the ship's Grain Stability Manual. The
values of these moments vary with the height of the grain in the hold, and
whether the ends of the hold are trimmed or not. Junior officers unfamiliar with
these terms should ask the Chief Officer for explanation
The holds will require cleaning to the highest standards. All traces of the previous
cargo must be completely removed, and there should be no loose rust scale. The
holds must be dry and be free of odours, infestation (live insects) and anything
else which could contaminate the grain.
Fumigation:
If any live insects are found in the cargo holds, a fumigation order shall be issued
at the expense of the ship-owner. The usual method is to fumigate using Methyl
Bromide, which is a very expensive and is a hazardous chemical; the cost is
approx. $10,000 per vessel hold, and approx. 75% of the crew must evacuate
the ship for 24 hours. Shifting costs will also be incurred because a safe lay berth
must be used.
Page 65 of 113
65
ii. If fitted in a hold, extend downwards from the underside of the deck or
hatch covers in the manner described in Part II of Schedule I.
Page 66 of 113
66
11.4 Iron Oar
The BC Code states that high density cargoes should be loaded entirely in the
lower holds of the ship unless this results in the ship being too "stiff" or in the
cargo weight on the bottom structure being excessive.
Description:
Iron ore vanes in colour from dark grey to rusty red. It varies in iron content
from haematite, (high-grade ore) to iron stone of the lower commercial ranges.
Characteristics
Size Angle of repose Stowage factor
m3/t
Fines to 250mm N/A 0.29 - 0.80
IMO Classification:
Appendix C, neither liable to liquefy nor to possess chemical hazard.
Weather precautions:
No special precautions; can be loaded in the rain.
Precautions:
i. Iron ore cargoes may affect magnetic compasses.
ii. Iron ore is high density cargo; as a result planning to avert excessive
bending moment and shear force is essential
iii. Trim cargo reasonably level to boundaries of the cargos; so not to exceed
allowable Deck Strength.
iv. Normally, loading rates are very high, preplanning of ballasting operation is
essential.
Page 67 of 113
67
Figure x: Homogeneous Hold Loading Condition (Fully Loaded)
To support the loading of the heavy cargo in the holds, the local structure needs
to be specially designed and reinforced.
It is important to note that the holds which remain empty, with this type of cargo
distribution, have not been reinforced for the carriage of heavy cargoes with a
non-homogeneous distribution.
SHIPS NOT APPROVED FOR THE CARRIAGE OF HEAVY CARGOES IN ALTERNATE HOLDS BY THEIR
CLASSIFICATION SOCIETY MUST NOT ADOPT THIS CARGO LOAD DISTRIBUTION.
Page 68 of 113
68
iv) Part holds loading condition
When a ship is partly loaded, the cargo transported is less than the full cargo
carrying capacity of the ship. Hence, the sailing draught of the ship is likely to be
less than its maximum design draught.
Part loaded and block hold loading conditions should only be adopted in either of
the following situations:
− The loading distributions are described in the ship's loading manual. In this
case, the ship's structure has been approved for the carriage of cargo in
the specified loading condition and the loading conditions described in the
ship's loading manual should be adhered to, or,
− The ship is provided with a set of approved local loading criteria which
define the maximum cargo weight limit as a function of ship's mean
draught for each cargo hold and block of cargo hold(s).
Page 69 of 113
69
CHAPTER 12
REFRIGERATED CARGO
12.1 General
Fresh agriculture products are transported in specialised refrigerated cargo ships
known as 'reefer ships'; the cargo may be chilled or frozen, and carried loose, in
cartons or palletised.
Refer ships fleet is shrinking, most shippers prefer refer containers.
12.2 Refrigeration
12.2.1 Basics
Refrigeration is preservation.
Foodstuffs decays in time due to the activities of micro-organisms. These
activities are considerably reduced by the lowering the surrounding temperature.
Fresh fruits and vegetables are living organism which produce heat, and emit
gases; both of these must be removed if the cargo is to be transported without
harming itself.
In order to preserve the cargo, temperature and the atmosphere of the refer
holds must be controlled.
Refrigeration system
In modern reefers, air is blown over successive rows of pipes containing a
coolant. The air is then channelled into the cargo compartment through the
delivery fans and series of ducts, circulating throughout the cargo, and is then
exhausted via the exhaust fan.
Air Circulation
To achieve adequate circulation of cooled air; ventilation channels must be
available around the cargo, this is achieved by:
iii) Hold and cooling design
iv) Constructed using dunnage
v) Gaps between cargos
vi) Specially constructed ventilation channels.
Each type of cargo has its own recommended temperature, called on the refer
ships “The carriage temperature”
Page 70 of 113
70
Reefer ships can provide a range of carriage temperatures from -25°C to +12C,
which can be controlled to within 1°C.
The temperature difference between the exhaust air and the delivery air is the
indicator of the effectiveness of the cooling process:
Small difference = Good cooling process
Big difference = There is something wrong
Through ventilation
Fresh fruits and vegetables are loaded in cartons which have holes to permit
through ventilation, these cartons must be stowed so that their holes are aligned
vertically and horizontally so that the air can flow freely throughout the stow.
Air changes
Efficiency of the ship’s refrigeration system depends on the ventilation capacity of
the system and it is measured by number of air changes per hour, based on
empty hold (one air change means that fans can pump in air equal to the total
volume of the hold).
Modern systems can provide up to thirty air change per hour.
Humidity
Humidity control is vital
Excess moisture (High humidity)
Micro-organisms will be active.
Excess moisture will condensate (as ice) on the cooling pipes, which have to
be defrosted regularly
Page 71 of 113
71
disadvantage, any harmful gases will be circulated with the air, so a detect
balance should be maintained.
It is common/recommended practice to switch to partly fresh air once the
exhaust air temperature is about 2°C above the delivery air temperature.
Ripening fruit produces ethylene, which speeds up the ripening process. This
must be removed if the cargo is to arrive at its destination undamaged and not
over-ripe.
The cargo compartments must be scrupulously clean and free from taint. This
also applies to all dunnage to be used.
• Tainted dunnage must be jettisoned.
• Tainted air can be sweetened using an ozonator.
• Tainted structure must be washed with a suitable cleanser.
1) The refrigeration system must be tested and logged, test will include:-
− Compressors
− Expansion valve and cooling coil
− Delivery and exhaust fans
− Temperature and humidity sensors
− Humidity control
2) Inspect and repair as necessary all insulations including ducts.
3) Ensure that all dunnage is clean, dry and odour free.
4) Portable thermometers (the pulp thermometers) which is used by the OOW
to check the temperature of the cargo during loading must be tested
5) If frozen cargo is to be loaded, all scuppers in the cargo holds have to be
sealed with brine; to prevent contamination between holds and acts as
insulation.
6) Pre-cool the holds that will be loaded at the next port to a temperature lower
than the carriage temperature of the intended cargo; this will compensate
for the temperature rise due to opening the hold for loading.
7) Pre-loading inspection (pre-loading survey) is to be carried out to verify that
the cargo compartments are clean, dry, free from taint, and at the correct
temperature.
8) In some loading ports (pre-loading survey) will include a complete test on
the refrigeration system, with special emphasis on the thermometers (both
portable and fixed)
Page 72 of 113
72
12.4 Loading procedures
1) High temperature alarms (in the cargo/refer control room and in the bridge)
should be set to the correct temperature according to the cargo being
loaded.
2) Log the temperature of each cargo hold when first opened, and regularly
throughout the operations.
3) The condition of the cargo should be carefully monitored, reject any cargo
which is:-
− Has higher pulp temperature than that declared
(The pulp temperature is the internal temperature of the product)
− Wet, dirty or tainted
− Damaged or disfigured
− Opened or unwrapped
4) Separation and Segregation should be strictly observed according to type of
cargo being loaded, shipper instructions and to the ship's cargo manual
(don’t hesitate to seek advise).
5) Monitor the stevedores to ensure that: no damage is being done during
loading operation to:
− No damage to the ship's side insulation
− No damage to the previous cargo or the cargo being loaded
− Ventilation channels are free around the cargo
− Delivery and exhaust air are well clear of cargo (not blocked)
− Access doors are kept clear.
6) Any spills should be cleaned immediately to prevent contamination
7) Any cargo securing should not interfere with the free flow of cooling air.
8) If the cargo operation is (or will be) suspended for an extended period for
any reason (meal break, waiting for cargo, etc…), close hatch-covers and
start the refrigeration system as necessary to maintain the carriage
temperature.
9) Use insulated tarpaulins to cover already loaded cargo, to prevent it from
defrosting.
10) Immediately upon loading completion, close the hatch-cover and seal doors
and access plugs.
1) Log the temperature of each cargo hold when first opened, and regularly
throughout the operations.
2) Upon request hand over to the consignee the temperature logs of the cargo
holds.
3) If local stevedore's regulations require cooling machinery to be stopped,
monitor hold temperature and suspend discharging, close the hatch-cover
and start refrigeration system until recommended temperature is achieved
again, all this activity should be logged.
Page 73 of 113
73
CHAPTER 13
DECK CARGO - TIMBER
13.1.1 Definition
Deck cargoes are defined as any type of which are carried on an uncovered part
of a freeboard or superstructure deck, exposed to weather and sea
1) The stowage of deck cargoes should take account of the requirements for
safe access for the crew around the vessel’s deck; this will include
− Access to the working areas of the ship such as (the engine-room,
steering flat and the mooring stations)
− The pilot boarding area
− Ventilators, sounding pipes, air pipes, tank valves, etc. a
− Access to the safety equipment
This is achieved by leaving a walkway around the deck or by constructing a
catwalk on top of deck cargo.
2) Stability:
In order for the Vessel to be seaworthy, it must retain proper stability the
whole voyage “that includes loading, sea voyage and discharging”.
− Transverse stability “Suitable GM”
− Transverse stability “No list”
− Longitudinal stability “Suitable trim”
− Any special requirements are met; such as ”Timber cargo stability
requirements”
3) Allowable deck load (Deck Strength) “normally expressed in t/m2 - Tones
per Square metre”; on container vessels the expression “Container stack
weight per slot” is used; it must not be assumed that all decks has the same
Deck Strength, hatch covers has lower deck strength than the main deck.
Page 74 of 113
74
4) The watertight integrity of the ship must not be impaired.
5) Ventilators and air pipes must be adequately protected.
6) The height of the cargo must not interfere with the ship's navigation.
Consideration must be given to limiting the blind area forward of the bows
which is not visible from the bridge. Vessels with limited visibility may have
to employ extra pilots in some ports and canals.
7) The height of the deck cargo should be restricted so that:
− Adequate visibility for safe navigation is assured, always considering blind
sectors.
− Navigation lights shall not be obstructed by Deck cargo.
8) Nothing must obstruct safe access around the vessel.
A suitable walkway must be constructed over the cargo if necessary.
9) The stow should be as solid and compact as practicable to:
− Produce a self-binding effect
− In order to reduce its permeability for seawater
− To aid lashing and to prevent them from becoming slack.
Page 75 of 113
75
13.2 Timber Cargo
13.2.1 Introduction
When timber is carried on the decks of ships causes the combined centre of
gravity of ship and cargo to rise, which adversely affects stability, a situation
made worse when the deck cargo absorbs rain and seawater during the voyage,
especially when freezing occurs and ice accumulates on deck. However, there is
usually an increase in buoyancy and the timber also gives the ship greater
protection against the rough sea conditions. Thus, ships which carry timber deck
cargoes may be granted reduction of the freeboard applicable under the 1966
International Convention on Load Lines except in the North Atlantic zone in
winter where icing can be a problem.
13.2.2 Reference
The Code of Safe Practice for Ships Carrying Timber Deck Cargoes was adopted
by IMO in 1973 and amended in 1978 and 1990; it gives complete information
and guidance.
Like the BC Code and contrary to the International Grain Code, it is not a
mandatory instrument but is intended to serve as guidance to Governments who
can implement it if they desire, either in whole or in part.
13.2.3 Definitions
Weaker deck:
The uppermost complete deck exposed to weather and sea.
Timber
The term timber means sawn wood or lumber, cants, logs, poles, pulpwood and
all other type of timber in loose or packaged forms. The term does not include
wood pulp or similar cargo.
13.2.4 Stowage
Page 76 of 113
76
3) Accumulations of ice and snow on such area should be removed.
4) Prepare and place all deck lashings, uprights, etc., in position before
loading on that specific area. This will be necessary should a preloading
examination of securing equipment be required in the loading port.
Stowing precautions:
1) Refer to (look up) Chapter 3 and Appendix A; of the Code of Safe Practice
for Ships Carrying Timber Deck Cargoes.
2) Timber deck cargo to be stowed so that safe and satisfactory access to the
crew's quarters, pilot boarding access, machinery spaces and all other
areas regularly used in the necessary working of the ship is provided at all
times.
3) Timber deck cargo to be stowed so that safety equipment, devices for
remote operation of valves and sounding pipes are left accessible.
4) Timber deck cargo to be stowed so that it will not interfere in any way with
the navigation and necessary working of the ship.
5) Due to the system of athwart-ship lashing, the stowage of packages should
generally be in the fore-and-aft direction.
6) Dunnage should be placed in the direction which will spread the load across
the ship's under-deck structure and assist in draining.
7) During loading, the timber deck cargo should be kept free of any
accumulations of ice and snow.
8) Upon completion of loading, and before sailing, a thorough inspection of
the ship should be carried out. Soundings should also be taken to verify
that no structural damage has occurred causing an ingress of water.
9) The height of the timber deck cargo above the weather deck should not
exceed one third of the extreme breadth of the ship.
10) The height of the timber deck cargo should be restricted so that adequate
visibility is assured.
11) A safe margin of stability is maintained at all stages of the voyage.
12) Any forward-facing profile does not present overhanging shoulders to a
head sea.
13) The weight of the timber deck cargo does not exceed the designed
maximum permissible load on the weather deck and hatches.
14) Packaged timber should not be stowed between the uprights
15) Make the stow as solid and compact as practicable, to prevent slack in the
stow which could cause the lashings to slacken.
Page 77 of 113
77
13.2.5 Securing (Lashing)
Lashing plans:
− One or more lashing plans complying with the recommendations of this Code
should be provided and maintained on board a ship carrying timber deck
cargo.
Lashing material
− All lashing materials, components and tightening devices used for securing
timber deck cargo, should comply with the specification stated in chapter 4 of
the Code
− All lashing and components used for the securing of the timber deck cargo
should be tested, marked and certified; copies of the appropriate certificate
shall be kept on board.
Uprights:
− Uprights are made of steel or other suitable material of adequate strength,
and are spaced at intervals not exceeding 3 m;
− Uprights to be fixed to the deck, by angles, metal sockets or equally efficient
means.
Securing (Lashing)
− Every lashing should pass over the timber deck cargo and be shackled to eye-
plates suitable and adequate for the intended purpose and efficiently attached
to the deck stringer plate or other strengthened points.
− Every lashing should be provided with a device or an installation to permit the
length of the lashing to be adjusted.
− Every lashing should be installed in such a manner as to be, as far as
practicable, in contact with the timber deck cargo throughout its full height.
− The timber deck cargo should be secured throughout its length by
independent lashings.
− The maximum spacing of the lashings is determined by the maximum height
of the timber deck cargo
i) For a height of 4 m and below, the spacing should be 3 m
ii) For heights of above 4 m, the spacing should be 1.5 m.
− The packages stowed at the upper outboard edge of the stow should be
secured by at least two lashings each.
− Rounded angle pieces of suitable material and design should be used along
the upper outboard edge of the stow to bear the stress and permit free
running of the lashings.
Page 78 of 113
78
13.2.6 Stability
Stability information
The ship should be supplied with comprehensive stability information which takes
into account timber deck cargo. Such information should enable the master,
rapidly and simply, to obtain accurate guidance as to the stability of the ship
under varying conditions of service. Comprehensive rolling period tables or
diagrams have proved to be a very useful aid in verifying the actual stability
conditions.
Stability consideration:
The stability of the ship at all times, including during the process of loading and
unloading timber deck cargo, should be positive and to a standard acceptable to
the Administration. It should be calculated having regard to:
1) The increased weight of the timber deck cargo due to:
a) Absorption of water in dried or seasoned timber
b) Ice accretion, if applicable;
2) Variations in consumables
3) The free surface effect of liquid in tanks.
4) The weight of water trapped in broken spaces within the timber deck
cargo and especially logs.
Metacentric height
Ships carrying timber deck cargoes should operate, as far as possible, with a safe
margin of stability and with a metacentric height which is consistent with safety
requirements but such metacentric height should not be allowed to fall below the
recommended minimum.*
However, excessive initial stability should be avoided as it will result in rapid and
violent motion in heavy seas which will impose large sliding and racking forces on
the cargo causing high stresses on the lashings.
Stability Recommendation
Operational experience indicates that metacentric height should preferably not
exceed 3% of the breadth in order to prevent excessive accelerations in rolling
provided that the relevant stability criteria are satisfied.
This recommendation may not apply to all ships and the master should take into
consideration the stability information obtained from the ship's stability manual.
Page 79 of 113
79
CHAPTER 14
CONTAINER CARGO
14.1 General
Since first introduced in the 1950s, containers have revolutionized the carriage of
general cargoes which presented great advantages both in ease and speed of
handling, cargo security, and together with other factors have transformed both
ships and ports.
1) The handling of the goods between seller and buyer is reduced, leading to
less damage.
2) Containers can be handled rapidly with modern high-speed equipment,
leading to a reduction in port turn-round time of the ships, and hence better
vessel utilisation, and increased efficiency.
3) Pilferage has been reduced by 90% though hijacking of complete container
loads is not unknown.
4) Standardisation has led to a rationalisation of the number and type of cargo-
handling equipment required.
5) Goods are protected against the weather at all stages of their handling, and
are protected in the stow by the container body, rather than be over stowed
directly by all manner of other goods.
14.1.3 Reference
International Convention for Safe Containers, 1972 (CSC) which entered into
force: 6 September 1977
Page 80 of 113
80
14.2 Containers
Heights vary on specialized cargo containers from as short as 4.25 feet up to 9.5
feet. The most common cargo container size is 40 feet.
Page 81 of 113
81
The Maximum Gross Weights (MGW) is the weight of the container and the cargo
loaded; in keeping with normal practice, gross, net and tare weights are defined
as follows:
R=P+T
R is the maximum permissible gross weight of the container including cargo
P is the maximum permissible payload (maximum net weight)
T is the weight of the empty container (tare weight).
According to ISO 4346 of January 1996, a distinction may be drawn between the
following types:
− General purpose containers
− Dry bulk containers/bulk containers
− Named cargo containers
− Thermal containers
− Open-top container
− Platform containers
− Tank containers
− Air/surface containers
Further distinctions are drawn within these groups depending on design and
principal characteristics.
The current standard which deals with the coding, identification and marking of
containers is DIN EN ISO 6346, dated January 1996.
− Owner code, consisting of three capital letters
− Product group code, consisting of one of capital letters U, J or Z
− Six-digit registration number
− Check digit
Page 82 of 113
82
14.2.3.1 Compulsory container marking
Owner Code
The owner code must be unique and registered with the International Container
Bureau (BIC - Bureau International des Containers), either directly or through a
national registration organization.
In the Figures shown, the owner code consists respectively of the letter
combinations SUD
Product Group Code
The product group code consists of one of the following three capital letters:
U - for all freight containers
J - for detachable freight container-related equipment
Z - for trailers and chassis
Country Code
Appropriate abbreviations are used for the various countries, here US for United
States of America, GB for Great Britain etc.
Size Code
The first digit of the size code indicates the length of the container, with the
number 4 standing for a 40' container. The second digit indicates height and
whether or not a gooseneck tunnel is present. In our example, the number 3
stands for a height of 8'6" with gooseneck tunnel.
Page 83 of 113
83
Type Code
In the type code, the first digit (i.e. the 3rd digit overall) indicates the container
type and the second (i.e. the 4th digit overall) indicates special features.
It must be possible to stack six ISO containers packed to the maximum weight
vertically on top of one another.
The actual values of modern containers are generally higher. Many are designed
to be stacked 9 high. The maximum stacking load must be marked on the CSC
plate.
On larger container ships, the containers are stowed 9 - 12 high in the hold. In
such cases, the containers loaded must either be only partly full or designed to
have greater stackability, or on modern container vessels it is possible to use
fold-out flaps in the cell guides, which subdivide the stacks.
Page 84 of 113
84
CC) Weight Marking
One optional marking which most operators do affix states maximum payload or
net cargo weight,
In general, the various markings are so arranged that the weight data are
followed by container volume data:
Page 85 of 113
85
14.3 Container Vessels
14.2.1 Layout
Slot Position
Specifies the position of the container on board the ship, for example using the
Bay Row Tier system
Bay-Row-Tier System
Numbering system for the arrangement of containers on a vessel; in this
numbering system, the bay is specified first, then the container row, which runs
the breadth of the ship, and finally the tier (vertical layer)
The stowage space of the container on board the ship is unambiguously stated in
numbers and is always recorded in the shipping documents.
Page 86 of 113
86
Bay
A group of slots running horizontally from one side of the ship to the other and
vertically from the bottom upwards; in other definitions it is the longitudinal-
horizontal numbering of the slots on a container vessel (from fore to aft)
Since the ship can transport both 20' and 40' containers.
− The bay spaces for 20' containers are numbered throughout fore to aft with
odd numbers, i.e. in this case 01, 03, 05 and so on up to 75.
− The bay spaces for 40' containers are numbered throughout fore to aft with
even numbers: 02, 04, 06 and so on up to 74.
Row
A group of slots running horizontally from one side of the ship to the other, in
other definitions it is the transverse-horizontal numbering of the slots on a
container vessel (from one side to the other)
The rows of containers on a ship are numbered with:-
− Even numbers from the centre leftwards.
− Odd numbers from the centre rightwards.
Where there are an odd number of rows, the middle row is numbered 00.
The container tiers are numbered with even numbers, starting from the bottom.
Page 87 of 113
87
− In hold numbering starts with 02; the number is incremented by two for each
higher layer.
− Deck numbering starts with 80 or 82; the number is incremented by two for
each higher layer.
i) Containers standing directly on the main deck are numbered 80
ii) Containers standing on the hatches are number 82.
There are sometimes slight differences between ships.
The Bay Plan as shown below is already drawn with the correct numbering and
container location
The following data of the loaded containers are recorded in the bay plans:-
− Container Alpha prefix and numbers
− Container weight
− Loading port
− Discharging port
− Other important details (i.e.: IMDG class and/or UN number)
The system shown above is the most widely used. However, other numbering
systems do exist, in which the coordinates are stated in a different order, for
example row-bay-tier systems and similar combinations.
Page 88 of 113
88
14.4 Stowing and Securing
14.4.1 Stowing
14.4.1.1 Lengthwise stowage
On most container ships the containers are carried lengthwise (fore and aft
stowage)
This stowage method is sensible with regard to the interplay of stresses in rough
seas and the loading capacity of containers. Stresses in rough seas are greater
athwartships than fore and aft and the loading capacity of container side walls is
designed to be higher than that of the end walls.
14.4.2 Securing
14.4.2.1 General
When securing containers on board, the stresses resulting from the following
must be taken into account:-
− The ship's movements
− Wind pressure
− Breaking-wave impact
All the containers on board must be secured against Slippage and Toppling.
Page 89 of 113
89
14.4.2.2 Securing containers on container ships
AA) In Holds
Virtually all container ships are provided with cell guides with vertical guide rails
as securing means for hold cargoes.
The greatest stress the containers are exposed to stems from stack pressure.
Since the containers are not connected together vertically, lateral stress is
transmitted by each individual container to the cell guides. When positioned in
such cell guides, individual containers are not usually able to shift.
The containers are guided by these rails of the cell guides during loading and
unloading. The photo shows clearly that the upper ends of the guide rails each
take the form of insertion guides.
BB) On Deck
Page 90 of 113
90
Principle of stacked stowage securing
Page 91 of 113
91
14.4.2.2 Securing Containers on General Cargo Vessels
On older, conventional general cargo vessels, stacked stowage methods are used
in the hold, combined with various securing methods:
Page 92 of 113
92
CHAPTER 15
DANGEROUS GOODS AND MARINE POLLUTANTS
15.1 Objective
The objective of the IMDG Code is to enhance the safe transport of dangerous
goods while facilitating the free unrestricted transport of such goods.
Transport of marine pollutants is primarily regulated to prevent harm to the
marine environment.
15.2 History
The need for international regulation for the transport of dangerous goods by sea
was recognized by the 1929 International Conference on Safety of Life at Sea
(SOLAS).
As a further step towards meeting the need for international rules governing the
transport of dangerous goods in ships, the 1960 SOLAS Conference, in addition
to laying down a general framework of provisions in Chapter Vll of the SOLAS
Convention, invited IMO (Recommendation 56) to undertake a study with a view
to establishing a unified international code for the transport of dangerous goods
by sea.
This new International Maritime Dangerous Goods (IMDG) Code was approved by
the MSC and recommended to Governments by the Assembly of IMO in 1965.
The carriage of all dangerous goods onboard ship is governed by the IMO
International Maritime Dangerous Goods (IMDG) Code and supplements.
This publication contains details of the classification of each commodity, and the
documentation, labeling and packaging required. Physical and chemical
properties are described, and advice on fire-fighting and any limiting quantities is
given. Such goods must be appropriately handled, stowed and segregated with
regard to the advice given in this code.
Page 93 of 113
93
15.4 IMDG Classification
Dangerous Goods are assigned to one of the classes 1-9 according to the hazard
or the most predominant of the hazards they present; some of these classes are
subdivided into divisions.
These classes and divisions are:
The numerical order of the classes and divisions is not that of the degree
of danger.
Class 1: Explosives
substances and articles which have a mass explosion
Division 1.1
hazard
substances and articles which have a projection hazard
Division 1.2
but not a mass explosion hazard
substances and articles which have a fire hazard and
Division 1.3 either a minor blast hazard or a minor projection
hazard or both, but not a mass explosion hazard
substances and articles which present no significant
Division 1.4
hazard
very insensitive substances which have a mass
Division 1.5
explosion hazard
extremely insensitive articles which do not have a
Division 1.6
mass explosion hazard
Class 2: Gases
Class 2.1 flammable gases
Class 2.2 Non-Flammable, Non-Toxic gases
Class 2.3 toxic gases
Class 3: Flammable liquids
Class 4: Flammable solids; substances liable to spontaneous
combustion; substances which, in contact with water, emit
flammable gases
Flammable solids, self-reactive substances and
Class 4.1
desensitized explosives
Class 4.2 substances liable to spontaneous combustion
substances which, in contact with water, emit
Class 4.3
flammable gases
Class 5: Oxidizing substances and organic peroxides
Class 5.1 oxidizing substances
Class 5.2 organic peroxides
Class 6: Toxic and infectious substances
Class 6.1 Toxic substances
Class 6.2 Infectious substances
Class 7: Radioactive material
Class 8: Corrosive substances
Class 9: Miscellaneous dangerous substances and articles
Page 94 of 113
94
15.5 Stowage
Page 95 of 113
95
15.6 Segregation
General
The provisions of this chapter should apply to all cargo spaces on deck or under
deck of all types of ships and to cargo transport units.
The International Convention for the Safety of Life at Sea (SOLAS), 1974, as
amended, requires in regulation 6.1 of part A of chapter VII that incompatible
goods should be segregated from one another.
The extent of the hazard arising from possible reactions between incompatible
dangerous goods may vary and so the segregation arrangements required should
also vary as appropriate. Such segregation is obtained by maintaining certain
distances between incompatible dangerous goods or by requiring the presence of
one or more steel bulkheads or decks between them, or a combination thereof.
Intervening spaces between such dangerous goods may be filled with other cargo
compatible with the dangerous substances in question
The general provisions for segregation between the various classes of dangerous
goods are shown in the following table "segregation table"
Page 96 of 113
96
1.1
1.3
CLASS 1.2 1.4 2.1 2.2 2.3 3 4.1 4.2 4.3 5.1 5.2 6.1 6.2 7 8 9
1.6
1.5
Explosives 1.1,1.2,1.5 * * * 4 2 2 4 4 4 4 4 4 2 4 2 4 X
Explosives 1.3 * * * 4 2 2 4 3 3 4 4 4 2 4 2 2 X
Explosives 1.4 * * * 2 1 1 2 2 2 2 2 2 X 4 2 2 X
Flammable gases 2.1 4 4 2 X X X 2 1 2 X 2 2 X 4 2 1 X
Non-toxic, non-flammable gases2.2 2 2 1 X X X 1 X 1 X X 1 X 2 1 X X
Poisonous gases 2.3 2 2 1 X X X 2 X 2 X X 2 X 2 1 X X
Flammable liquids 3 4 4 2 2 1 2 X X 2 1 2 2 X 3 2 X X
Flammable solids 4.1 4 3 2 1 X X X X 1 X 1 2 X 3 2 1 X
Substances liable to spontaneous
4 3 2 2 1 2 2 1 X 1 2 2 1 3 2 1 X
combustion 4.2
Substances which, in contact with water,
4 4 2 X X X 1 X 1 X 2 2 X 2 2 1 X
emit flammable gases 4.3
Oxidizing substances (agents) 5.1 4 4 2 2 X X 2 1 2 2 X 2 1 3 1 2 X
Organic peroxides 5.2 4 4 2 2 1 2 2 2 2 2 2 X 1 3 2 2 X
Toxic substances 6.1 2 2 X X X X X X 1 X 1 1 X 1 X X X
Infectious substances 6.2 4 4 4 4 2 2 3 3 3 2 3 3 1 X 3 3 X
Radioactive materials 7 2 2 2 2 1 1 2 2 2 2 1 2 X 3 X 2 X
Corrosives 8 4 2 2 1 X X X 1 1 1 2 2 X 3 2 X X
Miscellaneous dangerous substances and
X X X X X X X X X X X X X X X X X
articles
KEY 1 "Away from"
2 "Separated from"
3 "Separated by a complete compartment or hold from"
4 "Separated longitudinally by an intervening complete compartment or hold from"
X The segregation, if any, is shown in the individual schedules.
* See IMDG subsection 6.2 of the introduction to Class 1.
Page 97 of 113 97
1) Away from:
Effectively segregated so that the incompatible goods cannot interact
dangerously in the event of an accident but may be transported in the same
compartment or hold or on deck, provided a minimum horizontal separation of 3
metres, projected vertically is obtained.
Prohibited
Stowage Area
ﻣﻨﻄﻘﺔ ﻣﻤﻨﻮع اﻟﺸﺤﻦ
3m 3m
Prohibited
Stowage Area
ﻣﻨﻄﻘﺔ ﻣﻤﻨﻮع اﻟﺸﺤﻦ
2) Separated from:
In different compartments or holds when stowed under deck. Provided the
intervening deck is resistant to fire and liquid, a vertical separation, i.e. in
different compartments, may be accepted as equivalent to this segregation. For
on deck stowage, this segregation means a separation by a distance of at least 6
metres horizontally.
Page 98 of 113 98
3) Separated by a complete compartment or hold from:
Either a vertical or a horizontal separation; if the intervening decks are not
resistant to fire and liquid, then only a longitudinal separation, i.e. by an
intervening complete compartment or hold, is acceptable. For on deck stowage,
this segregation means a separation by a distance of at least 12 metres
horizontally. The same distance has to be applied if one package is stowed on
deck, and the other one in an upper compartment.
12 m
24 m
Including intervening compartment
(ﺗﺘﻀﻤﻦ ﻋﻨﺒﺮ ﺧﺎﻟﻲ )ﻃﻮﻟﻴﺎ
Page 99 of 113 99
15.7 Precautions
− The OOW should make familiarize himself with the layout of this publication,
including its supplement, so that he is able to extract quickly all information
which is relevant to the cargo carried on a particular voyage. Ships which are
fitted with computers having a CD-ROM drive may be provided with this
publication on disc, for rapid access of the relevant information.
− The OOW should read the entry for each item of dangerous goods that is to be
shipped, and ask the Chief Officer for clarification of any point he does not
understand.
− No Dangerous goods should be accepted onboard without “Dangerous Goods
Declaration”
− Dangerous goods should be loaded and discharged only under the supervision
of the OOW.
− OOW should ensure that they are clearly marked with their appropriate class
and IMO number as described in the IMDG code, and that they are identified
by their correct chemical name and not a brand name.
− The goods must be packaged in accordance with the IMDG Code.
− Dangerous goods should be separated according to Chapter 7.2 and table
7.2.1.16 of the IMDG Code
− It is essential that the OOW checks that all dangerous goods are stowed
exactly according to the preloading plan, to ensure that planned segregations
are made.
− OOW must report any discrepancies to the Chief Officer immediately.
− Empty containers which are being returned to the supplier should be treated
as though they contain the commodity which they previously carried, unless
the shipping documents certify that they have been thoroughly cleaned and
have been examined for contamination from their previous contents.
Dangerous goods in cargo transport units on board container ships should be
segregated according to Chapter 7.2.3 and table 7.2.3.2 of the IMDG Code
Question (1)
Cargo hold 10 x 8.5 x 4.2 m having dunnage spread regularly over the floor of
the hold at a height of 20 cm. and the side battens are at 12.5 cm. from the shell
plating on each side.
The hold was loaded with 1000 boxes of lead each measuring 35 x 1 5 x 10 cm,
and it was also loaded with 4000 barrels of paint each of 55 cm high and 30cm
diameter; if the broken stowage for the barrels of paint in the hold was 5% of the
barrels volume.
Calculate the remaining hold volume and the number of cases knowing that S.F.
of cases is 2 m3/ton and each 4 cases weigh one tonne, “Assuming that there in
no broken stowage for the box of lead”.
Answer (1)
A vessel has 8400 tones deadweight; she has onboard 750 tones of fuel, 250
tones of water, and 200 tones of stores.
She has four holds of capacities as follows:
No. 1 = 1500 m3 No. 2 = 2500 m3
No. 3 = 2500 m3 No. 4 = 1500 m3
It is required to load paper reels stowed at 0.5 m3/ton and butter cases stowed
at 1.5 m3/ton
Calculate how much of each commodity can be loaded, when the vessel is down
to her marks and full to her capacity.
Answer (2)
Weights Volume
Fuel = 750 tons No. 1 = 1500 m3
Water = 250 tons No. 2 = 2500 m3
Stores = 200 tons No. 3 = 2500 m3
Total = 1200 tons No. 4 = 1500 m3
deductions
Deadweight = 8400 tons Total Hold Capacity = 8000 m3
Cargo =7200 tons
A ship of 5000 tones deadweight has onboard, 200 tones of fuel-- 90 tones of
fresh water and 110 tones of stores.
The ship is loading 1000 tones cases of cans its stowage factor is 1.5 m3/t.
If the cubic capacity of the ship holds is as follows:
No. (1) 1500 m3 - No. (2) 3100 m3 - No. (3) 2800 m3 - No. (4) 2800 m3 - No. (5)
1500 m3
Find the amount of each of the following cargoes to be loaded in the remaining
spaces of the ship's holds.
Bags of coffee at stowage factor of 2.8 m3/ton
Bags of beans at a stowage factor of 3.1 m3/ton
Noting that the ship will be down to her marks and full to her capacity
Answer (3)
Weights Volume
Fuel = 200 tons No. 1 = 1500 m3
Water = 90 tons No. 2 = 3100 m3
Stores = 110 tons No. 3 = 2800 m3
Total = 400 tons No. 4 = 2800 m3
deductions
Cargo onboard = 1000 tons No. 5 = 1500 m3
Weights = 1400 tons Total Hold Capacity = 12000 m3
onboard
Deadweight = 5000 tons
Cargo to load = 3600 tons
X + Y = 3600 (1)
2.8 X + 3.1Y = 10500 (2)
Multiply (1) by 2.8
2.8X + 2.8Y = 10080 (3)
Subtract (3) from (2)
0.3 Y = 420
Y =1400 ton.
X = 3600 - 1400 = 2200 tones
2200 tones of coffee should be loaded and 1400 tones of beans should be loaded,
so that the ship will be down to her marks and full to her capacity
Answer (4)
Weights Volume
Fuel = 500 tons No. 1 = 1320 m3
Water = 350 tons No. 2 = 1972 m3
Stores = 130 tons No. 3 = 2050 m3
Total = 980 tons No. 4 = 1530 m3
deductions
Deadweight = 5080 tons Total Hold Capacity = 6872 m3
Cargo to load = 4100 tons
Theoretical distribution:
Grain to be loaded in Cotton to be loaded in
No. 1 3070 x 1320 /6872 = 589.7 t. No. 1 1030 x 1320 / 6872 = 197.8 t
No. 2 3070 x 1972 /6872 = 881.0 t. No. 2 1030 x 1972 / 6872 = 295.6 t
No. 3 3070 x 2050 /6872 = 915.8 t. No. 3 1030 x 2050 / 6872 = 307.3 t
No. 4 3070 x 1530 /6872 =683.5 t. No. 4 1030 x 1530 / 6872 = 229.3 t
Total 3070.0 t Total 1030 t
Answer (5)
Answer (6)
Light displacement = L x B x draft x Cb x D
= 64 x 10 x 1.5 x 0.6 x 1.025 = 590.4 tons
Load displacement = L x B x draft x Cb x D
= 64 x 10 x 4x 0.75 x 1.025 = 1968 tons
Deadweight = Load displacement - light displacement
= 1968 - 590.4 = 1377.6 tons
A vessel of 4500 tones deadweight; has onboard 400 tones of fuel, 200 tones of
water, and 200 tones of stores.
She has four holds of capacity as follows:
No. 1: 1300 cu.m.
No. 2: 1880 cu.m
No. 3: 1900 cu.m.
No. 4: 1490 cu.m.
It is required to load grain, stowed at 1.45 m3/ton, and bales of cotton stowed at
2.35 m3/ton.
Calculate how much of each commodity can loaded, if the vessel will be down to
her marks and full to her capacity.
Answer (7)
Weights Volume
Fuel = 400 tons No. 1 = 1300
m3
Water = 200 tons No. 2 = 1880
m3
Stores = 200 tons No. 3 = 1900
m3
Total = 800 tons No. 4 = 1490
deductions m3
Deadweight = Total Hold = 6570
4500tons Capacity m3
Cargo =3700
tons
Let (X) be weight of grain to be loaded & Let (Y) be weight of cotton to be
loaded.
X + Y = 3700 (1)
1.45 (X) + 2.35 (Y) = 6570 (2)
By multiplying 1 by 1.45
1.45 (X) + 1.45(Y) = 5365 (3)
By subtracting (3) from (2)
0.9 (Y) = 1205
Weight of Cotton = (Y) = 1205 / 0.9 = 1338.8 tons
Weight of Grain = (X) = 3700-1338.8 = 2361.2 tons
18.1 Reference
The STCW guidelines: “Principles and operational guidance for deck officers in
charge of a watch in port".
2) Cargo
(Operation – stowing – securing)
3) Damage prevention
(Ship – cargo – berth – shore equipment – ship equipment)
4) Pollution prevention
(Oil – garbage – dust – cargo spillage – ballast – hazardous cargo – smoke)
5) Security
(Stowaways – thieves – pirates – smuggling)
6) Services
(Stores – bunkers – repairs)
7) Loss prevention
(Time – ship’s consumables – ship’s resources)
8) Commercial
(Charter party – Contracts of carriage of cargo)
The Chief Officer is the cargo officer, all cargo and ballast operation will be done
to his instruction, he is responsible in front of the ship’s Master for the safe
execution of all related operations; he will be assisted by the OOW, the OOW (2nd
and 3rd officers shall work a duty rota system.
Whilst the OOW will be expected to act on his own initiative, his actions must
always comply with the Master's and Chief Officer's orders, and the OOW must
always call these officers if he is in any doubt whatsoever.
1) The preparation of ship’s lifting equipments are made properly and timely
2) The hatch covers are opened and closed properly and timely
3) All personnel are not placed in any hazard which may cause injury.
6) The cargo is stowed properly, in accordance with the initial stowage plan.
9) Cargo and ballast operations must be carried out in the planned sequence
10) The quantity and condition of the cargo are accurately recorded.
12) The draught, under-keel clearance and the general state of the ship to avoid
dangerous listing or trim during cargo handling or ballasting.
1) You must call for assistance immediately if you are in any doubt whatsoever,
at any time, or you feel unable to cope alone, or you become fatigued; in
general you are to call the Chief Officer first, but if he is not onboard call the
Master.
2) You are completely responsible for all aspects of the watch at all times,
passing an order to someone else does not relieve you of this responsibility.
3) All deck officers must ensure that the deck watch is maintained strictly in
accordance with:
a) Company regulations
b) International and local regulations
c) Master standing orders
d) Chief Officer cargo instruction
4) Even if there is no cargo work, the OOW should make frequent safety rounds
of the vessel to ensure that all is well, and make a thorough inspection
before turning in for the night.
5) Safety of the ship and all personnel on board is the primary responsibility of
the OOW and it takes precedence over all your other responsibilities.
6) Do not sign any documents unless you are clearly instructed to do so, it is
written in a language you understand and the facts are right.
7) It is a safety requirement that all officers and crew should advise the OOW
or gangway watchman when they are going ashore, and when they return
on board; so in emergency OOW know who to call.
9) Ensure that the cargo is handled, stowed and secured properly; strictly in
accordance with the initial stowage plan and any additional instructions from
the Chief Officer, call chief officer if in any doubt.
10) All cargo and ballast operations must be carried out in the sequence ordered
by the Chief Officer, halt and report any alteration to the Chief Officer
immediately.
11) Ensure that the duty sailor remains alert, and is stationed at the gangway
unless he is required elsewhere.
12) Enforce all security procedures as per the ship’s security manual; assigned
sailor to the gangway must never leave his position, and ensure that no
unauthorised visitors are allowed on board.
13) Check moorings, rat guards, gangway and safety nets and adjust as
required.
15) OOW shall ensure that Flags and signals are hoisted as required by port and
international regulations.
16) Be aware of other ships movements which may cause damage to our ship,
especially if they are mooring/unmooring on the berths ahead or astern.
17) OOW shall report to the Chief Officer immediately any damage (or even a
suspicion) done to the ship, ship fittings or cargo; investigate any unnatural
sound.
18) OOW shall take all necessary precautions to prevent pollution, from bunkers,
cargo spills, ballast and garbage.
19) Enforce company's drug and alcohol policy on all personal (crew –
stevedores – visitors – etc.); report any suspicions or violations.
20) Supervise the opening and closing of all hatch-covers, hatch covers
operation procedure must be strictly followed.
21) OOW shall write all important events in the Chief Officer logbook before
handing over the watch,
22) Make sure that you provide a thorough and clear handover to your relief
officer.
