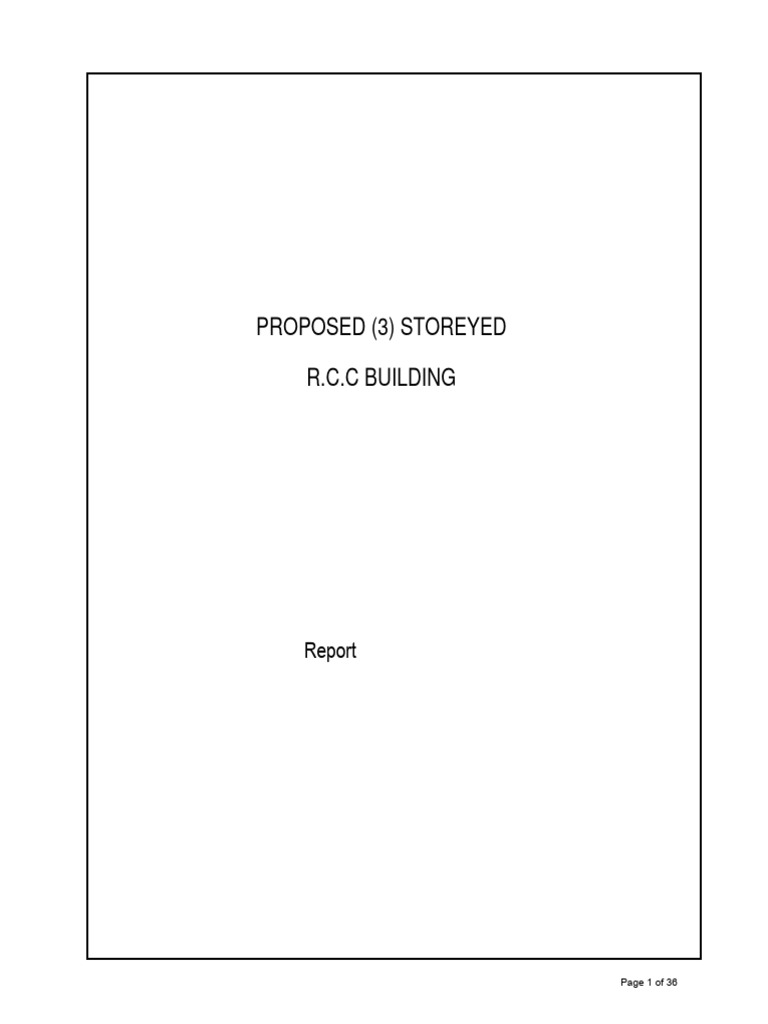

PROPOSED (3) STOREYED

R.C.C BUILDING

Report

Page 1 of 36
TABLE OF CONTENT FOR STRUCTURAL DESIGN CALCULATION

Page Remarks
File
S/No ITEMS
from To No

1. Content 2 2
2. Design Information 3 4
3. Frame Geometry 5 10
4. Loading Data 11 17
5. Analysis Result & Design Calculation 18 18
5.1 Foundation Design 19 21
5.2 Member Analysis 22 25
5.3 Beam Design 26 29
5.4 Column Design 30 32
5.5 Slab and Stair Design 33 36

Page 2 of 36
2. DESIGN INFORMATION

Page 3 of 36
2 DESIGN INFORMATION

2.1 Use of Code of Practice

a. ACI 318-99
b. AISC LRFD-93

2.2 Material Specification and Standards

1.2.1 Concrete
Cube Strength, fcu = 30 N/mm2 (G30) or 4351 psi
Cylinder Strength, fc' = 3393 psi

1.2.2 Reinforcement
a. Plain bars, fy = 413 N/mm2 (60000 psi)
b. Deformed Bars, fy = 413 N/mm2 (60000 psi)

1.2.3 Structural Steel

ASTM (fy =250 N/mm2 (36000 psi))

2.3 Loading

Dead Load

Roof = 25 psf
Floor Finishes (2in) = 25 psf
Stair = 50 psf
Wall load (4.5in thk Brick Wall) = 50 psf
Wall load (9 in thk Brick Wall) = 100 psf

Live Load

Floor Slab = 40 psf

Stair = 40 psf
Roof Slab = 20 psf
Water Tank = 250 psf

2.4 Structure Analysis and Design Software

a. ETABS Software (Version 18.1.1)

2.5 Load Combination

No Combinations

COM1 1.4 DL

COM2 1.4 DL + 1.7 LL

SETTLE DL + LL

Page 4 of 36
3. Frame Geometry

Page 5 of 36
Page 6 of 36
Page 7 of 36
Page 8 of 36
Page 9 of 36
Page 10 of 36
4. Loading Data

Page 11 of 36
Page 12 of 36
Page 13 of 36
Page 14 of 36
Page 15 of 36
Page 16 of 36
Page 17 of 36
5. Analysis Results And Design Calculation

Page 18 of 36
5.1 Foundation Design

Page 19 of 36
Bottom Rebar Intensity

Page 20 of 36
Top Rebar Intensity

Page 21 of 36
5.2 Member Analysis

Page 22 of 36
Page 23 of 36
Page 24 of 36
Page 25 of 36
5.3 Beam Design

Page 26 of 36
Page 27 of 36
Page 28 of 36
Page 29 of 36
5.4 Column Design

Page 30 of 36
Page 31 of 36
Page 32 of 36
5.5 Slab and Stair Design

Page 33 of 36
