DEC Assignment 1

11-01-2024

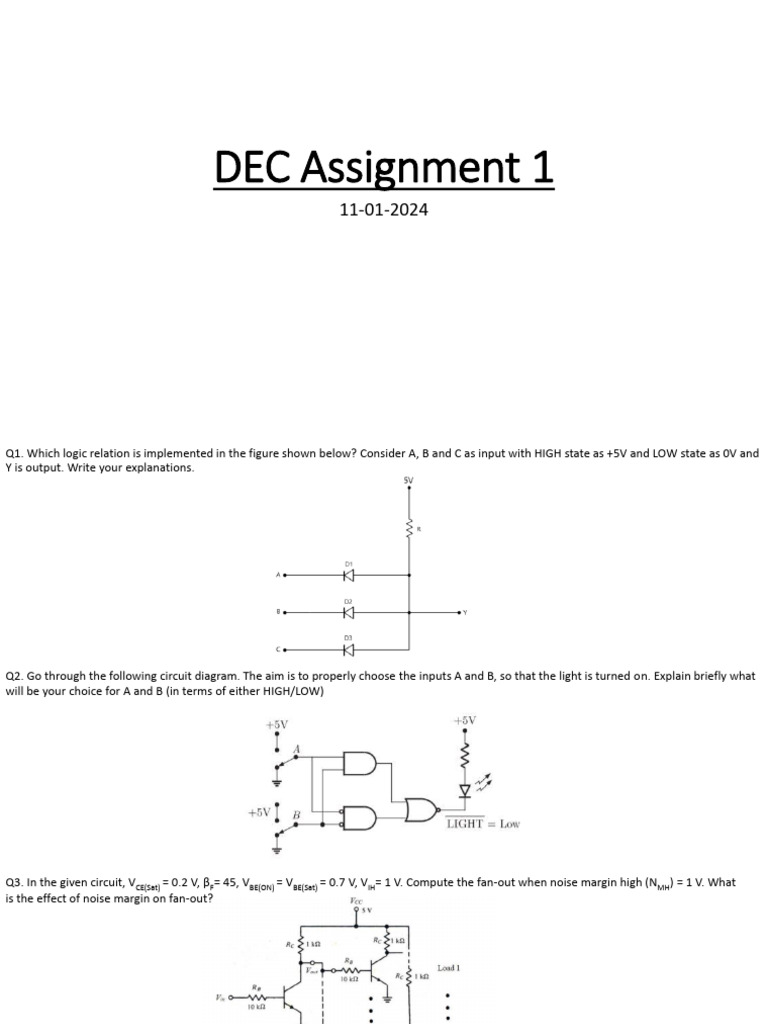

Q1. Which logic relation is implemented in the figure shown below? Consider A, B and C as input with HIGH state as +5V and LOW state as 0V and
Y is output. Write your explanations.

Q2. Go through the following circuit diagram. The aim is to properly choose the inputs A and B, so that the light is turned on. Explain briefly what
will be your choice for A and B (in terms of either HIGH/LOW)
Q3. In the given circuit, VCE(Sat) = 0.2 V, βF= 45, VBE(ON) = VBE(Sat) = 0.7 V, VIH= 1 V. Compute the fan-out when noise margin high (NMH) = 1 V. What
is the effect of noise margin on fan-out?

Q4.
Q5. The transistor switch as shown in figure has β = 120, VCE(sat) =0.2V, RC =1.2K and VCC = 5V.

A] Find the output voltage when the transistor switch is closed, and B] find the minimum base current needed to close the switch?

Q6. In the given circuit, find the value of VOUT when VA = 0 V and VB = 5 V. (RC = 2KΩ, RB=1KΩ and VCC = 5V. Consider diodes to be ideal).
Q7. Given the circuit depicted in the diagram, with VBE1 and VEB2 both equal to 0.7 volts, what is the numerical value VC2?

Q8. In the presented circuit, X and Y are the input. Consider, Q1 has a minimal collector-to-emitter saturation voltage, and the diode
exhibits negligible voltage drop during forward bias, and VCC is +5 V. Assuming 0 V representing logic 0 and VCC representing logic 1, what is
the Boolean expression for Z?
