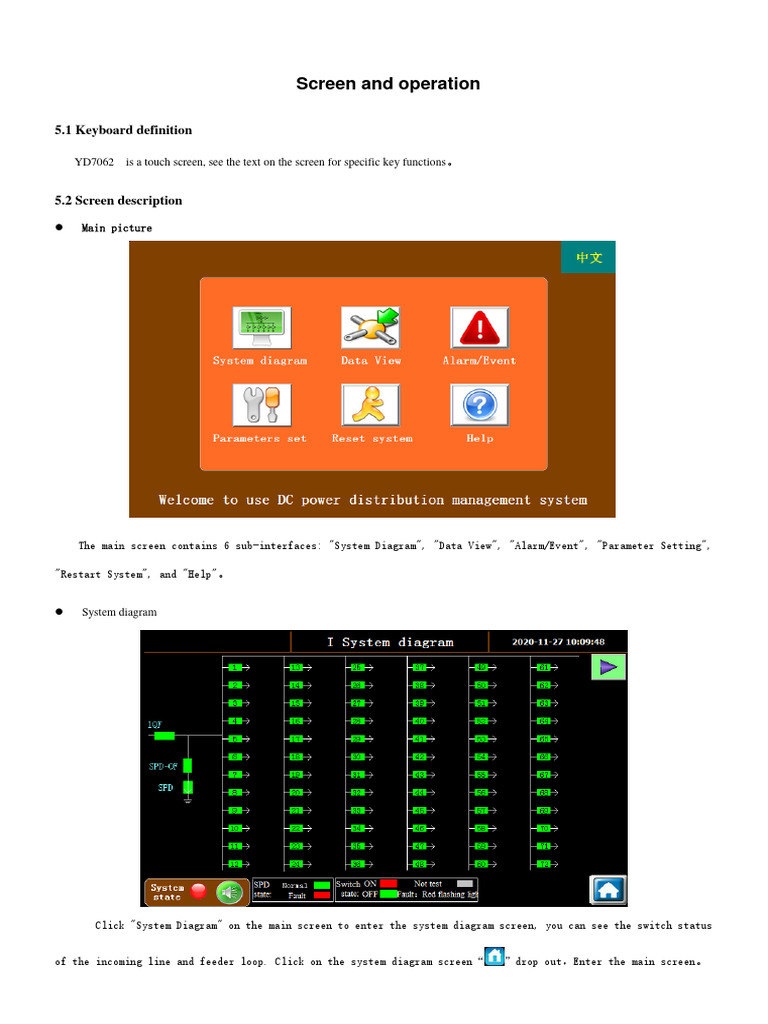

Screen and operation

5.1 Keyboard definition

YD7062 is a touch screen, see the text on the screen for specific key functions。

5.2 Screen description

⚫ Main picture

The main screen contains 6 sub-interfaces: "System Diagram", "Data View", "Alarm/Event", "Parameter Setting",

"Restart System", and "Help"。

⚫ System diagram

Click "System Diagram" on the main screen to enter the system diagram screen, you can see the switch status

of the incoming line and feeder loop. Click on the system diagram screen“ ”drop out，Enter the main screen。
⚫ Incoming data screen

Click "Data View" on the main screen to enter the incoming line data screen. In the incoming line data screen, click

the "basic electrical parameters" and "electric energy data record" bars to switch between the two screens. After

clicking the middle, the corresponding bar becomes Orange。

⚫ Feeder data screen

In the incoming data screen, click the "feeder" bar on the left side of the screen to enter the feeder data screen,

and click on the "data item1”、“data item2”、“data item3”、“data item4”The bar box switches the screen, and

the corresponding bar box turns green after clicking the center. By clicking“ ”，“ ”Page up and down。
⚫ Alarm/Event Screen
 Click "Alarm/Event" on the main screen to enter the alarm record screen, and switch the screen by clicking "Real-time

Alarm", "History Alarm", "Operation Record", and the bar box.

5.3 System settings

5.3.1 Enter the parameter setting interface, click on the lower left "parameter setting", a password input window will pop up

Enter the corresponding password according to the authority to enter the parameter setting interface

5.3.2 Incoming line parameter setting

⒈The main parameters：

Current selection input: input signal mode。

The primary value of I incoming line current and the primary value of II line current: refers to the size of the Hall, when the Hall is

100/4, fill in 100 directly, no need to calculate。

Incoming line rated voltage: On the incoming line end, the stable output voltage value of the grid。

Incoming line rated current: the sum of the branch load rated current on the incoming line end。

Main circuit voltage symbol: display voltage positive and negative。

Corresponding color when the switch is closed: judge the color of the switch on the system diagram, red and green are optional。

Main/branch current zero point shielding value: the threshold of shielding current can be set, when the current is less than the

threshold, it will be displayed as 0。

Clear history operation and clear history power button

Incoming DI detection methods: divided into three methods: "switch detection", "main and backup fuse detection" and "positive

and negative fuse detection"。

Digital DI attribute: There are 8 active input contacts on the DC monitoring host：

1） When the incoming DI detection mode is "switch detection", each DI state can be associated with "incoming switch", "incoming

switch SD", "incoming lightning arrester switch", "incoming lightning arrester status", and "incoming lightning arrester status".

One of the six attributes of “line general switch” and “standby switch”。

2） When the incoming DI detection mode is "main and standby fuse detection", each DI state can be associated with "main fuse",

"standby fuse", "incoming lightning protection switch", and "incoming lightning protection". One of the five attributes of "device

status" and "incoming general switch"。

3） When the incoming DI detection mode is "positive and negative fuse detection", each DI state can be associated with "positive

fuse", "negative fuse", "incoming lightning arrester switch", and "incoming lightning arrester status" One of the five attributes of
 "and "incoming general switch"。

For example, if "switching value DI1 attribute" selects "line switch", the opening and closing of DI1 is consistent with the line switch.

(Note: Only dual-input dual-test has DI4-DI8 switch attribute)

DO output mode: There are 2 normally open relay outputs on the DC monitoring host, and each DO output can be associated with

five types: "Total System Alarm", "System Normal", "System Working", "None" and "Over Temperature" One of the ways。

Incoming line measurement method: There are "double entry double measurement", "single entry single measurement", "dual

entry node measurement", the measurement method can be selected

1）"Dual entry and double measurement" means two incoming lines, and the full power of both incoming lines needs to be monitored；

2）"Single entry and single test" means that one incoming line, only monitors the full power data of one incoming line；

3）"Dual entry node measurement" means that there are two incoming lines, but only the full power data at the back of the incoming line is

monitored；

Temperature detection function: There are three options of "no detection", "temperature 1" and "temperature 2", and you can

choose whether to turn on the temperature detection function。

Humidity detection function: There are three options of "no detection" and "detection", you can choose whether to open the

humidity detection function。

Switch to the alarm screen when there is a new alarm: there are two options of "YES" and "NO"。

Select "YES" to automatically jump to the alarm interface when a new alarm is generated, select "NO" to not automatically jump, you

need to manually enter the alarm interface to view。

Whether to display combined data: There are two options: "YES" and "NO". Select "YES" to display the combined data, select

"NO" to not display the combined data。

Time interval for recording electric energy: Set the interval for recording electric energy。

Fault alarm limit opening alarm (restricted/unrestricted): refers to whether the opening alarm is cancelled when the feeder switch is

opened and a fault alarm is issued。

Two-incoming/one-incoming proportional coefficient: refers to the ratio of the incoming alarm threshold of 2 routes. For example, if you set

2, the upper limit of Ua for I incoming line is 50, then the second incoming line is automatically multiplied by 2 to equal 100。

Feeder DI detection methods: divided into two methods: "switch/voltage detection" and "fuse detection".

1） When the detection mode is "switch detection", the branch detection can have two types: switch status and switch failure

2） When the detection mode is "main and backup circuit fuse detection" and "positive and negative fuse detection", only the option of

"fuse failure" is available for branch detection。

Electric energy clearing: There are two buttons of "main circuit electric energy zeroing" and "branch electric energy zeroing",

which can clear the electric energy of main circuit and branch circuit respectively。
Event clearing: There are two buttons, "Main road event clearing" and "Branch event clearing", which can clear the main road and

branch events respectively。

Time synchronization: There is a "time synchronization" button to synchronize the host time with the HMI time。

Export records: There are three options, namely "Alarm Record", "Operation Record", and "Power Record". You can manually

select the corresponding record group and export it to the U disk as an Excel file。

Refresh: re-read the setting parameters in the instrument。

Setting: write the setting parameters on the HMI into the instrument。

Note: Please refer to the permission table for the password (028888)

1.Lightning protector position: refers to whether the lightning protector is at the front or back of the switch in the system diagram。

2.I Road Name: Set the name of I incoming line switch

3.II road name: set the name of the II incoming switch

4.Level 1 alarm delay and Level 2 alarm delay: Set the alarm delay

5. Display IT load power: whether to display IT load power

6. Line I lightning protection switch name: set the name of I incoming line lightning protection switch

7. II Road lightning protection switch name: Set the name of the II incoming line lightning protection switch

8.I Road lightning protection status name: set the name of the incoming line lightning protection status

9.II Road lightning protection status name: set the name of the II incoming line lightning protection status

10.-N Module: If the selected host module is marked with -N, YES must be selected here, which means that it has network port

communication function

11.Alarm wake-up backlight function: Click YES, when the touch screen is backlit, the screen will automatically light

up when there is a new alarm

12.Time interval for recording electric energy: manually set the interval for recording electric energy, the default

is to record once every 24 hours

13. Whether to mute: whether to turn off the buzzer alarm sound

14. Whether to change the name of the standby circuit: Set and change the name of the standby switch for I incoming

line and II incoming line. Select YES, the change box will appear

15. Data recording interval: manually set the data recording interval, the default is to record once every 24 hours

16. Whether to display LOGO: Click YES to display LOGO, click NO to not display LOGO

17. Branch voltage input judgment value: branch voltage shielding threshold, when the branch voltage value is less

than this threshold, the voltage is zero

⒉Alarm threshold：

Alarm enable: There are two options "YES" and "NO", you can choose whether to enable the alarm function of related parameters。

Alarm threshold: the conditions under which related parameters generate alarms。

Alarm polarity: There are two options of "0 alarm" and "1 alarm". "0 alarm" means that an alarm is generated when the DI state

of the relevant parameter is disconnected; "1 alarm" means that an alarm is generated when the DI state of the relevant parameter

is closed。

note：1）If there is an alarm in the switch state of the main branch, the alarm polarity must be set to 0 alarm before the system diagram can be

displayed normally；

2）If there is a switch failure/fuse failure function, the alarm enable must be turned on before the system can alarm normally。

Main/branch current zero point shielding value: set current zero point shielding value

Branch circuit alarm and power supply interruption: when the option is not associated, when the phase voltage value
is less than the power supply interruption value, the branch circuit switch can still alarm, otherwise the opposite；

Version setting: set the program version

3.Port settings：

PC communication address: Modbus address uploaded by the DC monitoring host to the background monitoring center interface。

PC baud rate: the baud rate uploaded by the DC monitoring host to the background monitoring center interface。

PC check digit: the check digit uploaded by the DC monitoring host to the background monitoring center interface。

HMI communication address: the communication address uploaded by the DC monitoring host to the man-machine interface. (Dip

switch setting, the default is 1, please do not change at will）

HMI baud rate: the baud rate uploaded by the DC monitoring host to the man-machine interface interface. (Dip switch setting, the

default is 38400, please do not change at will）

HMI check digit: The check digit uploaded by the DC monitoring host to the man-machine interface interface. (Dip switch settings,

the default is no verification, please do not change at will）

Monitoring host network port settings: including four setting parameters: "local IP", "subnet mask", "default gateway" and

"port"。

Search address by broadcasting: Click to address the DC monitoring host with unknown communication address。

Refresh: re-read the setting parameters in the instrument。

Setting: write the setting parameters on the HMI into the instrument。

Host reset: After the network port parameters are changed, click "Host Reset", which is equivalent to powering on the host again。

5.3.3 Feeder parameter setting

⒈Channel settings
I Number of feeders: indicates the number of I feeders in the system。

II Number of feeders: indicates the number of II feeders in the system。

Load name: you can set the name of the branch in the "feeder data" interface。

Import and export: The load name of the branch can be imported and exported as a table through the USB port of the touch screen.

(Open with Excel）

I The number of feeder effective detection channels: when the effective number of channels is less than the actual number of

channels, the excess actual number of channels will be displayed in gray。

II The number of feeder effective detection channels: when the effective number of channels is less than the actual number of

channels, the excess actual number of channels will be displayed in gray。

Generate serial number and save: After setting the number of feeders, click the Generate Serial Number button and then click Save.

⒉Current parameter

Primary current: Corresponding to the transformation ratio of the branch current Hall. For example, if a Hall of 400/4 is used, enter
400 here。

Rated current: corresponding to the rated current of the branch load

Alarm enable: There are two options "YES" and "NO", you can choose whether to enable the alarm function of related parameters。

Over-limit alarm parameter setting：

Over-limit percentage: there are four over-limit percentages: "upper upper limit", "upper limit", "lower lower limit" and "lower

limit" can be filled in, the current limit of each circuit is equal to the rated current of the branch × the percentage of limit。

For example, the current of the first channel exceeds the upper limit = the rated current of the first channel × the upper limit（%）。

Set primary current uniformly: After clicking, the CT of all branches will be set according to the primary current value of the first

channel。

Set the rated current uniformly: After clicking, the rated current of all branches will be set according to the first rated current

value。

Refresh: re-read the setting parameters in the instrument。

Setting: write the setting parameters on the HMI into the instrument。

⒊switch status：

Switch opening alarm polarity: there are two options of "ON alarm" and "OFF alarm"。

Select "ON Alarm" to alarm when the corresponding branch switch is closed; select "OFF Alarm" to alarm when the corresponding

branch switch is open。

One-key all YES and one-key all NO: Click "One-key all YES" and all switch alarms will become YES; click "One-key all NO" and

all switch alarms will become NO。

Quick input: There are 9 enable input boxes, which can quickly enable or backup settings for each branch, generally used by factory

engineers。
Refresh: re-read the setting parameters saved in the instrument。

Setting: write the setting parameters on the HMI into the instrument。

⒋Switch failure：

Whether: There are "YES" and "NO" two options, you can choose whether to turn on the switch failure alarm of the corresponding

branch。

Switch opening alarm polarity: there are two options of "ON alarm" and "OFF alarm"。

Select "ON Alarm" to alarm when the corresponding branch fault is closed; select "OFF Alarm" to alarm when the corresponding

branch fault is disconnected。

One button all NO and one button all YES: Click "One button all NO" and all fault alarms will become NO; click "One button all

YES" and all fault alarms will become YES。

Quick input: There are 9 enable input boxes, which can quickly set NO or YES for each branch, generally used by factory engineers。

Refresh: re-read the setting parameters saved in the instrument。

Setting: write the setting parameters on the HMI into the instrument

5.Data reorganization：
Number of branch current modules: the number of YM-DEMS-VD05Q24 slaves of the system branch detection unit。

Number of branch switch modules: the number of system branch switch detection units YM-DEMS-VD05D48。

Branch switch status detection mode: There are two options of "independent" and "non-independent".

When all QF contacts in the system use YM-DEMS-VD05Q24's own source contacts, select "non-independent”；

When the QF contact in the system uses the wet contact of YM-DEMS-VD05D48 (external DC24V), select "independent”。

Branch switch OF digits: when "branch switch status detection mode" is selected "non-independent", here is forced to 0; when

"branch switch status detection mode" is selected "independent", the value is YM- Number of QF contacts of DEMS-VD05D48。

Number of feeder current loops: indicates the actual number of current loops

Number of OF/SD loops of the feeder: when the DI detection mode of the feeder is "switch/voltage detection", it means the actual

number of OF/SD loops; when the DI detection mode of the feeder is "fuse detection", it means the actual feeder Number of fuse

circuits.

Trip alarm enable (non-independent): There are two options of "manual setting" and "intelligent judgment"

Manual judgment means that the switch judges whether to open or close through the voltage signal, and the alarm of the switch can be

closed and opened manually；

Automatic judgment means that the switch judges whether to open or close the switch through the voltage signal. When there is voltage,

the system automatically judges that this channel is enabled. When this channel has no voltage, you need to click the reset switch button,

and the system will automatically judge this One way is a backup switch, when it is powered on again, it will be used normally

Power module 1/2/3 branch number (24/48): When the branch used in the system is Q24, write 24, and if Q30/36/48 is used, write 48；

One key to enable all 1s and one key to enable all 0s: Click "One key to enable all 1s" and all enabled data is 1; click "One key to

enable all 0s" to make all enabled data 0。

Refresh: re-read the setting parameters saved in the instrument。

Setting: write the setting parameters on the HMI into the instrument。
6.Insulation data:

With insulation monitoring: There are three options: "None", "Under bus interface 1" and "Under bus interface 2"。

Select "None", the host module does not monitor the insulation data; select "Under bus interface 1", it means that the host module

communicates with the insulated host through bus port 1. Similarly, select "Under bus interface 2" to indicate that the host module passes

through the bus Port 2 communicates with the insulated host。

Communication port address: There are 5 address ports in total, 1～4 address ports can use up to 32 consecutive addresses, 5

address ports are 16 and a total of 144 channels

The maximum address of the branch under a bus: the host can monitor the insulation data of the second bus, and distinguish the bus

segment by setting the largest leakage ring address of the bus。

Positive bus ground resistance alarm value: when the positive insulation value of the main circuit is less than this threshold, an alarm

is generated.

Negative bus ground resistance alarm value: when the negative insulation value of the main circuit is less than this threshold, an

alarm is generated.

Branch ground resistance alarm value: When the positive and negative insulation value of the branch is less than this threshold, an

alarm is generated.

Working mode: Switching and non-switching can be selected, the switching is to switch the corresponding resistance value through

the insulated host, and vice versa for non-switching.

The time required for switching once: the time for switching once (the default value is 50 seconds).

Switching cycle when the voltage is balanced: the time for switching once when the voltage is balanced (the default value is 60

minutes).

Switching resistance value: (default value is 50).

Fixed resistance value: (The default value is 601.2).

Unbalance rate: unbalance = small value at the positive and negative ends/large value at the positive and negative ends. For example,

if the unbalance condition is 50%, then the positive-to-negative voltage ratio is less than or equal to 50%, and the resistance is

immediately switched.

Leakage ring calibration: zero point correction of leakage current on the leakage ring. There may be a small magnetic field in the

field that will affect the leakage current reading. In the absence of leakage current, click this button to clear the leakage current

readings affected by part of the field magnetic

field.

Whether to communicate: refers to whether the insulated host must communicate with the leakage ring sensor of the

corresponding address.

One button all NO and one button all YES: Click "One button all NO" and all communications will become NO; click "One

button all YES" and all communications will become YES.

Quick input: There are 9 enable input boxes, which can quickly set NO or YES for each branch, generally used by factory

engineers.

Refresh: Re-read the setting parameters saved in the instrument.

Setting: write the setting parameters on the HMI into the instrument
