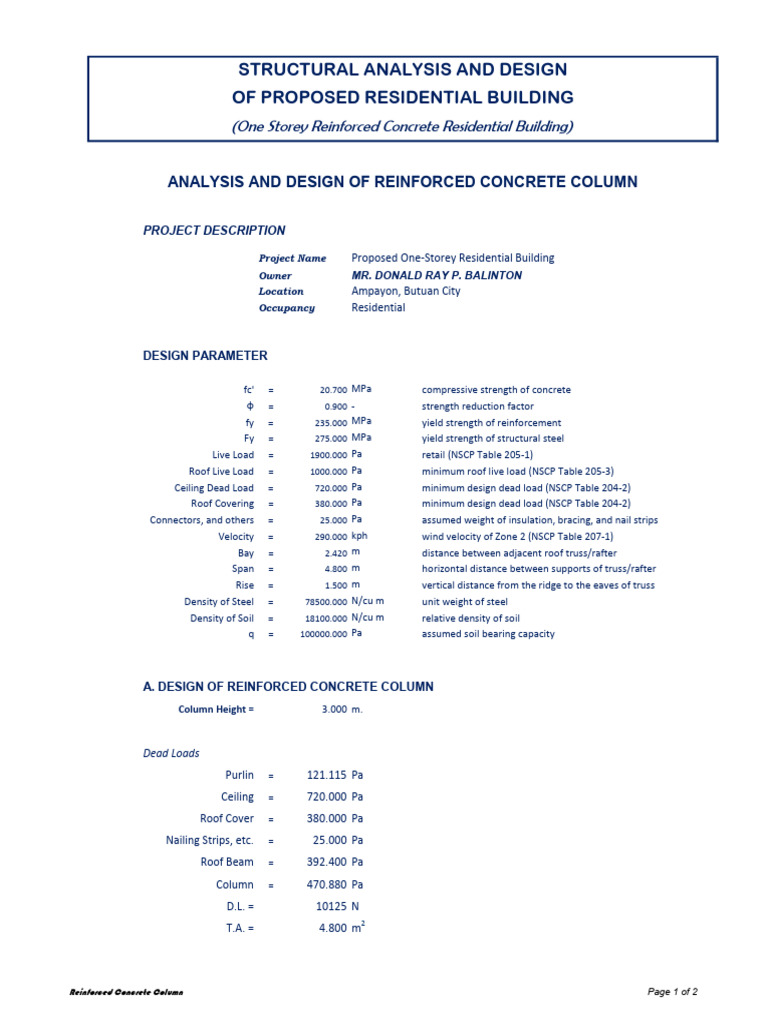

STRUCTURAL ANALYSIS AND DESIGN

OF PROPOSED RESIDENTIAL BUILDING

(One Storey Reinforced Concrete Residential Building)

ANALYSIS AND DESIGN OF REINFORCED CONCRETE COLUMN

PROJECT DESCRIPTION

Project Name Proposed One-Storey Residential Building

Owner MR. DONALD RAY P. BALINTON
Location Ampayon, Butuan City
Occupancy Residential

DESIGN PARAMETER

fc' = 20.700 MPa compressive strength of concrete

φ = 0.900 - strength reduction factor
fy = 235.000 MPa yield strength of reinforcement
Fy = 275.000 MPa yield strength of structural steel
Live Load = 1900.000 Pa retail (NSCP Table 205-1)
Roof Live Load = 1000.000 Pa minimum roof live load (NSCP Table 205-3)
Ceiling Dead Load = 720.000 Pa minimum design dead load (NSCP Table 204-2)
Roof Covering = 380.000 Pa minimum design dead load (NSCP Table 204-2)
Connectors, and others = 25.000 Pa assumed weight of insulation, bracing, and nail strips
Velocity = 290.000 kph wind velocity of Zone 2 (NSCP Table 207-1)
Bay = 2.420 m distance between adjacent roof truss/rafter
Span = 4.800 m horizontal distance between supports of truss/rafter
Rise = 1.500 m vertical distance from the ridge to the eaves of truss
Density of Steel = 78500.000 N/cu m unit weight of steel
Density of Soil = 18100.000 N/cu m relative density of soil
q = 100000.000 Pa assumed soil bearing capacity

A. DESIGN OF REINFORCED CONCRETE COLUMN

Column Height = 3.000 m.

Dead Loads
Purlin = 121.115 Pa
Ceiling = 720.000 Pa
Roof Cover = 380.000 Pa
Nailing Strips, etc. = 25.000 Pa
Roof Beam = 392.400 Pa
Column = 470.880 Pa
D.L. = 10125 N
2
T.A. = 4.800 m

Reinforced Concrete Column Page 1 of 2

 STRUCTURAL ANALYSIS AND DESIGN
OF PROPOSED RESIDENTIAL BUILDING
(One Storey Reinforced Concrete Residential Building)
L.L. = 4800 N
Pu = 1.2 D.L. + 1.6 L.L.
Pu = 19830.1176 N
try ρ g = 0.03
2
A g = 1468.2881 mm
2
A actual = 60000 mm
As = ρ Ag
2
As = 1800 mm
Bars Selection:
use diameter 16 mm
2 2
A = π*d /4 = 201.06193 mm
N = As/A = 8.952465549
say 6 pcs

Check ductility:
ρmin = 1.4/fy = 0.00595745 (minimun steel ratio)
As = NA12 = 1206.37158 (actual steel area)
ρ= As/bd = 0.02010619 (actual ratio of tension reinforcement)
ρmin < ρ OK (SAFE)!!!
0.01 < 0.08 > ρactual OK (SAFE)!!!
spacing of ties
S = 200 mm
Pu = Փ (0.80) (0.85 fc' (Ag - As) + (fy As))
Pu = 475728.12 N OK (SAFE)!!!

RECOMMENDATION
Therefore, use 150mm x 400mm Column with 6-16mm Ø RSB as vertical bar and 9mm Ø RSB ties
