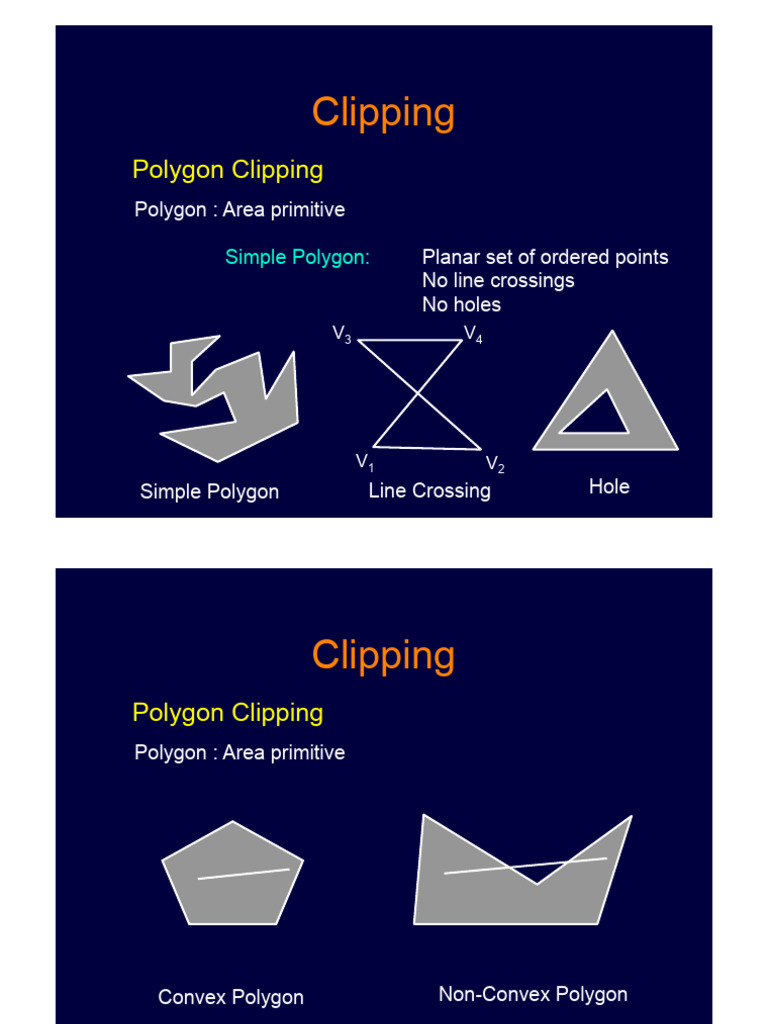

    Clipping

    Polygon Clipping
    Polygon : Area primitive

    Simple Polygon: Planar set of ordered points


    No line crossings
    No holes
    V3 V4

    V1 V2
    Simple Polygon Line Crossing Hole
    Clipping
    Polygon Clipping
    Polygon : Area primitive

    Convex Polygon Non-Convex Polygon


    Clipping
    Polygon Clipping
    Sutherland-Hodgman

    • Window must be convex


    • Polygon to be clipped can be convex or non-convex

    Polygon Polygon

    Window
    Clipping
    Polygon Clipping
    Sutherland-Hodgman

    • Window must be convex


    • Polygon to be clipped can be convex or non-convex
    Clipping
    Polygon Clipping
    Sutherland-Hodgman
    Clipping
    Polygon Clipping
    Sutherland-Hodgman
    Clipping
    Polygon Clipping
    Sutherland-Hodgman
    Clipping
    Polygon Clipping
    Sutherland-Hodgman
    Clipping
    Polygon Clipping
    Sutherland-Hodgman
    Clipping
    Polygon Clipping
    Sutherland-Hodgman

    Approach
    • Polygon to be clipped is given as v1, v2, !, vn
    • Polygon edge is a pair [vi, vi+1]
    • Process all polygon edges in succession against
    a window edge
    polygon (v1, v2, !, vn) polygon (w1, w2, !, wm)
    • Repeat on resulting polygon with next window edge
    Clipping
    Polygon Clipping
    Sutherland-Hodgman

    Approach
    Four Cases
    • s = vi is the polygon edge starting vertex
    • p = vi+1 is the polygon edge ending vertex
    • i is a polygon-edge/window-edge intersection point
    • wj is the next polygon vertex to be output
    Clipping
    Polygon Clipping
    Sutherland-Hodgman

    Approach
    Case 1: Polygon edge is entirely inside the window edge
    Inside Outside

    s
    • p is next vertex of resulting polygon
    • p wj and j+1 j

    p
    Output
    Clipping
    Polygon Clipping
    Sutherland-Hodgman

    Approach
    Case 2: Polygon edge crosses window edge going out
    Inside Outside

    • Intersection point i is next vertex


    of resulting polygon
    p • i wj and j+1 j
    s i Output
    Clipping
    Polygon Clipping
    Sutherland-Hodgman

    Approach
    Case 3: Polygon edge is entirely outside the window edge
    Inside Outside
    p

    • No output

    s
    Clipping
    Polygon Clipping
    Sutherland-Hodgman

    Approach
    Case 4: Polygon edge crosses window edge going in
    Inside Outside
    Output s
    p i
    • Intersection point i and p are next two
    vertices of resulting polygon
    • i wj and p wj+1 and j+2 j
    Clipping
    Polygon Clipping
    Sutherland-Hodgman
    Example s5 s4
    Polygon

    s3 s2 Window

    s1
    Clipping
    Polygon Clipping
    Sutherland-Hodgman
    Example s5 s4

    i2 i1

    s3 s2

    s1
    Clipping
    Polygon Clipping
    Sutherland-Hodgman
    Example
    t4 t3

    t2 t1

    t5
    Clipping
    Polygon Clipping
    Sutherland-Hodgman
    Example
    u3 u2

    u1 u5

    u4
    Clipping
    Polygon Clipping
    Sutherland-Hodgman
    Example
    v2 i3 v1
    i6
    v5 i5 v4
    i4
    v3
    Clipping
    Polygon Clipping
    Sutherland-Hodgman
    Example
    w1 w6
    w5
    w4
    w3
    w2
