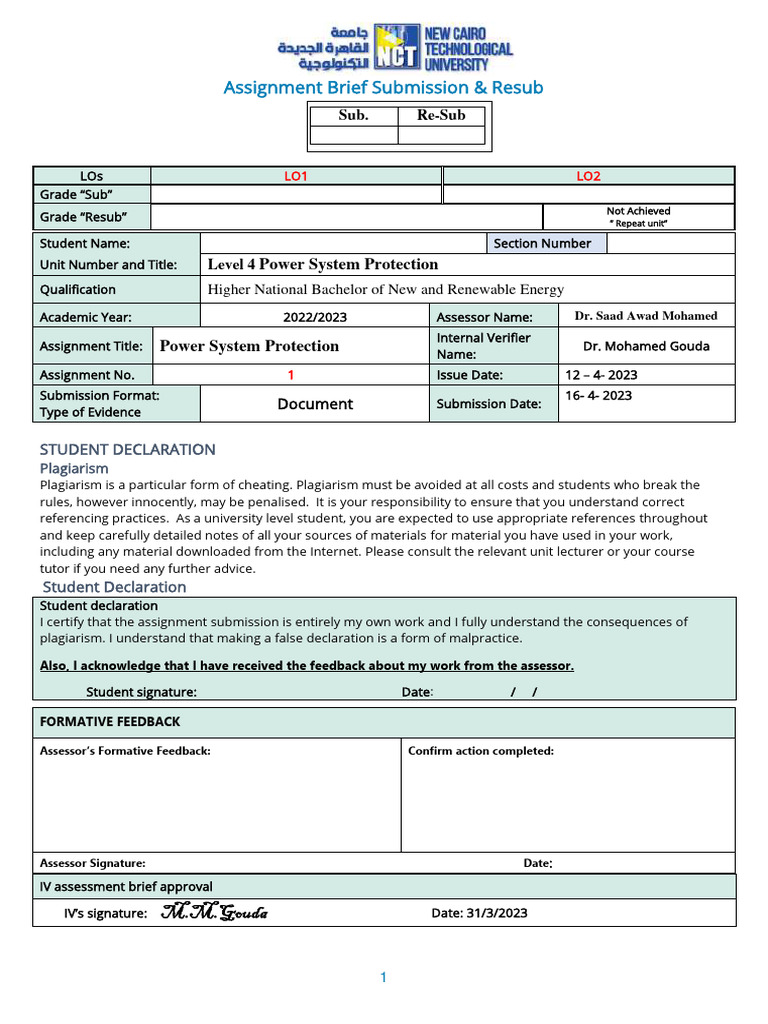

Assignment Brief Submission & Resub

Sub. Re-Sub

LOs LO1 LO2

Grade “Sub”
Not Achieved
Grade “Resub” ” Repeat unit”

Student Name: Section Number

Unit Number and Title: Level 4 Power System Protection
Qualification Higher National Bachelor of New and Renewable Energy
Academic Year: 2022/2023 Assessor Name: Dr. Saad Awad Mohamed
Internal Verifier
Assignment Title: Power System Protection Dr. Mohamed Gouda
Name:
Assignment No. 1 Issue Date: 12 – 4- 2023
Submission Format: 16- 4- 2023
Document Submission Date:
Type of Evidence

STUDENT DECLARATION
Plagiarism
Plagiarism is a particular form of cheating. Plagiarism must be avoided at all costs and students who break the
rules, however innocently, may be penalised. It is your responsibility to ensure that you understand correct
referencing practices. As a university level student, you are expected to use appropriate references throughout
and keep carefully detailed notes of all your sources of materials for material you have used in your work,
including any material downloaded from the Internet. Please consult the relevant unit lecturer or your course
tutor if you need any further advice.
Student Declaration
Student declaration
I certify that the assignment submission is entirely my own work and I fully understand the consequences of
plagiarism. I understand that making a false declaration is a form of malpractice.

Also, I acknowledge that I have received the feedback about my work from the assessor.

Student signature: Date: / /

FORMATIVE FEEDBACK

Assessor’s Formative Feedback: Confirm action completed:

Assessor Signature: Date:

IV assessment brief approval

IV’s signature: M.M.Gouda Date: 31/3/2023

1
Learning Outcomes and Assessment Criteria:
Learning Outcome
LO1 Identify protective
relaying in electrical
power system and
Compare between the
different types of
protection
Pass Merit Distinction
P1: Define the M1: Differentiate D1: Determine the
meaning of the between the main protection and
protective relays different methods of back-up protection of
P2: Explain the back-up protection OC relay in the power
different types of explaining which system network with
faults one is efficient and the aid of suggestion
P3: Explain the tests economic. the time grading
with Transformer
Protection

LO2 Design the P4: Explain the M2: Deference D2: Determine the
protection of different Types of CT&VT between the relay operation
types power system Transformer Symmetrical Fault characteristics that
element (Current and Protection Analysis and shows operate to trip
Voltage Transformers + P5: Explain the tests Unsymmetrical the circuit breaker in
Fault Analysis + with CT&VT Fault Analyses in Overcurrent Protection
Overcurrent Protection) Transformer the protection system
Protection system of power .
P6: Explain the system.
Equivalent circuits of
CT and VT
Transformer

Scenario
You are a technologist working at a power plant. Your supervisor asked
you to work on some practical calculations on a different type of electrical
power components such as power system protection. Try to use your
knowledge of the components of power system protection to simplify and
solve these calculations.

2
Task No 1:
1. For the network shown figure 1, perform the following tasks:
a. Sketch the zone of protection
b. Determine the main protection and back-up protection for each of the following
faults separately, F1, F2, and F3

Figure 1

3
2. Explain with illustrations the types of faults in electrical power systems.

3. For what type of protective relay will you recommend (i) an induction disc type (ii)
induction cup type construction?

4. Explain the classification of protective relays and different types of faults.

5. Determine the main protection and back-up protection of OC relay in the power system
network with the aid of suggestion the time grading

Task No 2:
1. What is meant by the ‘burden’ and ‘composite error’ of a CT?

2. Explain the Types of CT&VT Transformer Protection

3. Explain the difference between Measuring and Protective with CTs

4. The rated secondary current of a CT is 10 A. The plug setting of a relay is

6.75A. The power consumption of the relay at this plug setting is 8 VA.
Calculate the effective VA burden on the CT.

5. Explain with the illustration the working theory of voltage transformers.

6. Explain the deference between the symmetrical fault analysis and

unsymmetrical fault analyses in the protection system of power system.

7. Write a report on the different fault conditions that solar power plants are
exposed to when connecting to the grid from Ref. "Performance Enhancement
of PV Grid Connected Systems with Different Fault Conditions".

8. The rated current of an over-current relay is 5A and the current setting is at

200%. If the relay current is 150A, whereas the plug setting multiplier P.S.M. =
15, and if the C. T. is rated at 400/5. Calculate the fault current.

9. For the protection scheme Figure 2 and 3:

If the relay#1 has a T.S.M. equals 0.3 and the fault current is 4 kA. Identify the main and back-
up protective relays.
● Determine the following:
A. Plug setting multiplier (P.S.M.) of each relay.
B. The time of operation of each relay illustrating how the time-grading/Relay coordination
takes place.
4
 C. The time setting multiplier (T.S.M.) of relay#2.

Figure 2

Figure 3

10. Write a report on the most important tests that are conducted on electrical
transformers, as well as transformer oils, citing a number of scientific articles.
Also, Explain the tests with CT&VT Transformer Protection.
