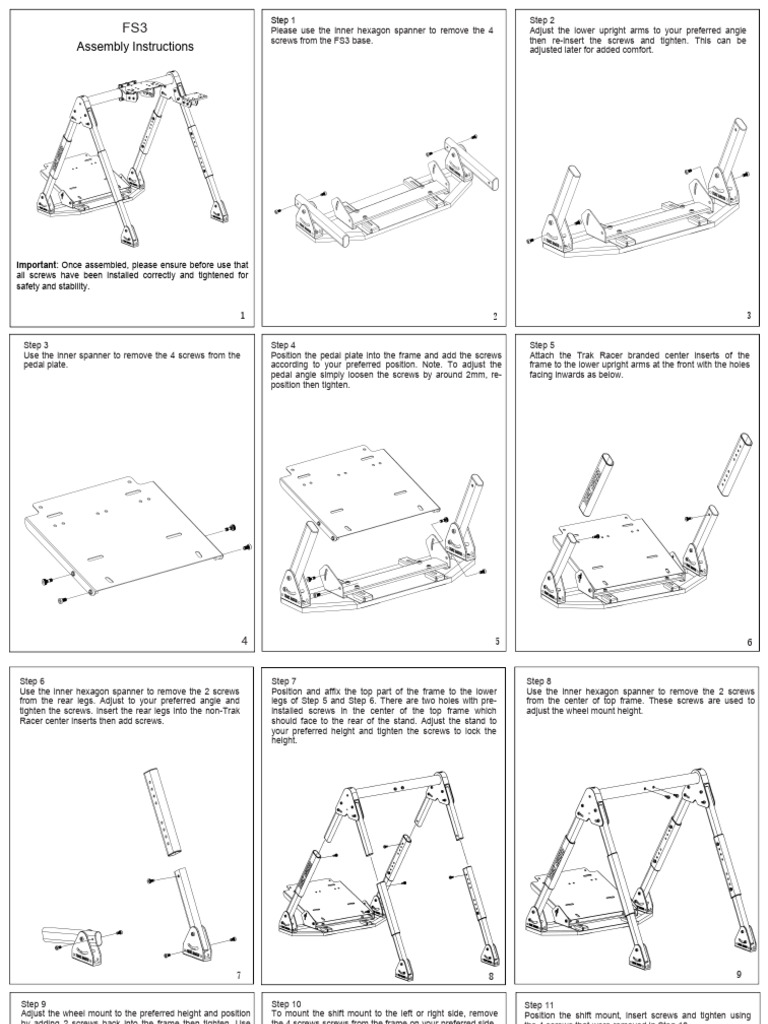

Step 1 Step 2

FS3 Please use the inner hexagon spanner to remove the 4 Adjust the lower upright arms to your preferred angle
screws from the FS3 base. then re-insert the screws and tighten. This can be
Assembly Instructions adjusted later for added comfort.

Important: Once assembled, please ensure before use that

all screws have been installed correctly and tightened for
safety and stability.

1 2 3

Step 3 Step 4 Step 5

Use the inner spanner to remove the 4 screws from the Position the pedal plate into the frame and add the screws Attach the Trak Racer branded center inserts of the
pedal plate. according to your preferred position. Note. To adjust the frame to the lower upright arms at the front with the holes
pedal angle simply loosen the screws by around 2mm, re- facing inwards as below.
position then tighten.

4 5 6
Step 6
Use the inner hexagon spanner to remove the 2 screws
from the rear legs. Adjust to your preferred angle and
tighten the screws. Insert the rear legs into the non-Trak
Racer center inserts then add screws.
Step 7 Step 8
Position and affix the top part of the frame to the lower Use the inner hexagon spanner to remove the 2 screws
legs of Step 5 and Step 6. There are two holes with pre- from the center of top frame. These screws are used to
installed screws in the center of the top frame which adjust the wheel mount height.
should face to the rear of the stand. Adjust the stand to
your preferred height and tighten the screws to lock the
height.

7 8 9
. .

Step 9 Step 10 Step 11

Adjust the wheel mount to the preferred height and position To mount the shift mount to the left or right side, remove Position the shift mount, insert screws and tighten using
by adding 2 screws back into the frame then tighten. Use the 4 screws screws from the frame on your preferred side. the 4 screws that were removed in Step 10.
the inner hexagon spanner to affix 8 screws from the rear of
the stand. Place the wheel support bracket onto the front of
the stand and add the 8 nuts and tighten. Adjust the angle
and slide to your preferred location.

© Copyright Trak Racer 2018

10 11 12
. . .
