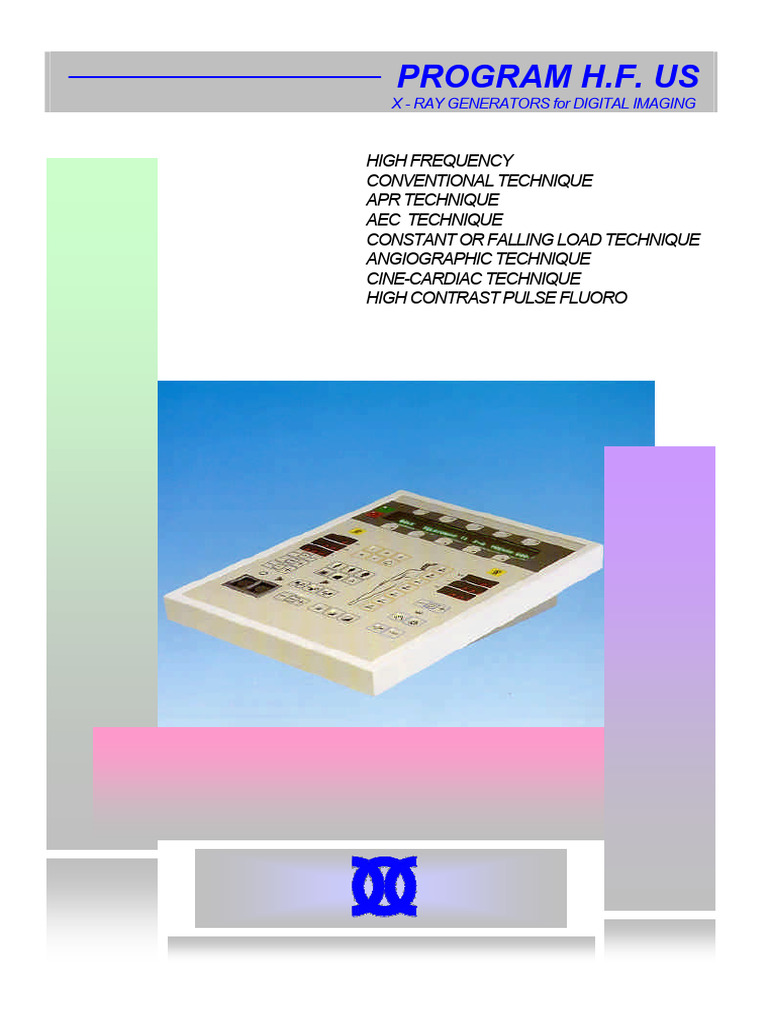

PROGRAM H.F.

US
X - RAY GENERATORS for DIGITAL IMAGING

HIGH FREQUENCY
CONVENTIONAL TECHNIQUE
APR TECHNIQUE
AEC TECHNIQUE
CONSTANT OR FALLING LOAD TECHNIQUE
ANGIOGRAPHIC TECHNIQUE
CINE-CARDIAC TECHNIQUE
HIGH CONTRAST PULSE FLUORO
 PROGRAM H.F. US

3 32

5
6 31
30

7
29

8
28

9 13
27

10

11
26

12 14 19

17
25

15
24

16
18 20 21 22 23

1. Anatomical Area Selection Push Buttons 17. AEC Field Selection Push Buttons
2. ON Push Button 18. AEC Density Selection Push Buttons
3. OFF Push Button 19. Anatomical Program Delete Push Button
4. Radiography Projection Selection Push Buttons 20. AEC Screen Selection Push Buttons
5. X-ray Radiography Exposure Light Indicator 21. Anatomical Level Selection Push Buttons
6. Work Station Selection Push Buttons 22. Fluoroscopy - Time Reset Push Button
7. Radiography kV Digital Readout 23. Fluoroscopy - High mA Selection Push Button
8. Radiography mA Digital Readout 24. Manual Fluoroscopy Selection Push Button
9. Radiography Time Digital Readout 25. Automatic Fluoroscopy Selection Push Button
10. Radiography kV Adjustment Push Buttons 26. kV / mA Fluoroscopy Manual Adjust Push uttons
11. Radiography mA Adjustment Push Buttons 27. Fluoroscopy Time Digital Readout
12. Radiography Time Adjustment Push Buttons 28. Fluoroscopy mA Digital Readout
13. Heavy-Average–Slim Patient Radiography kV Selection Push Buttons 29. Fluoroscopy kV Digital Readout
14. Small Focus – Large Focus Selection Push Buttons 30. Alarm Status Reset Push Button
15. Radiography Preparation Push Button 31. Fluoroscopy Exposure Light Indicator
16. X-ray Exposure Push Button 32. Electro luminescent Alpha Numeric Display Window
 PROGRAM H.F. US
The PROGRAM H.F. US series of microprocessor controlled generators has been specifically developed for digital X-ray
imaging. Basic configuration always includes conventional radio diagnostic, remote control or conventional RF tables as
well as angiographic installations on the same easy-to-use control console. Automatic dose control for fluoroscopy and
cine-cardiac technique is real time kV adjustment. Also available as standard feature a digital high contrast pulse
Fluoroscopy sequential exposure rate at up to 60 frame per second.

TECHNICAL SPECIFICATIONS
GENERALITY
Y2K Compliant microprocessors controlled X-ray generator.
Ÿ Multi language support, including Italian, English, French, German, Dutch, Turkish, Spanish, Portuguese,
Hungarian.
Ÿ Touch sensitive button keyboard with quick response.
Ÿ Selection of 5 work stations.
Ÿ X-ray tubes available: 1 standard, up to 3 as option.
Ÿ Tube calibration library accessible in generator software, with non standard tube calibration facility on site.
Ÿ Normal/High speed drive for all regular stators.
Ÿ Self-check on tube emission variations in the short and long period:
Ÿ Closed loop kV stabilisation
Ÿ Closed loop mA stabilisation
Ÿ Dynamic tube calibration (update on every exposure).
Ÿ Indication of actual exposure time and mAs when using the Automatic Exposure Control (AEC) or during digital
spot.
Ÿ Free selection of radiography parameters (mA - kV - Time).
Ÿ Indication of the total, cumulated and residual anode heat units.
Ÿ Advanced diagnostic and error message dumping.
Ÿ Service hosting on control console or personal computer.
CONTINUOUS MODE
Ÿ Manual and Automatic Fluoroscopy.
PSEUDO-CONTINUOUS MODE
Ÿ Pulse fluoroscopy (manual or automatic High Contrast Fluoro) up to 100 mA.
Ÿ Intermittent fluoroscopy (manual or automatic) for orthopedic use.
INTERMITTENT MODE
Ÿ CINE-CARDIAC radiography mode (Ultra High Contrast) up to 600 mA with automatic kV adjustment.
Ÿ ANGIOGRAPHIC radiography mode (High Stability in DSA) .
Ÿ Zero Point Technique with Automatic Parameters Transfer.
Ÿ Closed loop kV adjustment during tomography.
Ÿ kV stepping adjustment with PUCK operation.
TECHNIQUE
Ÿ User Mode: Programmed Anatomical (with or without Automatic Exposure Control)
Free (with or without Automatic Exposure Control)
Ÿ Continuous or Falling load exposures.
Ÿ Visual indication assisted, multilanguage, computer driven APR:
7 anatomical level
5 organs per level
5 projection per organ
3 patient size per projection.
Ÿ Possibility of over-riding programmed parameters to suit individual patients without deletion of stored data
simply touching a parameter key.
 PROGRAM H.F. US
CONSOLE DIMENSIONS:

DIMENSIONS (mm)
MODEL WEIGHT (kg)
l d h
C306.20 (STAND) 280 370 950 35
C306.21 (DESK) 280 370 90 9

RACK DIMENSIONS:

DIMENSIONS (mm)
MODEL WEIGHT (kg)
l d h
R306. (1 TUBE) 550 420 1990 175
R306. (3 TUBES) 550 420 1990 190
 PROGRAM H.F. US
X - RAY GENERATORS for DIGITAL IMAGING

HIGH FREQUENCY
CONVENTIONAL TECHNIQUE
APR TECHNIQUE
AEC TECHNIQUE
CONSTANT OR FALLING LOAD TECHNIQUE
ANGIOGRAPHIC TECHNIQUE
CINE-CARDIAC TECHNIQUE
HIGH CONTRAST PULSE FLUORO
 PROGRAM H.F. US

50 65 80

Intermittent Mode Characteristics (Radiography)

Nominal Voltage 150 kV (300 mA) 150 kV (400 mA) 150 kV (500 mA)
RX Tube Highest Current 600 mA (83 kV) 800 mA (81 kV) 1000 mA (80 kV)
600 mA (83 kV) 800 mA (81 kV) 1000 mA (80 kV)
Tube Current and Voltage
--- 600 mA (108 kV) ---
(Maximum Performances)
500 mA (100 kV) 700 mA (92 kV) 800 mA (100 kV)
Mains Power Output 50 kW 65 kW 80 kW
Minimum Current - Time product 0,4 mAs
Range of Loading factors from 40 to 150 kV - 1 kV step
from 12 to 600 mA from 12 to 800 mA From 12 to 1000 mA
High Voltage Current
18 values 20 values 21 values
from 0,001 to 20 s.
Timer Range
40 values
Sequential Exposure Rate Up to 60 in HCF, CINE Mode

Continuous Mode Characteristics (Fluoroscopy)

Nominal Voltage from 40 to 120 kV

RX Tube Highest Current 5 mA (120 kV)

Tube Current and Voltage
5 mA (120 kV)
(Maximum Performances)
Automatic Fluoroscopy Yes
Pulse Fluoroscopy (H.C.F) Yes

Mains Supply
Nominal Frequency 50/60 Hz
108 A 141 A 173 A
Nominal Tension 400 V 400 V 400 V
three-phase three-phase three-phase
apparent 75 kVA apparent 98 kVA apparent 120 kVA
Maximum Power Absorbed
active 63 kW active 82 kW active 100 kW

Class I and Type B

(UNI EN 60 601-1) Class II b (Dir. 93/42/CEE)
The manufacturer reserves the right to improve or change specifications without notice File: CDO-005 V1 R3 – 2004/10
