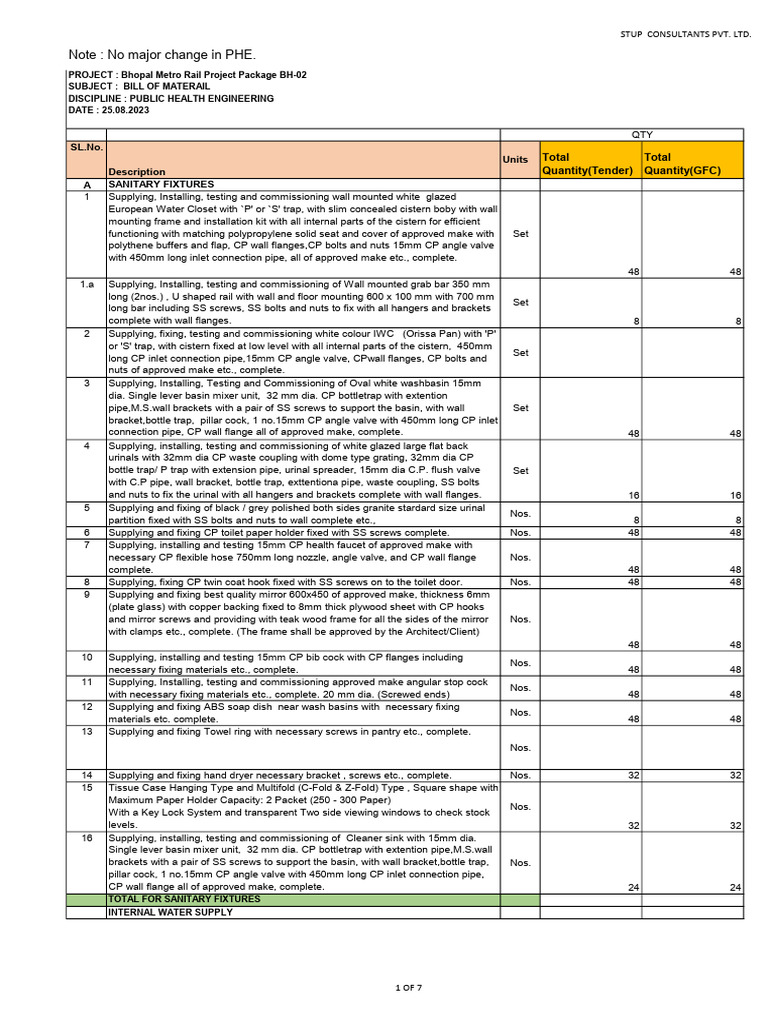

QTY
SL.No.
Units Total Total
Description Quantity(Tender) Quantity(GFC)
A SANITARY FIXTURES
1 Supplying, Installing, testing and commissioning wall mounted white glazed
European Water Closet with `P' or `S' trap, with slim concealed cistern boby with wall
mounting frame and installation kit with all internal parts of the cistern for efficient
functioning with matching polypropylene solid seat and cover of approved make with Set
polythene buffers and flap, CP wall flanges,CP bolts and nuts 15mm CP angle valve
with 450mm long inlet connection pipe, all of approved make etc., complete.
48 48
1.a Supplying, Installing, testing and commissioning of Wall mounted grab bar 350 mm
long (2nos.) , U shaped rail with wall and floor mounting 600 x 100 mm with 700 mm
Set
long bar including SS screws, SS bolts and nuts to fix with all hangers and brackets
complete with wall flanges. 8 8
2 Supplying, fixing, testing and commissioning white colour IWC (Orissa Pan) with 'P'
or 'S' trap, with cistern fixed at low level with all internal parts of the cistern, 450mm
Set
long CP inlet connection pipe,15mm CP angle valve, CPwall flanges, CP bolts and
nuts of approved make etc., complete.
3 Supplying, Installing, Testing and Commissioning of Oval white washbasin 15mm
dia. Single lever basin mixer unit, 32 mm dia. CP bottletrap with extention
pipe,M.S.wall brackets with a pair of SS screws to support the basin, with wall Set
bracket,bottle trap, pillar cock, 1 no.15mm CP angle valve with 450mm long CP inlet
connection pipe, CP wall flange all of approved make, complete. 48 48
4 Supplying, installing, testing and commissioning of white glazed large flat back
urinals with 32mm dia CP waste coupling with dome type grating, 32mm dia CP
bottle trap/ P trap with extension pipe, urinal spreader, 15mm dia C.P. flush valve Set
with C.P pipe, wall bracket, bottle trap, exttentiona pipe, waste coupling, SS bolts
and nuts to fix the urinal with all hangers and brackets complete with wall flanges. 16 16
5 Supplying and fixing of black / grey polished both sides granite stardard size urinal
Nos.
partition fixed with SS bolts and nuts to wall complete etc., 8 8
6 Supplying and fixing CP toilet paper holder fixed with SS screws complete. Nos. 48 48
7 Supplying, installing and testing 15mm CP health faucet of approved make with
necessary CP flexible hose 750mm long nozzle, angle valve, and CP wall flange Nos.
complete. 48 48
8 Supplying, fixing CP twin coat hook fixed with SS screws on to the toilet door. Nos. 48 48
9 Supplying and fixing best quality mirror 600x450 of approved make, thickness 6mm
(plate glass) with copper backing fixed to 8mm thick plywood sheet with CP hooks
and mirror screws and providing with teak wood frame for all the sides of the mirror Nos.
with clamps etc., complete. (The frame shall be approved by the Architect/Client)
48 48
10 Supplying, installing and testing 15mm CP bib cock with CP flanges including
Nos.
necessary fixing materials etc., complete. 48 48
11 Supplying, Installing, testing and commissioning approved make angular stop cock
Nos.
with necessary fixing materials etc., complete. 20 mm dia. (Screwed ends) 48 48
12 Supplying and fixing ABS soap dish near wash basins with necessary fixing
Nos.
materials etc. complete. 48 48
13 Supplying and fixing Towel ring with necessary screws in pantry etc., complete.
Nos.
14 Supplying and fixing hand dryer necessary bracket , screws etc., complete. Nos. 32 32
15 Tissue Case Hanging Type and Multifold (C-Fold & Z-Fold) Type , Square shape with
Maximum Paper Holder Capacity: 2 Packet (250 - 300 Paper)
Nos.
With a Key Lock System and transparent Two side viewing windows to check stock
levels. 32 32
16 Supplying, installing, testing and commissioning of Cleaner sink with 15mm dia.
Single lever basin mixer unit, 32 mm dia. CP bottletrap with extention pipe,M.S.wall
brackets with a pair of SS screws to support the basin, with wall bracket,bottle trap, Nos.
pillar cock, 1 no.15mm CP angle valve with 450mm long CP inlet connection pipe,
CP wall flange all of approved make, complete. 24 24
TOTAL FOR SANITARY FIXTURES
INTERNAL WATER SUPPLY
1 OF 7
STUP CONSULTANTS PVT. LTD.
SL.No.
Units Total Total
Description Quantity(Tender) Quantity(GFC)
1
Supplying, fixing and testing of approved make Chlorinated Polyvinyl Chloride pipes
(CPVC) SDR.11, ASTM CTS, The fittings and specials such as tees, elbows,
couplers, bends, enlargers etc.,with CPVC brass threaded combination / transition
specials such as male adapters brass threaded female adapters, brass FPT Tee,
Brass FPT elbow etc., where connection with metal is to be made including
necessary drilling holes, chasing walls and making the same good in cement martor
1:1 restore the same original condition neately as directed by the Engineer in-charge.
Joints to be made with CPVC solvent cement as per ASTM D-2846
a 15 mm dia Rmt 48 48
b 20 mm dia Rmt 3470 3470
c 25 mm dia Rmt 752 752
d 32 mm dia Rmt 48 48
e 40 mm dia Rmt 48 48
f 50 mm dia Rmt
2 Supplying, installing, fixing, jointing, testing and commissioning of approved
make Chlorinated Polyvinyl Chloride pipes (CPVC) SCH 40, ASTM F 411,
The fittings and specials such as tees, elbows, couplers, bends, enlargers
etc.,with CPVC brass threaded combination / transition specials such as male
adapters brass threaded female adapters, brass FPT Tee, Brass FPT elbow
etc., where connection with metal is to be made including necessary drilling
holes, chasing walls and making the same good in cement martor 1:1 restore
the same original condition neately as directed by the Engineer in-charge.
Joints to be made with primer P-70, and solvent confirming to ASTM F-4931
/ 724.
3 Supplying, fixing and testing approved make GM ball valves conforming to IS 778
with unions etc. complete in the ducts.
20 mm dia 64 64
25 mm dia Nos.
32 mm dia Nos.
40 mm dia Nos.
50 mm dia Nos.
4 Supplying, installing, testing and commissioning 'approved make GM pressure
reducing valve (PRV) confirming to IS with union etc., complete.
40 mm dia Nos. 8 8
2 OF 7
STUP CONSULTANTS PVT. LTD.
SL.No.
Units Total Total
Description Quantity(Tender) Quantity(GFC)
2a Filter feed pump
(1working + 1 standby = 1 set)
Duty : 150 Lpm at 15 M head Set 8 8
3 Supplying, fixing, testing and commissioning of dewatering lifts pumps
(Submersible type) of adequate HP, capable of giving a required discharge at
suitable head to work on 3Ph, 50Hz, 400/440V with necessary unions,
flanges with water level controller with cabling etc., complete.Rate quoted
shall be inclusive of suitable control panel with auxiliary relays / contactors /
timer for sequence operating for starting and stopping. and wiring from
control panel and to the pumps etc. complete. with required butterfly valves,
non-return valve, HDPE, PE 100, 10.0 KSC class pipe upto ground level and
control system, all the accessories, including lifting mechanism / structure
arrangement for pumps etc,.
13 Supplying, installing, testing and commissionning of 150mm dia R.C.C NP3 class Rmt 288 288
3 OF 7
STUP CONSULTANTS PVT. LTD.
SL.No.
Units Total Total
Description Quantity(Tender) Quantity(GFC)
14 Providing and fixing of suitable size of cable for the water level controler for above &
below ground tanks for pump switching off and on. The cable shall be laid in
tray/hume pipe/trenches/ on walls/floor etc. as required. the rate shall inculde for Set
cables laid out door with required size PVC conduit, earth excavation providing
brick and sand protection, refilling and compacting the earth. 16 16
15 Supplying, Installing, testing and commissioning of 0.6 LPM drinking warter
Reverse osmosis plant with pre filter sediment filter, pre carbon filter cum adsorber
RO membrane, UV disfiection column, UF cartridge and material of consturction Set
should be food grade. including of 40L SS/food grade stroage tank with cooler & two
outlet tap. 16 16
16 Supplying, fixing, testing and commissioning of submersible bore well pumps, of
adequate HP capable of giving a required discharge at suitable head,to work on 3 Ph
50 Hz, 415 V with necessary unions, flanges in 1:2:4 etc., complete., Rate quoted
shall be inclusive of suitable control panel with auxiliary relays / contactors / timer for
sequence operating for starting and stopping.and wiring from control panel and level
controler to the pumps, butterfly valves, non-return valve, HDPE, PE 100, 10.0 KSC Set
class pipe upto ground level and control system, all the accessories, including lifting
mechanism / structure arrangement for pumps etc,. Duty : (380 Lpm at delivery
head 40 M head . including suction head piping of 120Mtrs.
16 16
17 Supplying, fixing and testing inlet, outlet, vent and overflow pipes, fittings with CI
frame and cover to overhead water tank and under ground water tank complete
withrugs as shown on the drawings etc., complete, accessories comprising of the
following :
a UNDERGROUND / ABOVE GROUND SUMPS ( RAW + TREATED WATER)
Approx. depth = 3.8 Mts
4 nos. CI manhole frame & cover (heavy duty)
2 nos.inlet puddle flanges(80 mm dia.)
2 nos outlet puddle flanges (50mm dia)
2 nos. vent pipe (100mm dia.) with mosquito proof mesh
4 Set PVC insulated steel rungs.
2 Nos. overflow puddle flange (100 mm dia.)
2 Nos. Water level control puddle flange (50 mm dia.)
2 nos. fire over flow pipe 100mm
etc. complete for efficient maintenance of the tanks Set
b UNDERGROUND / ABOVE GROUND SUMPS ( FIRE)
Approx. depth = 3.8 Mts
4 nos. CI manhole frame & cover (heavy duty)
2 nos.inlet puddle flanges(80 mm dia.)
2 nos outlet puddle flanges (200mm dia)
2 nos. vent pipe (100mm dia.) with mosquito proof mesh
nos. 150 mm dia. class 'C' GI puddle flange
4 Set PVC insulated steel rungs.
2 Nos. overflow puddle flange (150 mm dia.)
2 nos.inlet puddle flanges(150 mm dia.)
2 Nos. Water level control puddle flange (50 mm dia.)
etc. complete for efficient maintenance of the tanks Set 16 16
c OVER HEAD TANK
Approx. depth = 2 Mts
2 nos. CI manhole frame & cover (medium duty)
2 nos.inlet puddle flanges(50 mm dia.)
2 nos outlet puddle flanges (100mm dia)
2 nos. vent pipe (100mm dia.) with mosquito proof mesh
2 Set PVC insulated steel rungs.
2 Nos. overflow puddle flange (65 mm dia.)
2 Nos. Water level control puddle flange (40 mm dia.)
etc. complete for efficient maintenance of the tanks Set
Note : All puddle flanges to be hotdip galvanised.
18 Supplying, installing, testing and commissioning approved make PVC tank one piece
moulded triple layer body with threaded lid, FDA approved UV stabilised with
protection against algae formation.
a 25000kl Set
TOTAL FOR EXTERNAL WATER SUPPLY
C BASIC WATER TREATMENT PLANT
1 Supplying, installing, testing and commissioning approved make pressure sand filter
of MS construction with necessary equipment complete with Frontal piping,
pneumatic valves, suitable supports for mounting, pressure guage, orifice plate
etc..,complete as per the detailed specification for the efficient working of system.
The maximum working Pressure shall be 3.5Kg/Sqcm.
(a)Capacity : 250LPM
4 OF 7
STUP CONSULTANTS PVT. LTD.
SL.No.
Units Total Total
Description Quantity(Tender) Quantity(GFC)
2 Supplying, installing, testing and commissioning approved make PLC based water
softener with necessaryAncillary equipment complete with piping, valves ejector,
orifice plate, salt satuator made of corrosion resistant material and hardness testing
kit etc., complete as per detailed specification for the efficient working of the system.
Consider a Total hardness of 500 ppm, Hardness required as per IS-10500, Max
:working pressure 3.5 kg/cm2 Capacity : 250 LPM
5 Supplying, installing, testing and commissioning inter unit piping with necessary
flanges, bolts, nuts, neoprene gaskets, welding wherever necessary, with necessary
control valves, non return valves etc and with one coat of primer and two coats of
approved enamel paint etc., complete.
5 OF 7
STUP CONSULTANTS PVT. LTD.
SL.No.
Units Total Total
Description Quantity(Tender) Quantity(GFC)
a) 80mm dia Nos. 16 16
b) 100 mm dia. Nos.
TOTAL FOR INTERNAL DRAINAGE
EXTERNAL DRAINAGE
1 HDPE Pipes and Specials: Supplying, installing and testing of following diameter
HDPE, PE 100, 10.0 KSC Class pipes confirming to IS:14333 and specials including
conveying to work site, rolling and lowering in to trenches, lying true to line, welding
with electro fusion jointing, testing and commissioning including loading and
unloading at both destinations and cuts of pipes wherever necessary including
fittings and specials such as tees, elbows, couplers, bends, enlargers, supports at
standard spacing, anchor fasteners, bolts, nuts, clamps, rails "U" & threaded bolt,
and giving necessary hydraulic test Including excavation of all type of soil and fine
sand supply and filling of 30cms all around the pipe & refilling of excavated soil etc,.
complete as per specifications, drawings and as directed by the Engineer-in-Charge.
6 OF 7
STUP CONSULTANTS PVT. LTD.
SL.No.
Units Total Total
Description Quantity(Tender) Quantity(GFC)
SUMMARY
SANITARY FIXTURES
INTERNAL WATER SUPPLY
EXTERNAL WATER SUPPLY
BASIC WATER TREATMENT PLANT
INTERNAL DRAINAGE
EXTERNAL DRAINAGE
SEWAGE TREATMENT PLANT (MBBR)
TOTAL
Note : Quantities of some items may change due to final Tie-in Points of Municipal.
7 OF 7
