Engine Diagrams

Page 1

Engine Diagrams
Engine Views

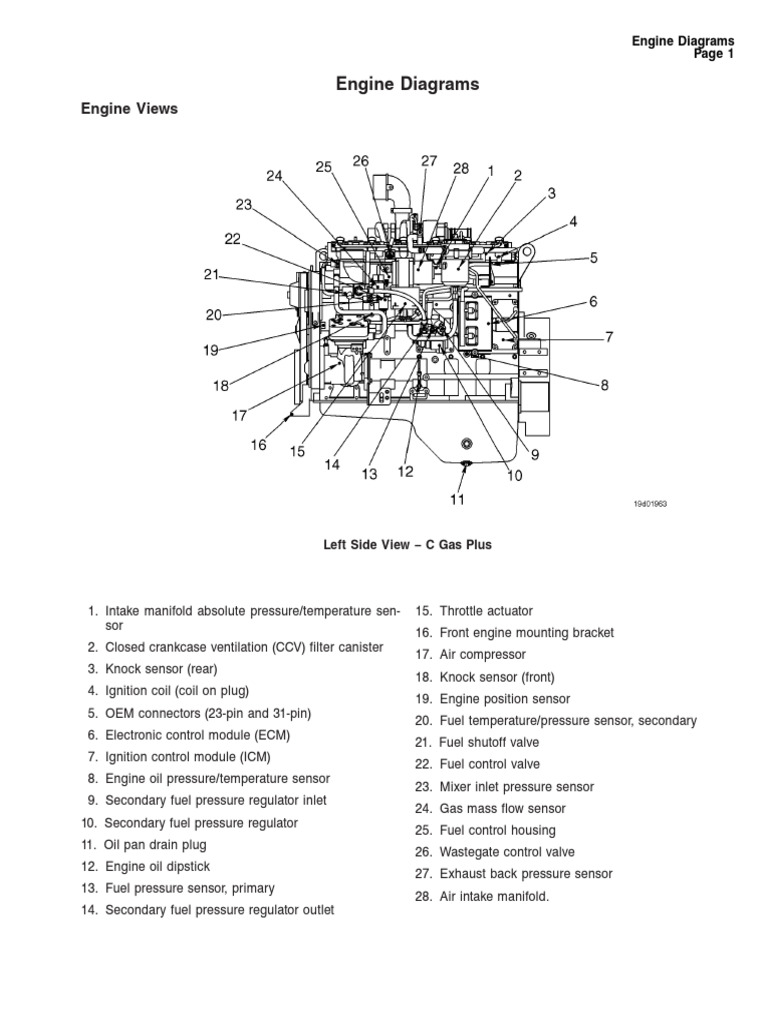

Left Side View – C Gas Plus

1. Intake manifold absolute pressure/temperature sen- 15. Throttle actuator

sor
16. Front engine mounting bracket
2. Closed crankcase ventilation (CCV) filter canister
17. Air compressor
3. Knock sensor (rear)
18. Knock sensor (front)
4. Ignition coil (coil on plug)
19. Engine position sensor
5. OEM connectors (23-pin and 31-pin)
20. Fuel temperature/pressure sensor, secondary
6. Electronic control module (ECM)
21. Fuel shutoff valve
7. Ignition control module (ICM)
22. Fuel control valve
8. Engine oil pressure/temperature sensor
23. Mixer inlet pressure sensor
9. Secondary fuel pressure regulator inlet
24. Gas mass flow sensor
10. Secondary fuel pressure regulator
25. Fuel control housing
11. Oil pan drain plug
26. Wastegate control valve
12. Engine oil dipstick
27. Exhaust back pressure sensor
13. Fuel pressure sensor, primary
28. Air intake manifold.
14. Secondary fuel pressure regulator outlet
Engine Diagrams
Page 2

Back View – C Gas Plus

1. Heated oxygen sensor 5. Rear engine lifting bracket

2. Turbocharger exhaust outlet 6. Exhaust back pressure sensor.
3. Flywheel housing
4. Flywheel
 Engine Diagrams
Page 3

Right Side View – C Gas Plus

1. Exhaust outlet 6. Coolant filter

2. Heated oxygen sensor 7. Lubricating oil filter
3. Turbocharger wastegate actuator 8. Lubricating oil cooler
4. Oil fill 9. Coolant inlet.
5. Coolant outlet
Engine Diagrams
Page 4

Front View – C Gas Plus

1. Turbocharger air outlet 7. Alternator

2. Fan pulley 8. Automatic belt tensioner
3. Front gear cover 9. Coolant filter
4. Fan drive belt 10. Coolant outlet.
5. Vibration damper
6. Water pump
 Engine Diagrams
Page 5

Top View - C Gas Plus

1. Turbocharger air-inlet adapter 4. Breather inlet plumbing elbow

2. Breather return plumbing 5. Breather inlet plumbing.
3. Filter bracket
Engine Diagrams
Page 6

Closed-Crankcase Ventilation – Left Side

View - C Gas Plus

1. Filter and pressure regulator 4. Side oil fill tubes.

2. Breather return plumbing
3. Oil drain plumbing
 Engine Diagrams
Page 7

Right Side View – B Gas Plus

1. Flywheel housing 6. Coolant outlet

2. Heated oxygen sensor 7. Coolant inlet
3. Exhaust adapter 8. Lubricating oil filter
4. Turbocharger 9. Lubricating oil drain.
5. Spark plug wire
Engine Diagrams
Page 8

Back View – B Gas Plus

1. Ignition control module 5. Heated oxygen sensor

2. Intake manifold pressure/temperature sensor 6. Flywheel housing
3. OEM connectors (23-pin and 31-pin) 7. Flywheel.
4. Engine lifting bracket
 Engine Diagrams
Page 9

Left Side View – B Gas Plus

1. Front engine mount 14. Ignition control module (ICM)

2. Fuel housing 15. Fuel inlet fitting
3. Gear housing 16. Primary fuel pressure sensor
4. Gas mass flow sensor 17. Low pressure regulator
5. Mixer inlet pressure sensor 18. Starter
6. Intake elbow 19. Flywheel housing
7. Throttle actuator 20. Lubricating oil pan
8. Exhaust back pressure sensor 21. Fuel filter oil drain
9. Spark plug wire 22. Fuel filter
10. Ignition coil 23. Engine oil pressure/temperature sensor
11. Electronic control module (ECM) 24. Fuel control valve
12. Engine lifting bracket 25. Air compressor.
13. OEM connectors (23-pin and 31-pin)
Engine Diagrams
Page 10

Front View – B Gas Plus

1. Alternator 5. Fuel filter

2. Ignition coil 6. Fuel filter oil drain
3. Exhaust back pressure sensor 7. Lubricating oil pan.
4. Fuel jumper tube
 Engine Diagrams
Page 11

Top View - B Gas Plus

1. Exhaust adapter 5. Exhaust back pressure sensor

2. Heated oxygen sensor 6. Intake elbow
3. Spark plug wire 7. Lubricating oil fill.
4. Ignition coil
