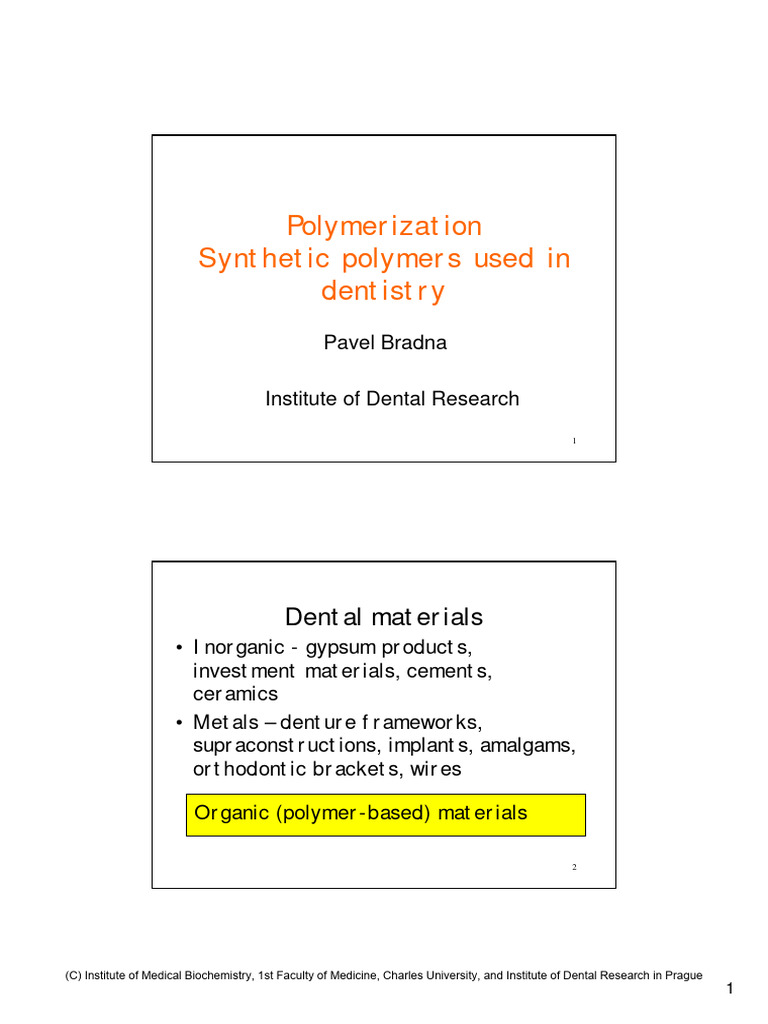

Dental materials
• Inorganic - gypsum products,
investment materials, cements,
ceramics
• Metals – denture frameworks,
supraconstructions, implants, amalgams,
orthodontic brackets, wires
(C) Institute of Medical Biochemistry, 1st Faculty of Medicine, Charles University, and Institute of Dental Research in Prague
1
Typical applications of polymers in
dentistry
• Dentures (bases, artificial teeth,
relining materials)
• Filling materials (composites, cements,
adhesives)
• Impression materials
• Obturation materials (endodoncy)
• Equipment (spatulas, measures, etc)
3
(C) Institute of Medical Biochemistry, 1st Faculty of Medicine, Charles University, and Institute of Dental Research in Prague
2
Definition
Polymer – a chemical compound consisting
of giant molecules „MACROMOLECULES“
formed by union of many „POLY“ small
repeating units „mers“
CH2=CH
Vinyl polymers
R
Examples:
R = H : polyethylene hydrophobic,
semicrystalline polymers
(C) Institute of Medical Biochemistry, 1st Faculty of Medicine, Charles University, and Institute of Dental Research in Prague
3
2. Topology of polymer chains
• Linear polymers
A-A-A-A-A-A-A-
• Nonlinear (branched) polymers
Branches
Polymer (linear)
backbone
A-B-B-A-
A-B-A-B-B-A-A-B- A-B-A-B-B-A-A-B-
A-B-A-B-B-A-
A-B-B-A- A-B-A-B-B-A-
Cross-links (permanent
connections between
chains restricting motion
of chains rigidity)
Temporary cross-links
entanglements 8
(C) Institute of Medical Biochemistry, 1st Faculty of Medicine, Charles University, and Institute of Dental Research in Prague
4
3. Monomer distribution in copolymer chains
Simple compounds –
composed of identical
molecules -number
average
-weight
Molecules of polymer – average
strongly differ (vary by many
monomer units)
(C) Institute of Medical Biochemistry, 1st Faculty of Medicine, Charles University, and Institute of Dental Research in Prague
5
Definitions of molecular weight averages
Number average, Mn
-number
average
Mn= ΣMi ni/Σni=ΣMixi
-weight
xi states for molefraction of molecules with Mi average
Weight average, Mw
Polydispersity Mw/ Mn
Polymerization degree
Pw= Mw/Mo
11
Mo states for molecular weight of repeating unit
Amorphous domains
Crystallites
12
(C) Institute of Medical Biochemistry, 1st Faculty of Medicine, Charles University, and Institute of Dental Research in Prague
6
C C C O H N
C C H N C O
C C (CH2)5 (CH2)5
C C C O H N
H N C O
Van-der-Waals H-bridges
interactions
(C) Institute of Medical Biochemistry, 1st Faculty of Medicine, Charles University, and Institute of Dental Research in Prague
7
Glass transition (softening temperature)
Temperature Tg
Temperature at which rigidity of polymer decreases
Glass Range of Tg
Rigid
High degree of
cross-linking
Rubbery
Rigidity
state
Low degree of
cross-linking
Linear
Liquid
Plastic
Temperature 15
guttapercha
2-methyl-1,3-butadiene Trans-poly(1,4-isoprene) - (obturation points)
natural rubber
Cis-poly(1,4-isoprene) - (impression materials)
16
(C) Institute of Medical Biochemistry, 1st Faculty of Medicine, Charles University, and Institute of Dental Research in Prague
8
Polymers used in dentistry
Synthetic polymers
Prepared via polymerization reactions:
•Step-growth polymerization of
bifunctional monomers, frequently with release
of low molecular compounds (analogous reaction
to low molecular weight compounds)
17
Addition polymerization
Characteristics
• Starts from an active center (only these
molecules are capable to react)
• π-bond of monomer is converted to σ-bond
in the polymer
• Monomers add sequentially to the end of a
growing chain
• Is very fast and exothermic
• Produces high molecular weight polymers
18
(C) Institute of Medical Biochemistry, 1st Faculty of Medicine, Charles University, and Institute of Dental Research in Prague
9
Types of addition polymerizations:
• Free-radical polymerization – active center
is a radical (contains unpaired electron) and
the propagating site of reactivity is a carbon
radical.
• Cationic polymerization - the active center is
an acid, and the propagating site of reactivity
is positively charged
• Anionic polymerization - the active center is
a nucleophile, and the propagating site of
reactivity is negatively charged
19
Polyethylene ethylene
high density (HDPE) –(CH2-CH2)n– CH2=CH2
rigid, translucent solid
Poly(methyl
methacrylate)
–[CH2- methyl methacrylate
hard, transparent solid
C(CH3)CO 2CH3]n– CH2=C(CH 3)CO 2CH3
(PMMA, Lucite, Plexiglas)
20
(C) Institute of Medical Biochemistry, 1st Faculty of Medicine, Charles University, and Institute of Dental Research in Prague
10
Step-growth polymerization
Characteristics
• Proceeds by conventional functional group
reactions (condensation, addition)
• Needs at least 2 functional groups per reactant
• Any monomer molecule has the „same“ probability
to react
• After an elementary reaction – ability to grow
remains
• Combines two different reactants in an
alternating structure 21
22
(C) Institute of Medical Biochemistry, 1st Faculty of Medicine, Charles University, and Institute of Dental Research in Prague
11
Few common polymers
Formula Type Components Tm ºC
polyester Phthalic acids Instruments, matrices
Mylar
23
(C) Institute of Medical Biochemistry, 1st Faculty of Medicine, Charles University, and Institute of Dental Research in Prague
12
2. Propagation - the addition of monomer
to an active center (free radical) to generate
a new active center
In-M. + M In-M-M.
In-M-M. + M In-M-M-M.
1. Chain termination
-M-M-M. + XB -M-M-M-X + B.
Chain transfer agent Chain transfer radical
(C) Institute of Medical Biochemistry, 1st Faculty of Medicine, Charles University, and Institute of Dental Research in Prague
13
A retarder is a substance that „slowly“ reacts with
a radical to form products nearly incapable of
reacting with monomer.
B. Anionic polymerization
phenyl, cyano or carbonyl
X- + H2C=CH(CN) X-H2C-CH(CN)-
Initiated with e.g. n-butyllithium, alkaline metals
Used in superglues for methyl 2-cyanoacrylate
polymerization 27
C. Cationic polymerization
R - alkyl, phenyl or vinyl
H+ + H2C=CHR H C-CHR+
3
H+ – strong acids
28
(C) Institute of Medical Biochemistry, 1st Faculty of Medicine, Charles University, and Institute of Dental Research in Prague
14
Step-growth polymerization
Polycondensation
-2n H2O
…
O …
O O O
O O O O 29
…
…
…
…
Diamine
Root canal sealers, die materials
Polyaddition
1. Production of polyurethanes O
30
(C) Institute of Medical Biochemistry, 1st Faculty of Medicine, Charles University, and Institute of Dental Research in Prague
15
2. Setting reaction of A-silicone impression materials
31
(C) Institute of Medical Biochemistry, 1st Faculty of Medicine, Charles University, and Institute of Dental Research in Prague
16
• Aesthetic properties translucency
and transparency (colour and optical
properties of tooth tissues)
• Chemical resistance in oral
environment, to disinfectants etc.
• Acceptable cost of both material and
processing method
33
Properties of MMA
CH3
• Melting point -48oC CH =C
• Boiling point 100.3oC
2
C=O
(C) Institute of Medical Biochemistry, 1st Faculty of Medicine, Charles University, and Institute of Dental Research in Prague
17
Properties of poly(methyl methacrylate)
• Transparency and high clarity
• Low absorption of visible and UV light (to 250 nm)
• Density 1.19 g/cm3 (causes polymerization
contraction/shrinkage app. 22 vol %)
• Compression strength 90 – 100 MPa
• Very rigid - elastic modulus above 2.4 GPa
• Water sorption up to app. 1.0 wt %
• Temperature resistance Tg = 120 – 125oC
• Soluble in organic solvents (MMA, acetone, toluene, etc.)
35
(C) Institute of Medical Biochemistry, 1st Faculty of Medicine, Charles University, and Institute of Dental Research in Prague
18
PMMA prepolymer beads
Prepared by suspension polymerization
CH3 CH3
O
.+ CH =C 2 O CH2-C .
O C=O O C=O
O O
CH3 CH3
38
(C) Institute of Medical Biochemistry, 1st Faculty of Medicine, Charles University, and Institute of Dental Research in Prague
19
Thermal decomposition of peroxides
C = concentration of peroxide
k = kinetic constant
t = time
T=const.
Effect of temperature
•Propagation
CH3 CH3 CH3 CH3
O-CH2-C . + n(CH =C) 2 O (CH2-C )n CH2- C .
O C=O C=O O C=O C=O
O O O O
CH3 CH3 CH3 CH3
•Chain termination
CH3 CH3 CH3 CH3
R1-H2C- C . +. C CH2-R2 R1- H2C -C C CH2-R2
C=O C=O C=O C=O
O O O O
CH3 CH3 CH3 CH3
40
(C) Institute of Medical Biochemistry, 1st Faculty of Medicine, Charles University, and Institute of Dental Research in Prague
20
•Chain transfer to MMA monomer
CH3 CH3 CH3 CH3
R CH -C .
2 + CH2=C R- CH2=C + CH3- C .
C=O C=O C=O C=O
O O O O
CH3 CH3 CH3 CH3
Stable hydroquinone
Hydroquinone (HQ)
radical will not
propagate/stop other
chain radical
C(CH3)3
2,6-di-tert-butyl-4-methylphenol
HO CH3
(Butylated hydroxytoluene - BHT)
C(CH3)3
Oxygen inhibition
Mx I . + O2 MxIOOH
Stable hydroperoxide
(C) Institute of Medical Biochemistry, 1st Faculty of Medicine, Charles University, and Institute of Dental Research in Prague
21
Why polymer inhibitors are added?
Usually 0.01 – 0.005 wt %
Eugenol = phenol
Note:
(inhibits polymerisation)
4-Allyl-2-metoxyfenol
Negative interaction with Zinc oxide-
43
eugenol materials
44
(C) Institute of Medical Biochemistry, 1st Faculty of Medicine, Charles University, and Institute of Dental Research in Prague
22
Example: MMA cross-linked with ethylene
glycol dimethacrylate (EGDMA)
O O O O O O
CH3 CH3
Cross-link
MMA O O
C=O CH3 C=O CH3
CH3 CH3
45
Methyl
- decreases softening temperature acrylate
46
(C) Institute of Medical Biochemistry, 1st Faculty of Medicine, Charles University, and Institute of Dental Research in Prague
23
Glass transition temperature (softening) of
various methacrylic polymers
rigid
CH3
Methacrylate Polymer Tg oC
CH2=C
methyl 125 C=O
ethyl 65 O
Soft, faster
dissolution
47
48
(C) Institute of Medical Biochemistry, 1st Faculty of Medicine, Charles University, and Institute of Dental Research in Prague
24
Classification of polymers/resins
according to initiation reactions
(activation)
– Heat activated (heat cured/heat curing resins)
(two component systems)
- Chemically activated (self cured/curing, cold
curing, autopolymerizing, fast curing) resins
(two component systems)
- Light activated (LC/UV cured) resins
(one component system)
Note
Dual-cure (a combination of chemically and light activated materials, LC
modified GIC, luting materials)
Tri-cure (a combination of acid-base setting reaction, LC and chemical
activation [peroxide/amine] activating system)
49
1-methyl-4-(1-methylethenyl)cyclohexene) 50
(C) Institute of Medical Biochemistry, 1st Faculty of Medicine, Charles University, and Institute of Dental Research in Prague
25
MMA vapours release porosity in a denture
• Too fast
MMA boiling • Standard polymerization
point Starts at 60oC
51
Properly
Too fast heating
polymerized
(C) Institute of Medical Biochemistry, 1st Faculty of Medicine, Charles University, and Institute of Dental Research in Prague
26
Chemically activated resins
(denture reparations, relining, orthodontic
appliances, pouring resins)
Composition:
powder: PMMA prepolymer or copolymer (fine particle
size), dibenzoyl peroxide
liquid: MMA, cross-linking agents, inhibitors,
accelerators (1-4 wt %), UV absorbers
Accelerators
1. Tertiary aromatic amine
2. Barbituric acid derivatives combined with aliphatic
amine (lower colour change) and Cu cations
3. Sodium p-toluene-sulfinate (for systems
containing methacrylic acid), Cu cations 53
CH3 CH3
-
.
O O
H3C -N + -N.+ O +
CH3 CH3
Free radical
(C) Institute of Medical Biochemistry, 1st Faculty of Medicine, Charles University, and Institute of Dental Research in Prague
27
Light activated resins
(light cured composite materials, adhesives,
light cured glass-ionomer cements)
amine
. H
55
CQ Free radicals
(C) Institute of Medical Biochemistry, 1st Faculty of Medicine, Charles University, and Institute of Dental Research in Prague
28
Capable of H-
bridge formation
high viscosity
HH
58
(C) Institute of Medical Biochemistry, 1st Faculty of Medicine, Charles University, and Institute of Dental Research in Prague
29
5. Ethoxylated bis-GMA
n=1-5
Low viscosity
monomer
59
(C) Institute of Medical Biochemistry, 1st Faculty of Medicine, Charles University, and Institute of Dental Research in Prague
30
Few monomers used in dental
adhesives
2-hydroxyethyl methacrylate
N-phenylglycine
N-phenylglycine glycidyl
dimethacrylate
62
(C) Institute of Medical Biochemistry, 1st Faculty of Medicine, Charles University, and Institute of Dental Research in Prague
31
Dipentaerythritol penta
acrylate monophosphate
10-methacryoloyloxydecyl
dihydrogenphosphate
Maleic acid
63
64
(C) Institute of Medical Biochemistry, 1st Faculty of Medicine, Charles University, and Institute of Dental Research in Prague
32
Summary
1. Polymers, characterization, properties (molecular structure)
2. Polymerization – addition (free radical, ionic); step-growth-
polycondenzation and polyaddition
3. Phases of free radical polymerization
4. Properties of MMA, polymerization of PMMA
5. Types of activation reactions, inhibitors
6. Characteristics of heat, chemical and light activation
systems
7. Dimethacrylate resins used in composite materials
8. Other monomers and polymers
65
(C) Institute of Medical Biochemistry, 1st Faculty of Medicine, Charles University, and Institute of Dental Research in Prague
33
