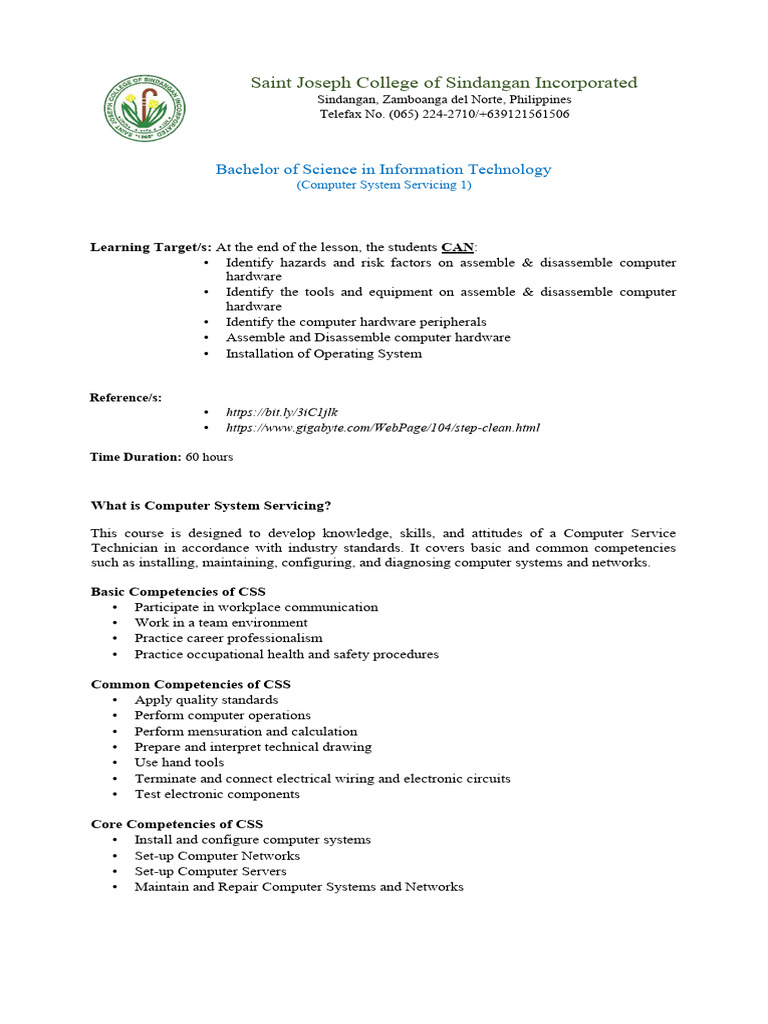

Saint Joseph College of Sindangan Incorporated

Sindangan, Zamboanga del Norte, Philippines

Telefax No. (065) 224-2710/+639121561506

Bachelor of Science in Information Technology

(Computer System Servicing 1)

Learning Target/s: At the end of the lesson, the students CAN:

• Identify hazards and risk factors on assemble & disassemble computer
hardware
• Identify the tools and equipment on assemble & disassemble computer
hardware
• Identify the computer hardware peripherals
• Assemble and Disassemble computer hardware
• Installation of Operating System

Reference/s:
• https://bit.ly/3iC1jlk
• https://www.gigabyte.com/WebPage/104/step-clean.html

Time Duration: 60 hours

What is Computer System Servicing?

This course is designed to develop knowledge, skills, and attitudes of a Computer Service
Technician in accordance with industry standards. It covers basic and common competencies
such as installing, maintaining, configuring, and diagnosing computer systems and networks.

Basic Competencies of CSS

• Participate in workplace communication
• Work in a team environment
• Practice career professionalism
• Practice occupational health and safety procedures

Common Competencies of CSS

• Apply quality standards
• Perform computer operations
• Perform mensuration and calculation
• Prepare and interpret technical drawing
• Use hand tools
• Terminate and connect electrical wiring and electronic circuits
• Test electronic components

Core Competencies of CSS

• Install and configure computer systems
• Set-up Computer Networks
• Set-up Computer Servers
• Maintain and Repair Computer Systems and Networks
 Saint Joseph College of Sindangan Incorporated
Sindangan, Zamboanga del Norte, Philippines
Telefax No. (065) 224-2710/+639121561506

Bachelor of Science in Information Technology

Name: ________________________________________ Date: ______________

Directions: Write T if the statement is true and F if the statement is False.

1. Do not work alone so that there's someone who can take care of you in case of emergency.
2. Always power on the computer and plug the computer before working on it.
3. Take any liquid near your working area.
4. Be careful with tools that may cause short circuit.
5. Always unground or charge yourself before touching any part of the computer.
6. Do not use excessive force if things don't quite slip into place.
7. Leave the area before and after using it to maintain sanitation and prevent accidents.
8. Hold the components on the edges and do not touch the Integrated Circuit (IC) parts.
9. Always wear personal protective equipment’s (PPE) in accordance with the organization's OHS
procedures and practices.
10. Make sure that the pins are properly aligned when connecting a cable connector.

(Multiple Choice) choose the correct answer.

1. Is small tools used for picking up objects too small to be easily handled with the human hands?

a. Sharp pointed tweezers c. Soldering iron

b. Digital multi-meter (DMM) d. Allen wrench
2. Is a tool used to drive bolts and screws with hexagonal sockets in their heads?
a. Sharp pointed tweezers c. Digital multi-meter (DMM)
b. Allen wrench d. Soldering iron
3. It supplies heat to melt solder so that it can flow into the joint between two work pieces.
a. Sharp pointed tweezers c. Digital multi-meter (DMM)
b. Allen wrench d. Soldering iron
4. Is a test tool used to measure two or more electrical values—principally voltage (volts), current
(amps) and resistance (ohms).
a. Digital multi-meter (DMM) c. Allen wrench
b. Crimping tool d. Soldering iron
5. Is a device used to conjoin two pieces of metal by deforming one or both of them in a way that
causes them to hold each other?

a. Digital multi-meter (DMM) c. Allen wrench

b. Crimping tool d. Soldering iron

 Saint Joseph College of Sindangan Incorporated
Sindangan, Zamboanga del Norte, Philippines
Telefax No. (065) 224-2710/+639121561506

Bachelor of Science in Information Technology

Name: ________________________________________ Date: ______________

(Multiple Choice) choose the correct answer.

1. An internal expansion card that provides input and output of audio signals to and from a computer
under control of computer programs.

a. Sound Card c. ATX 4 pin power supply connector

b. Power cord d. HDMI (High-Definition Multimedia Interface)

2. Is a cable that temporarily connects an appliance to the mains electricity supply via a wall socket or
extension?

a. Sound Card c. ATX 4 pin power supply connector

b. Power cord d. HDMI (High-Definition Multimedia Interface)

3. Is a proprietary audio/video interface for transmitting video data and compressed or uncompressed
digital audio data from an HDMI-compliant source device, such as a display controller, to a
compatible computer monitor, video projector, digital television, or digital audio device.

a. Sound Card c. ATX 4 pin power supply connector

b. Power cord d. HDMI (High-Definition Multimedia Interface)

4. Is a standard motherboard power connector used to provide +12 VDC to the processor voltage
regulator?

a. Sound Card c. ATX 4 pin power supply connector

b. Power cord d. HDMI (High-Definition Multimedia Interface)

5. This handy cable, is very useful if you need to add a SATA hard drive or SSD to your PC but don't
have any spare SATA power cables coming from your power supply.

a. Power cord
b. HDMI (High-Definition Multimedia Interface)
b. Molex IDE to Serial ATA Power Adapter Cable (Single)
c. d. ATX 4 pin power supply connector
6. Is a form of computer data storage which stores frequently used program instructions to increase
the general speed of a system?
d. Random-access memory (RAM) c. LAN (Local Area Network) Card
e. Motherboard d. Optical Drive
7. Is a type of computer disk drive that reads and writes data from optical disks through laser beaming
technology?

a. Random-access memory (RAM) c. LAN (Local Area Network) Card

b. Motherboard d. Optical Drive

8. It is a 'door' to the network from a computer? Any type of network activity requires a LAN card: the
Internet, network printer, connecting computers together, and so on.
a. Random-access memory (RAM) c. LAN (Local Area Network) Card
b. Motherboard d. Optical Drive

9. Is the main component of a computer? It is a board with integrated circuitry that connects the other
parts of the computer.
a. LAN (Local Area Network) Card c. Motherboard
b. Optical Drive d. Random-access memory (RAM)

10. Is a data storage device that uses magnetic storage to store and retrieve digital information using
one or more rigid rapidly rotating disks (platters) coated with magnetic material. a. Sound Card
b. Power cord
c. Hard Disk Drive (HDD)/ Hard Disk/ Hard Drive/ Fixed Disk
d. LAN (Local Area Network) Card

TASK SHEET 1.1-1

Title: Disassembling Computer Hardware

Performance Objective: Given the supplies and materials you should be able to disassemble
various computer system, components and peripherals according to industry standards.

Supplies/Materials : Manufacturer’s Manual, Video, Whiteboard

Equipment : Personal Computer, Tools and Equipment’s, PPE, Table and Chair
 Saint Joseph College of Sindangan Incorporated
Sindangan, Zamboanga del Norte, Philippines
Telefax No. (065) 224-2710/+639121561506

Bachelor of Science in Information Technology

Name: ________________________________________ Date: ______________

Performance Criteria Checklist 1.1-1

CRITERIA
YES NO
Did you….
Before disassembling the components, first we need to shut off the power
to your system and unplug the power cord from the PC and from the wall
socket before continuing to prevent any injuries and damage of the PC
from Electrostatic Discharge (ESD).

Use the proper anti-static procedures while opening the case. Then
remove the cover of the system unit and lay the system down so that the
open side faces the ceiling. If it’s not facing the ceiling, therefore you can’t
see the components so just flip it around.

When you open the system case, you will see lots of cables and wires
connecting to each component. Those wires and cables are what make the
system function. If one of the cable or wires is not connected properly or
connected in the wrong place, the computer might malfunction such as not
turning on or error pops up on the screen. Some cables might be a
singlecolored wire and some multiple-colored wires.
To ensure that you don’t forget where the cables are connected, take
some pictures so you don’t need to troubleshoot at the end which takes
more time than taking pictures. It will help you extremely when you’re
putting the system back together.
Remove the modem cards, sound cards, network cards or video cards, fans
(might be more than one) carefully and any other extra cards. Place them
into an anti-static bag to protect it from ESD (Electrostatic Discharge)
damage. Disassemble every component in the case leaving only an empty
case.
Don’t forget to disassemble the power supply wires, the power supply and
the data cables from the components and motherboard. Also, the hard
drives floppy disk.
Identify every component and take pictures of them.

After you identified every component, put all components back in their
place and ensure that all cables and wired is connected at the right place,
therefore we don’t need to troubleshoot later on. Close the case and put
the screws back in their place. Lastly, connect every external device such as
the keyboards, mouse, monitor, etc. and turn it on to see everything is
working fine after you disassembled.
 TASK SHEET 1.1-2
Title: Assembling Computer Hardware

Performance Objective: Given the supplies and materials you should be able to Assemble
various computer system, components and peripherals according to industry standards.

Supplies/Materials : Manufacturer’s Manual, Video, Whiteboard

Equipment : Personal Computer, Tools and Equipment’s, PPE, Table and Chair

Saint Joseph College of Sindangan Incorporated

Sindangan, Zamboanga del Norte, Philippines
 Telefax No. (065) 224-2710/+639121561506

Bachelor of Science in Information Technology

Name: ________________________________________ Date: ______________

Performance Criteria Checklist 1.1-2

CRITERIA
YES NO
Did you….
1. Prepare the Mainboard (motherboard). If you want to assemble the
well-liked device, you should use Intel i3, i5, i7 Mainboard.

2. Mount the CPU in the socket of the Mainboard. You must choose
the correct CPU for your motherboard, and install it according to
its instructions. Be careful not to install the CPU in wrong. Not only
would your computer not work, it could short-circuit and damage
your motherboard.

3. Connect the CPU cooler to the Mainboard.

4. Attach the RAM (memory) modules in the corresponding slots. the

motherboard should have rows of slots that have 2 or 3 sections
that are different lengths. Make sure the pins on the RAM cards
line up with the pins on the motherboard connector. Don't get the
RAM slots mixed up with PCI slots. The PCI slots are usually wider.

5. Open the case and mount the power supply which is M-ATX type.
Make sure to connect all the connections to the drives and the
motherboard.
6. Attach the Mainboard back plate to the case and check the
Mainboard mounting positions. The motherboard's instructions
should tell the position of the motherboard.
7. Suitably position the Mainboard in the case.

8. Mount the Hard disk and connect it to the power supply and the
motherboard. There should be separate connections for the power
supply and the motherboard. In SATA Hard disk case, should
remove the jumper.

9. Connect the SATA connectors to the drives and the USB connectors
and the case switches to the motherboard. The case and
motherboard's instructions should tell where to connect the
cables.
10. Connect the 20 or 24 pin ATX connector and the 4-pin power supply
control connector to the motherboard.
11. Mount the DVD-ROM drive. After connecting the ATA cable to the
device, hook it up to the power supply.
12. Finally, select a compatible operating system, and follow the
instructions to install.

Rubrics
 Excellent Good Fair Poor
Identify On- Demonstrated Student identified Student identified Student is unable
Board mastery of task. and accurately some of the to identify the
Computer Student identified named most of onboard number of
and labeled all the on-board computers. onboard
computers computers. Student missed up computers or
accurately Student missed up to four computers missed more than
to two computers. and did not name four computers.
(20pts.) (18pts.) the computers (15pts.)
accurately.
(17pts.)
Retrieve Demonstrated Student is able Student needed Student made no
Trouble Codes mastery of task. navigate scan moderate effort to retrieve
No assistance tool and retrieve assistance to trouble codes.
needed to trouble codes navigate scan tool Student displayed
navigate scan tool with minimal and retrieve no exposure.
and retrieve assistance. May trouble codes. (15pts.)
trouble codes. have missed a Student needs to
(20pts.) key point. practice more.
(18pts.) (17pts.)
Follow Directions Demonstrated Student Student Student did not
of task mastery of task. completed task completed task follow directions
Student sheet questions, sheet questions, of the task.
performed task but did not but skipped the Student filled out
exactly according follow the majority of the task sheet after
to directions in directions directions of completing oil
task sheet. (20pts.) exactly. (18pts.) the task. change task.
(17pts.) (15pts.)
Follows Shop Student follows all Student works More frequent Student cannot
Safety Rules safety rules in the safely, needs reminders to keep work in the shop
shop and works in reminders to keep safety glasses on. due to unsafe
a safe manner. safety glasses on. Does not always work habits
(20pts.) (18pts.) work in a safe (15pts.)
manner.
(17pts.)
Clean -Up Student cleaned Student cleaned Student attempted Student did not
entire work area work area with to clean work attempt put tools
with no prompting. area, but needed away or clean
assistance. (18pts.) to be prompted. work area. (15pts.)
(20pts.) (17pts.)
