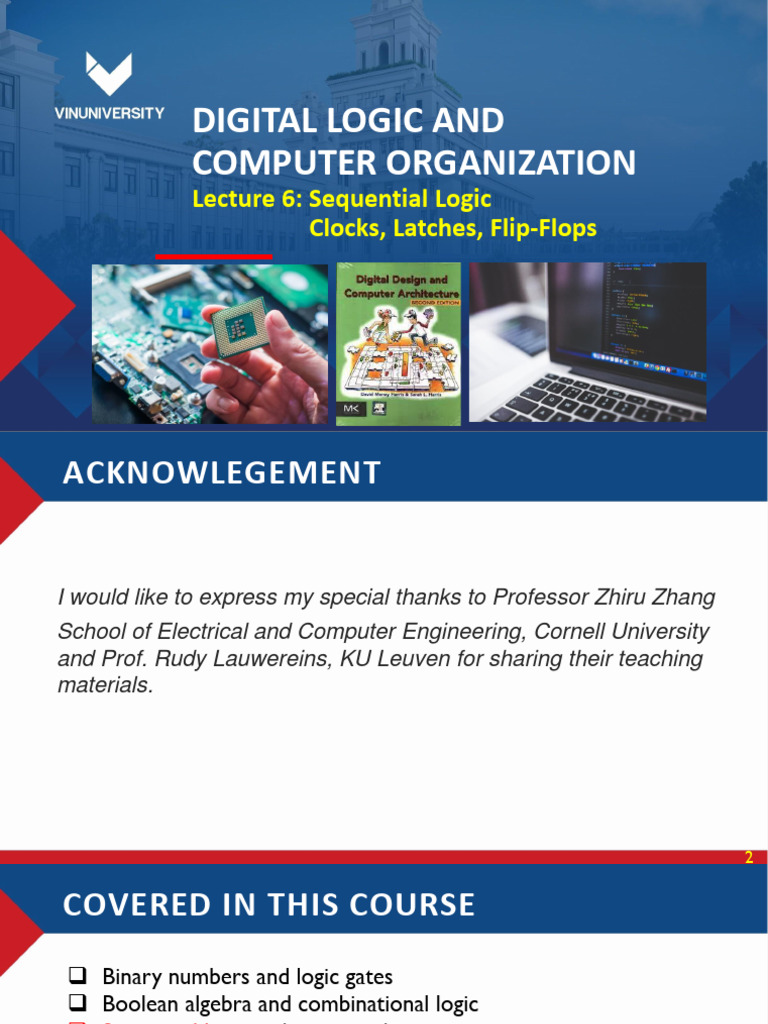

DIGITAL LOGIC AND

COMPUTER ORGANIZATION
Lecture 6: Sequential Logic
Clocks, Latches, Flip-Flops
ELEC3010
ACKNOWLEGEMENT

I would like to express my special thanks to Professor Zhiru Zhang


School of Electrical and Computer Engineering, Cornell University
and Prof. Rudy Lauwereins, KU Leuven for sharing their teaching
materials.

2
COVERED IN THIS COURSE
❑ Binary numbers and logic gates
❑ Boolean algebra and combinational logic
❑ Sequential logic and state machines
❑ Binary arithmetic
Digital logic
❑ Memories

❑ Instruction set architecture


❑ Processor organization Computer
❑ Caches and virtual memory
❑ Input/output Organization
❑ Advanced topics
3
CAN YOU DO IT?

A vending machine accepts nickels (5 cents), dimes (10 cents),


and quarters (25 cents) towards the purchase of a can of soda.
When the machine has received 40 cents or more, it dispenses
a can of soda and returns any money over 40 cents. For
example, if someone puts in two quarters, one after another,
the machine returns a can of soda and 10 cents.

Design a digital circuit to control the machine.

4
COMBINATIONAL VS. SEQUENTIAL CIRCUITS

5
SEQUENTIAL CIRCUITS
❑ Outputs depend on inputs and state variables

❑ The state variables embody the past history of the circuit


▪ Storage elements hold the state variables

❑ A clock periodically advances the circuit

6
SEQUENTIAL CIRCUITS
❑ Definitions
▪ Asynchronous sequential circuits: outputs and state change as
soon as an input changes
▪ Synchronous sequential circuits: outputs and state change only
when a special input, the clock, gets a certain value

7
CLOCK
❑ An input to a sequential circuit that changes output and
state values at a predetermined rate

❑ Triggering edge: Transition of the clock that captures


input data
▪ We mostly use the positive rising edge (L -> H) as triggering edge in this class
▪ Clock tick: Occurrence of a triggering edge

8
CLOCK PERIOD AND FREQUENCY
❑ Clock Period (cycle time): Time between successive
transitions in the same direction (e.g., L-> H)
▪ e.g., 1ms, 2ns, 500ps
❑ Clock Frequency: 1/period
▪ e.g., 1kHz, 500MHz, 2GHz

9
SR LATCH (SET-RESET LATCH)

10
SR LATCH (SET-RESET LATCH)

Boolean expression for


Qnext in terms of R, S, Q:

Qnext = (R + QN)’
= (R + (S + Q)’)’
= R’•(S + Q)
= R’•S + R’•Q
11
CAN YOU DO IT?

❑ Suppose the S-R latch is initialized with Q=0, write down the next state given the
following input sequence:

S=1, R=0 -> Q = ?


S=0, R=0 -> Q = ?
S=0, R=1 -> Q = ?

12
SR LATCH (SET-RESET LATCH)

❑ Instability (Avoid SR=11): SR=11 may cause instability of


the internal state
▪ When SR=11 -> Q=QN=0
▪ If inputs subsequently change to SR=00, output may
be undefined

13
D LATCH

❑ When C is enabled, Q output follows D input


❑ When C is disabled, Q output retains last state

14
D LATCH TIMING

❑ D latch is level sensitive


– Captures input D when the latch is open
– Holds the previous state otherwise
15
D FLIP-FLOP

16
D FLIP-FLOP TIMING

17
REGISTER
❑ Collection of FFs operating off common clock
❑ A single D flip-flop is a 1-bit register

18
BEFORE NEXT CLASS

• Textbook: 3.4- 3.5


• Next time: Finite State Machines

19
