Torque in a Synchronous Motor

Electronics & Electrical Electron Digital Electronics

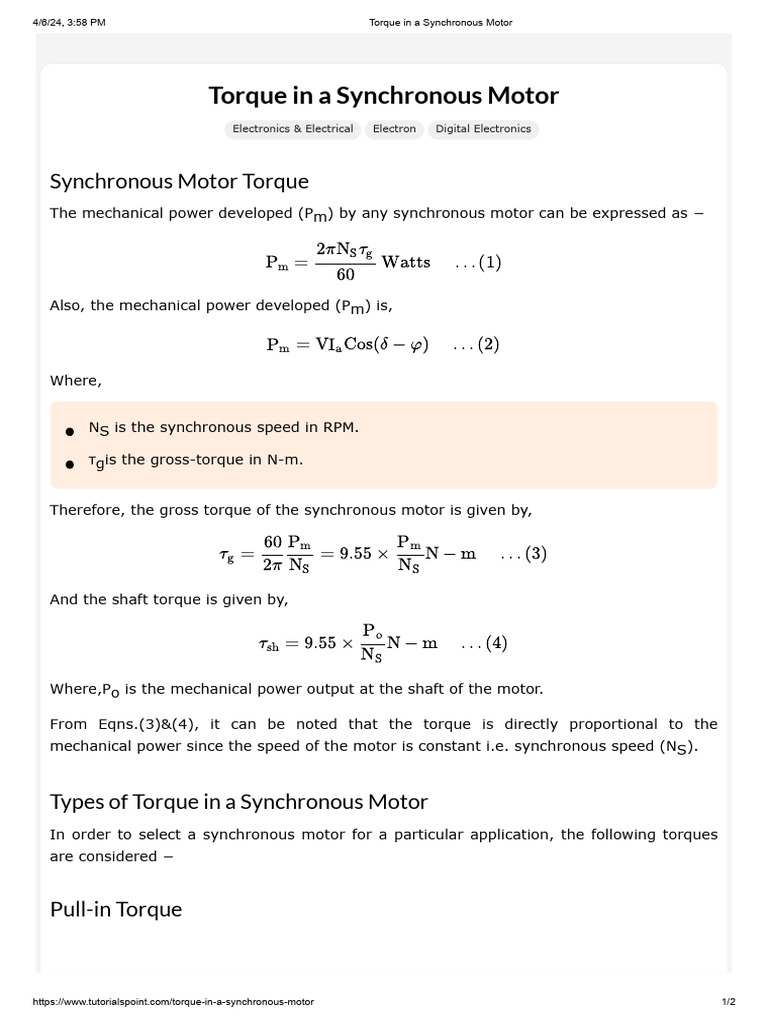

Synchronous Motor Torque

The mechanical power developed (Pm) by any synchronous motor can be expressed as −

2πNS τg
Pm = Watts . . . (1)
60

Also, the mechanical power developed (Pm) is,

Pm = VIa Cos(δ − φ) . . . (2)

Where,

NS is the synchronous speed in RPM.

τgis the gross-torque in N-m.

Therefore, the gross torque of the synchronous motor is given by,

60 Pm Pm
τg = = 9.55 × N − m . . . (3)
2π NS NS

And the shaft torque is given by,

Po
τsh = 9.55 × N − m . . . (4)
NS

Where,Po is the mechanical power output at the shaft of the motor.

From Eqns.(3)&(4), it can be noted that the torque is directly proportional to the
mechanical power since the speed of the motor is constant i.e. synchronous speed (NS).

Types of Torque in a Synchronous Motor

In order to select a synchronous motor for a particular application, the following torques
are considered −

Pull-in Torque

https://www.tutorialspoint.com/torque-in-a-synchronous-motor 1/2
4/6/24, 3:58 PM Torque in a Synchronous Motor

As a synchronous motor is started as an induction motor and runs at a speed 2% to 5%

below the synchronous speed. Then, the DC excitation voltage is applied and the rotor
pulls into step with the rotating magnetic field of the stator which is revolving at
synchronous speed. Therefore, the maximum torque at rated voltage and frequency under
which a synchronous motor will pull a connected load into synchronism when the DC
excitation is applied to the motor, is known as pull-in torque.

Pull-out Torque
There is a limit to the mechanical load that can be applied to a synchronous motor. With
the increase in the load, the torque angle (δ) also increases so that a stage is reached
when the rotor is pulled out of synchronism and the motor comes to the rest. Therefore,
the maximum value of load torque which a synchronous motor can develop at rated
voltage and frequency without losing synchronism is called as pull-out torque or
breakdown torque.

Locked Rotor Torque

The locked rotor torque is the minimum value of the torque developed by a synchronous
motor with the rotor locked (i.e. stationary rotor) at any angular rotor position and rated
voltage and frequency is applied to the motor. The locked rotor torque is provided by the
armature windings of the motor.

Running Torque
The torque developed by a synchronous motor under running conditions is known as
running torque. The running torque is determined by the power rating and the speed of
the motor.
