9100c NXT

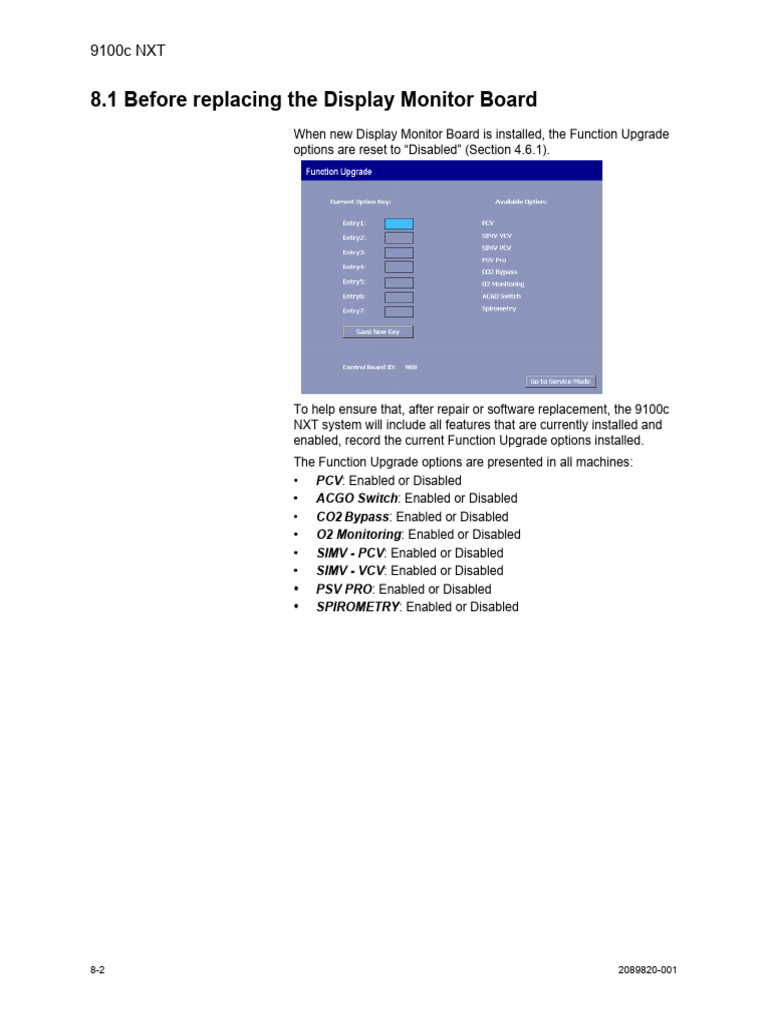

8.1 Before replacing the Display Monitor Board

When new Display Monitor Board is installed, the Function Upgrade
options are reset to “Disabled” (Section 4.6.1).

To help ensure that, after repair or software replacement, the 9100c

NXT system will include all features that are currently installed and
enabled, record the current Function Upgrade options installed.
The Function Upgrade options are presented in all machines:
• PCV: Enabled or Disabled
• ACGO Switch: Enabled or Disabled
• CO2 Bypass: Enabled or Disabled
• O2 Monitoring: Enabled or Disabled
• SIMV - PCV: Enabled or Disabled
• SIMV - VCV: Enabled or Disabled
• PSV PRO: Enabled or Disabled
• SPIROMETRY: Enabled or Disabled

8-2 2089820-001
 8 Software Installation

8.1.1 Key/BID label The replacement Display Monitor Board includes a Key/BID label that
(Key Code) is appropriate for machines that include all of the optional features. If
the machine includes only some of the optional features, access the
Key Code Generator web site to obtain the appropriate optional
features Key Code.
1. Gather the following information (* denotes Required
Information):

Requestor Information
* Email Address
* Full Name
* Organization
End User Information
Hospital Name
Address 1
Address 2
City
Postal Code
Country
Telephone
Information from the EXISTING Control Board being REMOVED
* Control Board ID number
* Control Board Key Code
Information from the REPLACEMENT Control Board being
INSTALLED
* Control Board ID Number

Note The Control Board here only refer to the replacement Display Monitor
Board for the 9100c NXT anesthesia system. The replacement
Control Sample Board doesn’t need the appropriate optional features
Key Code.
2. Access the Key Code Generator on the following web site.
• http://www.docodes.com
3. Enter the required information and Submit the Request.
An e-mail with the replacement Display Monitor Board Key Code will
be immediately sent to the e-mail address provided (due to delays in
some firewalls and Internet traffic, responses can take up to 24 hours
to receive).
Note: For traceability, the Global Service and Support Helpdesk is
copied on the email.

2089820-001 8-3
9100c NXT

8.2 After replacing the DMB (Display Module)

1. Load the appropriate software revision using software USB disk
that matches the software revision of the replaced Board.
2. Activate the appropriate options on the Function Upgrade menu
(Section 4.6.1) following the steps below.
• Enter the Service Mode.
• Select Function Upgrade.
• Enter the appropriate Key Code to restore the original
Function Upgrade options
3. Record the new (web site generated) Key Code on a sticker.
4. Affix the BID label provided in the replacement Display Monitor
Board kit (or on the Display Module) and the Key Code sticker to
the left side panel of the Display Module.
5. Record the unit serial number from the unit serial number label on
the back of the unit.
6. Restart the system and go to normal mode, then re-start to visit
Service mode to confirm that the respective functional upgrade is
added.

8-4 2089820-001
 8 Software Installation

8.3 After replacing the CSB

1. Load the appropriate software revision using software USB disk
that matches the software revision of the replaced Control
Sample Board (CSB) (Section 8.4).

2. Perform the following calibration procedures in order:

a) Enter the calibration coefficient (Section 4.6)
b) Enter the altitude (Section 4.6.4)
c) PAW zero calibration (Section 4.5.1)
d) PAW gain calibration (Section 4.5.2)
e) O2 cell calibration (Section 4.5.3)
f) PEEP valve calibration (Section 4.5.4)
g) Flow zero Insp calibration (Section 4.5.5)
h) Flow zero Exp calibration (Section 4.5.6)
i) Inspiratory flow valve (Section 4.5.7)
3. Perform the checkout procedure (Section 3).

2089820-001 8-5
9100c NXT

8.4 Software Installation

Note Ensure that the USB cover is removed and the USB is visible before
starting the software upgrade.
1. Set the system switch to On.
2. Enter the Service Mode.
3. Select the “Software Upgrade” from the Configuration/
Upgrade menu.
4. Follow the instructions on the screen to complete the installation.
Note It will take about 10 seconds to detect USB disk and then start the
software upgrade.
5. Set the system switch to Standby.
6. Remove the Software USB disk.
7. On the Function Upgrade menu (Section 4.6.1) of the Service
Mode, enter the options Key Code found on the side of the
display module to restore the original Upgrade Options.
8. On the Altitude Setting menu of the Service Mode, reset the
Altitude (Section 4.6.4).
9. Perform the preoperative checkout procedure.
Note Ensure the USB cover is closed after the removal of USB disk.

8-6 2089820-001
