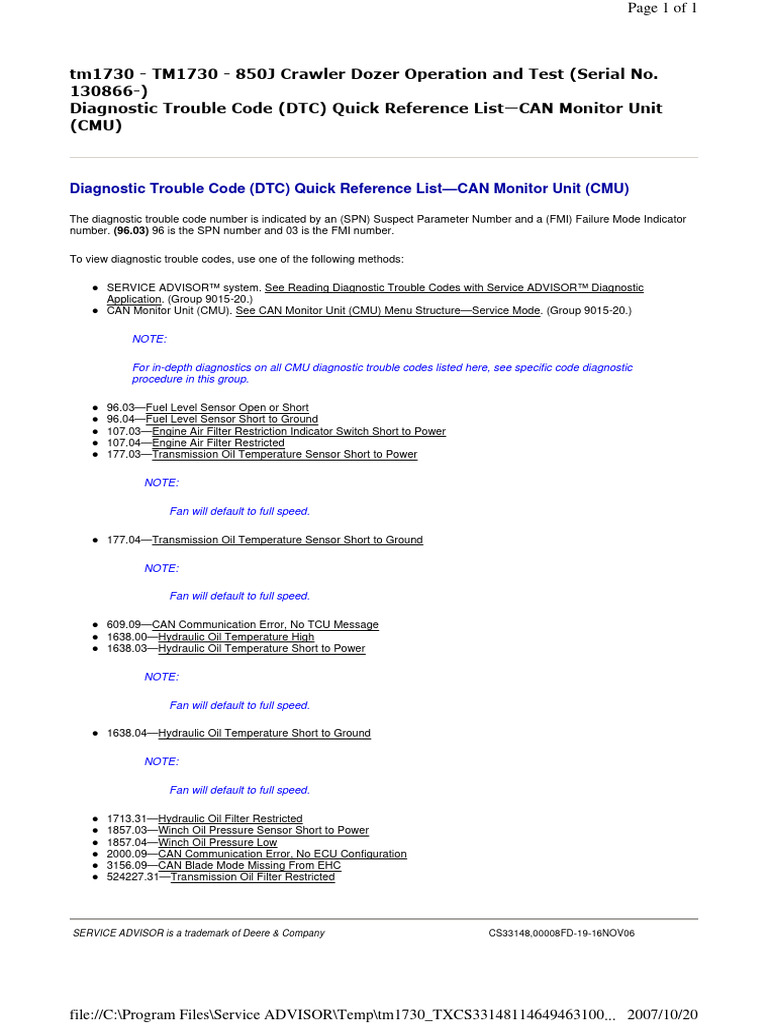

Diagnostic Trouble Code (DTC) Quick Reference List—CAN Monitor Unit (CMU)

The diagnostic trouble code number is indicated by an (SPN) Suspect Parameter Number and a (FMI) Failure Mode Indicator
number. (96.03) 96 is the SPN number and 03 is the FMI number.

To view diagnostic trouble codes, use one of the following methods:

SERVICE ADVISOR™ system. See Reading Diagnostic Trouble Codes with Service ADVISOR™ Diagnostic
Application. (Group 9015-20.)
CAN Monitor Unit (CMU). See CAN Monitor Unit (CMU) Menu Structure—Service Mode. (Group 9015-20.)

NOTE:

For in-depth diagnostics on all CMU diagnostic trouble codes listed here, see specific code diagnostic
procedure in this group.

96.03—Fuel Level Sensor Open or Short

96.04—Fuel Level Sensor Short to Ground
107.03—Engine Air Filter Restriction Indicator Switch Short to Power
107.04—Engine Air Filter Restricted
177.03—Transmission Oil Temperature Sensor Short to Power

NOTE:

Fan will default to full speed.

177.04—Transmission Oil Temperature Sensor Short to Ground

NOTE:

Fan will default to full speed.

609.09—CAN Communication Error, No TCU Message

1638.00—Hydraulic Oil Temperature High
1638.03—Hydraulic Oil Temperature Short to Power

NOTE:

Fan will default to full speed.

1638.04—Hydraulic Oil Temperature Short to Ground

NOTE:

Fan will default to full speed.

1713.31—Hydraulic Oil Filter Restricted

1857.03—Winch Oil Pressure Sensor Short to Power
1857.04—Winch Oil Pressure Low
2000.09—CAN Communication Error, No ECU Configuration
3156.09—CAN Blade Mode Missing From EHC
524227.31—Transmission Oil Filter Restricted

SERVICE ADVISOR is a trademark of Deere & Company CS33148,00008FD-19-16NOV06
