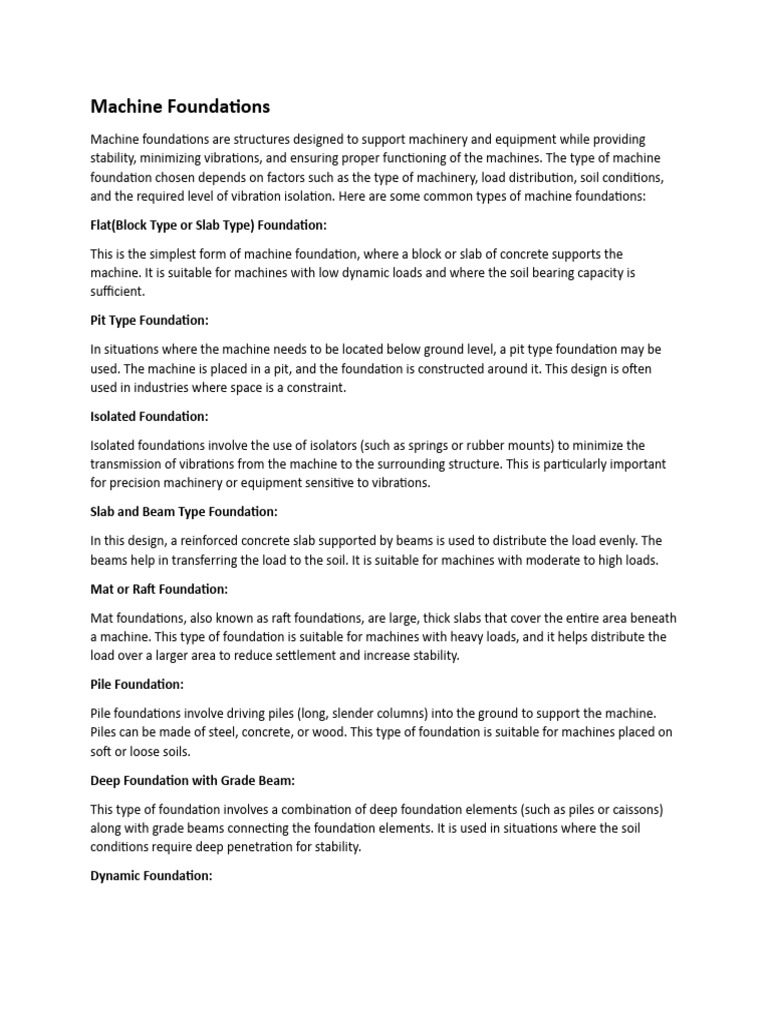

Machine Foundations

Machine foundations are structures designed to support machinery and equipment while providing
stability, minimizing vibrations, and ensuring proper functioning of the machines. The type of machine
foundation chosen depends on factors such as the type of machinery, load distribution, soil conditions,
and the required level of vibration isolation. Here are some common types of machine foundations:

Flat(Block Type or Slab Type) Foundation:

This is the simplest form of machine foundation, where a block or slab of concrete supports the
machine. It is suitable for machines with low dynamic loads and where the soil bearing capacity is
sufficient.

Pit Type Foundation:

In situations where the machine needs to be located below ground level, a pit type foundation may be
used. The machine is placed in a pit, and the foundation is constructed around it. This design is often
used in industries where space is a constraint.

Isolated Foundation:

Isolated foundations involve the use of isolators (such as springs or rubber mounts) to minimize the
transmission of vibrations from the machine to the surrounding structure. This is particularly important
for precision machinery or equipment sensitive to vibrations.

Slab and Beam Type Foundation:

In this design, a reinforced concrete slab supported by beams is used to distribute the load evenly. The
beams help in transferring the load to the soil. It is suitable for machines with moderate to high loads.

Mat or Raft Foundation:

Mat foundations, also known as raft foundations, are large, thick slabs that cover the entire area beneath
a machine. This type of foundation is suitable for machines with heavy loads, and it helps distribute the
load over a larger area to reduce settlement and increase stability.

Pile Foundation:

Pile foundations involve driving piles (long, slender columns) into the ground to support the machine.
Piles can be made of steel, concrete, or wood. This type of foundation is suitable for machines placed on
soft or loose soils.

Deep Foundation with Grade Beam:

This type of foundation involves a combination of deep foundation elements (such as piles or caissons)
along with grade beams connecting the foundation elements. It is used in situations where the soil
conditions require deep penetration for stability.

Dynamic Foundation:
Dynamic foundations are designed to absorb and dissipate dynamic forces generated by the operation of
rotating machinery. They are often used in industries where machines generate significant vibrations.

Vibration Isolation Foundation:

Vibration isolation foundations incorporate damping materials and isolators to minimize the
transmission of vibrations to the surrounding structure. This is crucial for sensitive equipment and
precision machinery.

Requirements of machine foundations

Machine foundations are critical for the proper functioning, stability, and durability of machinery. The
specific requirements of machine foundations depend on various factors, including the type of
machinery, load characteristics, soil conditions, and the surrounding environment. Here are some
essential requirements for designing and constructing machine foundations:

Load-Bearing Capacity:

Determine the load-bearing capacity of the foundation to support the weight of the machinery and any
additional loads, such as dynamic forces during operation.

Soil Investigation:

Conduct a thorough soil investigation to understand the soil profile and its bearing capacity. Different
types of foundations may be required based on soil conditions.

Foundation Type:

Select an appropriate foundation type based on the characteristics of the machinery and soil conditions.
Common types include block foundations, slab foundations, pile foundations, and mat foundations.

Dynamic Analysis:

Perform dynamic analysis to assess the dynamic forces generated during machine operation. This
analysis helps determine the foundation's natural frequency and ensures it does not coincide with the
operating frequency of the machinery, which can lead to resonance.

Isolation Requirements:

If necessary, incorporate isolation measures to minimize the transmission of vibrations from the machine
to the surrounding structure. This is crucial for precision machinery or equipment sensitive to vibrations.

Alignment and Leveling:

Ensure proper alignment and leveling of the machinery on the foundation. Misalignment can lead to
operational issues and increased wear and tear.

Reinforcement:

Provide adequate reinforcement in the foundation to resist stresses and ensure structural integrity.
Reinforcement may include steel bars or mesh.

Concrete Quality:
Use high-quality concrete with the appropriate mix design to achieve the required strength and
durability. Follow local building codes and standards for concrete specifications.

Anchor Bolts and Grouting:

Install anchor bolts securely in the foundation to anchor the machinery. Use proper grouting techniques
to ensure the machinery is securely attached to the foundation.

Clearances and Accessibility:

Ensure adequate clearances around the machinery for maintenance and repair activities. Provide access
for tools and equipment as needed.

Ventilation and Cooling:

Consider ventilation and cooling requirements for the machinery. Adequate airflow around the
equipment is essential to prevent overheating.

Drainage:

Implement proper drainage to prevent water accumulation around the foundation. Water ingress can
affect the stability and integrity of the foundation over time.

Safety Considerations:

Incorporate safety features into the foundation design to protect personnel and equipment. This may
include guardrails, safety barriers, and warning signs.

Compliance with Regulations:

Ensure that the design and construction of the machine foundation comply with local building codes,
regulations, and industry standards.

Documentation and As-Built Drawings:

Maintain detailed documentation, including design drawings and specifications. As-built drawings should
accurately reflect the constructed foundation for future reference.

Quality Control and Inspection:

Implement quality control measures during construction, and conduct thorough inspections to verify
that the foundation meets design requirements and specifications.

Environmental Considerations:

Consider environmental factors such as seismic activity, temperature variations, and exposure to
corrosive substances when designing the foundation.
Machine foundation materials
Machine foundations are typically constructed using a variety of materials, with the choice
depending on factors such as the type of machinery, load characteristics, soil conditions, and
the desired level of vibration isolation. Common materials used in the construction of machine
foundations include:
Concrete:
Concrete is a widely used material for machine foundations due to its strength, durability, and
versatility. It can be used in various forms, including plain concrete, reinforced concrete, and
prestressed concrete. High-strength concrete is often employed for heavy machinery
foundations.
Steel:
Steel is used for reinforcing concrete foundations to enhance their tensile strength and improve
resistance to dynamic loads. Steel bars or mesh can be embedded in the concrete during
construction.
Rubber and Elastomers:
Rubber and elastomeric materials are often used in the construction of foundations for
machinery that requires vibration isolation. These materials help absorb and dampen vibrations,
preventing them from transmitting to the surrounding structure.
Isolators:
Isolators made of materials like neoprene, natural rubber, or other elastomers may be
incorporated into the foundation design to provide additional vibration isolation. These isolators
help decouple the machinery from the surrounding structure.
Steel Fiber Reinforcement:
Steel fibers can be added to the concrete mix to improve its tensile strength and toughness. This
reinforcement enhances the overall performance of the foundation, particularly in resisting
dynamic forces.
Fiberglass Reinforced Plastic (FRP):

FRP materials, such as fiberglass composites, can be used for specific applications where
corrosion resistance is crucial. FRP is lightweight and has good chemical resistance.
Cork and Cork-Rubber Composites:
Cork and cork-rubber composites are sometimes used as vibration isolation materials in
machine foundations. These materials provide damping characteristics and can be effective in
minimizing vibrations.
Viscoelastic Materials:
Viscoelastic polymers, such as Sorbothane, are known for their damping properties. They can be
used to absorb and dissipate vibrational energy in machine foundations, particularly in
applications requiring precision and low vibration levels.
Aggregate Materials:
Aggregates, such as crushed stone or gravel, are commonly used as part of the concrete mix for
foundations. They contribute to the overall strength and density of the concrete.
Polymer Concrete:
Polymer concrete is a type of concrete in which a polymer resin is used as a binding agent. It
offers enhanced durability and chemical resistance compared to traditional concrete.
Epoxy Grouts:
Epoxy grouts are used for anchoring machinery to foundations. They provide high strength and
are resistant to chemical and environmental factors.
Asphalt:
In some cases, asphalt may be used for machine foundations, especially in applications where
damping characteristics are required. Asphalt offers some degree of flexibility and vibration
absorption.

Factors considered in choice of foundation

The choice of machine foundation is a critical decision that involves considering various factors
to ensure the proper functioning, stability, and longevity of machinery. The selection process
depends on the specific characteristics of the machinery, soil conditions, environmental factors,
and the desired level of vibration isolation. Here are key factors to consider when choosing a
machine foundation:
Type of Machinery:
Different types of machinery have varying dynamic loads and operational characteristics.
Consider the size, weight, and dynamic forces generated by the machinery when selecting the
type of foundation.
Load Distribution:
Assess the load distribution of the machinery to determine the appropriate foundation design.
Consider both static and dynamic loads to ensure that the foundation can support the weight
and absorb dynamic forces during operation.
Soil Conditions:
Conduct a thorough soil investigation to understand the soil profile and its bearing capacity.
Different types of foundations are suitable for different soil conditions. Consider factors such as
soil type, bearing capacity, and settlement characteristics.
Dynamic Analysis:
Perform dynamic analysis to evaluate the dynamic forces generated by the machinery during
operation. Ensure that the natural frequency of the foundation does not coincide with the
operating frequency of the machinery, as resonance can lead to instability and increased
vibrations.
Vibration Isolation Requirements:
Determine the level of vibration isolation required for the machinery. Some applications,
especially those involving precision equipment, may necessitate the use of isolators or materials
with damping properties to minimize vibrations transmitted to the surrounding structure.
Environmental Factors:
Consider environmental conditions such as temperature variations, humidity, exposure to
corrosive substances, and seismic activity. Choose materials and foundation designs that can
withstand the specific environmental challenges of the installation site.
Foundation Type:
Select the appropriate foundation type based on the machinery and site conditions. Common
types include block foundations, slab foundations, pile foundations, mat foundations, and deep
foundations. Each type has its advantages and is suited to specific applications.
Cost Considerations:
Evaluate the cost implications of different foundation options, including construction, materials,
and maintenance. Optimize the foundation design to meet performance requirements while
adhering to budget constraints.
Accessibility and Maintenance:
Consider the accessibility of the machinery for installation, maintenance, and repairs. Ensure
that the chosen foundation design allows for convenient access to critical components and
facilitates maintenance activities.
Regulatory Compliance:
Ensure that the chosen foundation design and construction comply with local building codes,
regulations, and industry standards. Adherence to these standards is crucial for safety and legal
compliance.
Equipment Alignment:
Ensure proper alignment of the machinery on the foundation. Misalignment can lead to
operational issues, increased wear and tear, and reduced efficiency.
Future Expansion or Modifications:
Consider the potential for future modifications or expansion of the machinery. Design the
foundation to accommodate changes in equipment configuration or additional loads.
Construction Constraints:
Evaluate any constraints related to the construction process, such as available space,
construction equipment, and logistical considerations. Ensure that the chosen foundation
design is feasible within the given constraints.
Construction Materials:
Choose construction materials based on factors such as strength, durability, and resistance to
environmental conditions. Common materials include concrete, steel, rubber, and other
specialized materials based on the application.
