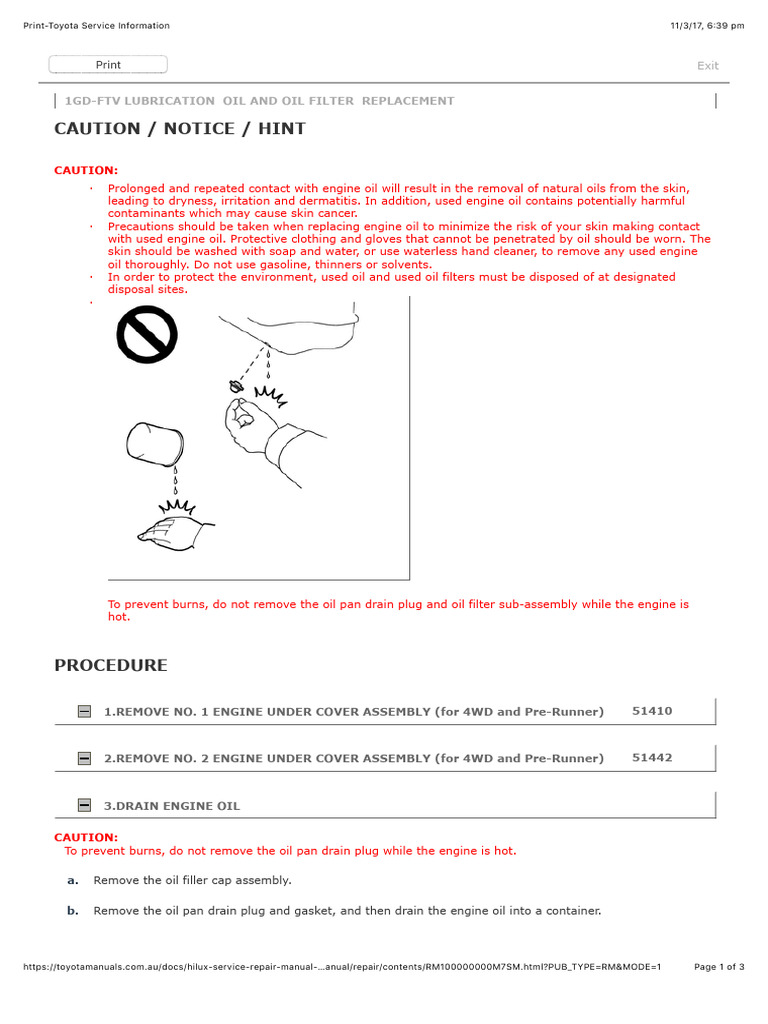

1GD-FTV LUBRICATION OIL AND OIL FILTER REPLACEMENT

CAUTION / NOTICE / HINT

CAUTION:
· Prolonged and repeated contact with engine oil will result in the removal of natural oils from the skin,
leading to dryness, irritation and dermatitis. In addition, used engine oil contains potentially harmful
contaminants which may cause skin cancer.
· Precautions should be taken when replacing engine oil to minimize the risk of your skin making contact
with used engine oil. Protective clothing and gloves that cannot be penetrated by oil should be worn. The
skin should be washed with soap and water, or use waterless hand cleaner, to remove any used engine
oil thoroughly. Do not use gasoline, thinners or solvents.
· In order to protect the environment, used oil and used oil filters must be disposed of at designated
disposal sites.
·

To prevent burns, do not remove the oil pan drain plug and oil filter sub-assembly while the engine is
hot.

PROCEDURE

1.REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY (for 4WD and Pre-Runner) 51410

2.REMOVE NO. 2 ENGINE UNDER COVER ASSEMBLY (for 4WD and Pre-Runner) 51442

3.DRAIN ENGINE OIL

CAUTION:
To prevent burns, do not remove the oil pan drain plug while the engine is hot.

a. Remove the oil filler cap assembly.

b. Remove the oil pan drain plug and gasket, and then drain the engine oil into a container.

https://toyotamanuals.com.au/docs/hilux-service-repair-manual-…anual/repair/contents/RM100000000M7SM.html?PUB_TYPE=RM&MODE=1 Page 1 of 3
Print-Toyota Service Information 11/3/17, 6(39 pm

c. Clean and install a new gasket and the oil pan drain plug.
Torque:
40 N*m (408 kgf*cm, 30 ft.*lbf)

4.REMOVE OIL FILTER SUB-ASSEMBLY 15601

CAUTION:
To prevent burns, do not remove the oil filter sub-assembly while the engine is hot.

a.

Using SST, remove the oil filter sub-assembly.

SST
09228-07501

HINT:
· Before removing the oil filter sub-assembly, place cloth where the oil may splash.
· Use a container to catch the draining engine oil.

5.INSTALL OIL FILTER SUB-ASSEMBLY 15601

a. Check and clean the oil filter sub-assembly installation surface.

b. Apply clean engine oil to the gasket of a new oil filter sub-assembly.

c. Lightly screw the oil filter sub-assembly into place by hand. Tighten it until the gasket contacts the seat.

d.

3/4 Turn

https://toyotamanuals.com.au/docs/hilux-service-repair-manual-…anual/repair/contents/RM100000000M7SM.html?PUB_TYPE=RM&MODE=1 Page 2 of 3
Print-Toyota Service Information 11/3/17, 6(39 pm

Using SST, tighten the oil filter sub-assembly.

SST
09228-07501

i. Depending on the space available, choose from the following.

If enough space is available, use a torque wrench to tighten the oil filter sub-assembly.
Torque:
12 N*m (122 kgf*cm, 9 ft.*lbf)

ii. If enough space is not available to use a torque wrench, tighten the oil filter sub-assembly 3/4 of a turn
by hand or with a common wrench.

6.ADD ENGINE OIL

a. Add new engine oil and install the oil filler cap assembly.
Standard Oil Grade:
Item Oil Grade Oil Viscosity (SAE)
ACEA C2
(Using engine oil other than - 0W-30
w/ DPF
ACEA C2 may damage the - 5W-30
catalytic converter)
- 5W-30
w/o DPF API-CF-4, CF or ACEA B1 - 10W-30
- 15W-40

Standard Capacity:
Item Specified Condition
Drain and refill without oil filter sub-assembly
7.0 liters (7.4 US qts, 6.2 Imp. qts)
change
Drain and refill with oil filter sub-assembly
7.5 liters (7.9 US qts, 6.6 Imp. qts)
change
Dry fill 8.0 liters (8.5 US qts, 7.0 Imp. qts)

7.INSPECT FOR OIL LEAK

a. Start the engine. Make sure that there are no oil leaks from the areas that were worked on.

8.INSPECT ENGINE OIL LEVEL

Click hereEngine / Hybrid System>1GD-FTV LUBRICATION>LUBRICATION SYSTEM>ON-VEHICLE INSPECTION

9.INSTALL NO. 2 ENGINE UNDER COVER ASSEMBLY (for 4WD and Pre-Runner) 51442

Click hereEngine / Hybrid System>1GD-FTV ENGINE MECHANICAL>ENGINE ASSEMBLY>INSTALLATION

10.INSTALL NO. 1 ENGINE UNDER COVER ASSEMBLY (for 4WD and Pre-Runner) 51410

Click hereEngine / Hybrid System>1GD-FTV ENGINE MECHANICAL>ENGINE ASSEMBLY>INSTALLATION
