OTIS- Dwg :

ENGINEERING REM6 (OAD+) ACA26800ARH_SUR

Date : 07/05/2013
OEC-F Page : 1/10

FIM Start Up Routine

Parameter setting and functional Test

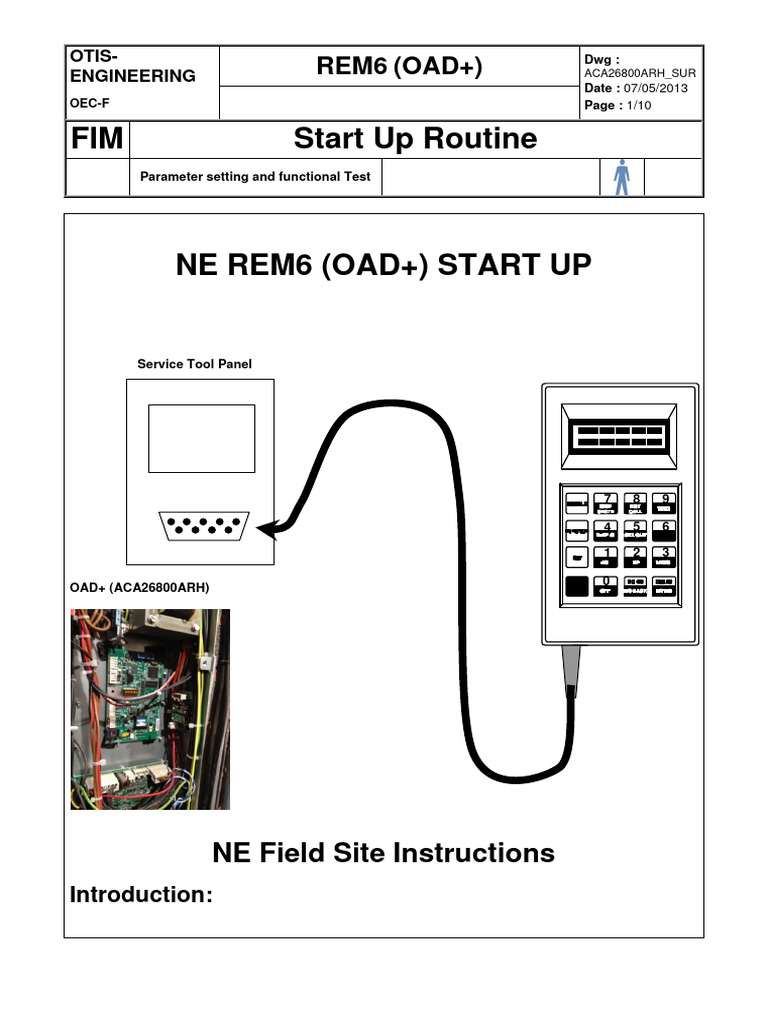

NE REM6 (OAD+) START UP

Service Tool Panel

7 8 9

4 5 6

1 2 3

0
OAD+ (ACA26800ARH)

NE Field Site Instructions

Introduction:
OTIS- Dwg :
ENGINEERING REM6 (OAD+) ACA26800ARH_SUR
Date : 07/05/2013
OEC-F Page : 2/10

FIM Start Up Routine

Parameter setting and functional Test

Target of this manual is to be used for NE and may be for MOD, to facilitate and improve commissioning time.
This should significantly increase reliability and reduce time lost on both sites, com team and field mechanics.

Procedure must be followed during elevator construction where usually phone line is not yet present.

If below procedure is applied then unit configuration from NMS and OL commissioning should be just
a simple routine.

Mechanics can select appropriate configuration, perform all wiring test and functionalities, including EN81 +
self voice test, w/o phone line needs.

There are 2 main steps:

1. Controller REM parameters settings

2. Parameter setting and functional test
OTIS- Dwg :
ENGINEERING REM6 (OAD+) ACA26800ARH_SUR
Date : 07/05/2013
OEC-F Page : 3/10

FIM Start Up Routine

Parameter setting and functional Test

1. Controller REM parameters settings

1.1. Controller installation parameters REMTYPE value check:
6 for CTRL to converter can/RS422 board/OAD using OST DB9 RS422
7 for CTRL to OAD using Group CAN bus
8 for CTRL to OAD using Car CAN bus
9 for CTRL to R5+ using OST DB9 RS422
10 for CTRL to OAD using Car CAN bus and Group CAN bus (LVA-Low Voltage Architecture)

REM ID to match OAD ID (REM id 1 talk to OAD 1, REM id 2 talk to OAD 2, …)

M-1-1-3-1
OTIS- Dwg :
ENGINEERING REM6 (OAD+) ACA26800ARH_SUR
Date : 07/05/2013
OEC-F Page : 4/10

FIM Start Up Routine

Parameter setting and functional Test

1.2. REM6 Address Check Dip Switch Setting

Switch 1 ON

Switch 2-8 OFF

DIP Switch
Item Value Remarks
1 2 3 4 5 6 7 8
ON OFF OFF OFF 1
OFF ON OFF OFF 2
ON ON OFF OFF 3
OFF OFF ON OFF 4
ON OFF ON OFF 5
Binary adress starting from 1 for first
OFF ON ON OFF 6
OAD ID unit.
ON ON ON OFF 7
Do not start at 0 like REM5.
OFF OFF OFF ON 8
ON OFF OFF ON 9
OFF ON OFF ON A
ON ON OFF ON B
OFF OFF ON ON C
ON CAN 250 K
OFF baud Rate 125 K
ON NSAA Mode Only for North American systems
Mode
OFF EN Mode Set to OFF for EN systems
ON ON NA Future use
OFF ON Setting reset Erase Configuration & LOAD Default.
Memory Latest Image & Voice files restore,
access Format
ON OFF need power off / power on operation
lock Flash
to run application
Normal
OFF OFF -
operation
OTIS- Dwg :
ENGINEERING REM6 (OAD+) ACA26800ARH_SUR
Date : 07/05/2013
OEC-F Page : 5/10

FIM Start Up Routine

Parameter setting and functional Test

1.3. REM6 LED’s Status:

LED Indication State Description

HB Health of OAD Toggling with 2 times per Normal heartbeat
second (500msec)
HB Anything else Abnormal Condition
CAN Health of CAN OFF CAN BUS is failing. CAN BUS OFF
bus condition. No other node is detected
on the bus.
CAN Health of CAN ON CAN BUS is working correctly.
bus
CAN Health of CAN Toggling with 4 times per CAN BUS is failing. Usually due to
bus second (250msec) CAN baud rate or CAN_HI/CAN_LO
switched.

HB+CAN Flash Format Flash Formatting is In Dip Switch 8: OFF

(Erase Image2 Progress : Both LED’s DIP Switch 7: ON
and Voice files) toggling alternately with 2
timer per second (500msec)

Flash Formatting
Completed: Both LED’s will
stay ON

Flash Formatting is Failed:

Both LED’s toggling
alternately with 5 timer per
second (200msec)

HB+CAN Erase Both LED’s will remain ON Dip Switch 8: ON

Configuration after completion of erase DIP Switch 7: OFF
and lOAD configuration.
default
HB Phone line Toggle twice per sec Normal state of Telephone Line
status available
HB+CAN Phone line Toggle simultaneously twice In process of connecting/
status per sec disconnecting i.e is if connection state
is dialing/hanging up/ringing
HB Modem status Toggle four times per sec Sequence timeout state
HB Modem status Toggle eight times per sec Call limit state
HB+CAN Modem status Toggle alternately 8 times If connection state is data or voice
per sec mode
OTIS- Dwg :
ENGINEERING REM6 (OAD+) ACA26800ARH_SUR
Date : 07/05/2013
OEC-F Page : 6/10

FIM Start Up Routine

Parameter setting and functional Test

2. Parameter setting and functional test:

Parameter setting:

REM6 unit selection:

HIT HIT HIT

CAN and Node status check:

HIT 1) GOON HIT

2) HIT 4
OTIS- Dwg :
ENGINEERING REM6 (OAD+) ACA26800ARH_SUR
Date : 07/05/2013
OEC-F Page : 7/10

FIM Start Up Routine

Parameter setting and functional Test

1) FUNC 1) FUNC
2) HIT 2 2) HIT 3

Functional test:

REM6 Inputs Outputs Check:

From status hit 6

Status of Alarm Button Push ALB input and output
Or do GO ON.
Trapped passenger status should go from low to
release button and high.
symbols LED’s. Perform the same for TPR
button located on E&I panel.
OTIS- Dwg :
ENGINEERING REM6 (OAD+) ACA26800ARH_SUR
Date : 07/05/2013
OEC-F Page : 8/10

FIM Start Up Routine

Parameter setting and functional Test

Voice hardware test:

HIT HIT

This will test the SPK and Expected result is ‘Passed’.

MIC hardware and wiring. If problem occurs display
By sending some sound shows ‘Failed’.
from SPK to be captured
by MIC.

Be Careful: Test should be

- Passed
- Failed

But, if unit is dialing or

receiving a call, test cannot be
performed.
OTIS- Dwg :
ENGINEERING REM6 (OAD+) ACA26800ARH_SUR
Date : 07/05/2013
OEC-F Page : 9/10

FIM Start Up Routine

Parameter setting and functional Test

EN 81_28 symbols test:

HIT 1) GOON Hit 1 will control Yellow symbol

2) HIT 3 Hit 2 will control Green symbol
Note: voice messages may not be
Menu may display as played loaded onto OAD at this
[3 : Play VM] stage. LEDs will work properly.

If phone line is present then we can also perform dialing and voice from phone to car
test: Dialing and Caller ID

Enter your mobile phone This will display the

HIT number Hit Blue/Enter. caller ID on your Mobile
NOTE: In case of Phone so you can then
international phone call the car using that
number, you must enter phone number (see
only numbers. voice first).
OTIS- Dwg :
ENGINEERING REM6 (OAD+) ACA26800ARH_SUR
Date : 07/05/2013
OEC-F Page : 10/10

FIM Start Up Routine

Parameter setting and functional Test

Voice first call

Using mobile phone call REM6 unit using his phone number after getting a multiple beep response from the
unit.
Push *31# for the first unit, *32# for the second unit and so on.

To stay on line while talking push any phone key every 30 sec.

To hang up properly Push *0#, if no key push unit will hang up automatically after 1 min.

This voice first test will confirm unit is responding correctly to phone calls, and can permit also to test voice
quality
Note: MIC and speak gains can be set using OST, but those settings will be overwrite by NMS.

If all those above steps have been performed correctly, then you can go ahead with country REM
commissioning routines.
