Chapter 2 - Lexical Analysis

Compiler Design

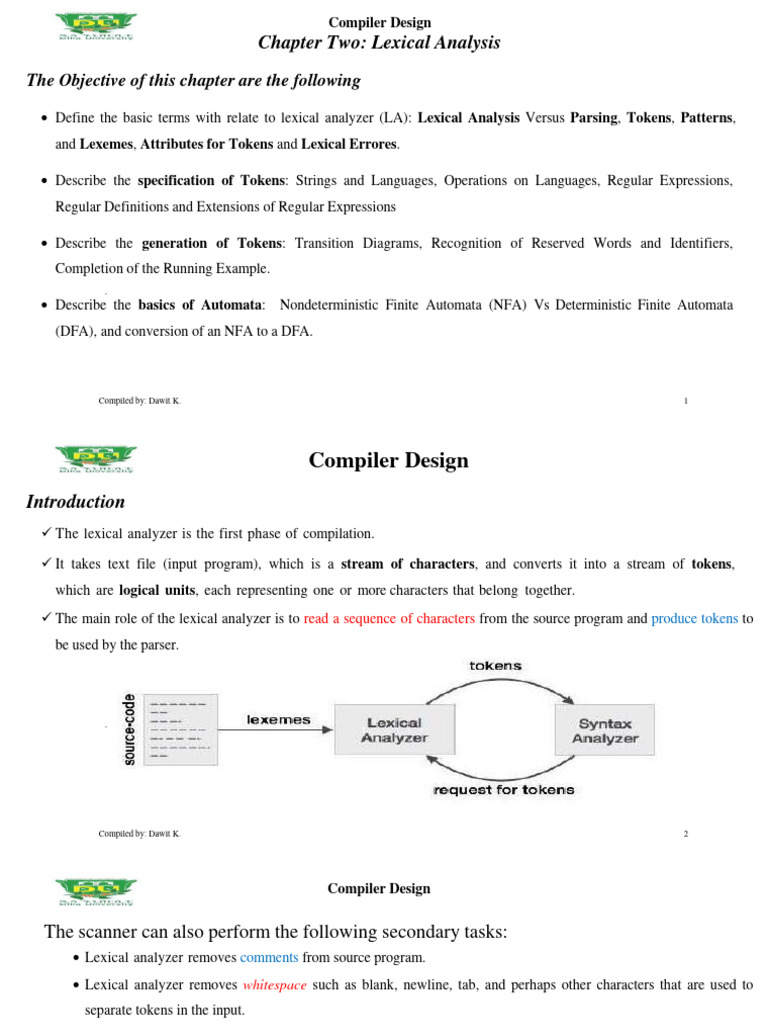

Chapter Two: Lexical Analysis

The Objective of this chapter are the following
 Define the basic terms with relate to lexical analyzer (LA): Lexical Analysis Versus Parsing, Tokens, Patterns,
and Lexemes, Attributes for Tokens and Lexical Errores.
 Describe the specification of Tokens: Strings and Languages, Operations on Languages, Regular Expressions,
Regular Definitions and Extensions of Regular Expressions
 Describe the generation of Tokens: Transition Diagrams, Recognition of Reserved Words and Identifiers,
Completion of the Running Example.
.
 Describe the basics of Automata: Nondeterministic Finite Automata (NFA) Vs Deterministic Finite Automata
(DFA), and conversion of an NFA to a DFA.
Compiled by: Dawit K. 1

Compiler Design
Introduction
 The lexical analyzer is the first phase of compilation.
 It takes text file (input program), which is a stream of characters, and converts it into a stream of tokens,
which are logical units, each representing one or more characters that belong together.
 The main role of the lexical analyzer is to read a sequence of characters from the source program and produce tokens to
be used by the parser.

Compiler Design
The scanner can also perform the following secondary tasks:

 Lexical analyzer removes comments from source program.
 Lexical analyzer removes whitespace such as blank, newline, tab, and perhaps other characters that are used to
separate tokens in the input.
 Correlating error messages generated by the compiler with the source program.
 Keep track of line numbers (that could be used as a reference during error reporting)
 Lexical analyzer generates symbol table that store information about identifiers
Lexical Analysis Vs Parsing

There are a number of reasons why the analysis portion of a compiler is normally separated into lexical analysis and
parsing (syntax analysis) phases:
1. Simplicity of Design: - is the most important consideration that often allows us to simplify compilation tasks.
For example, a parser that had to deal with comments and whitespace as syntactic units would be considerably more
complex than one that can assume comments and whitespace have already been removed by the lexical analyzer.
3
Compiled by: Dawit K.
Compiler Design
 If we are designing a new language, separating lexical and syntactic concerns can lead to a cleaner
overall language design.
2. Compiler efficiency is improved: - A separate lexical analyzer allows us to apply specialized
techniques that serve only the lexical task, not the job of parsing.
 In addition, specialized buffering techniques for reading input characters can speed up the compiler
significantly.
3. Compiler portability is enhanced: - Input-device-specific peculiarities can be restricted to the
lexical analyzer.

Compiler Design
Token, pattern, lexeme

A token is a sequence of characters from the source program having a collective meaning. In general,
a single token can be produced by different sequences of entry.
These sequences follow a certain pattern. Tokens are terminals in the grammar of the source language.
Token could be represented in the form of <token- name, attribute-value>, that it passes on to the
subsequent phase, syntax analysis.
Where, token- name is an abstract symbol that is used during syntax analysis, and attribute-value
(which is optional for some tokens) points to an entry in the symbol table for this token.

Compiler Design
Example 1: {i, sum, a1}

 Identifiers {10, 100, -5}
 Number {+, -}
 Operators
 Keywords
{for, int}
 Separators {;, ,}
A lexeme is a sequence of characters in the source program that is matched by a pattern for a certain
token.
Example: x, distance, count ID
token: Identifier
lexemes: x, distance, count
A pattern is a rule describing the set of lexemes that represent a particular token. Patterns are usually
specified using regular expressions. Ex. [a-zA-Z]* and lexemes matched could be a, ab, count, …
In the case of a keyword as a token, the pattern is just the sequence of characters that form the keyword.
6
Compiler Design
Example 2: The following table shows some tokens and their lexemes in Pascal (a high level, case insensitive
programming language)
Compiled by: Dawit K.. 7

Compiler Design
Attributes of tokens
When more than one pattern matches a lexeme, the scanner must provide additional information about
the particular lexeme to the subsequent phases of the compiler. For example, both 0 and 1 match the
pattern for the token num. But the code generator needs to know which number is recognized.
The lexical analyzer collects information about tokens into their associated attributes. Tokens
influence parsing decisions; the attributes influence the translation of tokens. Practically, a token
has one attribute: a pointer to the symbol table entry in which the information about the token is kept.
The symbol table entry contains various information about the token such as the lexeme, the line
number in which it was first seen, …

Compiler Design
Example 3. x = y + 2
The tokens and their attributes are written as:
<id, pointer to symbol-table entry for x>
<assign_op, >
<id, pointer to symbol-table entry for y>
<plus_op, >
<num, integer value 2>
Errors
Very few errors are detected by the lexical analyzer. For example, if the programmer mistakes wihle for while, the
lexical analyzer cannot detect the error since it will consider wihle as an identifier. Nonetheless, if a certain
sequence of characters follows none of the specified patterns, the lexical analyzer can detect the error.

Compiler Design
i.e. if there is like a ~, , ,  or ? symbol in the source program and no pattern contains those symbols.
Besides, when Lexemes whose length exceed the bound specified by the language is a lexical error and also
unterminated strings or comments is also a type of error detected during lexical analysis.
When an error occurs, the lexical analyzer recovers by:

 skipping (deleting) successive characters from the remaining input until the lexical analyzer
can find a well-formed token (panic mode recovery)
 deleting extraneous characters
 inserting missing characters
 replacing an incorrect character by a correct character
 transposing two adjacent characters
.

Compiler Design
Specifying and recognizing tokens

Regular expressions are an important notation for specifying lexeme patterns. While they cannot
express all possible patterns, they are very effective in specifying those types of patterns that we
actually need for tokens.
 In theory of compilation regular expressions are used to formalize the specification of tokens
 Regular expressions are means for specifying regular languages (patterns of tokens)

Compiler Design
Strings and Languages

An alphabet is any finite set of symbols.
• Typical examples of symbols are letters, digits, and punctuation that is denoted by Ɛ.
 The set {0, 1} is the binary alphabet.

 ASCII is an important example of an alphabet; it is used in many software systems.
 Unicode, which includes approximately 100,000 characters from alphabets around the world, is another important
example of an alphabet.
A string over an alphabet is a finite sequence of symbols drawn from that alphabet.
 In language theory, the terms "sentence" and "word" are often used as synonyms for "string."
 The length of a string S, usually written |S|, is the number of occurrences of symbols in S.
o For example, banana is a string of length six.
 The empty string, denoted Ɛ, is the string of length zero. 12

Compiler Design
A language is any countable set of strings over some fixed alphabet.

 Abstract languages like  , the empty set, or {Ɛ}, the set containing only the empty
string, are languages under this definition.
 So too are the set of all syntactically well-formed java programs and the set of all
grammatically correct English sentences, although the latter two languages are difficult
to specify exactly.
Note that the definition of "language" does not require that any: meaning be described to
the strings in the language.
13

Compiler Design
Terms for Parts of Strings
The following string-related terms are commonly used:
1. A prefix of string S is any string obtained by removing zero or more symbols from the end of S.
 e.g. ban, banana, and Ɛ are prefixes of banana.
2. A suffix of string S is any string obtained by removing zero or more symbols from the beginning of S.
 e.g. nana, banana, and Ɛ are suffixes of banana.
3. A substring of S is obtained by deleting any prefix and any suffix from S.
 e.g. banana, nan, and Ɛ are substrings of banana.
4. The proper prefixes, suffixes, and substrings of a string S are those, prefixes, suffixes, and substrings, respectively, of S that
are not Ɛ or not equal to S itself.
5. A subsequence of S is any string formed by deleting zero or more not necessarily consecutive positions of S.
 e.g. baan is a subsequence of banana.
Let L be the set of letters {A, B , . . . , Z , a, b, . . . , z} and let D be the set of digits {0, 1, . . . 9}.
We may think of L and D in two, essentially equivalent, ways.

Compiler Design
One way is that L and D are, respectively, the alphabets of uppercase and lowercase letters and of digits.
The second way is that L and D are languages, all of whose strings happen to be of length one.
Here are some other languages that can be constructed from languages L and D, using the above operators:
1. L U D is the set of letters and digits - strictly speaking the language with 62 strings of length one, each of
which strings is either one letter or one digit.
2. LD is the set of 520 strings of length two, each consisting of one letter followed by one digit.
3. L4 is the set of all 4-letter strings.
4. L* is the set of all strings of letters, including Ɛ, the empty string.
5. L (L U D)* is the set of all strings of letters and digits beginning with a letter.
6. D+ is the set of all strings of one or more digits.

Regular Expressions
Regular expressions are a powerful string manipulation tool.

Regular Expressions : are used to specify the patters of tokens. Each pattern matches a set of
strings.
Letter € A|B|C|…|Z|a|b|c|…|z the vertical bar means union

e.g. digit € 0|1|…|9
identifier € letter_(letter | digit)* parentheses are used to group sub expressions
Lex provides shortcuts for describing regular expressions in a compact manner.
e.g. [a-z] stands for a|b|c|…|z
[0-9] stands for 0|1|…|9
[abc] stands for a|b|c

Compiler Design
Regular Expressions
Each regular expression is a pattern specifying the form of strings. The regular expressions
are built recursively out of smaller regular expressions, using the following two rules:
R1: - Ɛ is a regular expression, and L(Ɛ) = {Ɛ}, that is, the language whose sole member
is the empty string.
R2: - If a is a symbol in ∑ then a is a regular expression, L(a) = {a}, that is, the language
with one string, of length one, with a in its one position.
Note: - By convention, we use italics for symbols, and boldface for their corresponding
regular expression.
Each regular expression r denotes a language L(r), which is also defined recursively from the
languages denoted by r's sub expressions.
Compiler Design
Regular Expressions
There are four parts to the induction where by larger regular expressions are built from
smaller ones. Suppose r and s are regular expressions denoting languages L(r) and L(s),
respectively.
 (r) |(s) is a regular expression denoting the language L(r) U L(s).
 (r) (s) is a regular expression denoting the language L(r)L (s).
 (r)* is a regular expression denoting (L (r))*.
 (r) is a regular expression denoting L(r).
 This last rule says that we can add additional pairs of parentheses around expressions
without changing the language they denote.
Compiler Design
Regular Expressions
 Regular expressions often contain unnecessary pairs of parentheses.
 We may drop certain pairs of parentheses if we adopt the conventions that:
1. The unary operator * has highest precedence and is left associative.
2. Concatenation has second highest precedence and is left associative.
3. | has lowest precedence and is left associative.
Example: - (a) |((b) *(c)) can be represented by a|b*c. Both expressions denote the set of strings that are
either a single a or are zero or more b' s followed by one c.
A language that can be defined by a regular expression is called a regular set.
If two regular expressions R and S denote the same regular set, we say they are equivalent and write r = s.
For instance, (a|b) = (b|a).

Compiler Design
There are a number of algebraic laws for regular expressions; each law asserts that expressions of two different
forms are equivalent. LAW DESCRIPTION
r|s = s|r | is commutative

r|(s|t) = (r|s)|t |is associative
r(st) = (rs)t Concatenation is associative
r(s|t) = rs|rt;
Concatenation distributes over |
(s|t)r= sr|tr
Ɛr=rƐ=r Ɛ is the identity for concatenation
r* = (r|Ɛ)* Ɛ is guaranteed in a closure
r** = r* * is idempotent
Table: The algebraic laws that hold for arbitrary regular expressions r, s, and t.
20
Compiled by: Dawit K,
Compiler Design
If ∑ is an alphabet of basic symbols, then a regular definition is a sequence of definitions

of the form:
d1  r1
d2  r2
…
dn  rn
Each di is a new symbol, not in ∑ and not the same as any other of the d's, and
Each ri is a regular expression over the alphabet ∑ U {dl, d2,. . . , di -1).
Example 4.
(A) Regular Definition for Java Identifiers
letter A|B|…|Z|a|b|…|z|_
digit 0|1|2|…|9
id  letter_(letter_|digit)*
Compiled by: Dawit K, 21
.
Compiler Design
(B) Regular Definition for unsigned numbers such as 5280, 0.01234, 6.336E4, or 1.89E-4
digit 0|1|2|…|9
digits digit digit*
Optional Fraction  . digits |Ɛ
Optional Exponent (E(+|-|Ɛ) digits )|Ɛ
number  digits optional Fraction optional Exponent
The regular definition is a precise specification for this set of strings.
That is, an optional Fraction is either a decimal point (dot) followed by one or more digits, or it is
missing (the empty string)
An optional Exponent, if not missing, is the letter E followed by an optional + or - sign, followed by one
or more digits. Note that at least one digit must follow the dot, so number does not match 1., but does
match 1.0.

.
Compiler Design
Extensions of Regular Expressions

Many extensions have been added to regular expressions to enhance their ability to specify string patterns.
Here are few notational extensions:
 One or more instances (+): - is a unary postfix operator that represents the positive closure of a regular
expression and its language. That is, if r is a regular expression, then (r)+ denotes the language (L (r)) +.
o The operator + has the same precedence and associativity as the operator *.
o Two useful algebraic laws, r*=r+|Ɛ and r+=rr*=r*r.
 Zero or one instance(?): - r? is equivalent to r|Ɛ, or put another way, L(r?) = L(r) U {Ɛ}.
o The? operator has the same precedence and associativity as * and +.
 Character classes. A regular expression a1|a2|·· ·| an, where the ai's are each symbols of the alphabet, can be replaced by the shorthand [a la2 ··· an].
Example:
[abc] is shorthand for a| b | c, and
[a- z] is shorthand for a |b |c |··· |z.

.
Compiler Design
Using the above short hands, we can rewrite the regular expression for example 4, a and b as follows.
Examples 5
A. Regular Definition for Java Identifiers

id  letter_ (letter | digit)*
letter [A-Za-z_]
digit [0-9]
B. Regular Definition for unsigned numbers such as 5280 , 0.0 1 234, 6. 336E4, or 1. 89E-4
digit [0-9]
digits digit+
number  digits (. digits)? (E [+ -]? digits)?
Recognition of Tokens
 Deals with on how to take the patterns for all the needed tokens and build a piece of code that examines the
input string and finds a prefix that is a lexeme matching one of the patterns.

.
Compiler Design
Recognition of Tokens
1.Starting point is the language grammar to understand the tokens:
stmt  if expr then stmt
| if expr then stmt else stmt
|Ɛ
expr  term relop term
| term
term  id
| number
The terminals of the grammar, which are if, then, else, relop, id, and number, are the
names of tokens as far as the lexical analyzer is concerned. The patterns for these
tokens are described using regular definitions
.
Compiler Design
2. The next step is to formalize the patterns:

digit  [0-9]
digits  digit+
number  digit(.digits)? (E[+-]? Digit)?
letter  [A-Za z_]
id  letter (letter|digit)*
If  if
Then  then
Else  else
Relop  < | > | <= | >= | = | <>
For this language, the lexical analyzer will recognize the keywords i f , then, and else, as well as lexemes that
match the patterns for relop, id, and number.

.
Compiler Design
3. We also need to handle whitespaces:

ws  (blank | tab | newline)+
Transition Diagram
 Transition diagrams have a collection of nodes or circles, called states. Each state represents a
condition that could occur during the process of scanning the input looking for a lexeme that matches one
of several patterns.
 Edges are directed from one state of the transition diagram to another. Each edge is labeled by a
symbol or set of symbols. If we are in some states, s, and the next input symbol is a, we look for an
edge out of states s, labeled by a (and perhaps by other symbols, as well).

.
Compiler Design
If we find such an edge, we advance the forward pointer and enter the state of the transition diagram to
which that edge leads. We shall assume that all our transition diagrams are deterministic, meaning that there
is never more than one edge out of a given state with a given symbol among its labels
Lexemes Token Names Attribute Value

Any ws - -
if if -
then then -
else else -
Any id id Pointer to table entry
Any number number Pointer to table entry
< relop LT
<= relop LE
= relop EQ
<> relop NE
> relop GT
>= relop GE

Table: Tokens, their patterns, and attribute values 28
.
Compiler Design
Some important conventions about transition diagrams are:
 Certain states are said to be accepting, or final. These states indicate that a lexeme has been found,
although the actual lexeme may not consist of all positions between the lexeme Begin and forward
pointers.
 if it is necessary to retract the forward pointer one position (i.e., the lexeme does not include the symbol
that got us to the accepting state), then we shall additionally place a * near that accepting state.
 One state is designated the start state, or initial state; it is indicated by an edge, labeled "start ," entering
from nowhere. The transition diagram always begins in the start state before any input symbols have
been read.
Example: a transition diagram that recognizes the lexemes matching the token relop.

Table: Tokens, their patterns, and attribute values 29
.
Compiler Design
Fig a. Transition diagram for relop

Compiler Design
first input symbol, then among the lexemes that match the pattern for relop
 we can only be looking at <, <>, or <=. First go to state 1, and look at the next character. If it is =, then
we recognize lexeme <=, enter state 2, and return the token relop with attribute LE, the symbolic constant
representing this particular comparison operator.
 If in state 1 the next character is >, then instead we have lexeme <>, and enter state 3 to return an
indication that the not-equals operator has been found.
 On any other character, the lexeme is <, and we enter state 4 to return that information. Note, however,
that state 4 has a * to indicate that we must retract the input one position.
 if in state 0 the first character we see is =, then this one character must be the lexeme. We immediately
return that fact from state 5.

Compiler Design
Fig b. Transition diagram for reserved words and identifiers
Fig c. Transition diagram for unsigned numbers (variable that can hold only positive numbers.)
Fig d. Transition diagram for white spaces where delim represents one or more whitespace characters

Compiler Design
A typical Lexical Analyzer Generator

In this section, we introduce a tool called Lex, or in a more recent implementation Flex, that allows one to
specify a lexical analyzer by specifying regular expressions to describe patterns for tokens.
The input notation for the Lex tool is referred to as the Lex language and the tool itself is the Lex compiler.
The lex compiler transforms the input patterns into a transition diagram and generates code, in a file called
lex . yy . c, that simulates this transition diagram.

Compiler Design
Finite Automata
 The lexical analyzer tools use finite automata, at the heart of the transition, to convert the input program
into a lexical analyzer. These are essentially graphs, like transition diagrams, with a few differences:
1. Finite automata are recognizers; they simply say "yes" or "no" about each possible input string.
2. Finite automata come in two flavors:
 Nondeterministic finite automata (NFA) have no restrictions on the labels of their
edges. A symbol can label several edges out of the same state, and Ɛ, the empty string, is a
possible label.
 Deterministic finite automata (DFA) have, for each state, and for each symbol of its input
alphabet exactly one edge with that symbol leaving that state.

Compiler Design
Finite Automata
 Both deterministic and nondeterministic finite automata are capable of recognizing the same
languages.
In fact these languages are exactly the same languages, called the regular languages, that
regular expressions can describe.
Finite Automata State Graphs

Compiler Design
Example 6: A finite automaton that accepts only “1”
Example 7: A finite automaton accepting any number of 1’s followed by a single 0
1
0
Q: Check that “1110” is accepted but “110…” is not?
Question: What language does this recognize?

1
0
0
1
1

Compiler Design
Nondeterministic Finite Automata (NFA)

 A nondeterministic finite automaton (NFA) consists of:
1. A finite set of states S.
2. A set of input symbols ∑, the input alphabet. We assume that Ɛ, which stands for the empty string, is never a member of ∑.
3. A transition function that gives, for each state, and for each symbol in ∑ U {Ɛ} a set of next states.
4. A state s0 from S that is distinguished as the start state (or initial state).
5. A set of states F, a subset of S, that is distinguished as the accepting states (or final states).
 We can represent either an NFA or DFA by a transition graph, where the nodes are states and the labeled edges represent the
transition function.
o There is an edge labeled a from states s to state t if and only if t is one of the next states for state s and input a.
 This graph is very much like a transition diagram, except:
o The same symbol can label edges from one state to several different states, and
o An edge may be labeled by Ɛ instead of, or in addition to, symbols from the input alphabet.
37
Compiled by: Dawit K..
Compiler Design
An NFA can get into multiple states
Fig. A Nondeterministic Finite Automata
Input: a b a
Rule: NFA accepts if it can get in a final state

Compiler Design
Transition Tables
• We can also represent an NFA by a transition table, whose rows correspond to states, and whose
columns correspond to the input symbols and Ɛ.
 The entry for a given state and input is the value of the transition function applied to those arguments.
 If the transition function has no information about that state-input pair, we put ɸ in the table for the pair.
Example: - The transition table for the NFA on the pervious state graph is represented as:
The transition table has the advantage that we can easily find the transitions on a given state and input.
Its disadvantage is that it takes a lot of space, when the input alphabet is large, yet most states do not have
any moves on most of the input symbols.
Compiler Design
Acceptance of Input Strings by Automata

 An NFA accepts input string x if and only if there is some path in the transition graph from the start
state to one of the accepting (Final) states, such that the symbols along the path spell out x.
o Note that Ɛ labels along the path are effectively ignored, since the empty string does not contribute
to the string constructed along the path.
Example:- Strings aaba and bbbba are accepted by the above NFA in page 38.
 The language defined (or accepted) by an NFA is the set of strings labeling some path from the start to
an accepting state.
o As was mentioned above, the NFA of page 38 defines the same language as does the regular
expression (a|b)* ba, that is, all strings from the alphabet {a, b} that end in ba.
o We may use L(A) to stand for the language accepted by automaton A.
Compiler Design
Deterministic Finite Automata (DFA)

 A deterministic finite automaton (DFA) is a special case of an NFA where:
o There are no moves on input Ɛ, and
o For each state S and input symbol a, there is exactly one edge out of s labeled a.
 If we are using a transition table to represent a DFA, then each entry is a single state.
o we may therefore represent this state without the curly braces that we use to form sets.
 While the NFA is an abstract representation of an algorithm to recognize the strings of a certain
language, the DFA is a simple, concrete algorithm for recognizing strings.
41
Compiler Design
Deterministic Finite Automata (DFA)

 It is fortunate indeed that every regular expression and every NFA can be converted to a DFA accepting the same
language, because it is the DFA that we really implement or simulate when building lexical analyzers.
 DFA recognize strings: - When a string is fed into a DFA, if the DFA recognizes the string, it accepts the string
otherwise it rejects the string.
 A DFA is a collection of states and transitions: - Given the input string, the transitions tell us how to move among
the states.
o One of the states is denoted as the initial state, and a subset of the states are final states.
o We start from the initial state, move from state to state via the transitions, and check to see if we are in the final
state when we have checked each character in the string.
o If we are, then the string is accepted, otherwise, the string is rejected
42
Compiler Design
 A DFA is a quintuple, a machine with five parameters, M = (Q, ∑, δ, q0, F), where
o Q is a finite set of states
o ∑ is a finite set called the alphabet
o δ is a total function from (Q x ∑) to Q known as transition function (a function that takes a state and a
symbol as inputs and returns a state)
o q0 an elements of Q is the start state, and
o F is subset of Q called final state
Example
A DFA that can accept the strings which begin with a or b, or begin with c and contain at most one a.
2)
A DFA accepting (a|b) * abb

Compiler Design
Conversion of an NFA to a DFA
 The general idea behind the subset construction is that each state of the constructed DFA corresponds to a
set of NFA states.
 After reading input al, a2, . . ., an, the DFA is in that state which corresponds to the set of states that the NFA can reach, from its start state, following paths
labeled al a2 . . . an.
 It is possible that the number of DFA states is exponential in the number of NFA states,
which could lead to difficulties when we try to implement this DFA. However, part of the power of the
automaton-based approach to lexical analysis is that for real languages, the NFA and DFA have
approximately the same number of states, and the exponential behavior is not seen.

Compiler Design
Review Exercises
Note: attempt all questions individually.
Submit your answer on dawitkassahun1979@gmail.com Due date: April 13, 2024 G.C.
1. Consult the language reference manuals to determine
A. The sets of characters that form the input alphabet (excluding those that may only appear in character strings or comments),
B. The lexical form of numerical constants, and
C. The lexical form of identifiers, for C++ and java programming languages.
2. Describe the languages denoted by the following regular expressions:
A. a(a|b)* a
B. ((Ɛ|a)b * )*
C. (a|b) *a (a|b) (a|b)
D. a* ba*ba*ba*.
E. (aa|bb) * ((ab |ba) (aa| bb) * (ab|b a) (aa|bb )*)*
3. Write regular definitions for the following languages:
A. All strings of lowercase letters that contain the five vowels in order.
B. All strings of lowercase letters in which the letters are in ascending lexicographic order.
C. All strings of binary digits with no repeated digit s.
D. All strings of binary digits with at most one repeated digit.
E. All strings of a ' s and b’s where every a is preceded by b.
F. All strings of a 's and b's that contain substring abab.
4. Design finite automata (deterministic or nondeterministic) for each of the languages of question 3.
5. Give the transition tables for the following NFA

Chapter 2 - Lexical Analysis

Uploaded by

Document Information

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

Chapter 2 - Lexical Analysis

Uploaded by

Copyright:

Available Formats

Compiler Design

Chapter Two: Lexical Analysis

Compiled by: Dawit K. 1

Compiled by: Dawit K. 2

The scanner can also perform the following secondary tasks:

Lexical Analysis Vs Parsing

Compiled by: Dawit K. 4

Token, pattern, lexeme

Compiled by: Dawit K. 5

Example 1: {i, sum, a1}

Compiled by: Dawit K.. 7

Compiled by: Dawit K.. 8

Compiled by: Dawit K.. 9

When an error occurs, the lexical analyzer recovers by:

Compiled by: Dawit K.. 10

Specifying and recognizing tokens

Compiled by: Dawit K.. 11

Strings and Languages

 The set {0, 1} is the binary alphabet.

Compiled by: Dawit K.

A language is any countable set of strings over some fixed alphabet.

Compiled by: Dawit K.

Compiled by: Dawit K. 14

Compiled by: Dawit K. 7

Regular expressions are a powerful string manipulation tool.

Letter € A|B|C|…|Z|a|b|c|…|z the vertical bar means union

Compiled by: Dawit K.. 7

Compiled by: Dawit K.. 7

r|s = s|r | is commutative

If ∑ is an alphabet of basic symbols, then a regular definition is a sequence of definitions

Compiled by: Dawit K, 22

Extensions of Regular Expressions

Compiled by: Dawit K, 23

A. Regular Definition for Java Identifiers

Compiled by: Dawit K, 24

2. The next step is to formalize the patterns:

Compiled by: Dawit K, 26

3. We also need to handle whitespaces:

Compiled by: Dawit K, 27

Lexemes Token Names Attribute Value

Compiled by: Dawit K,

Compiled by: Dawit K,

Fig a. Transition diagram for relop

Compiled by: Dawit K. 31

Fig b. Transition diagram for reserved words and identifiers

Compiled by: Dawit K. 32

A typical Lexical Analyzer Generator

Compiled by: Dawit K. 33

Compiled by: Dawit K.. 34

Compiled by: Dawit K.. 35

Example 6: A finite automaton that accepts only “1”

Example 7: A finite automaton accepting any number of 1’s followed by a single 0

Question: What language does this recognize?

Compiled by: Dawit K.. 36

Nondeterministic Finite Automata (NFA)

An NFA can get into multiple states

Fig. A Nondeterministic Finite Automata

Compiled by: Dawit K.. 38

Acceptance of Input Strings by Automata

Deterministic Finite Automata (DFA)

Deterministic Finite Automata (DFA)

A DFA accepting (a|b) * abb

Conversion of an NFA to a DFA

Compiled by: Dawit K.. 44
