PROJECT:

MEGA LIFT IRRIGATION PROJECT LOWER SUKTEL


GOVERNMENT OF ODISHA

DOC TITLE: DESIGN & DRAWINGS OF 33/6.9kV -LSIP

P. CODE: 0 DOC NO: LCLSP-3245-CIVIL 01

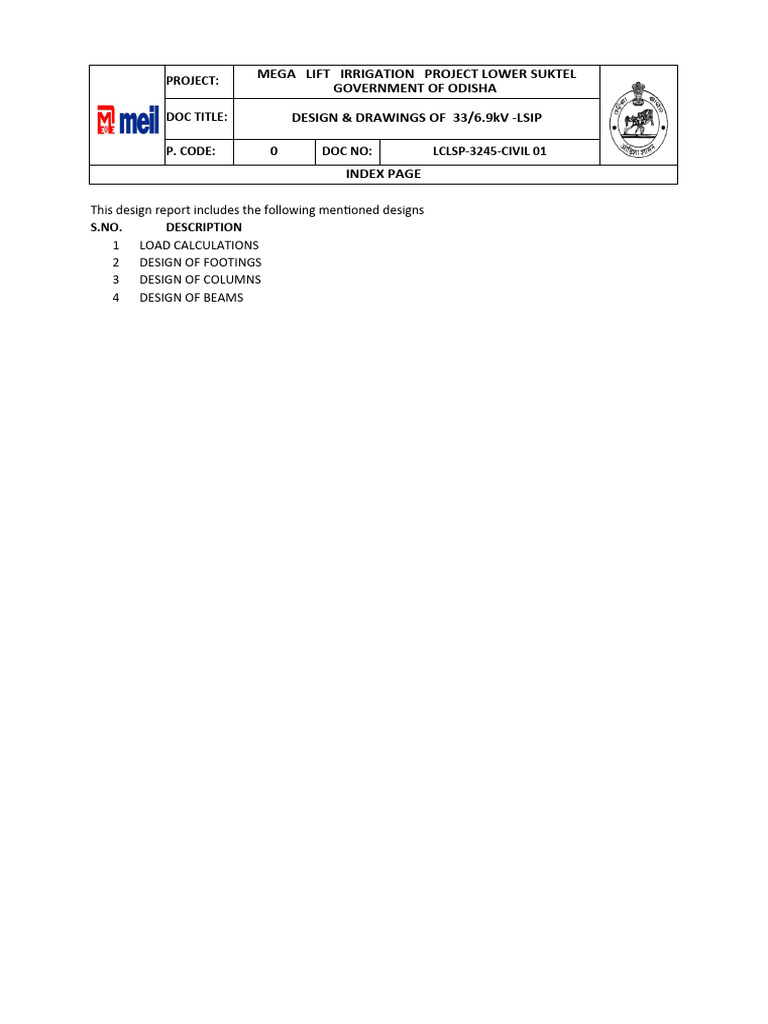

INDEX PAGE

This design report includes the following mentioned designs


S.NO. DESCRIPTION
1 LOAD CALCULATIONS
2 DESIGN OF FOOTINGS
3 DESIGN OF COLUMNS
4 DESIGN OF BEAMS
PROJECT:
MEGA LIFT IRRIGATION PROJECT LOWER SUKTEL
GOVERNMENT OF ODISHA

DOC TITLE: DESIGN & DRAWINGS OF 33/6.9kV -LSIP

P. CODE: 0 DOC NO: LCLSP-3245-CIVIL 01

Introduction
General:
This document is design & drawings of 33/6.6kV MSDSS-FEEDING TO CHAMPADEIPUR
Total Structure is in RCC ,It is modelled in STAAD and Analysed.
Design & Drawings of Raft ,walls , strut columns for approval.

Material Specifications for Design Purpose:


a) Grade of Concrete M25
b) Grade of Steel - TMT Fe 500

Reference Codes:
a) IS:456-2000-Code of Practice for plain and reinforced concrete
b) SP: 16 : Design Aids for reinforced concrete to IS 456
c) SP: 34-1987 : Hand Book on Concrete Reinforcement and Detailing.
Reference Documents and Drawings:
1.SLD:- MLICL 18 - 3243-E&M MSDSS-03-1
2.SLD:- MLICL 18 - 3243-E&M MSDSS-03-15
Soil Properties:
Allowable Bearing Capacity Considered for design
: 65.9 kN/m2 at 3.00m depth from NGL.
Software Reference:
STAAD-Pro V8i, Bently Systems, Inc.
The above software package is renowned and well used & accepted internationally
for similar type of structural analysis. STAAD.Pro V8i (SELECT series 5)
Design Philosophy:
All the components foundation ,pedestal, Raft , column and beams
are designed as per limit state method of design as per IS:456-2000.
PROJECT:
MEGA LIFT IRRIGATION PROJECT LOWER SUKTEL
GOVERNMENT OF ODISHA

DOC TITLE: DESIGN & DRAWINGS OF 33/6.9kV -LSIP

P. CODE: DOC NO: LCLSP-3245-CIVIL 01

1.0 Level Details


Bottom of Foundation BOF = +203.000 m
Natural Ground Level NGL = +204.500 m
Finished Ground Level FGL = +207.500 m

2.0 Material properties


Charecteristic Strength of concrete fck = 25 N/sqmm
Yield strength of steel fy = 415 N/sqmm

3.0 Material Density


Unit weight of water = 10 kN/cum
Unit weight of RCC = 25 kN/cum
Unit weigh tof PCC = 24 kN/cum
Satuatrated Weight of soil = 21 kN/cum
Submerged Weight of soil = 11 kN/cum
Dry wieght of soil = 18 kN/cum
Structural Steel = 78.5 kN/cum
Surcharge Load = 25.2 kN/sqm
Unit weight of Brick = 20 kN/sqm

4.0 Clear Cover to Reinforcement


Raft = 60 mm
Pedestals/Columns = 50 mm
beam = 25 mm

5.0 Seismic loads


Load case are EQ in +X,+Z directions in STAAD
Seismic parameters as per IS 1893 -2016 -part1
Zone factor = 0.1 Zone II
Importance factor = 1.5
Response reduction factor = 3
Foundation soil type = 2
Damping percentage = 5

6.0 Wind Loads


Basic Wind Speed, Vb = 44 m/sec
Risk Coefficient, k1 (for 100 years) = 1.06
Terrain, Height, Structure size factor, k2 = 1.09 Terrain Category-I
Topography factor, k3 = 1
Importance factor k4 = 1.15
Design Wind Speed , VZ = 58.46 m/sec
Design Wind Pressure , Pz = 2.05 kN/sqm
at 10m = 2.051
7.0 Dead Load
Self weight of structure will be accounted in the STAADPRO it self.

Brick wall load applied on firewall


Thickness of wall = 0.23 m
i. Height of wall = 2m
= 0.23*2*20 = 9.2 kN/m

ii. Height of wall = 1.7 m


= 0.23*1.7*20 = 7.82 kN/m

Saturated Soil Pressure out side with surcharge


Depth of foundation From NGL = 4.65 kN/sqm
Load on raft projection = 97.65 kN/sqm
Surcharge pressure = 8.316 kN/sqm

8.0 Live Load

F1-4 leg
load of insulator on beam (assumed) = 4 kN
load of insulator on column (assumed) = 2 kN

F2-6 leg
load of insulator on beam (assumed) = 4 kN
load of insulator on column (assumed) = 2 kN

F3-2 leg
load of insulator on beam (assumed) = 4 kN
load of insulator on column (assumed) = 2 kN

F4
load of insulator on beam/column (assumed) = 5 kN

F5 - Firewall

F6
Weight of vcb = 4.5 kN
load of VCB on column each column = 1.5 kN

F7
load of transformer = 50 kN

Settlement in Subgrade Modulus


Description SBC (kN/m2) Factor of safety
(mm) (kN/m2/m)
Raft 65.9 53.38 2.5 3086.36193330835
( as per SBC report)

The above loads are applied on the Staad model and analysis is done using STAAD Pro soft ware. Based on the
analysis results, The design footings , beams & columns are designed.
