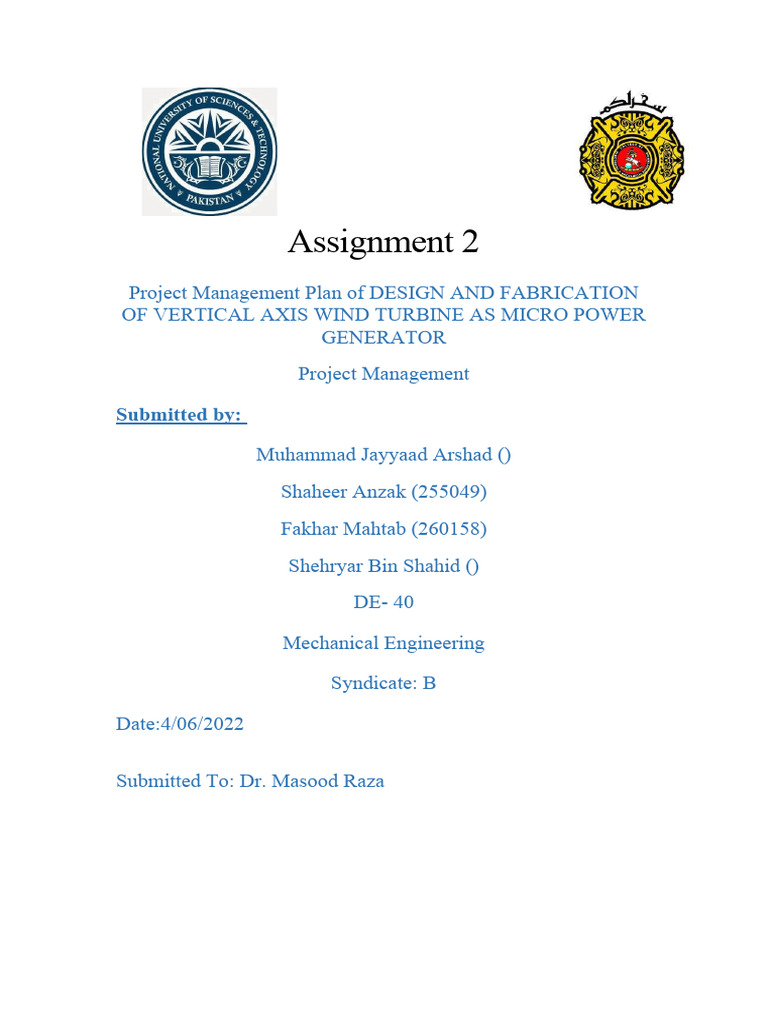

Assignment 2

Project Management Plan of DESIGN AND FABRICATION

OF VERTICAL AXIS WIND TURBINE AS MICRO POWER
GENERATOR
Project Management

Submitted by:

Muhammad Jayyaad Arshad ()

Shaheer Anzak (255049)
Fakhar Mahtab (260158)
Shehryar Bin Shahid ()
DE- 40

Mechanical Engineering

Syndicate: B

Date:4/06/2022

Submitted To: Dr. Masood Raza

FYP: DESIGN AND FABRICATION OF VERTICAL AXIS
WIND TURBINE AS MICRO POWER GENERATOR
Project Scope Management:
In project management, scope is the defined features and functions of a product, or the
scope of work needed to finish a project. Scope involves getting information required
to start a project, including the features the product needs to meet its stakeholders'
requirements.

1. Project Scope:
PROJECT OBJECTIVE
To construct a small scale H Type Darius Vertical Axis Wind Turbine using the
blades of Alouette Helicopter for micro power generator within 9 months at not to
exceed 40 thousands rupees.
DELIVERABLES
 Design of Vertical Axis Wind Turbine on Q blade software
 3 D model on CREO Parametric.
 To achieve power of 15 W on Matlab
 3 bladed wind turbine having rotor of radius of 0.5 m.
 Pulleys and belts system for electricity generation
MILESTONES
 Planning and market visit___20 November 2021
 Literature Review ____1 December 2021
 MATLAB Code and Q blade Stimulation____15 January 2022
 CAD Modelling____20 February 2022
 Fabrication and Assembly ____ 30 April 2022
 Testing ____ 30 May 2022
TECHNICAL REQUIREMENTS
 Motor capacity of 15 W for electric power generation.
 203 mm aluminum pulley and 50 mm steel pulley to transfer torque.
 Cube base of length 457.2 mm angle Iron as a base.
 Steel guy wires to be attached to prevent vibration and topper over in the shaft.
 Thrust bearing 25 mm ID and 52 mm OD to transfer the weight of rotating
shaft onto the stationary shaft.
 Nuts and bolts of 12.7 mm for joining blades on rotor.
 Mild steel stationary shaft of 1524 length and 76.2 diameter for supporting the
weigth of rotor.
 Galvanized iron rotating steel 2133 length and 19.04 diameter for transfering
torque from rotor to motor.
 NACA 0021 of 140 mm chord length of tail rotor of Aloutte Helicopter.
LIMITS AND EXCLUSIONS
 Limiting speed of bearing is 13 thousand rpm with the basis dynamic load
rating of 13.2 KN and fatigue load limit of 3.45 KN.
 Design for the wind speed of 4.5 m/s and above.
 Simulations and calculations do not account for wake expansion and yaw.
 BEMT does not account for tip losses, though correction factors are included
but they do not achieve exact results.
 Calculations are based on steady flow and they do not account for turbulence.
 This project is based on assumption that flow is inviscid and incompressible.

2. Work Breakdown Structure (WBS):

Zoom In View
 Project Schedule Management:
Schedule Management
A document that contains the details how a project's schedule will be created,
implemented, managed, and monitored. Typically, a schedule management plan
includes information about the scheduling methodology that will guide the project and
any relevant information about scheduling tools or processes.

Activity diagram
An activity diagram depicts the sequence of activities and their
relationship with one and other which gives an overall pictue of projects total duration
and the mean critical path of project.

1. Project Schedule and Precedence Relationship:

Activity Description Predecessor Duration
A Research of - 30
various
configuration
B Market survey for A 10
fabrication
process
C Market survey for A 13
parts available
D Selection of base B&C 4
design
E Modelling parts D 14
on CAD
F Assembling parts E 6
on CAD
G Making F 4
improvements in
CAD design
H Analysis on Q- G 13
Blade for
optimum blades
I Analysis on Q- H 12
Blade for
optimum rotor
radius
J Structural analysis I 20
on Ansys
K Applying BEMT J 10
using MATLAB
L Any changes and k 4
improvement in
analysis
M Material purchase L 5
for base structure
N Buying the M 3
bearings
O Buying the shaft M 3
P Arrange airfoils M 5
 Q Buying electrical M 3
components
R Fabricate the N,O,P &Q 4
base
S Fabricating the R 3
mounting Disc
T Fabricate airfoil S 3
mounts
U Attach bearing to T 1
shaft
V Attach shaft to U 1
base
W Attach pulley and V 1
generator
X Attach airfoil to V 2
mounts
Y Paint the X&W 2
assembly
Z Test turbines with Y 10
fans
a Make Z 6
improvements for
self-starting
b Test the turbine a 8
on field
c Make necessary b 15
improvements
d Retest the turbine c 10
on the field

2. Activity Network Diagram:

 ZOOM IN VIEW:

Critical Path:
ACDEFGHIJKLMPRSTUVXYZabcd
Having a duration of 205 days
3. GANTT chart:
