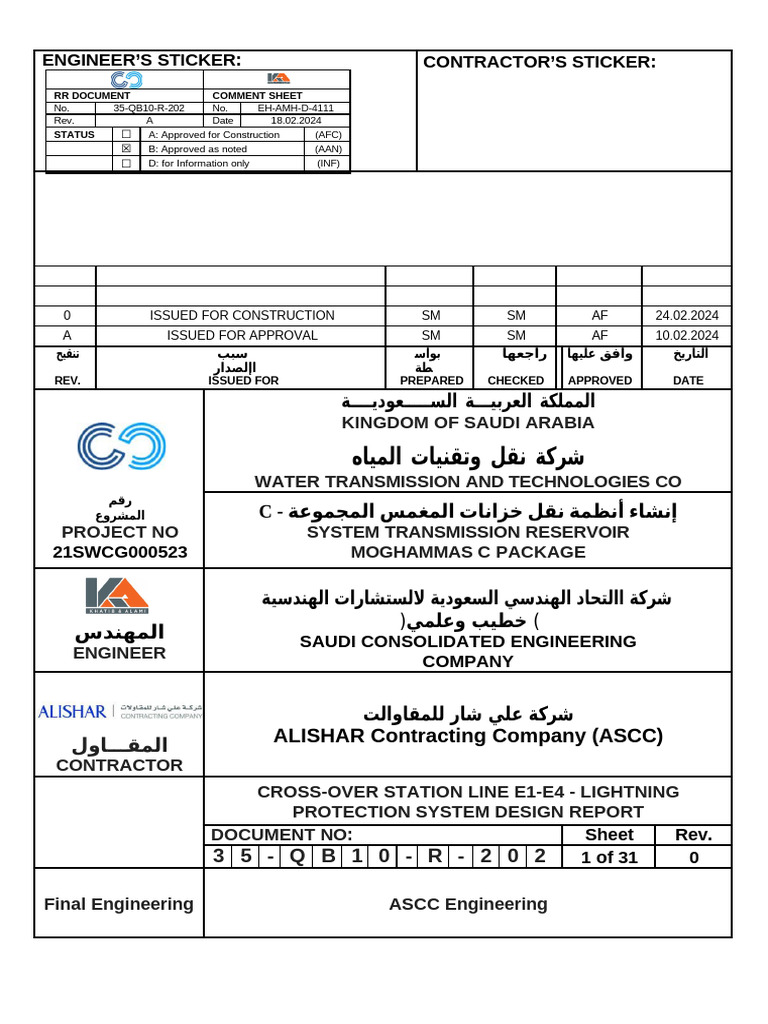

ENGINEER’S STICKER: CONTRACTOR’S STICKER:

RR DOCUMENT COMMENT SHEET

No. 35-QB10-R-202 No. EH-AMH-D-4111
Rev. A Date 18.02.2024
STATUS ☐ A: Approved for Construction (AFC)
☒ B: Approved as noted (AAN)
☐ D: for Information only (INF)

0 ISSUED FOR CONSTRUCTION SM SM AF 24.02.2024

A ISSUED FOR APPROVAL SM SM AF 10.02.2024
‫تنقيح‬ ‫سبب‬ ‫بواس‬ ‫راجعها‬ ‫وافق عليها‬ ‫التاريخ‬
‫اإلصدار‬ ‫طة‬
REV. ISSUED FOR PREPARED CHECKED APPROVED DATE

‫المملكة العربيـــة الســـــعوديــــة‬

KINGDOM OF SAUDI ARABIA

‫شركة نقل وتقنيات المياه‬

WATER TRANSMISSION AND TECHNOLOGIES CO
‫رقم‬
‫المشروع‬ C - ‫إنشاء أنظمة نقل خزانات المغمس المجموعة‬
PROJECT NO SYSTEM TRANSMISSION RESERVOIR
21SWCG000523 MOGHAMMAS C PACKAGE

‫شركة االتحاد الهندسي السعودية اللستشارات الهندسية‬

(‫) خطيب وعلمي‬
‫المهندس‬ SAUDI CONSOLIDATED ENGINEERING
ENGINEER COMPANY

‫شركة علي شار للمقاوالت‬

ALISHAR Contracting Company (ASCC)
‫المقـــاول‬
CONTRACTOR
CROSS-OVER STATION LINE E1-E4 - LIGHTNING
PROTECTION SYSTEM DESIGN REPORT
DOCUMENT NO: Sheet Rev.
3 5 - Q B 1 0 - R - 2 0 2 1 of 31 0

Final Engineering ASCC Engineering

 KINGDOM OF SAUDI ARABIA Page: 2 of 31
Water Transmission and Technologies Co.
Document Number
MOGHAMMAS RESERVOIR TRANSMISSION SYSTEM PACKAGE C

CROSS-OVER STATION LINE E1-E4 - LIGHTNING PROTECTION SYSTEM

Subject: DESIGN REPORT
35-QB10-R-202

Rev. A 0
Revisio

Index

First
Issue
n

Date 10.02.2024. 24.02.2024

TABLE OF CONTENTS
1 INTRODUCTION...................................................................................6
1.1 Project description..............................................................................6
1.2 Scope of Report..................................................................................6
2 REFERENCE DOCUMENTS, CODES AND STANDARDS...............................7
2.1 Documents.........................................................................................7
2.2 Codes and Standards...........................................................................7
3 LIGHTNING PROTECTION SYSTEM REQUIREMENTS.................................8
4 CHARACTERISTICS OF LIGHTNING STROKE............................................9
4.1 ELECTRICAL EFFECTS...........................................................................9
4.2 FLASHOVERS......................................................................................9
4.3 MECHANICAL EFFECTS.........................................................................9
5 LIGHTNING PROTECTION REQUIREMENT CRITERIA...............................10
5.1 METHODOLOGY.................................................................................10
5.2 PROTECTED STRUCTURE ASSESSMENT................................................10
5.3 NEED FOR PROTECTION & ESTIMATION OF RISK EXPOSURE.................10
6 CLASS OF LIGHTNING PROTECTION SYSTEM........................................14
7 LIGHTNING PROTECTIVE SYSTEM DESIGN............................................16
7.1 LIGHTNING PROTECTIVE SYSTEM COMPONENTS..................................16
7.2 AIR TERMINATIONS............................................................................16
7.3 DOWN CONDUCTORS & ROUTE OF DOWN CONDUCTORS......................19
DOWN CONDUCTORS........................................................................................... 19
ROUTE OF DOWN CONDUCTORS..........................................................................20
7.4 EARTH TERMINATIONS SYSTEM..........................................................21
7.5 LIGHTNING PROTECTION SYSTEM MATERIALS.....................................21
7.6 Inadmissibly Short Distances.............................................................22
8 TESTS............................................................................................... 23
9 DOCUMENTATION..............................................................................24
10 RESULT.............................................................................................25
10.1 ELECTRICAL ROOM.............................................................................26
10.2 WM & OM BUILDING...........................................................................29

Final Engineering Contractor Subcontractor

 ALISHAR ENGINEERING ALISHAR Contracting Company

KINGDOM OF SAUDI ARABIA Page: 3 of 31

Water Transmission and Technologies Co.
Document Number
MOGHAMMAS RESERVOIR TRANSMISSION SYSTEM PACKAGE C

CROSS-OVER STATION LINE E1-E4 - LIGHTNING PROTECTION SYSTEM

Subject: DESIGN REPORT
35-QB10-R-202

Rev. A 0
Revisio

Index

First
Issue
n

Date 10.02.2024. 24.02.2024

LIST OF TABLES
Table 1: Documents used for the design...............................................................................7
Table 2: Standards used for the design................................................................................7
Table 3 : Saudi Arabia Thunderstorm Days table as per local PME......................................13
Table 4: Lightning Protection Level......................................................................................14
Table 5: Lightning Protection methods................................................................................18
Table 6: Typical Distances Between Down Conductors........................................................19
Table 7 : Lightning Protection System Layout and Details...................................................25

Final Engineering Contractor Subcontractor

ALISHAR ENGINEERING ALISHAR Contracting Company

KINGDOM OF SAUDI ARABIA Page: 4 of 31

Water Transmission and Technologies Co.
Document Number
MOGHAMMAS RESERVOIR TRANSMISSION SYSTEM PACKAGE C

CROSS-OVER STATION LINE E1-E4 - LIGHTNING PROTECTION SYSTEM

Subject: DESIGN REPORT
35-QB10-R-202
 Rev. A 0
Revisio

Index
First
Issue
n

Date 10.02.2024. 24.02.2024

ABREVIATIONS
AC Alternating Current
BS British Standards
Cu Copper
EN European Standard
ERT Earthing Resistivity Test
GPR Ground Potential Rise
IEC International Electrotechnical Commission
IEEE Institute of Electrical and Electronics Engineers
PB Lead
PVC Polyvinyl Chloride
SEC Saudi Electricity Company
St/tZn Hot Dip Galvanized Steel
WM & OM Water Metering & Online
Monitoring WQM Water Quality Monitoring
WTS Water Transition System
PME Presidency of Meteorology and Environment

Final Engineering Contractor Subcontractor

ALISHAR ENGINEERING ALISHAR Contracting Company
 KINGDOM OF SAUDI ARABIA
Page: 5 of 31
Water Transmission and Technologies Co.

MOGHAMMAS RESERVOIR TRANSMISSION SYSTEM PACKAGE C Document Number

CROSS-OVER STATION LINE E1-E4 - LIGHTNING PROTECTION

Subject: SYSTEM DESIGN REPORT 35-QB10-R-202
Revision

Rev. A 0
Index

First
Issue
Date 10.02.2024. 24.02.2024

LOCATIONS
CROSS-OVER LINE E1- CROSS-OVER STATION LINE
E4 E1-E4

UNITS
⁰C Celsius
Ω.m Ohm per meter
kA Kilo Ampere
kV Kilo Volt
MVA Mega Volt Ampere
m meter
mm millimeters
s second

Final Engineering Contractor Subcontractor

ALISHAR ENGINEERING ALISHAR Contracting Company
 KINGDOM OF SAUDI ARABIA Page: 6 of 31
Water Transmission and Technologies Co.
Document Number
MOGHAMMAS RESERVOIR TRANSMISSION SYSTEM PACKAGE C

CROSS-OVER STATION LINE E1-E4 - LIGHTNING PROTECTION SYSTEM

Subject: DESIGN REPORT
35-QB10-R-202

Rev. A 0
Revisio

Index

First
Issue
n

Date 10.02.2024. 24.02.2024

1 INTRODUCTION
1.1 Project description

The purpose of the “AL MOGHAMMAS RESERVOIR TRANSMISSION SYSTEM PACKAGE C”

Project is to store potable water produced at the new Rabigh desalination plant
and transported via the new Rabigh - Jeddah / Makkah WTS (RJMWTS) as well as
potable water produced at the Shoaiba desalination and transported via the
Shoaiba – Mina
Line A and B (SMWTS-A/B) and to supply it via three (3) city feeder lines to the holy
City of Makkah.
In case of an interruption in water supply to the Al-Moghammas Strategic Water
Reservoir and Arafat Tanks from above-described sources, emergency water supply
from Taif shall be possible by operating the ATWTS in reverse direction. For this
purpose, several pipelines, tie-in-stations, and extension of existing structures is
required.

1.2 Scope of Report

This design report covers assessment of lightning protection required for various
buildings and structures within CROSS-OVER STATION LINE E1-E4.
The design report covers selection and sizing of various components of the lightning
protection including discussion of design criteria and design considerations for
various structures based mainly on IEC 62305 entitled” Protection against
Lightning” which is a replacement for NFPA-78 standard and supplemented by
applicable clauses of BS 6651.
This design report is applicable to following buildings / structures
 ELECTRICAL ROOM
 WM & OM Building
Steel framed building no need to added down conductors, the frame work itself
Providing efficient natural network of many paths to earth.

Final Engineering Contractor Subcontractor

ALISHAR ENGINEERING ALISHAR Contracting Company
 KINGDOM OF SAUDI ARABIA
Page: 7 of 31
Water Transmission and Technologies Co.

MOGHAMMAS RESERVOIR TRANSMISSION SYSTEM PACKAGE C Document Number

CROSS-OVER STATION LINE E1-E4 - LIGHTNING PROTECTION

Subject: SYSTEM DESIGN REPORT 35-QB10-R-202
Revision

Rev. A 0
Index

First
Issue
Date 10.02.2024. 24.02.2024

2 REFERENCE DOCUMENTS, CODES AND STANDARDS

2.1 Documents

Table 1: Documents used for the design

Number Document/Drawing Title

E01 Design and Construction of Power

[D1] QC10-H-081_E01
Supply Systems.
[D2] QC10-H-093_E13 E13 Earthing and Lightning Protection.
[D3] QA10-G-4026 G02, Scope of Work
KDOCS-574-PD- SWCC – Makkah Strategic Water
[D4]
S04- SOW- Reservoir, Scope of Work
0001_P02
2.2 Codes and Standards

Table 2: Standards used for the design

Number Document Title

[S1] BS EN/IEC 62305 Protection against lightning

[S2] NFPA-78 Guide on Electrical Inspections
Protection against lightning –
[S3] IEC 62305-2 2010
Part 2: Risk management
Protection against lightning –
[S4] IEC 62305-1 2010
Part 1: General principles
Protection against lightning –
[S5] IEC 62305-3 2010 Part 3: Physical damage to structures
and life hazard

Protection against lightning –

[S6] IEC 62305-4 2010 Part 4: Electrical and electronic
systems within structures
Security Directives for Industrial
[S7] SEC-02
Facilities, Security Fences System
IEEE TRANSACTIONS SWCC – Makkah Strategic Water
[S8] ON POWER DELIVERY, Reservoir, Scope of Work
VOL. 21, NO. 3, JULY
2006

Final Engineering Contractor Subcontractor

ALISHAR ENGINEERING ALISHAR Contracting Company
 KINGDOM OF SAUDI ARABIA Page: 8 of 31
Water Transmission and Technologies Co.
Document Number
MOGHAMMAS RESERVOIR TRANSMISSION SYSTEM PACKAGE C

CROSS-OVER STATION LINE E1-E4 - LIGHTNING PROTECTION SYSTEM

Subject: DESIGN REPORT
35-QB10-R-202

Rev. A 0
Revisio

Index

First
Issue
n

Date 10.02.2024. 24.02.2024

3 LIGHTNING PROTECTION SYSTEM REQUIREMENTS

The lightning protection conductors shall be capable of attracting to themselves all
lightning strokes which in their absence may strike within the protective zone of the
lightning protective conductors.
The path between air terminations and earth shall be such that the lightning current
is discharged to earth without passing through non-conducting parts of the building
and without causing fire, flash over and dangerous potential differences in or
around the structure.

Final Engineering Contractor Subcontractor

ALISHAR ENGINEERING ALISHAR Contracting Company
 KINGDOM OF SAUDI ARABIA Page: 9 of 31
Water Transmission and Technologies Co.
Document Number
MOGHAMMAS RESERVOIR TRANSMISSION SYSTEM PACKAGE C

CROSS-OVER STATION LINE E1-E4 - LIGHTNING PROTECTION SYSTEM

Subject: DESIGN REPORT
35-QB10-R-202

Rev. A 0
Revisio

Index

First
Issue
n

Date 10.02.2024. 24.02.2024

4 CHARACTERISTICS OF LIGHTNING STROKE

4.1 ELECTRICAL EFFECTS

The lightning current when discharged through a resistance of the earth electrode,
it produces a resistive voltage drop which momentarily raises the potential of the
protective system and also high voltage gradient around the electrode.
4.2 FLASHOVERS

The point of strike may rise to very high potential causing flash over to nearby
metals. This flash over is a risk to occupants.
4.3 MECHANICAL EFFECTS

When high currents flow through a conductor or structure considerable mechanical

forces are produced. These mechanical forces try to damage the conductor /
structure.

Final Engineering Contractor Subcontractor

ALISHAR ENGINEERING ALISHAR Contracting Company
 KINGDOM OF SAUDI ARABIA Page: 10 of 31
Water Transmission and Technologies Co.
Document Number
MOGHAMMAS RESERVOIR TRANSMISSION SYSTEM PACKAGE C

CROSS-OVER STATION LINE E1-E4 - LIGHTNING PROTECTION SYSTEM

Subject: DESIGN REPORT
35-QB10-R-202

Rev. A 0
Revisio

Index

First
Issue
n

Date 10.02.2024. 24.02.2024

5 LIGHTNING PROTECTION REQUIREMENT CRITERIA

5.1 METHODOLOGY

The report specifies the required Lightning Protection System (LPS) class with the
use of FURSE STRIKE Risk Assessment Calculator tool for each of the structures
under scope, by means of evaluating the risk of a lightning strike and the probability
of damages in accordance with IEC 62305-2 standard” Protection against Lightning
– Part 2: Risk Assessment”
5.2 PROTECTED STRUCTURE ASSESSMENT

The area to be protected shall be determined by the assessment of:

 Plan of roof of each floor level.
 Plan of building / structure at the ground level.
 Front, side and sectional views of structure/building.
 Position of cable, conduits, metal pipes, vertically continuous recess etc.

5.3 NEED FOR PROTECTION & ESTIMATION OF RISK EXPOSURE

The requirement of lightning protection for any building/structure shall be assessed

by calculation of exposure risk probability based on due weightage given to various
overriding considerations.
The need of protection depends on number of factors such as:
 Where large number of people
 Where essential public services are concerned
 Where the area is one in which lightning is prevalent
 Where there are very tall or isolated structures.
 Where there are structures of high importance.
The probability of a structure or building being struck by lightning in any one year is
the product of the “lightning flash density” and the “effective collection area” of the
structure.
The lightning flash density, Ng, is the number of flashes to ground per square
kilometer per year.
Values of Ng vary significantly; estimates of the average annual density calculated
from the correlation between the number of thunderstorm days per annum and the
flash density. This can be expressed thus

Final Engineering Contractor Subcontractor

ALISHAR ENGINEERING ALISHAR Contracting Company
 KINGDOM OF SAUDI ARABIA
Page: 11 of 31
Water Transmission and Technologies Co.

MOGHAMMAS RESERVOIR TRANSMISSION SYSTEM PACKAGE C Document Number

CROSS-OVER STATION LINE E1-E4 - LIGHTNING PROTECTION

Subject: SYSTEM DESIGN REPORT 35-QB10-R-202
Revision

Rev. A 0
Index

First
Issue
Date 10.02.2024. 24.02.2024

𝑁𝑔 = 0.04 𝑥
𝑇𝐷1.25
Where:
𝑇𝐷 is the number of thunderstorm days per
year

BS EN 62305-2 Annex A approximates this relationship, for temperate regions, to:

𝑁𝑔 = 0.1 𝑥 𝑇𝐷
Data regarding environmental Influences include the number of
Thunderstorm days and Environmental and Location factors.
The area of the station is characterized as Rural Area, as it is at least more
than 1km away from the nearest distribution node. The structures studied
are part of the Reservoir station and are generally considered either lower
than their nearby structures or similar in height.
Data about the number of thunderstorm days per year are extracted from
[Table 3] for the Makkah Area to be 20. Based on these data the Annual
Ground Flash Density is calculated around 1.7. A value of 2 is used in the
calculations

Final Engineering Contractor Subcontractor

ALISHAR ENGINEERING ALISHAR Contracting Company
 KINGDOM OF SAUDI ARABIA Page: 12 of 31
Water Transmission and Technologies Co.
Document Number
MOGHAMMAS RESERVOIR TRANSMISSION SYSTEM PACKAGE C

CROSS-OVER STATION LINE E1-E4 - LIGHTNING PROTECTION SYSTEM

Subject: DESIGN REPORT
35-QB10-R-202

Rev. A 0
Revisio

Index

First
Issue
n

Date 10.02.2024. 24.02.2024

Figure 1 : Isokeraunic map data for KSA

Final Engineering Contractor Subcontractor

ALISHAR ENGINEERING ALISHAR Contracting Company
 KINGDOM OF SAUDI ARABIA Page: 13 of 31
Water Transmission and Technologies Co.
Document Number
MOGHAMMAS RESERVOIR TRANSMISSION SYSTEM PACKAGE C

CROSS-OVER STATION LINE E1-E4 - LIGHTNING PROTECTION SYSTEM

Subject: DESIGN REPORT
35-QB10-R-202

Rev. A 0
Revisio

Index

First
Issue
n

Date 10.02.2024. 24.02.2024

Table 3 : Saudi Arabia Thunderstorm Days table as per local PME

Final Engineering Contractor Subcontractor

ALISHAR ENGINEERING ALISHAR Contracting Company
 KINGDOM OF SAUDI ARABIA Page: 14 of 31
Water Transmission and Technologies Co.
Document Number
MOGHAMMAS RESERVOIR TRANSMISSION SYSTEM PACKAGE C

CROSS-OVER STATION LINE E1-E4 - LIGHTNING PROTECTION SYSTEM

Subject: DESIGN REPORT
35-QB10-R-202

Rev. A 0
Revisio

Index

First
Issue
n

Date 10.02.2024. 24.02.2024

6 CLASS OF LIGHTNING PROTECTION SYSTEM

The class of lightning protection system (LPS) shall be determined by the
characteristics of the structure to be protected and by the considered lightning
protection level.
Four classes of LPS (I to IV) are defined in IEC 62305-3 corresponding to lightning
protection levels summarized below as per Table 1 of IEC 62305-1.
Table 4: Lightning Protection Level
LPL (LP Level) Class of LPS
I I
II II
III III
IV IV
The selection of LPS class shall be based on Table 5 of IEC
62305-1. Where: -
Class I covers for maximum first short stroke peak current of 200 kA and where
class II covers for maximum stroke peak current of supplemented 150 kA.
Class I requirements will be more onerous in terms of air termination conductors or
lowest rolling sphere radius thereby giving the highest coverage.
Class of LPS for each building should be determined in each case, according with
calculations.
Buildings shall be provided with mesh-type collector lines. The collectors have to be
configured in a way such that no point of the roof is at a distance of more than 5 m
from a collector.
The dimension of the meshes should be according with the calculations for each
building and installation. And According to SWCC standard specification QC10-H-093
E13 clause
5.4 The maximum permitted mesh size is as follows:
 buildings with telecommunication or control rooms 10 x 10 m
 Other buildings 10 x 20 m
Protruding roof superstructures, such as ladders, chimney stacks, pipes, antenna
mounting brackets, etc. and other metallic parts of buildings which are located near
the roof (e.g. louvers of ventilation openings) must be directly connected to the
collector lines
Each class of LPS is characterized by the following.
 Lightning parameters as per Tables 3 and 4 in IEC 62305-1.

Final Engineering Contractor Subcontractor

ALISHAR ENGINEERING ALISHAR Contracting Company
 KINGDOM OF SAUDI ARABIA Page: 15 of 31
Water Transmission and Technologies Co.
Document Number
MOGHAMMAS RESERVOIR TRANSMISSION SYSTEM PACKAGE C

CROSS-OVER STATION LINE E1-E4 - LIGHTNING PROTECTION SYSTEM

Subject: DESIGN REPORT
35-QB10-R-202

Rev. A 0
Revisio

Index

First
Issue
n

Date 10.02.2024. 24.02.2024

 Rolling sphere radius, mesh size and protection angle as per clause
5.2.2 of IEC 62305-3
 Typical distances between down-conductors as per clause 5.2.3 of
IEC 62305- 3.

Final Engineering Contractor Subcontractor

ALISHAR ENGINEERING ALISHAR Contracting Company
 KINGDOM OF SAUDI ARABIA Page: 16 of 31
Water Transmission and Technologies Co.
Document Number
MOGHAMMAS RESERVOIR TRANSMISSION SYSTEM PACKAGE C

CROSS-OVER STATION LINE E1-E4 - LIGHTNING PROTECTION SYSTEM

Subject: DESIGN REPORT
35-QB10-R-202

Rev. A 0
Revisio

Index

First
Issue
n

Date 10.02.2024. 24.02.2024

7 LIGHTNING PROTECTIVE SYSTEM

DESIGN
7.1 LIGHTNING PROTECTIVE SYSTEM
COMPONENTS

The lightning protection system comprises following components: -

 Air terminations
 Down conductors
 Joints and bonds
 Earth terminations
As per SWCC standard specification QC10-H-093 E13 clause 5.1 The lightning
system consists of collector rods (air terminals), collector lines and down conductors
from hot dip galvanized round iron (St/tZn, ø10mm) and the necessary fixing,
connection and termination elements.
The layout and design of lightning protection systems for building extensions or new
buildings and structures provided within existing station areas shall match the
existing design.
All connections between the different parts of lightning protection systems and the
connections to the earthing system must be performed in a manner such that the
arising of chemical elements will be avoided
7.2 AIR TERMINATIONS

The probability of structure penetration by a lightning current is considerably

decreased by the presence of a properly designed air-termination system.
The air termination network shall consist of vertical and horizontal conductors or
combination of following elements: -
 Rods (including free-standing masts);
 Meshed conductors
Collector rods shall be used for roof superstructures featuring mechanically or
electrically operated equipment, such as ventilators and non-conductive parts
projecting from the mesh plane by 0.3 m. The angle of protection and a certain
minimum distance have to be observed.
The horizontal air termination shall run along the periphery of the roof so as to
protect the corners and edges which are more likely to attract lightning strikes.
Metal cladding, metal roof structures, metal storage tanks, metal components of
roof structures, gutters and railings may be considered as natural components of
collectors.
Final Engineering Contractor Subcontractor
ALISHAR ENGINEERING ALISHAR Contracting Company
 KINGDOM OF SAUDI ARABIA Page: 17 of 31
Water Transmission and Technologies Co.
Document Number
MOGHAMMAS RESERVOIR TRANSMISSION SYSTEM PACKAGE C

CROSS-OVER STATION LINE E1-E4 - LIGHTNING PROTECTION SYSTEM

Subject: DESIGN REPORT
35-QB10-R-202

Rev. A 0
Revisio

Index

First
Issue
n

Date 10.02.2024. 24.02.2024

Outdoor electrical facilities for HVAC or other purposes not located in the protective
area of earthed structures, installations or buildings, including exposed electrical
equipment shall be protected by collectors.
Buildings with sheet metal roofs where the thickness of the sheet is smaller as the
required value, the collector mesh must be equipped with collector rods of sufficient
quantity and length to avoid lightning strokes in the Sheetmetal.
Air-termination systems shall be positioned in accordance with clauses 5.2.2 & 5.2.3
of IEC 62305-3.
Air-termination components shall be installed in accordance with one or more of the
following methods.
 The protection angle method;
 The rolling sphere method;
 The mesh method.
Although the rolling sphere method is suitable in all cases

Figure 2: Rolling sphere method for

building
The values for the protection angle, rolling sphere radius and mesh size for each
class of LPS shall be as summarized below in line with Table 2 of IEC 62305-3.

Final Engineering Contractor Subcontractor

ALISHAR ENGINEERING ALISHAR Contracting Company
 KINGDOM OF SAUDI ARABIA Page: 18 of 31
Water Transmission and Technologies Co.
Document Number
MOGHAMMAS RESERVOIR TRANSMISSION SYSTEM PACKAGE C

CROSS-OVER STATION LINE E1-E4 - LIGHTNING PROTECTION SYSTEM

Subject: DESIGN REPORT
35-QB10-R-202

Rev. A 0
Revisio

Index

First
Issue
n

Date 10.02.2024. 24.02.2024

Table 5: Lightning Protection methods

Protection Method
Class of Rolling Mesh size W
LPS Protection angle
Sphere in m
α°
radius r in
m
I 20 5x5
As per f i g u r e 3
II 30 10 x 10 w h i c h part of
III 45 15 x 15 Clause 5.2.2 of
IEC 62305-3
IV 60 20 x 20

Figure 3: Angle Protection Method

Protruding roof superstructures, such as ladders, chimney stacks, pipes, antenna

mounting brackets, etc. and other metallic parts of buildings which are located near
the roof (e.g. louvers of ventilation openings) must be directly connected to the
collector lines.
Metal cladding, metal roof structures, metal components of roof structures, gutters and
railings shall be considered as natural components of collectors and connected to
lightning system.

Final Engineering Contractor Subcontractor

 ALISHAR ENGINEERING ALISHAR Contracting Company

KINGDOM OF SAUDI ARABIA Page: 19 of 31

Water Transmission and Technologies Co.
Document Number
MOGHAMMAS RESERVOIR TRANSMISSION SYSTEM PACKAGE C

CROSS-OVER STATION LINE E1-E4 - LIGHTNING PROTECTION SYSTEM

Subject: DESIGN REPORT
35-QB10-R-202

Rev. A 0
Revisio

Index

First
Issue
n

Date 10.02.2024. 24.02.2024

7.3 DOWN CONDUCTORS & ROUTE OF DOWN CONDUCTORS

DOWN CONDUCTORS

In order to reduce the probability of damage due to lightning current flowing in the
LPS, the down-conductors shall be arranged in following manner from the point of
strike to earth:
 Several parallel current paths exist;
 The length of the current paths is kept to a minimum;
 Equipotential bonding to conducting parts of the structure is performed
according to the requirements of Clause 6.2 of IEC 62305-3.
Lateral connection of down-conductors at ground level and every 10 m to 20 m of
height, shall be provided in accordance with Table 4 of IEC 62305-3 as summarized
below: -
Table 6: Typical Distances Between Down Conductors

Typical Distances Between down

CLASS OF LPS
conductors in m
I 10
II 10
III 15
IV 20
For buildings in CROSS-OVER STATION LINE E1-E4 according with QC10-H-E13 the
number of down conductors and the minimum distance between the conductors is
given as follows:
a) Buildings containing telecommunication and control systems
 minimum number of conductors: 4
 maximum distance between conductors: 10 m
b) Other buildings
 minimum number of conductors: 2
 maximum distance between conductors: 20 m
Down conductor network shall be routed from the air termination to the earth grid
Starting from the corners of the structure involved, conductors should be distributed
around the exterior as evenly as possible. They must be configured in such a way as
to constitute the direct continuation of the collector. The minimum distance
between conductors and doors, windows and other apertures must be 0.5 m.

Final Engineering Contractor Subcontractor

 ALISHAR ENGINEERING ALISHAR Contracting Company

KINGDOM OF SAUDI ARABIA Page: 20 of 31

Water Transmission and Technologies Co.
Document Number
MOGHAMMAS RESERVOIR TRANSMISSION SYSTEM PACKAGE C

CROSS-OVER STATION LINE E1-E4 - LIGHTNING PROTECTION SYSTEM

Subject: DESIGN REPORT
35-QB10-R-202

Rev. A 0
Revisio

Index

First
Issue
n

Date 10.02.2024. 24.02.2024

If not already connected with the collectors or with the internal potential
equalization, larger metal parts mounted in/on the building outer walls (e.g. frames
of doors, ventilation louvers) shall be terminated on the down conductors.
The whole of lightning protective system should have combined resistance to earth
not exceeding 10 ohms.
The function of down conductor is to provide low impedance path from the air
termination to the earth electrode so that the lightning current can be safely
conducted to earth.
Steel framed building might need no added down conductors, the frame work itself
providing efficient natural network of many paths to earth.
In line with IEC 62305-3, the positioning of LPS down conductors for non-isolated
LPS (as applicable to buildings in PS-NJB JUBAIL shall be as follows:
 For each non-isolated LPS the number of down-conductors shall be not less
than two and shall be distributed around the perimeter of the structure to be
protected, subject to architectural and practical constraints.
 Equal spacing of the down-conductors around the perimeter.

ROUTE OF DOWN CONDUCTORS

Following considerations shall apply:

 Unless aesthetic or architectural considerations prohibit, down conductors
shall be uniformly distributed around the outside walls of the
buildings/enclosures.
 The paths between the air terminations and earth terminations shall be as
direct as possible and shall avoid sharp bends, upturns and kinks.
 No deep re-entrant loop, in which length of the conductor forming the loop is
more than 8 times the width of the open side of the loop, shall be adopted. This
is avoided to prevent large inductive voltage drop across the open side of the
loop.
 In a building cantilevered from first storey onwards, the down conductors shall
not follow the contour of the building.
 Holes in cornice or parapet walls shall be used for passage of down
conductors, wherever possible.
 The minimum distance between down conductors and doors, windows and
other apertures must be 0.5 m.
 All down conductors which are connected to the earthing system must be
provided with an accessible isolating point for measuring purposes.

Final Engineering Contractor Subcontractor

 ALISHAR ENGINEERING ALISHAR Contracting Company

KINGDOM OF SAUDI ARABIA Page: 21 of 31

Water Transmission and Technologies Co.
Document Number
MOGHAMMAS RESERVOIR TRANSMISSION SYSTEM PACKAGE C

CROSS-OVER STATION LINE E1-E4 - LIGHTNING PROTECTION SYSTEM

Subject: DESIGN REPORT
35-QB10-R-202

Rev. A 0
Revisio

Index

First
Issue
n

Date 10.02.2024. 24.02.2024

7.4 EARTH TERMINATIONS SYSTEM

Following considerations shall apply as per IEC 62305-3 clause 5.4.

For dispersion of the lightning current (high frequency behavior) into the ground,
whilst minimizing any potentially dangerous over-voltages, the shape and
dimensions of the earth-termination system are important.
In this respect, a low earthing resistance less than 10 Ω shall be achieved in lightning
protection,
A single integrated structure earth-termination system (i.e. lightning protection,
power systems and telecommunication systems) shall be provided as this is
considered acceptable in line with IEC 62305-3. In this respect IEC 62305-3 clause
5.4.1 states that “a single integrated structure earth-termination system is
preferable and is suitable for all purposes.
Earth-termination systems shall be bonded in accordance with the requirements of
clause no 6.2 of IEC 62305-3. Equipotentiallization shall be achieved by
interconnecting the LPS with structural metal parts, metal installations, internal
systems, external conductive parts and lines connected to the structure. The
interconnecting means shall be achieved by bonding conductors, where the
electrical continuity is not provided by natural bonding.
As per SWCC standard specification QC10-H-093 E13 the earthing grid resistance
shall be less than 1 Ω which less than the required 10 Ω for lighting protection
system
accordingly, the lightning and earthing system can be integrated in both sites. And
the lightning systems are to be connected with the earthing system via the
grounding bars at outside of the building.
7.5 LIGHTNING PROTECTION SYSTEM MATERIALS

As per SWCC standard specification QC10-H-093 E13 clause 5.1 the lightning
system consists of
 Collector rods (air terminals),
 Collector lines
 Down conductors
All above mentioned components shall be from hot dip galvanized round iron (St/tZn
ø10mm) with the necessary fixing, connection and termination elements.

Final Engineering Contractor Subcontractor

 ALISHAR ENGINEERING ALISHAR Contracting Company

KINGDOM OF SAUDI ARABIA Page: 22 of 31

Water Transmission and Technologies Co.
Document Number
MOGHAMMAS RESERVOIR TRANSMISSION SYSTEM PACKAGE C

CROSS-OVER STATION LINE E1-E4 - LIGHTNING PROTECTION SYSTEM

Subject: DESIGN REPORT
35-QB10-R-202

Rev. A 0
Revisio

Index

First
Issue
n

Date 10.02.2024. 24.02.2024

7.6 Inadmissibly Short Distances

Inadmissibly short distances between the lightning protection system and metal
installations or electrical equipment shall be prevented. In the event of potential
hazard due to flash-over or disruptive discharge caused by lightning, appropriate
measures shall be taken.
Admissible distances between lightning protection systems and metal installations,
electrical wiring and equipment shall be determined in compliance with the
standards. This also applies to the use of special roof-mounted collectors

Final Engineering Contractor Subcontractor

 ALISHAR ENGINEERING ALISHAR Contracting Company

KINGDOM OF SAUDI ARABIA Page: 23 of 31

Water Transmission and Technologies Co.
Document Number
MOGHAMMAS RESERVOIR TRANSMISSION SYSTEM PACKAGE C

CROSS-OVER STATION LINE E1-E4 - LIGHTNING PROTECTION SYSTEM

Subject: DESIGN REPORT
35-QB10-R-202

Rev. A 0
Revisio

Index

First
Issue
n

Date 10.02.2024. 24.02.2024

8 TESTS
After erection of the earthing and lightning protection system, all installations shall be
tested in accordance with applicable regulations.
The following tests shall be carried out, at least:
 measures against corrosion protection and arising of chemical elements,
 check of all connections,
 measurements of earthing system resistance,
 measurements of lightning protection system conductivity,
 check of mechanical details,
 compliance with specifications.
The aim of the tests is to ensure the proper function of the complete scope.

Final Engineering Contractor Subcontractor

 ALISHAR ENGINEERING ALISHAR Contracting Company

KINGDOM OF SAUDI ARABIA Page: 24 of 31

Water Transmission and Technologies Co.
Document Number
MOGHAMMAS RESERVOIR TRANSMISSION SYSTEM PACKAGE C

CROSS-OVER STATION LINE E1-E4 - LIGHTNING PROTECTION SYSTEM

Subject: DESIGN REPORT
35-QB10-R-202

Rev. A 0
Revisio

Index

First
Issue
n

Date 10.02.2024. 24.02.2024

9 DOCUMENTATION
The documentation shall be in English language.
The final documentation of earthing and lightning protection system shall at least
include the following documents and drawings (minimum requirements):
a) Technical data sheets,
b) Layout drawings,
c) Circuit diagrams,
d) Construction drawings,
e) Calculation of earthing system,
f) List of used devices with manufacturer,
g) Spare parts list,
h) Operation and maintenance manuals,
i) Reports of tests with protocols.
The documents listed above shall be handed over for approval.

Final Engineering Contractor Subcontractor

 ALISHAR ENGINEERING ALISHAR Contracting Company

KINGDOM OF SAUDI ARABIA Page: 25 of 31

Water Transmission and Technologies Co.
Document Number
MOGHAMMAS RESERVOIR TRANSMISSION SYSTEM PACKAGE C

CROSS-OVER STATION LINE E1-E4 - LIGHTNING PROTECTION SYSTEM

Subject: DESIGN REPORT
35-QB10-R-202

Rev. A 0
Revisio

Index

First
Issue
n

Date 10.02.2024. 24.02.2024

10 RESULT
As per SWCC requirements for the distance between the down conductor is as per the
following: -
 Buildings containing telecommunication and control systems is 10 meters.
 Other buildings are 20 meters.
Mesh Grid Dimensions As per SWCC requirements the maximum permitted mesh size is
as follows:
 buildings with telecommunication or control rooms 10 x 10 m
 Other buildings 10 x 20 m
The following paragraphs provide the risk assessment results separately for each
structure of the station and define the individual classes of the LPS.
the respective Lightning Protection Layout Drawings presented in the table below.
Table 7 : Lightning Protection System Layout and Details

ROLLIN
DRAWING PROTECTI Max . MESH
Buildin G
NUMBER ON CLASS GRID
g SPHER
(LPL)
E
RADIU
S
ELECTRICAL ROOM
25-ZG20-S-011 II 30m 10 m x 10 m

WM & OM
25-ZG20-S-008 IV 60m 10 m x 20 m
BUILDING
 Final Engineering Contractor Subcontractor
ALISHAR ENGINEERING ALISHAR Contracting Company

KINGDOM OF SAUDI ARABIA Page: 26 of 31

Water Transmission and Technologies Co.
Document Number
MOGHAMMAS RESERVOIR TRANSMISSION SYSTEM PACKAGE C

CROSS-OVER STATION LINE E1-E4 - LIGHTNING PROTECTION SYSTEM

Subject: DESIGN REPORT
35-QB10-R-202

Rev. A 0
Revisio

Index

First
Issue
n

Date 10.02.2024. 24.02.2024

 10.1 ELECTRICAL ROOM

Final Engineering Contractor Subcontractor

ALISHAR ENGINEERING ALISHAR Contracting Company
 NORME CEI
INTERNATIONALE IEC
INTERNATIONAL 62305-2
STANDARD Edition-1
2005-01
Project: ELC-ROOM

Results for collection areas and frequencies:

1.225 m2
Ad - collection area of direct strikes to the structure
0,002 flashes/year
Nd - expected annual number of direct strikes to the structure
207.980 m2
Am - collection area of structure influenced by induced overvoltages from indirect strikes
0,414 flashes/year
Nm - expected annual number of strikes direct to ground or to grounded objects near the structure inducing overvoltages
35.460 m2
Ac1 - collection area of overhead lines from direct strikes
0,035 flashes/year
NL1 - expected annual number of direct strikes to the overhead line which are potentially dangerous
1.000.000 m2
Al1 - collection area of overhead lines to indirect strikes
2,000 flashes/year
NI1 - expected annual number of indirect strikes to ground near the overhead line which induce damaging overvoltages
22.025 m2
Ac2 - collection area of underground lines from direct strikes
0,022 flashes/year
Nl2 - expected annual number of strikes direct to the underground lines which are potentially dangerous
559.017 m2
Al2 - collection area of underground lines to indirect strikes
1,118 flashes/year
NI2 - expected annual number of indirect strikes to ground near the underground line which induce damaging overvoltages

Type 1 - Loss of Human Life:

RA1 - risk of dangerous touch and step potentials inside and outside the structure from a direct strike to the structure 1,53E-09
RB1 - risk of destruction due to fire, explosion, mechanical, chemical damage from a direct strike to the structure 3,05E-08
RC1 - risk of electrical / electronic equipment failure due to overvoltage from a direct strike to the structure 4,58E-10
RM1 - risk of electrical / electronic equipment failure due to overvoltage from an indirect strike to the structure 1,24E-07
RU1 - risk of dangerous touch and step potentials inside and outside the structure from a direct strike to the service lines 1,98E-09
RV1 - risk of destruction due to fire, explosion, mechanical, chemical damage from a direct strike to the service lines 1,98E-07
RW1 - risk of electrical / electronic equipment failure due to overvoltage from a direct strike to the service lines 1,98E-08
RZ1 - risk of electrical / electronic equipment failure due to overvoltage from an indirect strike to the service lines 6,58E-07

Type 2 - Loss of Essential Public Services:

RB2 - risk of destruction due to fire, explosion, mechanical, chemical damage from a direct strike to the structure 0,00E+00
RC2 - risk of electrical / electronic equipment failure due to overvoltage from a direct strike to the structure 0,00E+00
RM2 - risk of electrical / electronic equipment failure due to overvoltage from an indirect strike to the structure 0,00E+00
RV2 - risk of destruction due to fire, explosion, mechanical, chemical damage from a direct strike to the service lines 0,00E+00
RW2 - risk of electrical / electronic equipment failure due to overvoltage from a direct strike to the service lines 0,00E+00
RZ2 - risk of electrical / electronic equipment failure due to overvoltage from an indirect strike to the service lines 0,00E+00

Type 3 - Loss of Cultural Heritage:

RB3 - risk of destruction due to fire, explosion, mechanical, chemical damage from a direct strike to the structure 0,00E+00
RV3 - risk of destruction due to fire, explosion, mechanical, chemical damage from a direct strike to the service lines 0,00E+00

Type 4 - Economic Loss:

RA4 - risk of dangerous touch and step potentials inside and outside the structure from a direct strike to the structure 0,00E+00
RB4 - risk of destruction due to fire, explosion, mechanical, chemical damage from a direct strike to the structure 3,05E-07
RC4 - risk of electrical / electronic equipment failure due to overvoltage from a direct strike to the structure 4,58E-07
RM4 - risk of electrical / electronic equipment failure due to overvoltage from an indirect strike to the structure 1,24E-04
RU4 - risk of dangerous touch and step potentials inside and outside the structure from a direct strike to the service lines 0,00E+00
RV4 - risk of destruction due to fire, explosion, mechanical, chemical damage from a direct strike to the service lines 1,98E-06
RW4 - risk of electrical / electronic equipment failure due to overvoltage from a direct strike to the service lines 1,98E-05
RZ4 - risk of electrical / electronic equipment failure due to overvoltage from an indirect strike to the service lines 6,58E-04

IEC Risk Assessment Calculator: Version 1.0.3 Database: Version 1.0.3

IEC Central Office Support (Tel: +41-22-919

0211) Copyright © 2005, IEC. All rights reserved.
 NORME CEI
INTERNATIONALE IEC
INTERNATIONAL 62305-2
STANDARD Edition-1
2005-01
Project: ELC-ROOM

Structure's Dimensions: Environmental Influences:

Length of structure (m): 5.6 Location factor: Similar in height
Width of structure (m): 12 Environmental factor: Rural
Height of roof plane (m)*: 4.8 Number thunderdays: 20 days/year
Collection area (m2): 1.225 m2 Annual ground flash density: 2,0 flashes/km2

Structure's Attributes: Protection Measures:

Risk of physical damage (incl. fire): Low Fire Risk Class of LPS: Class II
Structure screening effectiveness: Average Fire protection provisions: Manual systems
Internal wiring type: Unscreened Surge protection: Coord. SPD IEC 62305-4

Conductive Electric Service Lines:

Power Line: Other Overhead Services:
Type of service to the structure: Buried cable Number of conductive services: 0
Type of external cable: Screened Type of external cable: Unscreened
Presence of MV / LV transformer: No Transformer
Other Underground Services:
Number of conductive services: 2
Type of external cable: Screened

Types of Loss:
Type 1 - Loss of Human Life: Type 3 - Loss of Cultural Heritage:
Special hazards to life: Low panic level Cultural heritage lost due to fire: No heritage value
Life loss due to fire: Other structures
Life loss due to overvoltages: With safety critical systems Type 4 - Economic Loss:
Special hazards to economics: No special hazards
Type 2 - Loss of Essential Public Services: Economic loss due to fire: Commercial property
Services lost due to fire: No service exist Economic loss due to overvoltage: Industrial, commercial site
Services lost due to overvoltages: No service exist Step/touch potential loss factor: No shock risk
Tolerable risk of economic loss: 1 in 1,000

Calculated Risks:
Tolerable Direct Strike Indirect Strike Calculated
Risk Rt Risk Rd Risk Ri Risk R
Loss of Human Life: 1,00E-05 3,25E-08 1,00E-06 1,03E-06
Loss of Public Services: 1,00E-03 0,00E+00 0,00E+00 0,00E+00
Loss of Cultural Heritage: 1,00E-03 0,00E+00 0,00E+00 0,00E+00
Economic Loss: 1,00E-03 7,63E-07 8,04E-04 8,05E-04

IEC Risk Assessment Calculator: Version 1.0.3 Database: Version 1.0.3

IEC Central Office Support (Tel: +41-22-919

0211) Copyright © 2005, IEC. All rights reserved.
 KINGDOM OF SAUDI ARABIA Page: 29 of 31
Water Transmission and Technologies Co.
Document Number
MOGHAMMAS RESERVOIR TRANSMISSION SYSTEM PACKAGE C

CROSS-OVER STATION LINE E1-E4 - LIGHTNING PROTECTION SYSTEM

Subject: DESIGN REPORT
35-QB10-R-202

Rev. A 0
Revisio

Index

First
Issue
n

Date 10.02.2024. 24.02.2024

10.2 WM & OM BUILDING

Final Engineering Contractor Subcontractor

ALISHAR ENGINEERING ALISHAR Contracting Company
 NORME CEI
INTERNATIONALE IEC
INTERNATIONAL 62305-2
STANDARD Edition-1
2005-01
Project: WM&OM BLDG

Results for collection areas and frequencies:

660 m2
Ad - collection area of direct strikes to the structure
0,000 flashes/year
Nd - expected annual number of direct strikes to the structure
200.366 m2
Am - collection area of structure influenced by induced overvoltages from indirect strikes
0,400 flashes/year
Nm - expected annual number of strikes direct to ground or to grounded objects near the structure inducing overvoltages
35.568 m2
Ac1 - collection area of overhead lines from direct strikes
0,018 flashes/year
NL1 - expected annual number of direct strikes to the overhead line which are potentially dangerous
1.000.000 m2
Al1 - collection area of overhead lines to indirect strikes
2,000 flashes/year
NI1 - expected annual number of indirect strikes to ground near the overhead line which induce damaging overvoltages
22.092 m2
Ac2 - collection area of underground lines from direct strikes
0,011 flashes/year
Nl2 - expected annual number of strikes direct to the underground lines which are potentially dangerous
559.017 m2
Al2 - collection area of underground lines to indirect strikes
1,118 flashes/year
NI2 - expected annual number of indirect strikes to ground near the underground line which induce damaging overvoltages

Type 1 - Loss of Human Life:

RA1 - risk of dangerous touch and step potentials inside and outside the structure from a direct strike to the structure 3,30E-10
RB1 - risk of destruction due to fire, explosion, mechanical, chemical damage from a direct strike to the structure 3,30E-09
RC1 - risk of electrical / electronic equipment failure due to overvoltage from a direct strike to the structure 9,91E-11
RM1 - risk of electrical / electronic equipment failure due to overvoltage from an indirect strike to the structure 1,20E-07
RU1 - risk of dangerous touch and step potentials inside and outside the structure from a direct strike to the service lines 9,94E-10
RV1 - risk of destruction due to fire, explosion, mechanical, chemical damage from a direct strike to the service lines 4,97E-08
RW1 - risk of electrical / electronic equipment failure due to overvoltage from a direct strike to the service lines 9,94E-09
RZ1 - risk of electrical / electronic equipment failure due to overvoltage from an indirect strike to the service lines 6,64E-07

Type 2 - Loss of Essential Public Services:

RB2 - risk of destruction due to fire, explosion, mechanical, chemical damage from a direct strike to the structure 3,30E-08
RC2 - risk of electrical / electronic equipment failure due to overvoltage from a direct strike to the structure 9,91E-08
RM2 - risk of electrical / electronic equipment failure due to overvoltage from an indirect strike to the structure 1,20E-04
RV2 - risk of destruction due to fire, explosion, mechanical, chemical damage from a direct strike to the service lines 4,97E-07
RW2 - risk of electrical / electronic equipment failure due to overvoltage from a direct strike to the service lines 9,94E-06
RZ2 - risk of electrical / electronic equipment failure due to overvoltage from an indirect strike to the service lines 6,64E-04

Type 3 - Loss of Cultural Heritage:

RB3 - risk of destruction due to fire, explosion, mechanical, chemical damage from a direct strike to the structure 0,00E+00
RV3 - risk of destruction due to fire, explosion, mechanical, chemical damage from a direct strike to the service lines 0,00E+00

Type 4 - Economic Loss:

RA4 - risk of dangerous touch and step potentials inside and outside the structure from a direct strike to the structure 0,00E+00
RB4 - risk of destruction due to fire, explosion, mechanical, chemical damage from a direct strike to the structure 6,60E-08
RC4 - risk of electrical / electronic equipment failure due to overvoltage from a direct strike to the structure 9,91E-08
RM4 - risk of electrical / electronic equipment failure due to overvoltage from an indirect strike to the structure 1,20E-04
RU4 - risk of dangerous touch and step potentials inside and outside the structure from a direct strike to the service lines 0,00E+00
RV4 - risk of destruction due to fire, explosion, mechanical, chemical damage from a direct strike to the service lines 9,94E-07
RW4 - risk of electrical / electronic equipment failure due to overvoltage from a direct strike to the service lines 9,94E-06
RZ4 - risk of electrical / electronic equipment failure due to overvoltage from an indirect strike to the service lines 6,64E-04

IEC Risk Assessment Calculator: Version 1.0.3 Database: Version 1.0.3

IEC Central Office Support (Tel: +41-22-919

0211) Copyright © 2005, IEC. All rights reserved.
 NORME CEI
INTERNATIONALE IEC
INTERNATIONAL 62305-2
STANDARD Edition-1
2005-01
Project: WM&OM BLDG

Structure's Dimensions: Environmental Influences:

Length of structure (m): 4 Location factor: Lower than
Width of structure (m): 4 Environmental factor: Rural
Height of roof plane (m)*: 4 Number thunderdays: 20 days/year
Collection area (m2): 660 m2 Annual ground flash density: 2,0 flashes/km2

Structure's Attributes: Protection Measures:

Risk of physical damage (incl. fire): Ordinary Class of LPS: Class IV
Structure screening effectiveness: Average Fire protection provisions: Manual systems
Internal wiring type: Unscreened Surge protection: Coord. SPD IEC 62305-4

Conductive Electric Service Lines:

Power Line: Other Overhead Services:
Type of service to the structure: Buried cable Number of conductive services: 0
Type of external cable: Screened Type of external cable: Unscreened
Presence of MV / LV transformer: No Transformer
Other Underground Services:
Number of conductive services: 2
Type of external cable: Screened

Types of Loss:
Type 1 - Loss of Human Life: Type 3 - Loss of Cultural Heritage:
Special hazards to life: No special hazards Cultural heritage lost due to fire: No heritage value
Life loss due to fire: Other structures
Life loss due to overvoltages: With safety critical systems Type 4 - Economic Loss:
Special hazards to economics: No special hazards
Type 2 - Loss of Essential Public Services: Economic loss due to fire: Commercial property
Services lost due to fire: Water supply Economic loss due to overvoltage: Industrial, commercial site
Services lost due to overvoltages: Water supply Step/touch potential loss factor: No shock risk
Tolerable risk of economic loss: 1 in 1,000

Calculated Risks:
Tolerable Direct Strike Indirect Strike Calculated
Risk Rt Risk Rd Risk Ri Risk R
Loss of Human Life: 1,00E-05 3,73E-09 8,45E-07 8,49E-07
Loss of Public Services: 1,00E-03 1,32E-07 7,95E-04 7,95E-04
Loss of Cultural Heritage: 1,00E-03 0,00E+00 0,00E+00 0,00E+00
Economic Loss: 1,00E-03 1,65E-07 7,95E-04 7,95E-04

IEC Risk Assessment Calculator: Version 1.0.3 Database: Version 1.0.3

IEC Central Office Support (Tel: +41-22-919

0211) Copyright © 2005, IEC. All rights reserved.
