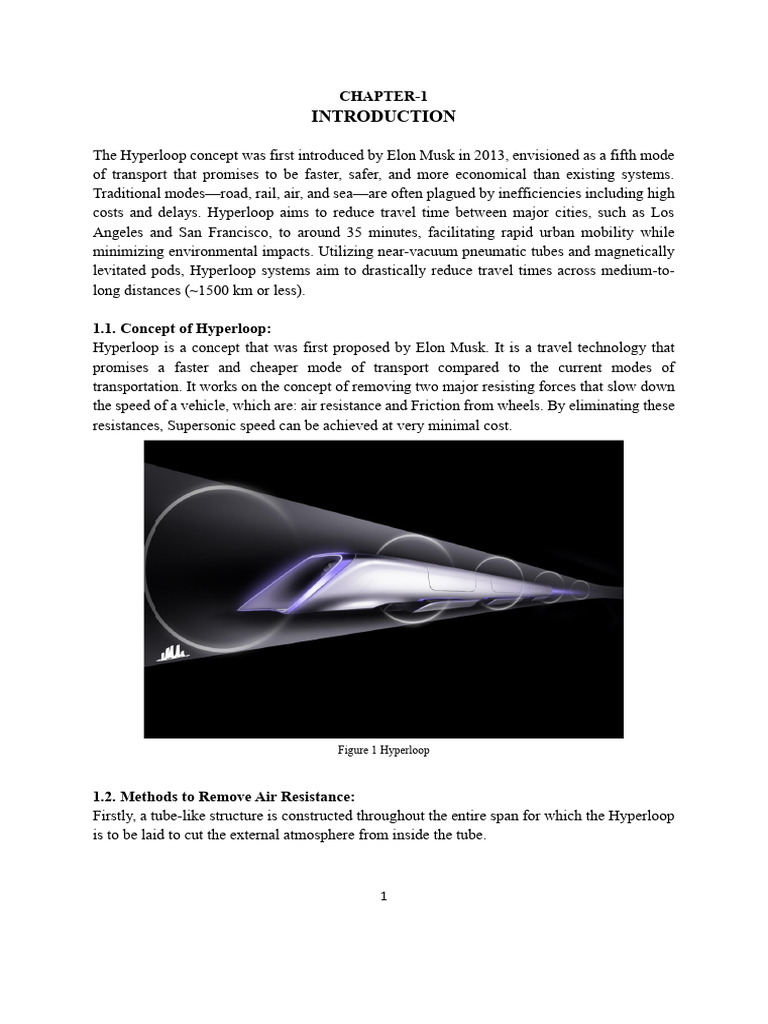

CHAPTER-1

INTRODUCTION

The Hyperloop concept was first introduced by Elon Musk in 2013, envisioned as a fifth mode
of transport that promises to be faster, safer, and more economical than existing systems.
Traditional modes—road, rail, air, and sea—are often plagued by inefficiencies including high
costs and delays. Hyperloop aims to reduce travel time between major cities, such as Los
Angeles and San Francisco, to around 35 minutes, facilitating rapid urban mobility while
minimizing environmental impacts. Utilizing near-vacuum pneumatic tubes and magnetically
levitated pods, Hyperloop systems aim to drastically reduce travel times across medium-to-
long distances (~1500 km or less).

1.1. Concept of Hyperloop:

Hyperloop is a concept that was first proposed by Elon Musk. It is a travel technology that
promises a faster and cheaper mode of transport compared to the current modes of
transportation. It works on the concept of removing two major resisting forces that slow down
the speed of a vehicle, which are: air resistance and Friction from wheels. By eliminating these
resistances, Supersonic speed can be achieved at very minimal cost.

Figure 1 Hyperloop

1.2. Methods to Remove Air Resistance:

Firstly, a tube-like structure is constructed throughout the entire span for which the Hyperloop
is to be laid to cut the external atmosphere from inside the tube.

1
In order to move the pods which high
speed the air pressure in front of the
pod needs to be a minimum (not
absolute zero, as it would be costly).
To do that, we have two methods:
1. Create a very low pressure inside
the tube with the help of powerful
suction pumps provided every 10-
20 km that can maintain low
pressure even with opening and Figure 2 Vacuum Pumps
leaks in the loop.
2. Design a pod with a compressor fan setup in front that acts as pump to suck air in front of it
and through is back or below pods to create air cushion.

1.3. Methods to Remove Friction:

To achieve supersonic speed, wheels are
not a suitable setup. Instead, we can use
techniques that offer contactless flotation
of pods inside the tube. Two such
techniques are:
1. Maglev: Maglev or magnetic levitation
uses a magnetic track setup with
superconductors attached to the pods
with cryocoolers so as to provide
levitation to the pods over the length Figure 3 Magnetic Lavation
of the tracks. One benefit of using this
is that it automatically locks the sideways movement of the pods, keeping them in-line with
the tracks.
2. Air cushion: The air sucked by the compressor setup could be redirected out from the base
and sides of pods so as to provide air cushion around the pod that helps it in floating.

1.4. Propulsion and Braking:

For propulsion of the pod, Linear Induction Motors are used, which provide forward
momentum to the pod, and a similar setup could be used for braking.

1.5. Advantages of Hyperloop Technology

1. High Speed and Reduced Travel Time: Enables ultra-high speeds (up to ~760 mph / 1200
km/h), drastically reducing travel time compared to air, rail, or road for medium distances
(e.g., LA to SF in ~30 minutes). Potentially eliminates bottlenecks caused by traditional
transport like highways and airports.

2
2. Energy Efficiency and Environmental Benefits: Operates in low-pressure tubes, reducing
aerodynamic drag and energy consumption. Can be powered by renewable energy sources
(solar, wind) making it more sustainable. Lower greenhouse gas emissions compared to
cars and planes.
3. Reduced Land Use and Infrastructure Footprint: Elevated tube systems supported on pylons
require smaller land footprints than highways or rail tracks. Minimizes disruption to
ecosystems and existing urban areas.
4. Weather and Seismic Resistance: Enclosed tubes protect capsules from weather events,
improving reliability. Designed with earthquake-resistant features (seismic isolators,
flexible joints).
5. Safety Potential: Proposed intrinsically safe due to automation reducing human error, and
separation within sealed tubes limiting accidents and external hazards.
6. Convenience and Accessibility: Station locations can be integrated into urban areas, unlike
airports which are usually distant. Faster boarding and security processes than air travel.
7. Scalability and Modular Construction: Tubes can be prefabricated and assembled
efficiently. Potential for expansions and upgrades with advances in materials and
technology.

1.6. Scope of Report

This report evaluates Hyperloop technology with a primary focus on civil engineering
challenges, reviewing:
1. Basics of Hyperloop Transport System
2. Tube and support infrastructure design,
3. Structural and seismic design factors,
4. Construction methodologies,
5. Environmental and economic impact,
6. System safety, operation, and future development pathways.

3
 CHAPTER-2
LITERATURE REVIEW

Ingo A. Hansen, Hyperloop transport technology assessment and system analysis, assesses the
feasibility of Hyperloop as a high-speed transport system, comparing it with alternatives like
airlines, high-speed rail, and Maglev. Key aspects discussed include its technical challenges—
such as maintaining vacuum tubes, energy efficiency, and safety concerns—as well as its
limited passenger capacity compared to existing modes. The system's cost estimates appear
underestimated, with significant uncertainties in operational feasibility and environmental
impact. Despite its potential for reduced travel times and environmental benefits, further
independent research and transparent analysis are needed to address technological and societal
challenges. [1]
Recent studies have emphasized capsule aerodynamic optimization under low-pressure
conditions and the use of electromagnetic suspension and propulsion systems—linear
synchronous motors and inductromagnets—for frictionless travel. [2]
Elon Musk’s Hyperloop Alpha outlines a groundbreaking transportation system designed to
address inefficiencies in California's high-speed rail project. Utilizing low-pressure tubes and
pods with air-bearing suspension, the Hyperloop aims to achieve speeds of up to 760 mph
(1,220 kph). Its economic and sustainable design features prefabricated sections, solar panels
for self-sufficiency, and earthquake-resistant infrastructure. Though promising, challenges
include maintaining tube pressure, ensuring safety, and refining cost analysis. [3]
AI-powered earthquake resilience: predictive modelling and design optimization for seismic-
resistant structures. Recent studies focus on AI-powered predictive modelling and optimization
to enhance structural resilience. Machine learning algorithms, coupled with real-time sensor
data and finite element analysis, enable accurate vulnerability assessments and efficient design
strategies. AI-driven methods surpass traditional approaches in adaptability, cost-effectiveness,
and precision, making them transformative in mitigating seismic risks. However, challenges
remain in real-time data utilization, multidisciplinary collaboration, and model generalization
across diverse seismic scenarios. Continued innovation in AI frameworks could significantly
bolster disaster preparedness and infrastructure safety. [4]
Prospects and Challenges of the Hyperloop Transportation System: A Systematic Technology
Review emphasizes its potential to achieve near-sonic speeds through vacuum tube
environments, reducing aerodynamic drag significantly. Key advancements focus on magnetic
levitation technologies, such as Electromagnetic Suspension (EMS) and Inductrack-based
Electro-Dynamic paired with linear electric propulsion systems. Challenges include managing
infrastructure costs, optimizing energy storage onboard capsules, and maintaining passenger
comfort. Simulation studies validate aerodynamics and levitation mechanisms, while
experimental prototypes provide early insights. Future research is crucial in balancing cost-
efficiency, safety, and environmental impacts for scalable implementation. [5]

4
A Study on Hyper Loop- The Envisaged & Advanced Means of Transportation Hyperloop
technology has emerged as a groundbreaking innovation in transportation, addressing
challenges like traffic congestion and long travel times. Inspired by pneumatic post systems,
this vacuum-based transport system utilizes magnetic levitation and electric propulsion for
near-frictionless, high-speed travel. Its design minimizes environmental impact, operates
efficiently on renewable energy, and promises unmatched speed, safety, and convenience.
Studies highlight Hyperloop's potential to revolutionize commuting with reduced costs
compared to high-speed rail systems. However, challenges in infrastructure, scalability, and
passenger comfort remain areas for future exploration. This transformative concept could
redefine intercity travel globally. [6]
Museros et al. (2021) conducted an in-depth investigation into the mechanical behaviour of
Hyperloop infrastructure, with emphasis on structural analysis under static, dynamic, and
thermal loading conditions. The study identifies key design challenges such as longitudinal
thermal expansion, internal vacuum pressure, vehicle-induced dynamics, and buckling risks.
Two structural configurations—restrained and free axial expansion—are proposed for the tube
system, and the implications of each on displacements and internal forces are thoroughly
evaluated. Their research serves as a foundational model for preliminary structural design using
beam and shell theories, highlighting thermal stresses as a dominant factor. Additionally, the
work assesses fatigue and resonance risks, making it a comprehensive reference for future
Hyperloop design studies. [7]
Shylaja P. (2021) presents an overview of Hyperloop as a next-generation transport technology
emphasizing its speed, efficiency, and sustainability. The study outlines the core technologies
behind Hyperloop including vacuum tubes, magnetic levitation (EMS and EDS), and linear
motors (LIM/LSM). It discusses environmental benefits such as reduced carbon emissions,
while also highlighting potential challenges such as passenger comfort, emergency
preparedness, and limited capacity. The paper evaluates Hyperloop’s deployment potential in
India and compares it with traditional modes of transport regarding energy use, infrastructure,
and risk. The role of AI in system monitoring and safety is also addressed. [8]

5
 CHAPTER-3
HYPERLOOP TRANSPORTATION SYSTEM

Hyperloop is a concept proposed as 5th mode of transport, that promise to meet the
shortcomings of other modes of transport. It works by removing two major resisting forces that
acts against a moving vehicle i.e. Friction and air resistance. The Hyperloop transportation
system (HTS) describes passenger capsules moving inside a tube of a low-drag low-pressure
environment (i.e., as low as one-thousand of the atmospheric pressure). They are then being
propelled and guided by a inside with a potential of moving near the speed of sound (i.e., near-
sonic velocities). In the original concept, air bearings were proposed for levitation, and track-
integrated coils were considered for propulsion. The guideway was imagined to be energized
with distributed acceleration spots to reduce the infrastructure (covering just a small fraction
of the track).

Fig.4 depicts a brief overview of the generic HTS concept, where passenger capsules constantly
move between two stations. As seen, there is an acceleration and de-acceleration time needed
(e.g., 0:1 G or 0:2 G acceleration), which restricts HTS to longer distances travel only. Either
the capsule floats on its suspension mechanism, or it hangs underneath, as depicted in Fig.07.

Figure 4 Sketch of a conceptual HTS diagram depicting passenger capsules' movement inside a two-way tunnel with two
predetermined point-to-point stations.[5]

The HTS concept is currently viewed as a promising alternative to short-haul flights, where it
can promise less travel time and lower fuel consumption per passenger revenue kilometre
(RPK). This is illustrated in Fig.04, where an energy consumption metric (i.e., drag-to-lift ratio)
is used to compare different transportation alternatives. The performances are assessed against
the rolling magnetic drag of the electro-dynamic suspension (EDS) system proposed for the
Hyperloop, in either simple or more advanced implementations. An excellent characteristic of
the magnetic levitation technology is that the ratio between the drag and the lift goes down at
higher cruising speeds, which are completely contrary to bullet trains and aircraft propulsion
that are subjected to increased air resistance. In order to highlight the best possible potential

6
for the projected low energy consumption of the HTS, the air resistance was assumed to be
zero in Fig.05 (depends on the pressure of the tube and the aerodynamic performance).

Figure 5 Graph between Drag-to-lift ratio coff. and Cruising speed (kmh)

3.1. Components of Hyperloop System:

The Hyperloop consists of several distinct components, including:

1. Capsule:
• Sealed capsules carrying 28 passengers each that travel along the interior of the
tube.
• A larger system has also been sized that allows transport of 3 full size automobiles
with passengers to travel in the capsule.
• The capsules are separated within the tube by approximately 23 miles (37 km) on
average during operation.
• The capsules are supported via air bearings that operate using a compressed air
reservoir and aerodynamic lift.
2. Tube:
• The tube is made of steel. Two tubes will be welded together in a side-by-side
configuration to allow the capsules to travel both directions.
• Pylons are placed every 100 ft (30 m) to support the tube.
• Solar arrays will cover the top of the tubes in order to provide power to the system.
3. Propulsion:
• Linear accelerators are constructed along the length of the tube at various locations
to accelerate the capsules.
• Rotors are located on the capsules to transfer momentum to the capsules via the
linear accelerators.

7
For travel at high speeds, the greatest power requirement is normally to overcome air
resistance. Aerodynamic drag increases with the square of speed, and thus the power
requirement increases with the cube of speed. For example, to travel twice as fast a vehicle
must overcome four times the aerodynamic resistance, and input eight times the power.

The pressure of air in Hyperloop is 100 Pascals, which reduces the drag force of the air by
1,000 times relative to sea level conditions and would be equivalent to flying above 150,000
feet altitude. A hard vacuum is avoided as vacuums are expensive and difficult to maintain
compared with low pressure solutions. Despite the low pressure, aerodynamic challenges must
still be addressed. These include managing the formation of shock waves when the speed of
the capsule approaches the speed of sound, and the air resistance increases sharply. The
capsules travel at 760 mph (1,220 kph, Mach 0.99 at 68 ºF or 20 ºC).

The vehicle is streamlined to reduce drag and features a compressor at the leading face to ingest
oncoming air for levitation and to a lesser extent propulsion. Aerodynamic simulations

Figure 6 Streamlines for capsule traveling at high subsonic velocities inside Hyperloop.

3.2. Compressor
One important feature of the capsule is the onboard compressor, which serves two purposes.
This system allows the capsule to traverse the relatively narrow tube without choking flow that
travels between the capsule and the tube walls (resulting in a build-up of air mass in front of
the capsule and increasing the drag) by compressing air that is bypassed through the capsule.
It also supplies air to air bearings that support the weight of the capsule throughout the journey.
The air processing occurs as follows:
1. Tube air is compressed with a compression ratio of 20:1 via an axial compressor.
2. Up to 60% of this air is bypassed:
➢ The air travels via a narrow tube near bottom of the capsule to the tail.
➢ A nozzle at the tail expands the flow generating thrust to mitigate some of the small
amounts of aerodynamic and bearing drag.

8
 3. Up to 0.44 lb/s (0.2 kg/s) of air is cooled and compressed an additional 5.2:1 for the
passenger version with additional cooling afterward.
➢ This air is stored in onboard composite overwrap pressure vessels.
➢ The stored air is eventually consumed by the air bearings to maintain distance
between the capsule and tube walls.
4. The compressor is powered by a 436 hp (325 kW) onboard electric motor:
➢ The motor has an estimated mass of 372 lb (169 kg), which includes power
electronics.

3.3. Onboard Power

The passenger capsule power system includes an estimated 5,500 lb (2,500 kg) of batteries to
power the capsule systems in addition to the compressor motor (using 3,400 lb or 1,500 kg of
the batteries) and coolant. The battery, motor, and electronic components cost is estimated to
be near $150,000 per capsule in addition to the cost of the suspension system. The passenger
plus vehicle capsule power system includes an estimated 12,100 lb (5,500 kg) of batteries to
power capsule systems in addition to the compressor motor (using 8,900 lb or 4,000 kg of the
batteries) and coolant. The battery, motor and electronic components cost is estimated to be
near $200,000 per capsule in addition to the cost of the suspension system.

3.4. Propulsion
In order to propel the vehicle at the required travel speed, an advanced linear motor system is
being developed to accelerate the capsule above 760 mph (1,220 kph) at a maximum of 1g for
comfort. The moving motor element (rotor) will be located on the vehicle for weight savings
and power requirements while the tube will incorporate the stationary motor element (stator)
which powers the vehicle.[3]
Some specific sections of the tube will incorporate the stationary motor element (stator) which
will locally guide and accelerate (or decelerate) the capsule. Between linear motor stations, the
capsule will glide with little drag via air bearings.

3.5. Geometry
If the speed of the air passing through the gaps accelerates to supersonic velocities, then shock
waves form. These waves limit how much air can actually get out of the way of the capsule,
building up a column of air in front of its nose and increasing drag until the air pressure builds
up significantly in front of the capsule. With the increased drag and additional mass of air to
push, the power requirements for the capsule increase significantly. It is therefore very
important to avoid shock wave formation around the capsule by careful selection of the
capsule/tube area ratio. This ensures sufficient mass air flow around and through the capsule
at all operating speeds. Any air that cannot pass around the annulus between the capsule and
tube is bypassed using the onboard compressor in each capsule.

9
 CHAPTER-4
TUBE AND SUPPORT INFRASTRUCTURE DESIGN

The tube is a fundamental structural and operational component of the Hyperloop system,
providing a controlled environment that allows high-speed pods to travel efficiently with
minimal aerodynamic drag. It functions as a sealed, low-pressure conduit, engineered to
maintain internal pressures as low as 100 Pa (0.001 atm) — equivalent to air pressure at
altitudes of around 45 km. This ultra-low-pressure environment is essential for significantly
reducing air resistance, which is the primary limitation to high-speed ground transportation.

4.1. Hyperloop Tube Technology Fundamentals

The Hyperloop concept's main advantage is the opportunity to achieve a high-altitude low-
pressure environment at the surface of the earth. In reality, airplanes have to consume vast
amounts of energy to get to the altitude where the pressure level is 75% lower. On the contrary,
the Hyperloop is aimed at achieving 99:0% to 99:9% lower pressure by recreating the
atmosphere experienced in outer space, using an outstretched vacuum chamber.
1. The Kantrowitz Limit
The premise for a low air resistance relies on a
low drag coefficient (Cd) inside the tube. This
only holds if the tube volume surrounding the
capsule can be assumed infinitely large relative
to the vehicle. Normally, the walls of the tube
are much closer to the capsule. Inevitably, we
are dealing with an internal aerodynamic
problem, where a violation of the so-called
Kantrowitz limit could increase the drag and Figure 7 Tube's inner diameter and the capsule's outer
deteriorate the Hyperloop concept's main diameter. a) Vehicle floats on the track. b) Vehicle hangs
underneath
benefits. The cross-sectional diameters used to
calculate the tube and capsule areas (Acaps and Atube
the) track.
are depicted in Fig.07. The area ratio of
these values indicates the fraction of the tube that are been occupied by the capsule, which is
referred to as the blockage ratio
1
𝐴𝑐𝑎𝑝𝑠 𝜋𝐷 2 𝐶𝑎𝑝𝑠 𝐷 2 𝑐𝑎𝑝𝑠
𝛽 = 𝐴𝑡𝑢𝑏𝑒 = 41 = 𝐷2𝑡𝑢𝑏𝑒 (1)
𝜋𝐷 2 𝑡𝑢𝑏𝑒
4
Fig.07 highlights the fact that the tube-capsule arrangement resembles a subsonic or near-sonic
wind tunnel, where choked flows and shock waves at the capsule's tail easily occur. The flow
around the capsule will accelerate as the bypass area reduces (i.e., high blockage ratio). In these
cases, the sides of the capsule are close to the tube. The Kantrowitz limit can be formulated as
𝛾+1
𝛾−1
1 1 1+[ ]𝑀𝑎2 2(𝛾−1)
= 𝑀𝑎 ( 2
𝛾−1 ) (2)
1−𝛽 1+[ ]
2

10
Where Ma is the Mach number ratio relating
the cruising speed v to the speed of sound
(1225 km/h) and is the isentropic expansion.
Fig.07 depicts the Kantrowitz limit, which is
a combination of blockage ratio and speed,
governed by eqs. (1) and (2). At the speed of
sound, a zero blockage is required to avoid
choking and prevent the Kantrowitz limit
(i.e., infinitely large tube volume).

4.2. Structural Materials and

Construction
Hyperloop tubes are typically fabricated
Figure 8 The Kantrowitz limit is plotted as a function of blockage
from high-strength, corrosion-resistant ratio (Acaps=Atube) and cruise speed. [5]
materials such as steel alloys, prestressed
reinforced concrete, or advanced composite materials. These materials are selected based on
factors such as compressive strength, fatigue resistance, thermal stability, and ease of
fabrication. The structural design must account for:
• External atmospheric pressure acting uniformly over the entire tube surface.
• Dynamic loads and vibrations induced by pod movement at speeds exceeding 1000
km/h.
• Thermal expansion and contraction, especially for routes traversing variable climates.
Depending on the geography, the tube can be:
• Elevated on reinforced pylons spaced typically 30–100 meters apart, reducing land
footprint and providing seismic stability.
• Subsurface or tunnelled, especially in urban or sensitive environments, where surface
disruption must be minimized.

4.3. Vacuum Generation and Maintenance

To achieve and maintain the required low-pressure environment, the tube is equipped with a
series of vacuum pumps and pressure control stations located at intervals along the route. These
systems perform:
• Initial evacuation of air to reach operational pressure.
• Continuous pressure monitoring and control to compensate for minor leaks and thermal
variations.
• Redundant safety systems to rapidly equalize pressure in the event of an emergency.

4.4. Structural Tolerances and Alignment

The alignment of the Hyperloop tube is a critical factor influencing ride comfort, safety, and
system efficiency. The tube must maintain:

11
 • Precise horizontal and vertical alignment, with minimal deviations to accommodate the
high-speed pod’s dynamic response.
• Gradual curvature, with radii typically exceeding 20–50 kilometres to limit lateral and
vertical accelerations experienced by passengers.
• Thermal expansion joints and adjustable support structures are integrated into the
design to manage environmental variations and maintain structural integrity.

4.5. Specifications of Hyperloop Alpha project

The inner diameter of the tube is optimized to be 7 ft 4 in. (2.23 m) which is small enough to
keep material cost low while large enough to provide some alleviation of choked air flow

Figure 9 Hyperloop capsule in tube cutaway with attached solar arrays.

around the capsule. The tube cross-sectional area is 42.2 ft2 (3.91 m2) giving a capsule/tube
area ratio of 36% or a diameter ratio of 60%. It is critical to the aerodynamics of the capsule to
keep this ratio as large as possible, even though the pressure in the tube is extremely low. The
closed loop tube will be mounted side-by-side on elevated pillars as seen in Figure 9. The
surface above the tubes will be lined with solar panels to provide the required system energy.
This represents a possible area of 14 ft (4.25 m) wide for more than 350 miles (563 km) of tube
length. With an expected solar panel energy production of 0.015 hp/ft2 (120 W/m2), we can
expect the system to produce a maximum of 382,000 hp (285 MW) at peak solar activity.

4.6. Tube Construction

In order to keep cost to a minimum, a uniform thickness steel tube reinforced with stringers
was selected as the material of choice for the inner diameter tube. Tube sections would be pre-
fabricated and installed between pillar supports spaced 100 ft (30 m) on average, varying
slightly depending on location. This relatively short span allows keeping tube material cost and
deflection to a minimum.
A tube wall thickness between 0.8 and 0.9 in. (20 to 23 mm) is necessary to provide sufficient
strength for the load cases considered in this study. The cost of the tube is expected to be less
12
than $650 million USD, including pre-fabricated tube sections with stringer reinforcements
and emergency exits. [3]

4.7. Pylons and Tunnels

The tube will be supported by pillars which constrain the tube in the vertical direction but allow
longitudinal slip for thermal expansion as well as dampened lateral slip to reduce the risk posed
by earthquakes. Specially designed slip joints at stations will be able to take any tube length
variance due to thermal expansion. It thus allows the tube to be smooth and welded along the
highspeed gliding middle section The pillars will be 20 ft (6 m) tall whenever possible but may
vary in height in hilly areas or where obstacles are in the way. Also, in some key areas, the
spacing will have to vary in order to
pass over roads or other obstacles. In
addition, reduced spacing has
increased resistance to seismic
loading as well as the lateral
acceleration of the capsule. Due to the
sheer quantity of pillars required,
reinforced concrete was selected as
the construction material due to its
very low cost per volume. In some
short areas, tunnelling may be
required to avoid going over
mountains and to keep the route as
Figure 10 Pylons straight as possible.

4.8. Station Construction

Hyperloop stations are intended to be minimalist but practical with a boarding process and
layout much simpler than airports. Due to the short travel time and frequent departures, it is
envisaged that there will be a continual flow of passengers through each Hyperloop station, in
contrast to the pulsed situation at airports which leads to lines and delays. Safety and security
are paramount, and so security checks will still be made in a similar fashion as TSA does for
the airport. The transit area at an Hyperloop terminal would be a large open area with two large
airlocks signifying the entry and exit points for the capsules. An arriving capsule would enter
the incoming airlock, where the pressure is equalized with the station, before being released
into the transit area.

4.9. Cost
The overall cost of the tube, pillars, vacuum pumps and stations is thus expected to be around
$4.06 billion USD for the passenger version of the Hyperloop. This does not include the cost
of the propulsion linear motors or solar panels. The tube represents approximately 70% of the
total budget.
13
 CHAPTER-5
DESIGN AND SESEMIC ANALYSIS OF STRUCTURE

Hyperloop systems represent a revolutionary approach to high-speed ground transportation,

characterized by passenger or cargo pods traveling through low-pressure tubes at speeds
exceeding 1000 km/h. From a civil engineering standpoint, the infrastructure supporting such
systems involves unique challenges in structural design, geotechnical engineering, and seismic
resilience. This section provides a generalized overview of the design principles and seismic
analysis required for the safe and efficient deployment of Hyperloop infrastructure.

5.1. Structural Design Considerations

5.1.1. Elevated Guideway Structure

The fundamental civil structure in most Hyperloop systems is the elevated guideway, which
typically comprises one or more large-diameter tubes mounted on reinforced concrete or
steel pylons. The elevation offers several benefits, including minimized land use, avoidance
of grade crossings, improved safety, and resistance to flooding.
• Tube Dimensions: Generally, range between 2–4 meters in internal diameter,
depending on capsule size and function (passenger vs. cargo).
• Material: Steel or prestressed concrete tubes are common, selected for their
strength, constructability, and vacuum containment performance.
• Span Length: Pylons are often spaced between 25 to 50 meters, balancing
structural efficiency with foundation cost.

5.1.2. Pylon Design

Pylons support the longitudinal guideway and must resist vertical loads, wind, thermal
expansion, and dynamic effects due to pod movement. Designs may use circular, square,
or hexagonal cross-sections, often tapering toward the top for material efficiency.
Reinforced concrete is typically preferred for cost-effectiveness, durability, and ease of
onsite fabrication.

Table 1 Pylon Design Specification

Parameter Typical Range

Pylon height 5 – 15 m

Spacing 25 – 50 m

Cross-section 1 – 2 m width/diameter

Foundation type Spread footings, drilled shafts, or piles

14
 5.1.3. Expansion and Alignment
Hyperloop structures must accommodate thermal expansion and contraction, particularly
in regions with significant diurnal temperature variation. Expansion joints, sliding bearings,
and flexible tube couplings are integrated into the design to mitigate thermal and
mechanical stresses. Precise alignment tolerances are critical due to the high operating
speeds and small air gaps between pod and tube wall.

5.2. Seismic Design and Analysis

Given that Hyperloop systems are expected to be implemented in regions with varying seismic
risks, earthquake engineering is a critical aspect of structural design. Design criteria should
comply with standards as given in IS-4326.
Before structural modelling, a detailed site-specific seismic hazard analysis should be
performed to determine peak ground acceleration (PGA), spectral response, and ground
shaking duration. This includes:
• Mapping fault lines and soil conditions.
• Classifying seismic zones based on historical data.
• Identifying site amplification factors using geotechnical studies.

5.3. Structural Modelling and Analysis

A finite element model (FEM) is developed to simulate the guideway and its dynamic
behaviour under seismic loading.
• Modal Analysis is used to identify the natural frequencies and mode shapes of the
structure.
• Response Spectrum Analysis evaluates how the structure responds to different ground
motion frequencies.
• Time-History Analysis involves applying real or simulated earthquake records to assess
performance under dynamic loads.

Figure 12 First mode shape of Hyperloop at 2.71Hz Figure 11 Second mode shape of Hyperloop at 3.42Hz
(magnified x1500). [3] (magnified x1500). [3]

5.4. Base Isolation and Damping

In high-seismic regions, base isolation can dramatically reduce the transmission of ground
motion to the elevated structure. Typical isolation techniques include:
15
 • Lead-rubber bearings
• Friction pendulum systems
• Viscous dampers at pylon-tube joints

These systems decouple the superstructure from ground motion, allowing controlled
displacements and minimizing the forces experienced by structural elements.

5.5. Foundation Seismic Performance

Foundation design must consider liquefaction, lateral spreading, and settlement under
seismic loading. Foundation types are selected based on:
• Soil type and bearing capacity
• Groundwater conditions
• Expected seismic loads and displacements
Deep foundations (e.g., drilled shafts or piles) are favoured in soft or liquefiable soils.

5.6. Design Criteria and Safety Factors

Design loads should combine:
• Dead load of the structure and tube contents
• Live load due to maintenance and pods
• Environmental loads (wind, snow, thermal)
• Seismic loads per local hazard maps
Safety factors are applied per national standards, typically ranging from 1.4 to 2.0 for ultimate
load design and 1.0 to 1.5 for serviceability limit states.

16
 CHAPTER-6
CONSTRUCTION METHODOLOGIES

Among the primary structural elements are the transportation tubes, which form the travel
corridor, and the supporting pylons, which elevate the tubes and provide foundational stability.
The design and construction of these components require precise engineering, innovative
material usage, and the adoption of advanced construction methodologies. This paper focuses
on the construction methodologies for Hyperloop tubes and pylons, examining their design
requirements, material specifications, fabrication processes, and integration strategies.

6.1. Hyperloop Tubes

The Hyperloop tube represents the core travel corridor, requiring it to maintain a controlled,
low-pressure environment essential for minimizing aerodynamic drag and enabling high-speed
movement. The tube must also endure external atmospheric pressure, dynamic loads induced
by the moving pods, thermal expansion, and other environmental influences. Its design must
balance strength, durability, and manufacturability while minimizing weight and cost. A
circular cross-section is typically chosen for its ability to uniformly distribute pressure and
simplify the structural design.
Material selection plays a pivotal role in tube construction. High-strength steel is a preferred
material due to its widespread availability, excellent mechanical properties, and adaptability in
welding and fabrication processes. Alternatively, aluminium alloys offer significant weight
advantages and superior corrosion resistance but often at a higher cost. Emerging research into
fibre-reinforced composites highlights their potential for high strength-to-weight ratios and
resistance to environmental degradation, though scalability in production remains a limiting
factor.
The fabrication of Hyperloop tubes is typically carried out in controlled factory environments
to ensure consistency and quality control. Tube sections are prefabricated, with typical lengths
ranging between 20 to 50 meters, optimizing them for transport and on-site assembly. For steel
tubes, rolling and welding processes are employed to achieve precise circular forms, while
composite materials may utilize filament winding techniques. The prefabricated segments are
then transported to the construction site using specialized vehicles, where they must be handled
carefully to prevent structural deformations.
On-site, the prefabricated tube sections are assembled using either flange connections or butt
welds, depending on the material and design specifications. Alignment is critical during this
phase, as even minor deviations can disrupt pod motion at high speeds, increasing wear and
decreasing operational efficiency. Vacuum seals and gaskets are installed at connection points
to maintain airtightness, supported by temporary internal scaffolding systems that ensure
alignment during assembly. After installation, the tubes are equipped with vacuum systems that
maintain the low-pressure environment, alongside airlock systems and leak detection sensors
that provide real-time pressure monitoring. Pressure relief mechanisms are also integrated as
part of safety systems designed to handle emergency situations.
17
6.2. Hyperloop Pylons
The pylon system serves as the structural backbone that elevates the Hyperloop tubes above
ground, minimizing land use and providing lateral and longitudinal stability. The design of the
pylons must account for various structural demands, including the static weight of the tube,
dynamic loads from moving pods, wind pressure, seismic forces, and temperature-induced
movements. Pylons must also be designed to accommodate the tube’s longitudinal thermal
expansion while providing robust foundations capable of enduring ground movement and
varying soil conditions.
Foundation design is crucial to the stability and longevity of the Hyperloop infrastructure. The
choice between deep foundations, shallow spread footings, or caisson foundations depends on
site-specific geotechnical conditions. In areas with soft or unstable soils, deep foundations such
as piles or drilled shafts ensure structural integrity. In contrast, spread footings may suffice in
regions with stable, firm soil. The construction process begins with detailed site surveys and

Figure 14 Prefabricated Tubes Figure 13 construction of Hyperloop

geotechnical investigations, followed by excavation to the necessary depths. Reinforcement

cages are installed within the excavated areas, and concrete is poured and cured according to
specified standards. Once foundations are completed, base plates or anchoring systems are
installed to secure the pylons.

6.3. Integration of Tubes and Pylons

The interface between Hyperloop tubes and their supporting pylons presents complex
engineering challenges due to the need to accommodate both fixed and dynamic loads while
preserving the vacuum integrity and alignment of the tube system. Mounting systems are
typically designed using a combination of fixed and sliding bearings that allow for controlled
movement of the tubes, thereby managing thermal expansion and contraction without inducing
structural stress. These bearings also help isolate the tubes from vibrations transmitted through
the pylons, ensuring smoother pod operation and extending the service life of both tubes and
supports.

18
6.4. Construction Technologies and Innovations
Technological advancements in design, construction, and monitoring play a significant role in
the realization of Hyperloop infrastructure. The use of digital design tools, such as Building
Information Modelling (BIM), enhances project planning by allowing for early identification
of design clashes, optimization of construction sequences, and accurate cost estimation. Finite
Element Analysis (FEA) is employed to simulate the structural performance of both tubes and
pylons under various loading conditions, including seismic, thermal, and aerodynamic forces.
Smart monitoring systems are integrated within the tubes and pylons, embedding sensors that
capture data related to strain, temperature, displacement, and pressure in real time. These
sensors feed information into centralized monitoring systems, where predictive algorithms
identify potential issues before they evolve into critical failures. Wireless communication
systems transmit this data securely, ensuring continuous remote supervision of the
infrastructure.

6.5. Environmental and Safety Considerations

The construction methodologies adopted for Hyperloop infrastructure are designed with
environmental sustainability and safety in mind. The use of precast pylon segments and
modular construction techniques further limits ground disturbance, reducing the environmental
footprint of construction activities. The enclosed tube system inherently mitigates noise
emissions compared to conventional transportation modes, enhancing environmental
compatibility.
Safety systems are meticulously integrated within the infrastructure design. Seismic-resistant
pylons and tube anchoring systems are engineered to withstand significant ground movements,
particularly in earthquake-prone regions. Emergency access points, evacuation protocols, and
fire-resistant materials are incorporated into the design to ensure the safety of passengers and
maintenance personnel.

6.6. Challenges and Future Directions

Despite the promising potential of Hyperloop systems, several challenges remain in
infrastructure construction. The high initial capital investment required for material
procurement, fabrication, and advanced technology integration remains a major barrier to
large-scale deployment. Maintaining precision alignment and structural stability over long
distances is technically demanding, particularly in varying environmental conditions.
Managing thermal expansion in tubes and pylons, especially in regions with extreme
temperature variations, poses further engineering challenges.
Future research is expected to focus on the development of advanced composite materials
offering superior strength-to-weight ratios, durability, and environmental resistance. The
adoption of 3D printing technology for producing structural components holds promise for
improving customization and reducing construction time. Artificial intelligence-based
predictive maintenance systems will further enhance operational efficiency by identifying
potential failures through data analysis.
19
 CHAPTER-7
ENVIRONMENTAL AND ECONOMIC IMPACT OF HYPERLOOP

Transportation is one of the primary contributors to global greenhouse gas (GHG) emissions,
accounting for approximately one-quarter of total emissions worldwide. Rapid urbanization
and increasing intercity travel demands have put further pressure on existing infrastructure and
energy resources. In response, innovative transportation concepts such as the Hyperloop have
emerged, promising ultra-fast, energy-efficient, and low-emission travel. Developed as a high-
speed transportation mode operating in low-pressure tubes, Hyperloop aims to combine the
speed of air travel with the efficiency of rail systems. However, while the Hyperloop system
offers substantial potential, it is crucial to critically assess its environmental and economic
impacts to ensure sustainable and financially feasible deployment.

7.1. Environmental Impact of Hyperloop

7.1.1. Reduction of Greenhouse Gas Emissions

One of the most significant environmental benefits of the Hyperloop system lies in its
potential to reduce greenhouse gas emissions. Traditional modes of transportation such as
cars, trains, and airplanes rely heavily on fossil fuels, contributing to atmospheric CO₂
levels and global climate change. Hyperloop systems are designed to be powered primarily
by renewable energy sources, such as solar, wind, and geothermal energy. The
incorporation of solar panels
along the length of the
Hyperloop tubes has been
proposed as a method to
generate sufficient energy to
offset operational demands,
thereby enabling the system to
operate with net-zero emissions.
If fully implemented,
Hyperloop could displace a
substantial portion of short and
Figure 15 Environmental Impact of Hyperloop
medium-haul flights, which are
among the highest per-capita
emission contributors.

7.1.2. Energy Efficiency

Compared to conventional transport systems, Hyperloop promises significantly greater
energy efficiency. The use of low-pressure tubes minimizes aerodynamic drag, while the
magnetic levitation (maglev) and linear induction propulsion systems reduce frictional
losses typically associated with rail or road transportation. The closed-loop nature of the
20
 system allows for optimized energy management, including regenerative braking systems
that can recover a portion of kinetic energy during deceleration. As a result, Hyperloop is
expected to consume considerably less energy per passenger-kilometre than airplanes,
high-speed trains, or automobiles.

7.1.3. Land Use and Environmental Disruption

Hyperloop systems, elevated on pylons or partially tunnelled underground, require a
relatively narrow corridor for tube alignment. This minimizes surface land occupation,
reduces the need for widespread deforestation, and lowers habitat fragmentation.
Additionally, by bypassing densely populated or environmentally sensitive areas through
elevated or subterranean alignments, Hyperloop projects can limit ecological disturbances
and avoid extensive relocation or resettlement of communities.

7.1.4. Noise Pollution

Conventional transport infrastructure contributes significantly to urban and rural noise
pollution, particularly in the case of airports, highways, and railway lines. The Hyperloop’s
enclosed tube structure naturally mitigates external noise emissions. Internally, the lack of
physical contact between the pods and track, coupled with minimal air resistance in the
low-pressure environment, results in significantly lower noise levels compared to existing
transportation options.

7.2. Economic Impact of Hyperloop

7.2.1. Operational and Maintenance Costs

While Hyperloop’s initial capital costs are substantial, its operational and maintenance
expenses are projected to be relatively low. The system's reliance on renewable energy
sources decreases fuel expenses and shields operations from market volatility in fossil fuel
prices. Moreover, the absence of physical contact between the pods and track due to
magnetic levitation reduces wear and tear, extending the lifespan of critical components
and lowering routine maintenance requirements. Automated monitoring systems integrated
within the infrastructure will enable predictive maintenance, further reducing long-term
costs associated with repairs and downtime.

7.2.2. Travel Time and Productivity Gains

A significant economic advantage of Hyperloop lies in its potential to drastically reduce
intercity travel times. By achieving speeds of up to 1000 km/h, Hyperloop systems can cut
journey times between major urban centres from several hours to under an hour. This
reduction in travel time can lead to substantial productivity gains, as passengers spend less
time in transit and more time engaging in economically productive activities. Additionally,
Hyperloop can enhance business connectivity, regional integration, and labour market
access, promoting economic development in connected regions.
21
 7.2.3. Job Creation and Economic Multiplier Effects
The construction, operation, and maintenance of Hyperloop infrastructure are expected to
generate significant employment opportunities across multiple sectors, including
construction, engineering, manufacturing, software development, and logistics. The
technology sector, in particular, stands to benefit from increased demand for advanced
systems in automation, AI-based monitoring, and high-speed communications.
Furthermore, Hyperloop projects can stimulate economic activity in regions along the
transport corridor, promoting investment in real estate, commercial hubs, and ancillary
services.

7.2.4. Impact on Existing Transportation Markets

The introduction of Hyperloop services will likely disrupt existing transportation markets,
particularly short-haul air travel and high-speed rail networks. While competition can drive
efficiency and innovation, it may also result in financial challenges for traditional transport
providers. The redistribution of market share could lead to changes in pricing, service
frequency, and regional connectivity patterns. Economic policies and regulatory
frameworks will need to adapt to manage these transitions, ensuring that existing operators
and regional economies can integrate with new Hyperloop infrastructure.

7.2.5. Cost-Benefit Analysis and Payback Period

Economic assessments of proposed Hyperloop routes typically involve comprehensive
cost-benefit analyses that consider infrastructure costs, operational expenses, expected
ridership, fare structures, environmental savings, and broader economic impacts. Although
precise financial models vary, studies suggest that, given sufficient ridership levels and
efficient operational management, Hyperloop systems can achieve positive economic
returns over a multi-decade lifespan. However, the lengthy payback period and financial
risks associated with unproven technologies may deter private investors, requiring public-
private partnerships or government subsidies to finance initial phases.

7.3. Combined Environmental-Economic Synergies

The environmental and economic impacts of Hyperloop infrastructure are closely
interconnected. Operational energy savings and emissions reductions translate into economic
benefits by lowering energy costs and avoiding environmental penalties. Reduced land use
requirements and minimized urban disruption led to cost savings in land acquisition,
construction logistics, and compensation claims. Noise reduction and air quality improvements
contribute to public health savings, decreasing healthcare expenditures and enhancing
workforce productivity. The long-term economic advantages of Hyperloop systems, including
improved connectivity and regional integration, are amplified by the environmental benefits of
a clean, efficient, and sustainable transport solution.

22
 CHAPTER-8
SYSTEM SAFETY AND FUTURE DEVELOPMENT PATHWAYS.

8.1. System Safety of Hyperloop

8.1.1. Structural and Mechanical Safety

The structural integrity of the Hyperloop tube and pylon infrastructure is fundamental to
ensuring system safety. The tube must withstand internal and external pressure
differentials, environmental loads, seismic activity, and thermal expansion without
structural deformation. High-strength materials such as steel alloys and carbon fibre
composites are being considered to enhance durability and reduce maintenance risks.
Pylons, which support elevated sections of the tube, must be engineered to resist wind
loads, soil settlement, and dynamic forces generated by moving pods.

8.1.2. Pod Safety and Passenger Protection

The safety of passengers within the Hyperloop pod requires comprehensive strategies to
address both normal operating conditions and emergency scenarios. The pod's design must
ensure aerodynamic stability, cabin pressure control, and structural resilience in case of
rapid deceleration or system malfunctions. Life-support systems maintaining cabin oxygen
levels, temperature regulation, and emergency lighting are crucial. Crash energy
management features such as deformable structures and emergency braking systems must
be incorporated to minimize risks in the event of system failures.

8.1.3. Emergency Response and Evacuation Procedures

Given the enclosed and high-speed nature of the Hyperloop system, emergency response
and evacuation protocols require specialized planning. In case of pod malfunction, power
failure, or pressure loss, automated systems must bring pods to a controlled stop while
maintaining passenger safety. Evacuation pathways within the tube, combined with
emergency exits or cross-connection tunnels at regular intervals, are necessary for safe
passenger egress. Real-time communication systems between passengers, operators, and
emergency services are essential for coordinated response efforts. Fire detection and
suppression systems, integrated into both the pods and tube infrastructure, must be capable
of functioning in low-pressure environments.

8.1.4. Cybersecurity and Control System Safety

Hyperloop operations depend heavily on automated control, monitoring, and propulsion
systems, which are susceptible to cyber threats. A failure or unauthorized access to these
systems could have catastrophic consequences given the speeds and enclosed nature of
Hyperloop transport. It is therefore imperative to design redundant, fail-safe
communication and control networks with multi-layered cybersecurity protocols.

23
8.2. Future Development Pathways of Hyperloop

8.2.1. Technological Advancements

The future of Hyperloop infrastructure depends on continuous technological development
in areas such as material science, vacuum systems, energy storage, and magnetic
propulsion. Innovations in lightweight, high-strength composites will reduce tube and pod
weights, improving efficiency and reducing material costs. Advancements in vacuum pump
technologies and leak-detection systems will enhance operational reliability and reduce
energy consumption. Improved maglev systems with higher lift-to-drag ratios and lower
energy requirements will increase travel speeds while minimizing power demand.

Figure 16 Hyperloop future

8.2.2. Market Integration and Public Acceptance

For Hyperloop to become a mainstream transportation option, it must gain public
acceptance and integrate effectively with existing transport networks. Public outreach
initiatives, educational campaigns, and transparent communication regarding safety,
affordability, and environmental benefits will play a critical role in building user
confidence. Intermodal integration with airports, railway stations, and urban transit systems
will enhance convenience and accessibility, increasing ridership and maximizing
infrastructure value.

8.2.3. Economic and Financial Models

Future Hyperloop projects will require innovative financing models, combining public
investment, private capital, and public-private partnerships. Large upfront capital costs and
long payback periods necessitate financial risk-sharing strategies. Revenue generation
through ticket sales, freight services, energy sales, advertising, and leasing commercial
spaces within Hyperloop stations can enhance financial viability. Economic models must
also factor in externalities such as environmental benefits, productivity gains, and reduced
congestion, presenting a comprehensive value proposition to governments and investors.
24
 CHAPTER-9
CASE STUDY: THE VIRGIN HYPERLOOP ONE PROJECT

9.1. Introduction
The proposed Virgin Hyperloop system as detailed in the Hyperloop Alpha design study,
represents a groundbreaking transportation concept aimed at delivering ultra-high-speed,
energy-efficient, and cost-effective intercity travel. Conceived by Elon Musk and SpaceX in
response to California’s high-speed rail project, Hyperloop seeks to achieve travel times of
approximately 35 minutes for the 350-mile corridor, significantly outpacing conventional air
and rail alternatives.

9.2. System Overview

The Hyperloop system is composed of four primary subsystems: the capsule, the tube
infrastructure, the propulsion system, and the stationary support structures. Each element is
engineered to ensure maximum efficiency, safety, and scalability. Capsules are propelled using
linear induction motors and levitate on air bearings to reduce friction. The infrastructure
consists of two parallel steel tubes mounted on pylons that follow the I-5 highway corridor.

Table 2 Hyperloop Alpha – Major System Components

Component Function
Capsule Sealed pod carrying passengers or vehicles
Tube Low-pressure steel conduit for capsule transit
Propulsion Linear induction motor with onboard rotor and stationary stator
Support System Elevated pylons, stations, solar panels, and vacuum pumps

9.3. Structural and Geometric Design

The core structural element is the elevated steel tube, which is both aerodynamic and cost-
efficient. The passenger-only tube has an inner diameter of 2.23 meters, while the version
accommodating vehicles increases to 3.3 meters. These tubes maintain an internal pressure of
100 Pascals (1/1000 atmospheric pressure) to minimize air drag. Constructed from welded steel
with a wall thickness of 20–25 mm, the tubes are supported by reinforced concrete pylons
spaced 30 meters apart.

Table 3 Tube Geometry Specifications

Specification Passenger Tube Passenger + Vehicle Tube
Inner Diameter 2.23 m 3.30 m
Tube Cross-Sectional Area 3.91 m² 8.55 m²
Wall Thickness 20–23 mm 23–25 mm
Operating Pressure 100 Pa 100

25
9.4. Capsule Design and Cost
There are two capsule variants—one for passengers only, and one that also accommodates
vehicles. The passenger capsule is designed to carry 28 passengers and weighs approximately
15,000 kg when fully loaded. The passenger plus vehicle capsule weighs up to 26,000 kg and
can carry up to three vehicles. Each capsule is equipped with a compressor fan to bypass air
and power the air bearings, a battery pack, and safety systems.

9.5. Comparative Cost Analysis

Table 4 Tube Geometry Specifications

Component Hyperloop Alpha (Passenger) California High-Speed Rail
Total Estimated Cost ~$6 billion USD ~$68.4 billion USD
Construction Cost/km ~$17 million USD/km ~$123 million USD/km
Land Acquisition Impact Minimal (tube on pylons) High (wide corridor needed)
Energy Infrastructure Included (solar + battery) External (grid-dependent)
Structural Resilience High (seismic dampers + elevated) Moderate (vulnerable to faults)
Completion Timeline Shorter due to modularity Extended due to complexity

9.6. Energy Efficiency and Environmental

Impact
Hyperloop's sustainability is one of its most
compelling features. The system requires an
average of 21 MW, while the solar panels
mounted on the tubes can generate up to 57
MW. Excess energy is stored in battery banks
at each propulsion segment. With near-zero
operational emissions, minimal land disruption
due to elevated pylons, and encapsulated tubes
that contain sound and debris, Hyperloop offers
a compelling solution for eco-friendly
transportation.
Figure 17 Energy Per Passenger Per Mile
9.7. Conclusion
From a civil engineering standpoint, the Hyperloop Alpha project is a masterclass in innovative
infrastructure design. Its reliance on modular construction, structural resilience, and sustainable
power positions it as a forward-thinking alternative to traditional transportation. With
significantly lower costs than high-speed rail and greater safety and efficiency, it presents a
promising avenue for future urban and intercity transport systems

26
 CHAPTER- 10
CASE STUDY: PUNE–MUMBAI HYPERLOOP PROJECT

The Pune–Mumbai Hyperloop was proposed as India’s first Hyperloop corridor, spanning
approximately 117.5 km. The route aims to cut travel time from over 3 hours to just 25 minutes,
transforming regional connectivity in Maharashtra.

10.1. Project Specifications

Table 5 Pune–Mumbai Hyperloop Project Specification

Parameter Details
Route Pune → Navi Mumbai
Distance ~117.5 km
Estimated Travel Time ~25 minutes
Capsule Capacity 28–40 passengers per pod
System Speed Up to 1000 km/h
Technology Partners Virgin Hyperloop, DP World
Government Involvement Maharashtra Government (MoU signed, later paused)
Estimated Project Cost ₹16,000 crore (~$2 billion USD)

10.2. Cost Comparative Analysis: Pune–Mumbai Corridor

1. Capital Expenditure (CAPEX)

Table 6 Pune–Mumbai Hyperloop Project Capital Expenditure

Component Conventional Rail (₹ Hyperloop (₹ crore)
crore)
Track/Tube Infrastructure 940 (₹8 crore/km) 12,000 (₹102 crore/km)
Stations (2 terminals) 120 250
Land Acquisition 250 50 (elevated, lower footprint)
Signalling & Control Systems 40 800 (AI-based, autonomous)
Rolling Stock / Pods 50 400
Vacuum/Propulsion System — 1,200
Solar Power Integration — 1,300
Total Estimated CAPEX ~₹1,400 crore ~₹16,000 crore
Observation: Hyperloop costs are ~11–12× higher primarily due to vacuum infrastructure,
advanced propulsion, and system automation.

2. Operational Expenditure (OPEX) – Annual Estimate

27
 Table 7 Pune–Mumbai Hyperloop Project Operational Expenditure
Category Conventional Rail (₹ crore/year) Hyperloop (₹ crore/year)
Energy Consumption ~100 (diesel/electric) ~40 (renewable + efficient)
Maintenance ~150 ~70 (less wear, modular)
(Track/Tube)
Labor & Staff ~200 (manual-intensive) ~30 (automated)
Safety & Security ~30 ~50 (advanced AI systems)
Systems
Total Estimated ~₹480 crore/year ~₹190 crore/year
OPEX
Hyperloop OPEX is lower, thanks to automation, low-friction systems, and solar energy use.

3. Cost per Passenger-Km

Assuming 15 million annual riders, average trip distance of 100 km:

Table 8 Pune–Mumbai Hyperloop Project Cost Per Passenger-Km

Metric Conventional Rail Hyperloop
Per passenger-km CAPEX ₹0.62 ₹5.10
Per passenger-km OPEX ₹1.30 ₹0.60
Total (over 30 years) ₹1.92 ₹5.70
OPEX is lower for Hyperloop, but high CAPEX inflates total cost per passenger-km.

4. Energy Efficiency & Sustainability

Table 9 Pune–Mumbai Hyperloop Energy Efficiency

Metric Conventional Rail Hyperloop
CO₂ Emissions (g/passenger-km) ~41 g ~5–10 g
Power Source Grid/Diesel Solar/Electric
Land Use High Very low (elevated)

10.3. Project Status & Challenges

• Feasibility Study Completed (2018–2020)
• Paused in 2021 by Maharashtra govt due to political and feasibility concerns.
• Challenges:
➢ Regulatory vacuum for Hyperloop tech in India
➢ High initial investment with long ROI period
➢ Public safety, land acquisition, and standardization issues

28
 CONCLUSION

The Hyperloop transportation system emerges as one of the most ambitious and technically
sophisticated innovations in modern infrastructure engineering. By combining principles of
vacuum dynamics, magnetic levitation, and linear propulsion, it proposes an entirely new mode
of high-speed, energy-efficient, and low-emission ground transport. The system's success
hinges on the ability to mitigate conventional transportation constraints, namely friction and
aerodynamic drag, which it achieves through a meticulously engineered low-pressure tube
environment and levitation mechanisms such as electromagnetic suspension (EMS) and
electro-dynamic suspension (EDS).

From a structural engineering standpoint, the design and implementation of the Hyperloop tube
and its supporting infrastructure represent substantial technical challenges. The tube must not
only withstand significant external atmospheric pressure and thermal expansion but also
maintain ultra-low internal pressures of around 100 Pa to facilitate near-vacuum conditions. To
do so, robust vacuum systems, modular steel or composite tubes, and precisely aligned support
pylons are deployed. The integration of expansion joints, seismic isolators, and real-time
pressure monitoring systems further enhances structural stability and safety, particularly in
seismically active regions.

Geotechnically, the Hyperloop alignment demands careful optimization of route geometry,

curvature radii, and elevation profiles to ensure passenger comfort under high-speed conditions
and to minimize inertial forces. The use of elevated guideways supported on reinforced
concrete or hybrid pylons allows for reduced land acquisition and better seismic performance,
while also facilitating integration with existing transportation corridors. Tunnelling solutions,
though costly, are essential for traversing complex terrains, and their feasibility is enhanced by
the Hyperloop's relatively narrow tube diameter.

Construction methodologies for the system embrace prefabrication, modular assembly, and
digital design tools such as Building Information Modelling (BIM) and Finite Element
Analysis (FEA). These tools enable high precision, reduce construction time, and support
predictive maintenance strategies via sensor-integrated infrastructure. The tubes and pylons are
designed with extreme tolerances to maintain levitation gaps and ensure smooth pod
movement, even under dynamic loads and environmental stressors.

In summary, Hyperloop technology exemplifies a convergence of advanced engineering

disciplines—fluid dynamics, structural mechanics, geotechnics, electrical systems, and digital
technologies—into a cohesive, forward-looking transport solution. While several technical,
regulatory, and financial hurdles remain, continued innovation, rigorous testing, and global
collaboration will be pivotal in transforming Hyperloop from conceptual prototype to
operational reality. With its promise of revolutionizing intercity travel, Hyperloop stands
poised to become a cornerstone of next-generation transportation infrastructure.
29
 REFRENCES

[1] Ingo A. Hansen (2020) Hyperloop transport technology assessment and system analysis,
Transportation Planning and Technology, 43:8, 803-820, DOI:
10.1080/03081060.2020.1828935

[2] Openwork & Caplan, 2018; Abdelrahman et al., 2018; Ji et al., 2018

[3] E. Musk, Hyperloop Alpha, SpaceX, Aug. 2013. [Online]. Available:

https://www.spacex.com/sites/spacex/files/hyperloop_alpha.pdf

[4] Abhijit S. Kolhe, V.R. Rathi. (2025). AI-Powered Earthquake Resilience: Predictive
Modelling and Design Optimization for Seismic-Resistant Structures. International Journal of
Civil Engineering and Technology (IJCIET), 16(2), 1-31.

[5] J. K. Nøland, "Prospects and Challenges of the Hyperloop Transportation System: A

Systematic Technology Review," IEEE Access, vol. 9, pp. 28439–28466, Feb. 2021, doi:
10.1109/ACCESS.2021.3057788.

[6] K. C. Mouli, N. Pannirselvam, V. Anitha, D. Vijayakumar, and M. C. N. Kumar, "A study

on Hyperloop – the envisaged & advanced means of transportation," Int. J. Res. Anal. Rev.,
vol. 5, no. 4, pp. 415–420, Dec. 2018. [Online]. Available: http://www.ijrar.org/

[7] Museros, P., Lázaro, C., Pinazo, B., & Monleón, S. (2021). Key aspects in the analysis and
design of Hyperloop™ infrastructure under static, dynamic and thermal loads. Engineering
Structures, 239, 112177. https://doi.org/10.1016/j.engstruct.2021.112177

[8] P. Shylaja, "Analysis on technical aspect of a Hyperloop system," International Journal of

Engineering and Applied Sciences (IJEAS), vol. 8, no. 11, pp. 11–13, Nov. 2021. [Online].
Available: https://www.ijeas.org/

30
