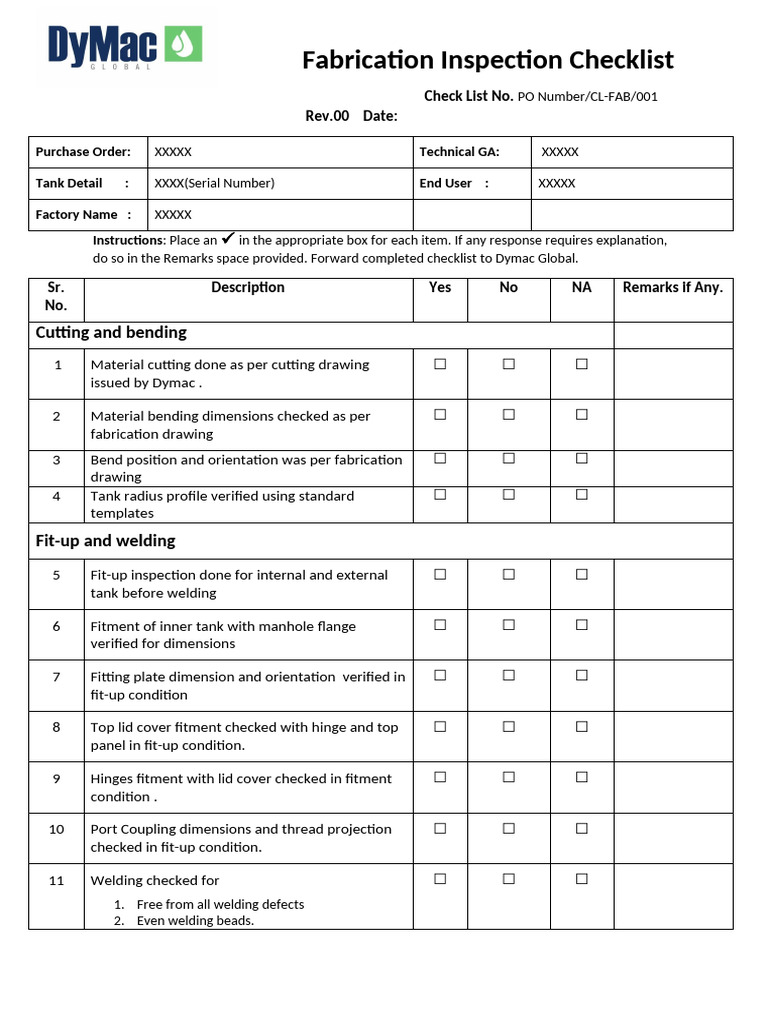

Fabrication Inspection Checklist
Check List No. PO Number/CL-FAB/001
Rev.00 Date: XX-XX-XX
Purchase Order: XXXXX Technical GA: XXXXX
Tank Detail : XXXX(Serial Number) End User : XXXXX
Factory Name : XXXXX
Instructions: Place an in the appropriate box for each item. If any response requires explanation,
do so in the Remarks space provided. Forward completed checklist to Dymac Global.
Sr. Description Yes No NA Remarks if Any.
No.
Cutting and bending
1 Material cutting done as per cutting drawing ☐ ☐ ☐
issued by Dymac .
2 Material bending dimensions checked as per ☐ ☐ ☐
fabrication drawing
3 Bend position and orientation was per fabrication ☐ ☐ ☐
drawing
4 Tank radius profile verified using standard ☐ ☐ ☐
templates
Fit-up and welding
5 Fit-up inspection done for internal and external ☐ ☐ ☐
tank before welding
6 Fitment of inner tank with manhole flange ☐ ☐ ☐
verified for dimensions
7 Fitting plate dimension and orientation verified in ☐ ☐ ☐
fit-up condition
8 Top lid cover fitment checked with hinge and top ☐ ☐ ☐
panel in fit-up condition.
9 Hinges fitment with lid cover checked in fitment ☐ ☐ ☐
condition .
10 Port Coupling dimensions and thread projection ☐ ☐ ☐
checked in fit-up condition.
11 Welding checked for ☐ ☐ ☐
1. Free from all welding defects
2. Even welding beads.
Fabrication Inspection Checklist
3. Uneven welding beads need to ground
flushed.
Free from undercut, spatters etc.
12 fitment of all parts verified after after welding ☐ ☐ ☐
found okay
13 DP Tested for all weld joints after welding and ☐ ☐ ☐
finishing for internal tank
14 DP Tested for all weld joints after welding and ☐ ☐ ☐
finishing for External tank no defects observed.
15 Pneumatic test done for internal tank @3psi no ☐ ☐ ☐
leakages /pressure drop / bulging observed
Remarks-
Factory Sign and Date Approved By (Dymac Global)
Name : Date- Name :Nithesh Date :
