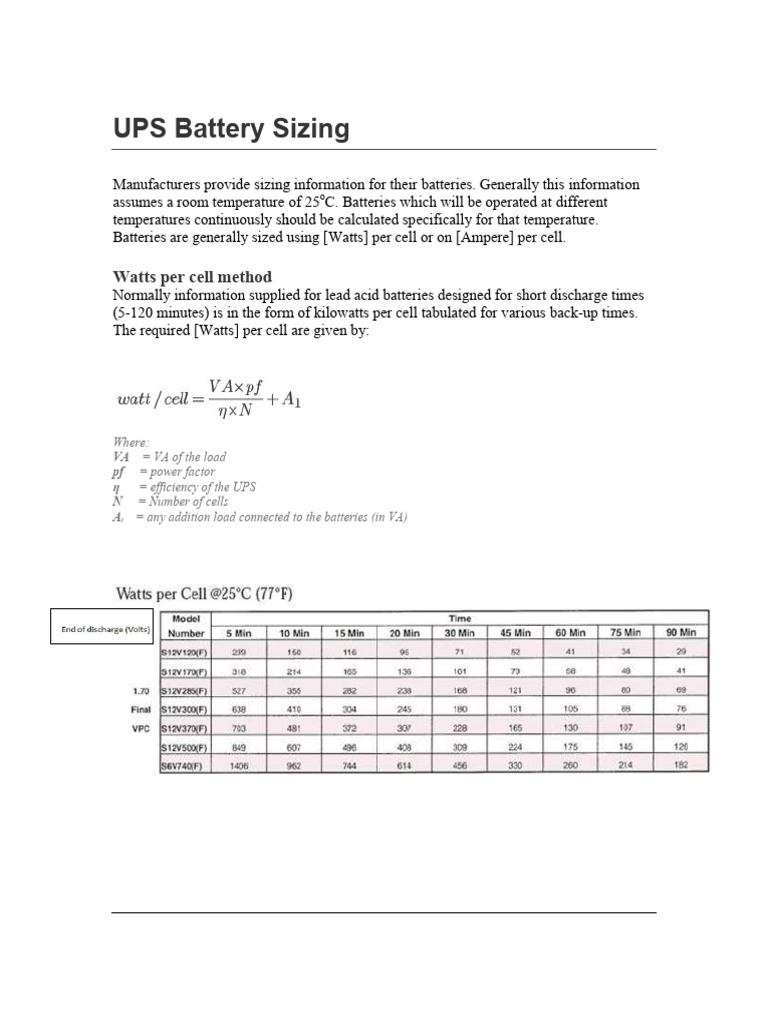

UPS Battery Sizing

Manufacturers provide sizing information for their batteries. Generally this information
assumes a room temperature of 25oC. Batteries which will be operated at different
temperatures continuously should be calculated specifically for that temperature.
Batteries are generally sized using [Watts] per cell or on [Ampere] per cell.

Watts per cell method


Normally information supplied for lead acid batteries designed for short discharge times
(5-120 minutes) is in the form of kilowatts per cell tabulated for various back-up
back times.
The required [Watts] per cell are given by:

Where:
VA = VA of the load
pf = power factor
η = efficiency of the UPS
N = Number of cells
Al = any addition load connected to the batteries (in VA)
Example of UPS battery sizing
Select the battery model number and quantity (using the typical watts per cell table) for a
300 kVA UPS, 94% efficiency, power factor of 0.8, for a backup time of 15 minutes.

The UPS battery bus voltage is 480 V. The typical table is for 12 V batteries (six
(si cells of
2 V each).

Quantity of batteries per bank = 480/12 = 40 batteries

Number of cells per bank = 40 x 6 = 240 cells

Looking at the capacity, we see that the required watt/cell is too much for one bank.
However, various options are available, for example if we decided to use three banks in
parallel:

watt/cell (three banks in parallel) = 1063/3 = 354


- From the table we select a S12V370(F) battery

Total number of batteries required = 40 (per bank) x 3 (banks) = 120
