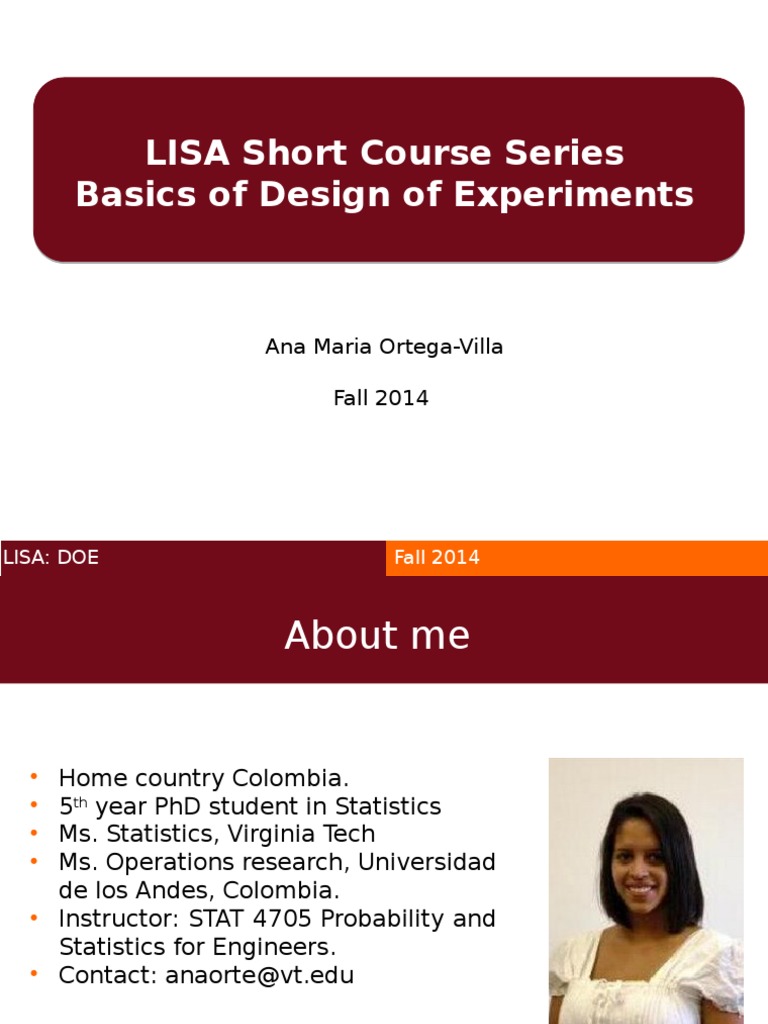

LISA Short Course Series

Basics of Design of Experiments

Ana Maria Ortega-Villa

Fall 2014

LISA: DOE

Fall 2014

About me

Home country Colombia.

5th year PhD student in Statistics
Ms. Statistics, Virginia Tech
Ms. Operations research, Universidad
de los Andes, Colombia.
Instructor: STAT 4705 Probability and
Statistics for Engineers.
Contact: anaorte@vt.edu

LISA:
LISA:DOE
R Basics

Fall
2014
Fall 2013

Laboratory for
Interdisciplinary Statistical
Analysis
LISA helps VT researchers benefit from the use of Statistics

Collaboration:
Visit our website to request personalized statistical advice and assistance with:

Designing Experiments Analyzing Data Interpreting Results

Grant Proposals Software (R, SAS, JMP, Minitab...)
LISA statistical collaborators aim to explain concepts in ways useful for your research.

Great advice right now: Meet with LISA before collecting your data.
LISA also offers:
Educational Short Courses: Designed to help graduate students apply statistics in their research
Walk-In Consulting: Available Monday-Friday from 1-3 PM in the Old Security Building (OSB) for
questions <30 mins. See our website for additional times and locations .

All services are FREE for VT researchers. We assist with researchnot class projects or homework.

www.lisa.stat.vt.ed
u

What are we doing?

1. Introduction to Design of Experiments
2. DOE main principles
. Randomization
. Replication
. Local control of error
3. Complete Randomized Design
4. Randomized Complete Block Design
5. Introduction to factorial Designs

LISA: DOE

Fall 2014

Introduction to Design of
Experiments

LISA: DOE

Fall 2014

What is an Experiment?
An experiment can be thought of as a test or series
of tests in which we make controlled changes to the
input variables of a process or a system, in order to
determine how they change the output of interest.

LISA: DOE

https://weakinteractions.files.wordpress.com/2009/08/s1e1.jpg?w=450

Fall 2014

Why do we design experiments?

MAXIMIZE:

Probability of having a successful experiment.

Information gain: the results and conclusions
derived depend on the way information was
collected.
MINIMIZE

Unwanted effects from other sources of variation.

Cost of experiment if results are limited.

LISA: DOE

Fall 2014

What would be an alternative?

Observational study:
The researcher has little to no control over sources of
variation and simply observes what is happening.
The researcher can only determine information about
how our inputs are related to the outputs we cannot
determine causation.
Examples:

Surveys
Weather Patterns
Stock market price
etc.

LISA: DOE

http://fluxicon.com/blog/wp-content/uploads/2012/02/observeandreport.jpg

Fall 2014

Designed experiment
The researcher identifies and controls sources of
variation that significantly impact the measured
response.
The researcher
causation.

can

gather

Correlation Causation

LISA: DOE

Fall 2014

evidence

for

But what are sources of variation?

Sources of variation are anything that could
cause an observation to be different from
another observation.
Two main types:

Those that can be controlled and are of

interest are called treatments or treatment
factors.
Those that can influence the experimental
response but in which we are not directly
interested are called nuisance factors.

LISA: DOE

Fall 2014

Rule of Thumb
List all major and minor sources of variation
before collecting the data, classifying them as
either a treatment or a nuisance factor.
We want our design to minimize the impact of
minor sources of variation, and to be able to
separate effects of nuisance factors from
treatment factors
We want the majority of the variability of the data
to be explained by the treatment factors.

LISA: DOE

Fall 2014

Example: Impact of Exercise Intensity on

Resting Heart Rate
Suppose a researcher surveys a sample of
individuals to obtain information about their
intensity of exercise each week and their resting
heart rate.
Subje Reported Intensity
of Exercise each
ct

Resting Heart
Rate

week

1
2
3

What type of study is

this?
LISA: DOE

http://karmajello.com/postcont/2014/02/WhatExercise-Can-Heart-Patients-Undertakee1352999185475.jpg

Observational Study
Fall 2014

How could we make it a designed

expt?
The researcher finds a sample of individuals,

enrolls groups in exercise programs of different

intensity levels, and then measures their resting
heart rate.

LISA: DOE

Subje Intensity level of

exercise each
ct

Resting Heart
Rate

week

1
2
3

Fall 2014

What are our sources of variation?

Major

Treatment

Nuisance Factor

LISA: DOE

Minor

Exercise intensity

Medication Use
Air Temperature &
Humidity

Fall 2014

Location of
measurement
Body Size
Body Position

Designing the experiment

Minimum considerations:

Response: Resting heart rate (beats per

minute)
Treatment: Exercise Program
o Low intensity
o Moderate intensity
o High intensity

LISA: DOE

Fall 2014

Designing the experiment

Basic Design:

36 participants, 18 male and 18 female under

the conditions listed previously.
Every person is assigned to one of the three
8-week exercise programs.
Resting heart rate is measured
beginning and end of 8 weeks.

LISA: DOE

Fall 2014

at

the

Fundamentals of Design of
Experiments
An experimental unit (EU) is the material to which treatment
factors are assigned.

For the resting heart rate example, the participants are the
EU.

We want EUs to be as similar as possible, but that isnt

always realistic.

A block is a group of EUs similar to each other, and different

from other groups.
o
In the resting heart rate example, women are
physiologically similar to each other and different from
men.
A blocking factor is the characteristic used to create the blocks.
o
In the resting heart rate example, gender is a blocking

LISA: DOE

factor.
Fall 2014

Three Basic Principles of

Design of Experiments
Randomization

LISA: DOE

Fall 2014

Randomization
Randomization consists of randomly assigning:

the experimental treatments to experimental units.

the order in which the independent runs will be
performed (when applicable).
Purpose:
Often we assume an independent, random
distribution of observations and errors
randomization validates this assumption.
Averages out the effects of extraneous/lurking
variables.
Reduces bias and accusations of bias.

LISA: DOE

Fall 2014

Randomization
The way you randomize depends on your
experiment, what is important here is to remember
there are two levels of randomization.

1. Assignment of treatments to experimental units

2. Order of the runs (when applicable).

LISA: DOE

Fall 2014

Randomization RHR Example

1. Assignment of treatments to experimental units.
Particip
ant

Exercise
Program

High

High

Low

Intermediate

Low

High

2. Order of the runs. Not applicable in this case since all

participants are doing the experiment at the same
time.

LISA: DOE

Fall 2014

Three Basic Principles of

Design of Experiments

Replication

LISA: DOE

Fall 2014

Replication
Replication consists of independently repeating runs of each
treatment.
Purpose:
Improves precision of effect estimation.
Decreases Variance.
Allows for estimation of experimental error. This error
will later become a unit of measurement to determine
whether observed differences are really statistically
significant.
Note: Try to have the same amount of replicates for each
treatment assignment.

LISA: DOE

# Replicates=# EUs/#Treatments
Fall 2014

Replication in RHR Example

Particip
ant

Exercise
Program

High

High

Low

Intermediate

Low

High

Participants 1, 2 and 6 can be considered as

replicates of High intensity exercise treatment.

LISA: DOE

Fall 2014

Pseudoreplication
What is pseudoreplication?

Occurs when there is more than one

observation per EU and they are treated as
replicates.
In our RHR example it would be like taking
measurements in different locations (wrist, side
of the neck and foot) of the same person and
treating them as separate observations.

LISA: DOE

Fall 2014

Pseudoreplication
A way to deal with multiple measurements per
EU is to average them over and work with the
new value.
Consequences:

Underestimation of error
Potentially exaggerate the true treatment
differences

LISA: DOE

Fall 2014

Three Basic Principles of

Design of Experiments
Local Control of Error

LISA: DOE

Fall 2014

Local control of error

Local control of error is taking any means of
improving the accuracy of measuring treatment
effects in the design.
Purpose:
Removes or minimizes sources of nuisance.
Improves the precision with which comparisons
among factors are made.
Note: There are several ways of doing this. One could
control as much as possible all the previously listed
sources of variation. Often this is done by the use of
blocking or more advanced designs such as ANCOVA.

LISA: DOE

Fall 2014

RHR Local control of error

We will be monitoring the participants exercise program
throughout the study (not relying on self-reporting).
We will only consider participants that are not taking any
medication that might alter their heart rate.
We will take all measurements on the same location of
the body: the wrist.
We will take all measurements with the participant on
the same position: standing.
We will only accept participants with a body mass index
within the normal range.
We will measure all participants on the same day at the
beginning and the end of the study.

LISA: DOE

Fall 2014

Common Designs:

Completely Randomized Design (CRD)

LISA: DOE

Fall 2014

Complete Randomized Design (CRD)

The CRD is the simplest design. It assumes all EUs
are similar and the only major sources of variation
are the treatments.
In this design all treatment-EU assignments are
randomized for the specified number of treatment
replications.
If you are equally interested in comparisons of all
treatments get as close as possible to equally
replicating the treatments. (Balanced design).

LISA: DOE

Fall 2014

CRD Example: Plasma Etching Experiment

Etching is a process in which unwanted material
is removed from circuit wafers in order to obtain
circuit patterns, electrical interconnects and
areas in which diffusions or metal depositions
are to be made.

* Example from Montgomery (2009)

LISA: DOE

Fall 2014

CRD Example: Etching Process simplified

Energy is
supplied by
a
generator.

LISA: DOE

Chemical
mixture
gas is is
shot at a
sample.

Fall 2014

Plasma is
generated
in gap
between
electrodes

CRD Example: Study

An engineer is interested in investigating the relationship
between the generator power setting and the etch rate for the
tool.
Response: Etch rate
Treatment: Generator power setting (4 levels to consider)
Experimental Unit: Circuit Wafer
Possible sources of variation:

Generator power setting

Chemical mixture gas (the gases affect the plasma
behavior)
Size of the gap between the electrodes.

LISA: DOE

Fall 2014

CRD Example: Principles of DOE

Replication
We will consider 5 EUs for each treatment level
(generator power setting)

Randomization
Since all EUs are considered to be identical, we will
randomize the running order.

Local control of error

In order to minimize variability we will use the same
chemical mixture (C2F6) and size of gap (0.8 cm) for
all runs of the experiment.

LISA: DOE

Fall 2014

CRD Example: Randomization Scheme

Run

Treatment

Run

Treatment

11

12

13

14

15

16

17

18

19

10

20

This run order was obtained using a random number generator.

LISA: DOE

Fall 2014

CRD Example: What is the question?

We are interested in testing the equality of the
treatment means:

If we reject the null hypothesis, then this would mean

there is a difference between at least two of the
means, which translates to a significant different
between the treatments.

LISA: DOE

Fall 2014

CRD Example: Analysis

We want to enter the data
such
that
each
each
response has its own row,
with
the
corresponding
treatment type.
We then choose Analyze ->
Fit Y by X.

LISA: DOE

Fall 2014

CRD Example: Analysis

We will choose Rate as the Y response and Treatment
as the X factor.

LISA: DOE

Fall 2014

CRD Example: Visual Analysis

From the red triangle: Display Options ->Boxplot

Remarks:

These box plots show that the etch rate increases as the power
setting increases.

From this graphical analysis we suspect:

1. Generator power settings affects the etch rate.

2. Higher power settings result in increased etch rate.

LISA: DOE

Fall 2014

CRD Example: ANOVA Table

From red triangle select means and ANOVA.

ANOVA partitions total variability into three separate

independent pieces:
MSTrt: Variability due to treatment differences.
MSE: Variability due to experimental error.
If MSTrt>MSE then treatments likely have different effects.

LISA: DOE

Fall 2014

CRD Example: Contrasts

Red Triangle: Compare Means -> Tukey HSD
At least two treatments are different, which ones?

LISA: DOE

Fall 2014

CRD: Summary
CRD has one overall randomization.
Try to equally replicate all the treatments.
Plot your data in a meaningful way to help
visualize analysis.
Use ANOVA to test for an overall difference.
Look at specific contrasts of interest to better
understand the relationship between treatments.

LISA: DOE

Fall 2014

Common Designs:

Randomized Complete Block Design

(RCBD)

LISA: DOE

Fall 2014

Randomized Complete Block Design (RCBD)

The RCBD is a design in which there are one or
more nuisance factors that are known and
controllable. This design systematically eliminates
the effect of these nuisance factors on the
statistical comparisons among treatments.
The block size equals the number of treatments.
Basic Idea: Compare treatments within blocks to
account for the source of variation.

LISA: DOE

Fall 2014

RCBD Example: Vascular Graft Experiment

Vascular grafts (artificial veins) are produced by
extruding billets of polytetrafluoroethylene (PFTE) resin
combined with a lubricant into tubes. Sometimes these
tubes contain defects known as flicks. These defects
are cause for rejection of the unit.
The product developer suspects that the extrusion
pressure affects the occurrence of flicks. An engineer
suspects that there may be significant batch-to-batch
variation from the resin.
* Example from Montgomery (2009)

LISA: DOE

Fall 2014

RCBD Example: Study

Response: Percentage of tubes that did not
contain any flick.
Treatment: Extrusion Pressure (4 levels)
Block: Batch of resin (6 batches).

LISA: DOE

Fall 2014

RCBD Example: Principles of DOE

Replication
Each treatment (extrusion pressure) is replicated
once in each block.

Randomization
The treatments (extrusion pressure) are randomized
inside each block.

Local control of error

In order to minimize variability we will use Blocking
and keeping all other possible controllable nuisance
factors controlled.

LISA: DOE

Fall 2014

RCBD Example: What is the question?

We are interested in testing the equality of the
treatment means:

If we reject the null hypothesis, then this would mean

there is a difference between at least two of the
means.

LISA: DOE

Fall 2014

RCBD Example: What is the question?

We are interested in testing the equality of the
treatment means:

If we reject the null hypothesis, then this would mean

there is a difference between at least two of the
means.

LISA: DOE

Fall 2014

RCBD Example: Analysis JMP

Analysis: Follow the same procedure.
Analyze->Fit Y by X.

LISA: DOE

Fall 2014

RCBD Example: Visual Analysis

Boxplot:

From this graphical analysis we suspect:

1.

Extrusion pressure affects the response.

2.

Higher pressure settings seem to result in decreased no flicks percentages.

3.

These results can be potentially affected by the resin batch.

LISA: DOE

Fall 2014

RCBD Example: ANOVA Table

According to this analysis, we reject the null hypothesis. This

means that there is a significant effect by the treatments.
Software is going to give you a p-value for Block, but
only use this to gauge how much we reduced experimental
error. Do not test the blocks using this p-value.

LISA: DOE

Fall 2014

RCBD Example: Contrasts

Significant differences between treatments 1 and 4,

and 2 and 4.

LISA: DOE

Fall 2014

Common Designs:

Introduction to Factorial Designs

LISA: DOE

Fall 2014

Factorial Designs
In this type of design we want to study the
effect of two or more factors. Here, we have
that in each complete trial or replication of the
experiment, all possible combinations of the
levels of the factors are investigated.
Basic idea: Treatments are a combination of
multiple factors with different levels (i.e.
settings)

LISA: DOE

Fall 2014

Factorial Designs: Main Concepts

The effect of factor is defined to be as the
change in the response produced by a change
in the level of the factor (main effect).
Interaction between factors is present when
the difference in response between the levels
of one factor is not the same at all levels of
the other factors (i.e. the effect of factor A
depends on the level chose for factor B).

LISA: DOE

Fall 2014

Factorial Designs Example: Battery Design

An engineer is designing a battery that will be used in
a device that will be subject to extreme variations in
temperature.
She is interested in examining three different materials
for this battery at three different temperatures (15, 70
and 125 F) in order to determine how battery life is
affected by these conditions.

* Example from Montgomery (2009)

LISA: DOE

Fall 2014

Factorial Design Example: Study

Response: Battery life
Treatment: All combinations the factors:

LISA: DOE

Material: 3 levels (1, 2 and 3)

Temperature: 3 levels (15, 70 and 125
F)

Fall 2014

Factorial Design Example: Principles of DOE

Replication
Each treatment (combination of levels of factors) is
replicated 4 times.

Local control of error

In order to minimize variability we will keep
everything else in the testing lab constant
throughout the experiment.

LISA: DOE

Fall 2014

Factorial Design Example: Randomization

Mat

Temp

Run

Mat

Temp

Run

Mat

Temp

Run

15

15

17

15

13

15

11

15

30

15

15

26

15

23

15

32

15

31

15

14

15

24

70

22

70

25

70

27

70

34

70

35

70

70

70

70

12

70

33

70

20

70

125

15

125

10

125

125

21

125

29

125

125

28

125

36

125

18

125

19

125

125

16

LISA: DOE

Fall 2014

Factorial Design Example: Randomization

You can create your own design in JMP:
DOE->Custom Design

LISA: DOE

Fall 2014

Factorial Design Example: Analysis

Analyze->Fit Model

LISA: DOE

Fall 2014

Factorial Design Example: Interaction

Red Triangle: Factor Profiling -> Interaction Plots

LISA: DOE

Fall 2014

Factorial Design Example: ANOVA Theory

Here the ANOVA table is partitioned:
SST= SSModel+SSError
And SSModel is partitioned:
SSModel=SSTemp+SSMat+SSInt
SSTemp: Compares Temperature level means to overall
mean.
SSMat: Compares Material level means to overall mean.
SSInt: Looks at differences between
changes depending on material.

LISA: DOE

Fall 2014

temperature

Factorial Design Example: ANOVA

LISA: DOE

Fall 2014

Model adequacy checking

LISA: DOE

Fall 2014

Model Adequacy checking

It is recommended to check the adequacy of the
model by examining the residuals (difference between
the true values and the ones predicted by the model.
These residuals should be structureless, which means
they should not contain an obvious pattern.
To save the residuals from Fit Model (Not fit Y by X):
Red triangle: Save columns -> Residuals

LISA: DOE

Fall 2014

Model Adequacy checking: Assumptions

Residuals should be normally distributed
Can inspect with a normal probability plot:
Analyze-> Distribution.
Red triangle: Normal Quantile plot

Plot Residuals vs fitted values and check for

patterns
In the effect analysis window, red triangle: Row
diagnostics

Plot Residuals by treatment, can do it with saved

residuals using the graph builder.

LISA: DOE

Fall 2014

Model Adequacy checking: Battery

LISA: DOE

Fall 2014

Model Adequacy checking: Plasma Etching

LISA: DOE

Fall 2014

Model Adequacy checking: Vascular Graft

LISA: DOE

Fall 2014

Exercise

LISA: DOE

Fall 2014

Exercise:
A soft drink bottler is interested in obtaining more uniform fill heights in the
bottles produced by his manufacturing process. The process engineer can
control three variables during the filling process:

Percent carbonation
Operating pressure in the filler
Line speed.
The engineer can control carbonation at three different levels (10, 12 and 14%),
two levels for pressure (25 and 30 psi) and two levels for line speed (200 and
250 bpm).
She designs to run two replicates of a factorial design in these factors, with all
runs taken in random order. The response variable is the average deviation
from the target fill height observed in a production run of bottles at each set of
conditions.
How many factors do we have? How many runs would we need to perform?
* Example from Montgomery (2009)

LISA: DOE

Fall 2014

Exercise: Question 1
Suppose you obtain this interaction plot, what
would you interpret?

LISA: DOE

Fall 2014

Exercise: Analysis
Conduct the factorial analysis in JMP, what can
you conclude?

LISA: DOE

Fall 2014

Exercise: Analysis
What can you say about the residuals?

LISA: DOE

Fall 2014

Summary
Remember to randomize!
Randomize run order, and treatments

Remember to replicate!
Use multiple EUs for each treatment it will help you be
more accurate in estimating your effects

Remember to block!
In the case where you suspect some inherent quality of
your experimental units may be causing variation in your
response, arrange your experimental units into groups
based on similarity in that quality

Remember to contact LISA!

For short questions, attend our Walk-in Consulting hours
For research, come before you collect your data for design
help

LISA: DOE

Fall 2014

Reference

Montgomery, Douglas C. Design and analysis of

experiments. John Wiley & Sons, 2008.

LISA: DOE

Fall 2014

LISA: DOE

Please dont forget to fill the sign in sheet

and to complete the survey that will be
sent to you by email.

Thank you!

Fall 2014
