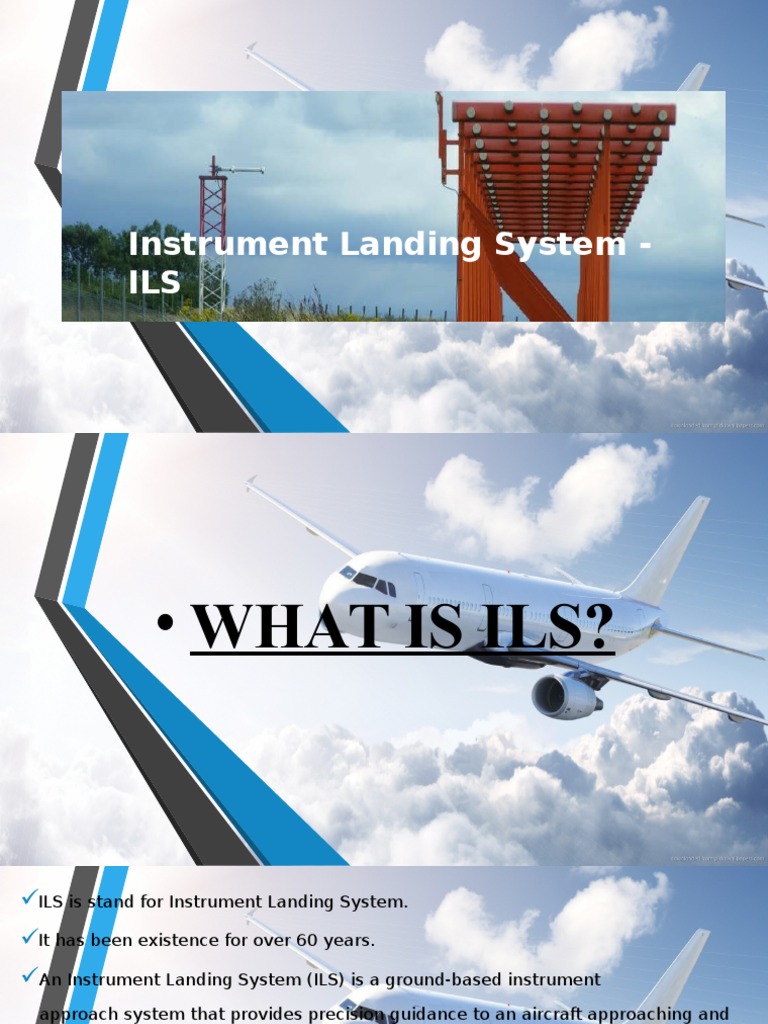

Instrument Landing System ILS
WHAT IS ILS?
ILS is stand for Instrument Landing System.
It has been existence for over 60 years.
AnInstrument Landing System(ILS) is a ground-basedinstrument
approachsystem that provides precision guidance to anaircraftapproaching and
landing on arunway.
installed on each end of a runway.
It uses a combination of radio signals(VHF-UHF) and, in many cases, highintensity lighting arrays to enable a safe landing.
Concept: modified AM- Space Modulation
Uses radio signals and sometimes coupled with high-intensity lights.
Tests of the first ILS began in 1929
It was accepted as a standard system by the ICAO, (International Civil Aviation
Organization) in 1947.
ICAO adapted an ILS standard developed by the US Army as a standard system
for all of its member countries. (1947)
But today, it is still the most accurate approach and landing aid that is used by
the airliners.
Enable a safe landing during Instrument meteorological conditions (IMC), such
as low ceilings or reduced visibility.
Instrument Approach Procedure charts (or "approach plates") are published for
each ILS approach, providing pilots with the needed information to fly an ILS
approach during Instrument flight rules (IFR) operations.
The first scheduled passenger airliner to land
using ILS was in 1938. A Pennsylvania-Central
Airlines Boeing 247-D.a
The Uses of ILS
To guide the pilot during the approach and landing.
It is very helpful when visibility is limited and the pilot cannot
see
the airport and runway.
To provide an aircraft with a precision final approach.
To help the aircraft to a runway touchdown point.
To provide an aircraft guidance to the runway both in the horizontal
and vertical planes.
To increase safety and situational awareness.
Why is it employed ?!
1. To enable safe landing during reduced visibility due to fog, rain, or
snow.
2. If an Aircraft is considerably heavy for a runway length, guidance
to the exact touch-down zone is required.
3. In order to enable Auto-land in newer aircrafts, ILS signals are
essential.
ILS consists of Ground Installations and Airborne
Equipments
There are 3 equipments for Ground Installations, which are:
1. Ground Localizer (LLZ) Antenna
2. Ground Glide path (GP) Antenna
3. Marker Beacons To enable the pilot cross check the aircrafts
height.
There are 2 equipments for Airborne Equipments,
which are:
1. LLZ and GP antennas located on the aircraft nose.
2. ILS indicator inside the cockpit
Localizer
Localizer operates in VHF band which uses the same frequency
range as a VOR transmitter between 108 to 111.975 MHz with
achannel separation of 50 kHz.
Localizer transmit two signals which overlap at the center.
The left side has a 90 Hz modulation and the right has a 150 Hz
modulation.
The overlap area provides the on-track signal.
For example, if an aircraft approaching the runway center line from
the right, it will receive more of the 150 Hz modulation than
90Hz modulation.
Difference in Depth of Modulation will energizes the vertical
needle of ILS indicator.
Localizer Indications
Needle indicates
direction of runway.
Centered Needle =
Correct Alignment
How Localizer Works
Airplane Approaching to the left of runway center line.
Ground Glide path (GP) Antenna
Needle indicates
above/below glide
path.
Centered Needle =
Correct Glide path
Glide Path Antenna Array
Glide Path is the vertical antenna located on one side of the runway about
300 m to the end of runway.
Glide Path operates in UHF band between 329.15 and 335 MHz
How Glide Path Works
Glide path produces two signals in the vertical plane.
The upper has a 90 Hz modulation and the bottom has a 150 Hz
modulation.
For example, if an aircraft approaching the runway too high, it will
receive more of the 90 Hz modulation than 150Hz modulation.
Difference in Depth of Modulation will energizes the horizontal
needle of ILS indicator with the 3o glide path.
Airplane Approaching above 3 glide path
Observe the yellow GS horizontal
pointer line tracking the 3 glide
path and moving downwards.
Marker Beacons
Marker beacons operating at a carrier frequency of 75 MHz
are provided.
When the transmission from a marker beacon is received it
activates an indicator on the pilot's instrument panel.
The correct height the aircraft should be at when the signal
is received in an aircraft.
What do Marker Beacons do?
They aid in indicating the distance of the aircraft from the runway.
1. Outer Marker (OM)
The outer marker is normally located 7.2 to 10 km (4.5to 6 mi) from
the runway threshold. The cockpit indicator is abluelamp that flashes in
unison with the received audio code. The purpose of this beacon is to
provide height, distance, and equipment functioning checks to aircraft on
intermediate and final approach. On the aircraft, the signal is received by
a 75 MHz marker receiver. The pilot hears a tone from the loudspeaker or
headphones and a blue indicative bulb lights up.
The outer marker is located 3,56 NM (5.55611.112 km) from the
runways threshold. Its beam intersects the glide slopes ray at an altitude
of approximately 1400 ft. (426.72 m) above the runway. It also roughly
marks the point at which an aircraft enters the glide slope under normal
circumstances, and represents the beginning of the final part of the
landing approach.
The signal is modulated at a frequency of 400 Hz, made up by a Morse
code a group of two dots per second. On the aircraft, the signal is
received by a 75 MHz marker receiver. The pilot hears a tone from the
loudspeaker or headphones and a blue indicative bulb lights up.
Anywhere an outer marker cannot be placed due to the terrain, a DME
unit can be used as a part of the ILS to secure the right fixation on the
In some ILS installations the outer marker is substituted by a Non
Directional Beacon (NDB).
The outer position marker (blue).
2. Middle Marker(MM)
The middle marker should be located so as to indicate, in low
visibility conditions, themissed approachpoint, and the point that
visual contact with the runway is imminent, ideally at a distance of
approximately 3,500ft (1,100m) from the threshold. The cockpit
indicator is anamberlamp that flashes in unison with the received
audio code.
The audio signal is made up of two dashes or six dots per second. The
frequency of the identification tone is 1300 Hz. Passing over the middle
marker is visually indicated by a bulb of an amber (yellow) color . It was
removed in some countries, e.g. in Canada.
The middle marker (yellow).
Inner marker
The inner marker, shall be located so as to indicate in low visibility
conditions.
This is typically the position of an aircraft on the ILS as it reaches
Category II minima.
The cockpit indicator is a white lamp that flashes in accordingly with
the received audio code.
The inner marker emits an AM wave with a modulated frequency of
3000 Hz. The identification signal has a pattern of series of dots, in
frequency of six dots per second. The beacon is located 60m in front
of the runways threshold. The inner marker has to be used for
systems of the II. and III. category.
The inner marker (white).
On-Board Flight Equipment
Heading Indicator
Magnetic Compass
Air-speed Indicator
Vertical Speed
Indicator
Localizer receiver
The signal is received on board of an aircraft by an onboard
localizer receiver. A simplified block scheme of the onboard
receiver of the localizers signals is displayed in Fig. 6. The
localizer receiver and the VOR receiver form a single unit. The
signal of the localizer launches the vertical indicator called the
track bar (TB). Provided that the final approach does occur from
south to north, an aircraft flying westward from the runways axis
(Fig. 7) is situated in an area modulated at 90 Hz, therefore the
track bar is deflected to the right side.
Aplane flying approximately along the axis of approach,
however partially turned away to the left
Aplane flying nearly in the approach axis
slightly leaned out to the right
A plane flying exactly in the axis of approach
A plane situated out of reach of the
VKV course beacons signal
Anexample of the
displayed GS
pointer notifying
adiversion from
the glide slope,
atoo weak
received signal, or
an obstacle on the
way.
Both pointers in the
middle the aircraft
is located in the
point of intersection
of the course and
descent plane.
A case when the
aircraft is located
right
of
the
runways axis and
too high over the
glide slope.
A case when the
aircraft is located
left
of
the
runways
axis
and
too
low
under the glide
slope.
Poor Visibility Landings
Unfortunates
Asiana plane
crash due
to glide path failure
Korean Airlines
Boeing 747:
CFIT
228 of 254 killed
(Aug. 6, 1997)
