FTTx Network Configuration for Multi-Service Delivery

2019/11/4 For internal use only

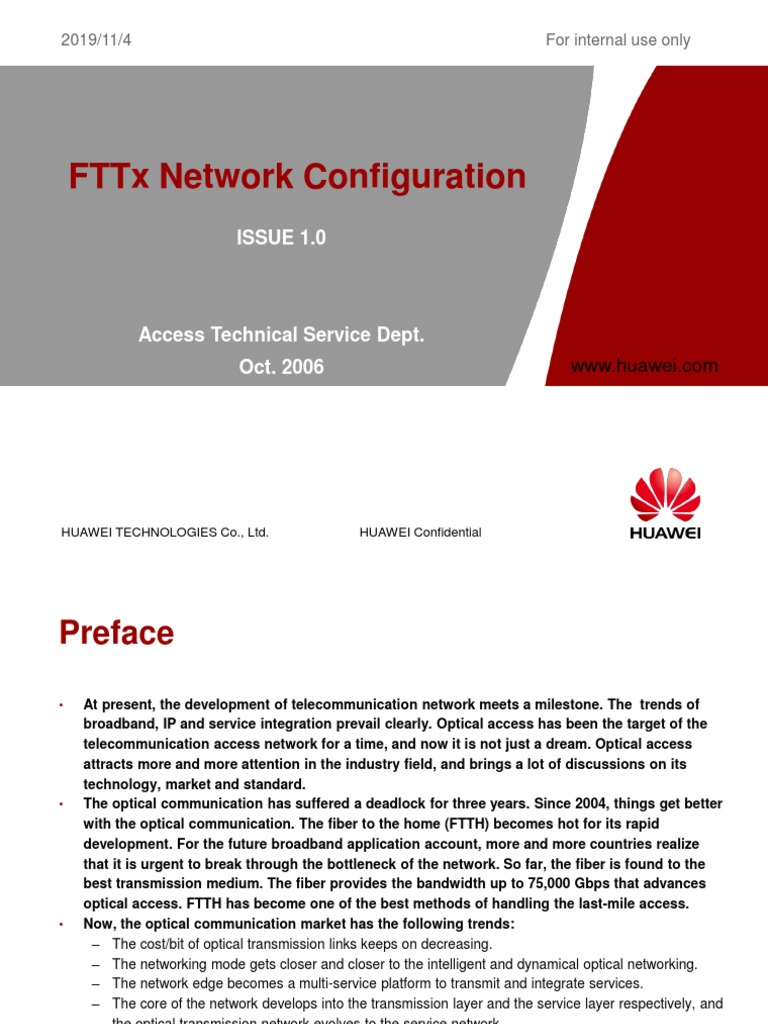

FTTx Network Configuration

ISSUE 1.0
Access Technical Service Dept.

Oct. 2006 www.huawei.com
HUAWEI TECHNOLOGIES Co., Ltd. HUAWEI Confidential

Preface
• At present, the development of telecommunication network meets a milestone. The trends of

broadband, IP and service integration prevail clearly. Optical access has been the target of the
telecommunication access network for a time, and now it is not just a dream. Optical access
attracts more and more attention in the industry field, and brings a lot of discussions on its
technology, market and standard.
• The optical communication has suffered a deadlock for three years. Since 2004, things get better
with the optical communication. The fiber to the home (FTTH) becomes hot for its rapid
development. For the future broadband application account, more and more countries realize
that it is urgent to break through the bottleneck of the network. So far, the fiber is found to the
best transmission medium. The fiber provides the bandwidth up to 75,000 Gbps that advances
optical access. FTTH has become one of the best methods of handling the last-mile access.
• Now, the optical communication market has the following trends:
– The cost/bit of optical transmission links keeps on decreasing.
– The networking mode gets closer and closer to the intelligent and dynamical optical networking.
– The network edge becomes a multi-service platform to transmit and integrate services.
– The core of the network develops into the transmission layer and the service layer respectively, and
the optical transmission network evolves to the service network.
– The vertical structure of the network tends to be flattened.
– The horizontal structure of the network turns to the optical access gets closer and closer to
subscribers.
HUAWEI TECHNOLOGIES Co., Ltd. HUAWEI Confidential Page 2

Warming-up
• PON working principle

– MA5680T product knowledge
– Huawei GPON solution
• Access Network plan
• Triply play principle
• QoS principle

Contents
Chapter 1 Typical Networking Mode

1.1 Broadband Optical Access
1.2 AN Development Trend & Present FTTx Status
1.3 Typical FTTx Networking Mode
Chapter 2 FTTx Network Plan
Chapter 3 Network Configuration

Fibers On & Copper Off — MAN Trend
< 1Mbps 3M 8M 25M 100M Bandwidth
Access ADSL/ADSL2+ VDSL / ADSL2+ PON

Technology
Copper Based Copper Based Fiber Based
Coverage < 3 km < 2 km < 1 km –5 km
Radius
Internet VoD Live TV

Video conference standard-definition TV VoD
Service
Remote control Video conference
Demand HDTV
Game
2002 2003 2006 2010

Time
• Handle the bottleneck caused by the twisted-pair access, and satisfy the customer demands
for high-bandwidth service, such as the high-definition TV, live program, and so on.
• Solve the problem of long-distance coverage by the twisted-pair access, and decrease the
number of network nodes.

Broadband Optical Access
Fiber ONT FTTH
Fiber ONT FTTO

OLT
Fiber ONU Wire/wireless NT FTTB/C
Fiber ONU Wire/wireless NT FTTCab
Access Network

Acronyms
FTTH: Fiber To The Home
FTTO: Fiber To The Office
FTTB/C: Fiber To The Building/Curb
FTTCab: Fiber To The Cabinet
ONU: Optical Network Unit
ONT: Optical Network Terminal
• In a narrow sense, FTTH indicates that the fiber further extends to users on user side.
At this moment, fibers have extended to homes and offices and the branch fiber can
access only one user. ITU holds that the distance between the O/E converter (at the
fiber end) and the user interface is no longer than 100 m, so we need not install the
electronic access system on the metal wire. In some cases, however, the broadband
wireless system is used between the O/E converter and the user interface. The FTTH
for commercial users can be also called FTTO. The farthest FTTH is the fiber to the
desk (FTTD).
• In a broad sense, FTTH refers to the fiber to the premise (FTTP). North Americans
always use the term FTTP that includes FTTB, FTTC and the narrow-sensed FTTH.

Contents


High Broadband & Multi-service — Future AN Trend
Bandwidth
Service Demand for Vs
Broadband Services
Data-downloading 2 Mbps
VoIP, video telephony and video 1 Mbps

Minimum
conference
Music on demand, multimedia 2 Mbps

contents
On-line Gaming 1 Mbps
SD Digital TV (Standard- 3 Mbps

Maximum
definition TV)
HD Digital TV (High-definition TV) 10 Mbps
Additional TV channels (i.e. 2 HD 20 Mbps

DTV)
High

Forecast of Residential Service Demand
Simulation for access bandwidth evolution

Service portfolio example
30
Downstream Upstream
2 x HD, 1x SD
25
1 HDTV, 2 SDTV Future Requirement
simultaneously among
200+ channels 16 Mb/s 50 Kb/s
20
Mbps
1 Gaming channel 256 Kb/s 256 Kb/s
2 Voice calls & Visio 220 Kb/s 220 Kb/s

1x HDTV
15 2 x HDTV
High Speed Internet 3 Mb/s 512 Kb/s
Total 20 Mb/s 1 Mb/s

10 1 x SDTV
Increasing service offering over time 2 x SDTV

• SDTV  HDTV 5
• Personal content  upstream traffic HSI increase
• Added services (Remote meter 0
reading, home security, distance 2003 2004 2005 2006 2007 2008
learning …)
• symmetrical bandwidth and interactive
video applications drive

PON Standard Evolution
• ATM PON (APON) Funtionality &

– First PON standard, used primarily for business bandwidth
applications Early in
• Broadband PON (BPON) adoption cycle
– Expanded version of APON standard, supporting

WDM, survivability, dynamic upstream Standardized, GPON
adopted by market
bandwidth allocation, higher upstream rates Alcatel product available
• Ethernet PON (EPON) EPON
(only Ethernet)
– Developing IEEE/EFM standard using Ethernet
for packet data BPON
• GPON
– Evolution of BPON standard to higher rates, APON
choice of L2 support (ATM, Ethernet), enhanced
security. Time

Present FTTx Status
• The development of FTTH is regional.
– FTTH is highly developed in Japan. Since 2005, the optical access exceeds the xDSL
access.
– FTTH does not develop in North America as highly as that in Japan. The broadband
access in North America has community antenna television (CATV) and ADSL as its
mainstream. In recent years, however, quite a few local governments and medium-or
mini-sized carriers are becoming interested in FTTH.
– FTTH develops slowly in Europe. It is because that the economy is stagnant in
Europe, the head carriers suffer a depressed business, and the government does not
make policy to improve that. In 2004, we develop about 500,000 FTTH users in
Europe, but most of the FTTH projects are for experiment or small-scaled commercial
trials.
– FTTH just begins in the Mid East, but it has a giant potential market there. A lot of
carriers favor the optical access and stop their future plan of copper-based
communication.
– At present, FTTH is in its early days on domestic market. Only a few pilots in some
key cities, and we need a long term to realize the large-scaled commercial use of
FTTH in domestic.

Contents


Typical FTTx Networking Mode
Central office Cabinet Curb Building Home
WiMAX
Remote
ADSL2+ VDSL2 Brown
GE DSLAM POTS ISDN field
Splitter
GPON
FTTCab
GPON ONT
GPON MDU
Ethernet
Green
OLT FTTN FTTH field

Typical FTTx Networking Mode (Corp. A)
Central office
Network To OSS Fiber Optical Customer
core distribution termination network
5523
AWS 5528 WAM
Inband
Residential
business
Ethernet
7340/7342
switch 734x
P-OLT
IP to data network H-ONT
N x GigE – STM1/4 1:32 split (1:64)
Small office
GigE
VoIP to softswitch H.248, Home office
5020 PWE3 Small business
GR303/TR-08/V5.2 to Class 5
E1/ DS-1 (CES) 734x BONT
Residential
734x
MDU

Typical FTTx Networking Mode (Corp. M)
Customer premises
Analog Digital
Central office / VSO OLT TV TV
Class 5 DS1 ONT STB
switch GR303/TR08
HGR
Service ATM or GbE

Voice Data
edge
router Distribution
amplifier xPON
Internet Pre-Amplifier Voice Data
ONT-M
BHR STB
Management
OSS
network
Headend RF overlay video EMS
Optical transmitter
SHE / VHO with line amplifier

Typical FTTx Networking Mode (Corp. F)
ONU -FTTB ADSL2+ SURPASS

VDSL2 hiX5709
100BT MDU Optical Optical
amplifier Video
POTS transmitter
(EDFA) broadcast
Video
(analog or
digital)
ONT -FTTO E1/DS1 SURPASS
OLT SURPASS
100BT hiX5705/06
SBU/MTU hiX5750
POTS
Video
N x E1
N x GE / 10GE
ONT -FTTH OC48/
100BT
SURPASS
Passive STM16
hiX5702/03 WDM
POTS optical module
Video
SFU splitter
SURPASS
100BT hiX5701
E-SFU

Typical FTTx Networking Mode (Corp. S)

Typical FTTx Networking Mode (Corp. F)

Typical FTTx Networking Mode (Corp. Z)

Contents
Chapter 2 FTTx Networking Plan

2.1 FTTx Networking Construction Principle
2.2 FFTx Network Plan

Step & Principle for FTTx Network Construction
• Use optical access to reduce the access layers scientifically. Take full advantage of
the intranet transmission and fibers to promote the bandwidth and quality of the
access.
• Carry out the plan for constructing the optical access network on schedule by
analyzing the economy and the present status of communication in cities. The
network development must foresee the service demands properly.
– Focus on the integrated benefits of investment, and make plan for the network well.
– Carry out the plan in terms of network layers, and use devices according to the actual
requirements.
• Step for network construction
– Classify users, and foresee the service.
– Decide the integrated office.
– Plan the capacity and the coverage of OLT and ONU/T.
– Plan ODN taking into account the distribution of OLT and ONU/T.

Contents

2.1 FTTx Network Construction Principle
2.2 FFTx Network Plan

FTTx Plan
VIDEO world
Automatically
Redundancy
remote upgrade of
backup
terminals
QoS plan
ODN plan, operation &

For configuration maintenance construction
For operation
Satisfy the service
and maintenance
Voice world demands
Network management, Data world
service distribution
The network How to make use
security guaranty of the existing
network?

By Scientific Network Design, Guaranteeing …
• The network construction can satisfy the expansion demands in the

future 15 or 25 years.
• Operation & Maintenance (O&M) management

– Remoteness and automatization of the O&M management
– O&M management of transmission lines
– Scientific service distribution mode
• Make use of the existing resources.

– Cut down the cost at the initial stage.
– Make proper use of the existing network devices, and gradually improve
these devices to balance the cost and the benefit.

By Scientific Network Design, Guaranteeing …
• Service realization
– Triply play
– VIC private line
– Base station
– …
• QoS quality
Guarantee the expected QoS for users on the packet loss, delay, cell variation
and bandwidth.
• Network security
Guarantee the security of the device, network and data.
• Network redundancy backup

Contents

3.1 Service Realization
3.2 QoS Guaranty
3.3 Network Security
3.4 Network Redundancy Backup

Full View of Huawei FTTH Network Solution

Network Configuration of Triply Play Service (FTTH)
• In the networking mode of the Triple Play service, the VoIP, IPTV and Internet
services are accessed to the MA5680T over the same subscriber cable by ONT.
• The VoIP and IPTV services use the DHCP mode.
– The MA5680T identifies the DHCP option 60 field, and forwards the terminal service
packet to the corresponding DHCP Server by the DHCP Relay. In this case, the
terminal gets the IP address assigned by the DHCP Server.
– The MA5680T transmits the DHCP packet transparently at the layer 2, with the upper-
layer device as its DHCP Relay.
• The Internet service is usually accessed by the PPPoE protocol.
• The middle network configuration is complicated for the multicast service. The
command for configuration is different on various routers. We must enable the
multicast route on the middle router.
– On a mini-network, enable the pim dm.
– On a large network with many program servers, enable the pim sm to avoid the
network congestion caused by the burst of too many multicast streams.

Internet VoD server Softswitch
Middle
ware
Data Voice
Video
BRAS
DHCP Servers
IP network
Different gem ports for
different services
Different VLAN for
MA5680T upstream service to
different service
Different user VLANs providing network
for different services
Bind to different t_cont profile for
different services
ONT ONT ONT
PC IPTV SIP phone PC IPTV SIP phone PC IPTV SIP phone

Get IP by Get IP by Get IP by Get IP by Get IP by GEet IP by Get IP by Get IP by Get IP by
PPPoE DHCP DHCP PPPOE DHCP DHCP PPPOE DHCP DHCP

Start
Internet VoIP IPTV
Create a VLAN Create a VLAN Create a VLAN
Add the upstream port Add the upstream port Add the upstream port
Configure CAR profiles Configure CAR profiles Configure CAR profiles
Bind the T-CONT profile Bind the T-CONT profile Bind the T-CONT profile
Add a GEM Port Add a GEM Port Add a GEM Port
Add the service port Add the service port Add the service port
Set multicast data
End

FTTB Network Application
• The MA5680T can be used on the FTTB network to access the high-
bandwidth services, such as the voice, data and video services.
• Compared with the existing DSL network, the FTTB network has the
following advantages:
– Access services with high rate and long distance. The rate for transmitting
data on the DSL network is limited by the length of twisted pairs.
– Save the investment. The FTTB network integrates the all-fiber FTTH
network and the DSL network well. FTTB saves money for customers by
using fibers for long-distance transmission and twisted pairs for short-
distance transmission.
– FTTB has a good compatibility. The FTTB network is compatible with the
DSL network, and they can perform mutual operations.

FTTB Network Configuration
PSTN
• ONU connects with the mini DSLAM Softswitch Internet
devices to access services of more TG

IPTV
users.
• ONU connects with the LAN Switch N2000 IP CATV
or hub to access services for more

users.
BRAS
• The LAN switch/DSLAM devices are
Optical
used in the tree-structure networking. Common users MA5680T splitter
Optical ONU
splitter
Mini
Each LAN switch or DSLAM device DSLAM LAN
Optical
works independently and does not splitter
switch Commercial
ONU users
affect each other. the device can Common users
ONU
Commercial users
assign the bandwidth flexibly in
Mini
terms of the number of users DSLAM
connecting to the LAN switch or Common users

Commercial users
DSLAM device.
Fiber
Twisted pair

Configuration of Private Line Service (QinQ)
QinQ private line
The packet that is transmitted on the backbone
network has two 802.1q VLANs, one is the public
network tag, and the other is the private network
tag. The two VLANs are labeled and function as
IP
follows:
 On the ONU of the MA5680T: Corporations are
VLAN3VLAN2 VLAN3VLAN2 accessed by GPON and carried by VLAN. Access
corporations with VLAN1 or VLAN2 to the
MA5680T VLAN3VLAN1 MA5680T
MA5680T, and enable the QinQ function on the
VLAN2 MA5680T. The MA5680T assign a public network
VLAN2
VLAN1
VLAN ID 3 to the corporations, and transmits
their services to the upper-layer network.
 On the OLT of the MA5680T: The users’ packet is
Branch
Headquarter
office transmitted on the MAN backbone network in
Corporation 1 Accountant1 Accountant2 Corporation 2
terms of the public network VLAN ID. After the
packet reaches the other side of the MA5680T,
the public network VLAN ID is untagged, and the
packet is restored and transmitted to the device
on the ONU side.

Configuration of VLAN Stacking Service
VLAN stacking service
– VLAN expansion: It is used to expand the
number of VLANs and identify users.
– VLAN stacking service: The upper
ISP1 IP
ISP2 network refers to the layer 2 that performs
SP VLAN1 C VLAN2 the VLAN-based and MAC-based
SP VLAN2C VLAN2
forwarding.
SP VLAN1 C VLAN1 SP VLAN2C VLAN1 – The users’ packet is transmitted to the
MA5680T MA5680T and encapsulated with two
VLAN IDs there (external VLAN ID +
internal VLAN ID). The packet is
forwarded to the corresponding ISP in
terms of the external VLAN ID, and the
Corporation 1 Corporation 2
internal VLAN ID is used to identify users.
The VLAN Stacking principle is similar to the QinQ private-line application principle.
They only differ in that the VLAN Stacking labels the users’ packet with two VLAN IDs,
but the QinQ labels the users’ packet with only one VLAN ID.

Multicast Service Principle on the FTTx Network
OSS Profile “Standard”: IP group 1
IP group 2
Ch1
Ch2 Profile “Premium”: IP group 1
NMS Ch3 IP group 2
Ch4 IP group 3
IP Core
Each program sends one
copy to service units Multicast stream
Ch1
Ch2
Ch3
IGMP report
Ch4 Ch1
Ch2
GPBA boards completes IP group: 1~4
Ch3
program duplication on Ch1 SCUG MA5680T Ch4
different ports. Ch2 Ch3
Ch3 Ch4
GPBA GPBA
Ch1
Ch2 Ch1 Ch3
IGMP packet for Ch4
Ch2 joining group 3 Ch4
I want to join in Ch3
this channel.
IGMP packet for
joining group 3
Ch4
The profile and port has been

Before joining in, you can The profile of the port is “Premium”,
bound and the profile authority
preview all channels. is “Standard”. The port is not allowing to join in group 3.
allowed to join in Group 3.

Contents

3.2 QoS Guaranty

QoS Plan
NGN IPTV GAME DATA

Service Service Service Service
• Clear picture • High-speed
• Clear voice • Continuous and
• Continuous picture access to a
• No echo smooth
• No fuzzy screen webpage quickly
• Continuous voice • No suspension
• No mosaic • High-speed
downloading
• The downstream mode of the PON system is a broadcast one, and the upstream mode is a TDMA
one. Therefore, it guarantees the QoS of the upstream service stream at the access layer.
• Each service stream has its own QoS features that are presented on the bandwidth guaranty.
– Fixed bandwidth
– Guaranteed bandwidth
– Bandwidth guaranty/no bandwidth guaranty
– Forwarding as much as possible
– A mixed mode
SBA＋DBA

About DBA
• What is DBA?
– DBA stands for the Dynamically Bandwidth Assignment.
– DBA is a mechanism that can dynamically assign bandwidth for the
upstream service at the interval of microseconds or milliseconds.
• Why do we need DBA?

– DBA promotes the utilization rate of the upstream line on the PON
port.
– DBA can add more users to the PON port.
– By DBA, users can enjoy high-bandwidth service, especially for
their services that require the changeable bandwidth.

DBA Processing Flow in GPON

ITU — T G.984.3 Definition
Note: Here is just a brief description, and see the special topic of QoS for more details.

Contents

3.2 QoS Guaranty

Network Security
• Device security
– Authentication
– Anti-attack
– the illegal intrusion block
• Service security
– Filter contents
– Control the illegal access
• Data security
– Prevent the following information from losing or ignoring: the data configuration of
device and NMS, statistic information, diagnose information, history records,
documents and software versions, patches, and so on.
• Border security
– Mark off the security field on the network to safeguard the border.
• User access security
– Isolate users.
– Encrypt the channel for transmitting data.

MA5680T Security Guaranty
 System security
 VLAN isolation
 Encryption
 MAC address binding
 AES128 encryption
 MAC address anti-spoofing
Download Media Email
Server Server Server Portal  ACL access control
 Blacklist setting
IP
network
 Authentication Firewall
 Radius authentication
MA5680T
 User isolation  Network security protection
 ONU authenticates  Anti-DOS attack
registration in the manner  SSH V2 encryption
of SN+PSW  SNMP V3
 DHCP Relay/option 82 ONU

Contents

3.2 QoS Guaranty

Redundancy Backup
Guarantee the reliability of the following things:

• Networking
– The dynamic routing protocol is used between L3 and routers to guarantee the load-
sharing by the active/standby boards.
• Device
– 1+1 active/standby mode for a device
• Link
– Dual homing removes the single-site fault.
– Link aggregation realizes the load-sharing.
– Avoid the disconnection caused by human in management.
– Standardize the cable construction, such as the network cable, fibers and so on, and
test the cables after their construction.
• Power
– Improve the running conditions of devices, and promote the reliability of power supply.
– 1+1 power backup

Redundancy Backup Configuration on the MA5680T
Avialibility:
99.99941% • 1+1 dual upstream
service
1+1 hot backup of the
• Link aggregation
control board
realizes the load-
sharing at the ratio of
1:1.
PR GIU
ETH
• Link protection by
TA
G G ETH the RSTP ring
S S
• OSPF and RIP 2
ETH
PR
Redundancy backup for DC

TA P P C C
ETH
GIU dynamic routes

power (1+1) CIT
O O U U ETH
ETH
A
N N G G ETH
ETH
1+1 hot backup of the service board

(realized in the V800R005C02
version)

Thank you！
www.huawei.com

FTTx Network Configuration for Multi-Service Delivery

Uploaded by

Document Information

Original Title

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

FTTx Network Configuration for Multi-Service Delivery

Uploaded by

Copyright:

Available Formats

2019/11/4 For internal use only

FTTx Network Configuration

Access Technical Service Dept.

HUAWEI TECHNOLOGIES Co., Ltd. HUAWEI Confidential

• At present, the development of telecommunication network meets a milestone. The trends of

HUAWEI TECHNOLOGIES Co., Ltd. HUAWEI Confidential Page 2

• PON working principle

• Access Network plan

• Triply play principle

HUAWEI TECHNOLOGIES Co., Ltd. HUAWEI Confidential Page 3

Chapter 1 Typical Networking Mode

Chapter 2 FTTx Network Plan

Chapter 3 Network Configuration

HUAWEI TECHNOLOGIES Co., Ltd. HUAWEI Confidential Page 4

Access ADSL/ADSL2+ VDSL / ADSL2+ PON

Internet VoD Live TV

2002 2003 2006 2010

HUAWEI TECHNOLOGIES Co., Ltd. HUAWEI Confidential Page 5

Fiber ONT FTTH

Fiber ONT FTTO

Fiber ONU Wire/wireless NT FTTCab

HUAWEI TECHNOLOGIES Co., Ltd. HUAWEI Confidential Page 6

HUAWEI TECHNOLOGIES Co., Ltd. HUAWEI Confidential Page 7

Chapter 1 Typical Networking Mode

Chapter 2 FTTx Network Plan

Chapter 3 Network Configuration

HUAWEI TECHNOLOGIES Co., Ltd. HUAWEI Confidential Page 8

VoIP, video telephony and video 1 Mbps

Music on demand, multimedia 2 Mbps

On-line Gaming 1 Mbps

SD Digital TV (Standard- 3 Mbps

HD Digital TV (High-definition TV) 10 Mbps

Additional TV channels (i.e. 2 HD 20 Mbps

HUAWEI TECHNOLOGIES Co., Ltd. HUAWEI Confidential Page 9

Simulation for access bandwidth evolution

2 Voice calls & Visio 220 Kb/s 220 Kb/s

Total 20 Mb/s 1 Mb/s

Increasing service offering over time 2 x SDTV

HUAWEI TECHNOLOGIES Co., Ltd. HUAWEI Confidential Page 10

• ATM PON (APON) Funtionality &

– Expanded version of APON standard, supporting

HUAWEI TECHNOLOGIES Co., Ltd. HUAWEI Confidential Page 11

HUAWEI TECHNOLOGIES Co., Ltd. HUAWEI Confidential Page 12

Chapter 1 Typical Networking Mode

Chapter 2 FTTx Network Plan

Chapter 3 Network Configuration

HUAWEI TECHNOLOGIES Co., Ltd. HUAWEI Confidential Page 13

Central office Cabinet Curb Building Home

HUAWEI TECHNOLOGIES Co., Ltd. HUAWEI Confidential Page 14

E1/ DS-1 (CES) 734x BONT

HUAWEI TECHNOLOGIES Co., Ltd. HUAWEI Confidential Page 15

Service ATM or GbE

Internet Pre-Amplifier Voice Data

Headend RF overlay video EMS

HUAWEI TECHNOLOGIES Co., Ltd. HUAWEI Confidential Page 16

ONU -FTTB ADSL2+ SURPASS

HUAWEI TECHNOLOGIES Co., Ltd. HUAWEI Confidential Page 17

HUAWEI TECHNOLOGIES Co., Ltd. HUAWEI Confidential Page 18

HUAWEI TECHNOLOGIES Co., Ltd. HUAWEI Confidential Page 19

HUAWEI TECHNOLOGIES Co., Ltd. HUAWEI Confidential Page 20

Chapter 1 Typical Networking Mode

Chapter 2 FTTx Networking Plan

Chapter 3 Network Configuration
