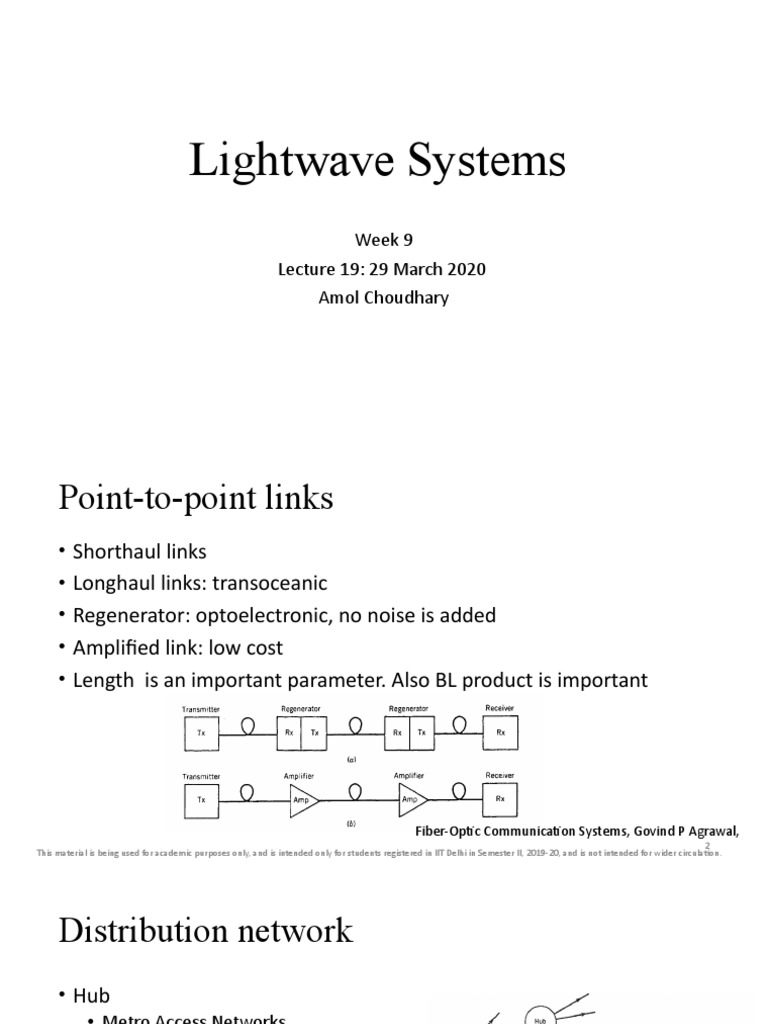

Lightwave Systems

Week 9
Lecture 19: 29 March 2020
Amol Choudhary
 Point-to-point links
• Shorthaul links
• Longhaul links: transoceanic
• Regenerator: optoelectronic, no noise is added
• Amplified link: low cost
• Length is an important parameter. Also BL product is important

Fiber-Optic Communication Systems, Govind P Agrawal,

2
This material is being used for academic purposes only, and is intended only for students registered in IIT Delhi in Semester II, 2019-20, and is not intended for wider circulation.
 Distribution network
• Hub
• Metro Access Networks
• Electrical switches
• Telephone
• Bus
• Multichannel optical signal
• Taps distribute power to subscriber
• Drawback is reduced power to each user

Fiber-Optic Communication Systems, Govind P Agrawal,

3
This material is being used for academic purposes only, and is intended only for students registered in IIT Delhi in Semester II, 2019-20, and is not intended for wider circulation.
 Local Area Networks
• All of you staying on campus use LANs! Random Access
• Losses not a concern (<10km), BW is important
• Bus
• Ring
• Star: Active or passive
• More nodes possible than Bus

Fiber-Optic Communication Systems, Govind P Agrawal,

4
This material is being used for academic purposes only, and is intended only for students registered in IIT Delhi in Semester II, 2019-20, and is not intended for wider circulation.
 Design Guidelines
• Loss consideration

• Different choice of wavelengths:

• 0.85- cheap, LAN
• 1.3- low distances, MAN
• 1.5- long distances

Fiber-Optic Communication Systems, Govind P Agrawal,

5
This material is being used for academic purposes only, and is intended only for students registered in IIT Delhi in Semester II, 2019-20, and is not intended for wider circulation.
 Dispersion-Limited systems
• When the transmission length due to dispersion limitation is smaller
than the loss limited length
• Frequency chirp also becomes a problem

Fiber-Optic Communication Systems, Govind P Agrawal,

6
This material is being used for academic purposes only, and is intended only for students registered in IIT Delhi in Semester II, 2019-20, and is not intended for wider circulation.
 Power Budget (important)
• To design system, we need to ensure that received power is above the
receiver sensitivity
Transmitted power Channel Loss

Received power System Margin~3-4dB

• Determined by the link length and bit rate

Fiber-Optic Communication Systems, Govind P Agrawal,

7
This material is being used for academic purposes only, and is intended only for students registered in IIT Delhi in Semester II, 2019-20, and is not intended for wider circulation.
 Rise-time budget
• Need to ensure that the system is able to handle the bitrate
• Consider the 10-90 rise time

• Total rise time:

0 Fiber-Optic Communication Systems, Govind P Agrawal,

8
This material is being used for academic purposes only, and is intended only for students registered in IIT Delhi in Semester II, 2019-20, and is not intended for wider circulation.
 Simple problem
• Assume a 1.3 micron system, designed for 1 gbps for a 50 km link. If
the transmitter rise time is 0.25 ns and the receiver rise time is 0.25
ns, can RZ be used? Spectral width is 3 nm and D=2ps/nm/km.
• Calculate total rise time
• Tfiber= TGVD
• =0.3 ns
• Ttotal=0.524 ns

• Cant be used for RZ. Can be used for NRZ

9
This material is being used for academic purposes only, and is intended only for students registered in IIT Delhi in Semester II, 2019-20, and is not intended for wider circulation.
 Long-haul systems
• SPM limits single channels.
• Nonlinear phase shift doesn’t accumulate over regenerators
• Accumulates over amplifiers. For 1 amp, its 22 mW input power. For 10
amps, it is 2.2 mW
• Should consider the dispersion effects:
• Use a new format: Chirped return to Zero
• Amplified spontaneous emission noise is a challenge: mixing with signal via
FWM and XPM can occur
• Polarisation mode dispersion can become important for long lengths and
high data rates
10
This material is being used for academic purposes only, and is intended only for students registered in IIT Delhi in Semester II, 2019-20, and is not intended for wider circulation.
 Terrestrial systems

Fiber-Optic Communication Systems, Govind P Agrawal,

11
This material is being used for academic purposes only, and is intended only for students registered in IIT Delhi in Semester II, 2019-20, and is not intended for wider circulation.
 Subsea Systems

Fiber-Optic Communication Systems, Govind P Agrawal,

12
This material is being used for academic purposes only, and is intended only for students registered in IIT Delhi in Semester II, 2019-20, and is not intended for wider circulation.
 Sources of Power Penalty: intensity
• Modal noise: due to the fluctuations of modes in MMF at the receiver
caused by bends and deformations
• Mode-partition noise: individual longitudinal modes have large
fluctuations in powers. These modes travel at different speeds due to
dispersion and receiver sees these fluctuations as noise
• Noise due to back-reflections can destabilise the laser

13
This material is being used for academic purposes only, and is intended only for students registered in IIT Delhi in Semester II, 2019-20, and is not intended for wider circulation.
 Sources of Power Penalty: Dispersion
• Dispersion broadens the pulse beyond the timing slot and reduces
pulse energy in the slot reducing SNR
• Means need more power to maintain SNR: Power penalty dd

• bf is the broadening factor Duty cycle

• For high-linewidth source

• For narrow bandwidth source

Fiber-Optic Communication Systems, Govind P Agrawal,

14
This material is being used for academic purposes only, and is intended only for students registered in IIT Delhi in Semester II, 2019-20, and is not intended for wider circulation.
 Frequency Chirp

• Directly modulated lasers have negative

chirp
• For DML, C=-6, to keep penalty lesser than
0.1 dB, x-axis should be below 0.002. low
lengths
• If we use normal dispersion, then we can
have improvement due to compression
Fiber-Optic Communication Systems, Govind P Agrawal,
15
This material is being used for academic purposes only, and is intended only for students registered in IIT Delhi in Semester II, 2019-20, and is not intended for wider circulation.
 Forward Error Correction Codes
• Improve BER by correcting errors
• Add extra bits at transmitter- control bits
• Linear, cyclic, Reed-Solomon, convolutional, product, turbo
• FEC Overhead= Effective Bitrate (Be)/BitRate(B) – 1
• Redundancy=1-B/Be
With Coding
• Coding gain

Fiber-Optic Communication Systems, Govind P Agrawal,

16
This material is being used for academic purposes only, and is intended only for students registered in IIT Delhi in Semester II, 2019-20, and is not intended for wider circulation.
 Next Class
• Chapter 6

17
This material is being used for academic purposes only, and is intended only for students registered in IIT Delhi in Semester II, 2019-20, and is not intended for wider circulation.
