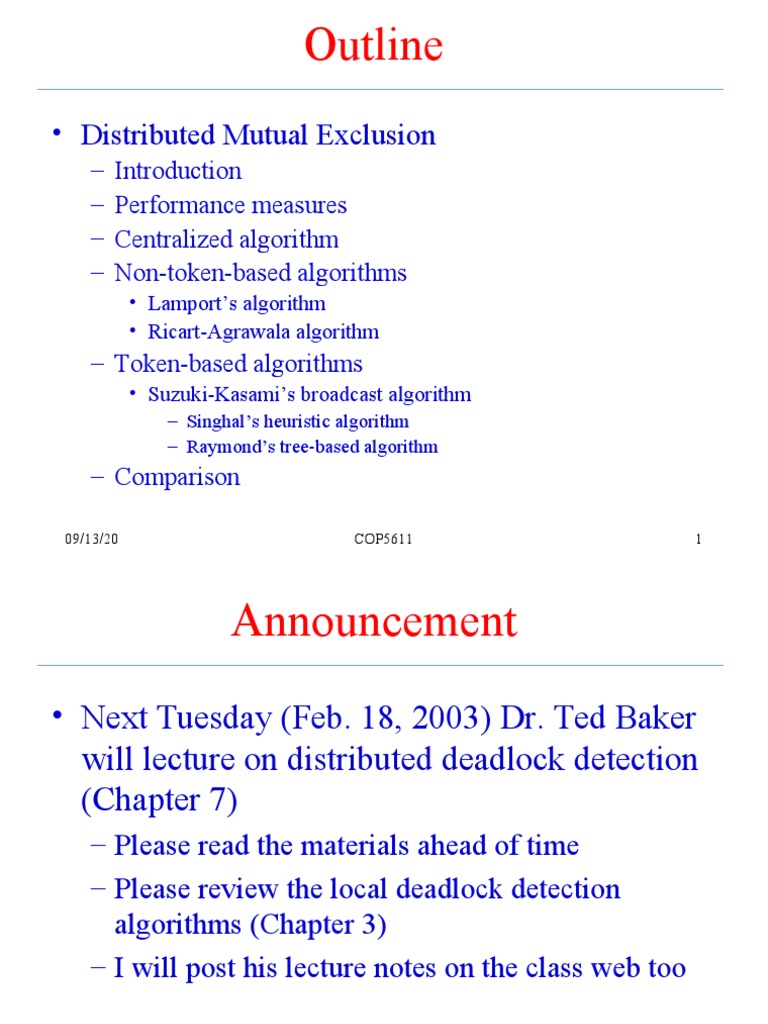

Outline

• Distributed Mutual Exclusion

– Introduction
– Performance measures
– Centralized algorithm
– Non-token-based algorithms
• Lamport’s algorithm
• Ricart-Agrawala algorithm
– Token-based algorithms
• Suzuki-Kasami’s broadcast algorithm
– Singhal’s heuristic algorithm
– Raymond’s tree-based algorithm
– Comparison

09/13/20 COP5611 1
 Announcement
• Next Tuesday (Feb. 18, 2003) Dr. Ted Baker
will lecture on distributed deadlock detection
(Chapter 7)
– Please read the materials ahead of time
– Please review the local deadlock detection
algorithms (Chapter 3)
– I will post his lecture notes on the class web too

09/13/20 COP5611 2
 The Critical Section Problem
• When processes (centralized or distributed)
interact through shared resources, the
integrity of the resources may be violated if
the accesses are not coordinated
– The resources do not record all the changes
– A process may obtain inconsistent values
– The final state of the shared resource may be
inconsistent

09/13/20 COP5611 3
 An Example
• Suppose we have two processes, (one is
called producer and the other one consumer),
the shared variable counter is 5 initially
– Producer: counter = counter +1
P1: load counter, r1
P2: add r1, #1, r2
P3: store r2, counter
– Consumer: counter = counter - 1
C1: load counter, r1
C2: add r1, #-1, r2
C3: store r2, counter

09/13/20 COP5611 4
 An Example - cont.
• A particular execution sequence
– P1: load counter, r1
– P2: add r1, #1, r2
--- Context switch ----
– C1: load counter, r1
– C2: add r1, #-1, r2
– C3: store r2, counter
--- Context switch ----
– P3: store r2, counter
– What is the value of counter?
09/13/20 COP5611 5
 An Example - cont.
• A particular execution sequence
– C1: load counter, r1
– C2: add r1, #-1, r2
--- Context switch ----
– P1: load counter, r1
– P2: add r1, #1, r2
– P3: store r2, counter
--- Context switch ----
– C3: store r2, counter
– What is the value of counter this time?
09/13/20 COP5611 6
 An Example - cont.
• A particular execution sequence
– C1: load counter, r1
– C2: add r1, #-1, r2
– C3: store r2, counter
--- Context switch ----
– P1: load counter, r1
– P2: add r1, #1, r2
– P3: store r2, counter
--- Context switch ----
– What is the value of counter this time?
09/13/20 COP5611 7
 Mutual Exclusion
• One solution to the problem is that at any
time at most only one process can access the
shared resources
– This solution is known as mutual exclusion
– A critical section is a code segment in a process
which shared resources are accessed
• A process can have more than one critical section
• There are problems which involve shared resources
where mutual exclusion is not the optimal solution

09/13/20 COP5611 8
 The Structure of Processes
• Structure of process Pi
repeat
entry section
critical section
exit section
reminder section
until false;

09/13/20 COP5611 9
 Mutual Exclusion in Traditional OS

• Through semaphores, monitors or other

programming-language constructs
• Semaphore S – integer variable
– can only be accessed via two indivisible (atomic)
operations
wait (S): while S 0 do no-op;
S := S – 1;

signal (S): S := S + 1;

09/13/20 COP5611 10
 Mutual Exclusion in Traditional OS – cont.
• Shared variables
– var mutex : semaphore
– initially mutex = 1
• Process Pi
repeat
wait(mutex);
critical section
signal(mutex);
remainder section
until false;
09/13/20 COP5611 11
 Distributed Mutual Exclusion
• Due to the absence of shared memory, solutions
for mutual exclusion based on shared memory
cannot be used in distributed systems
– It must be based on message passing

09/13/20 COP5611 12
 Performance Measure for Distributed Mutual Exclusion

• The number of messages per CS invocation

• Synchronization delay
– The time required after a site leaves the CS and
before the next site enters the CS
– System throughput 1/(sd+E), where sd is the
synchronization delay and E the average CS
execution time
• Response time
– The time interval a request waits for its CS
execution to be over after its request messages have
been sent out
09/13/20 COP5611 13
 Performance Measure for Distributed Mutual Exclusion

09/13/20 COP5611 14
 A Centralized Algorithm
• It is a simple solution
– One site, called the control site, is responsible for
granting permission to the CS execution
– To request the CS, a site sends a REQUEST
message to the control site
• When a site is done with CS execution, it sends a
RELEASE message to the control site
– The control site queues up the requests for the
CS and grant them permission

09/13/20 COP5611 15
 A Centralized Algorithm – cont.

a) Process 1 asks the coordinator for permission to enter a critical region. Permission is
granted
b) Process 2 then asks permission to enter the same critical region. The coordinator does
not reply.
c) When process 1 exits the critical region, it tells the coordinator, when then replies to 2

09/13/20 COP5611 16
 A Centralized Algorithm – cont.

• Analysis of the centralized algorithm

– There is a single point of failure
– Number of messages per CS
– The synchronization delay
• System throughput
– Response time
• Best case
• Worst case

09/13/20 COP5611 17
 Distributed Solutions
• Non-token-based algorithms
– Use timestamps to order requests and resolve
conflicts between simultaneous requests
– Lamport’s algorithm and Ricart-Agrawala
Algorithm
• Token-based algorithms
– A unique token is shared among the sites
– A site is allowed to enter the CS if it possess the
token and continues to hold the token until its CS
execution is over; then it passes the token to the
next site
09/13/20 COP5611 18
 Lamport’s Distributed Mutual Exclusion Algorithm

• This algorithm is based on the total ordering using

Lamport’s clocks
– Each process keeps a Lamport’s logical clock
• Each process is associated with a unique id that can be used
to break the ties
– In the algorithm, each process keeps a queue,
request_queuei, which contains mutual exclusion
requests ordered by their timestamp and associated id
– Ri of each process consists of all the processes
– The communication channel is assumed to be FIFO
09/13/20 COP5611 19
 Lamport’s Distributed Mutual Exclusion Algorithm – cont.

09/13/20 COP5611 20
 Lamport’s Distributed Mutual Exclusion Algorithm – cont.

09/13/20 COP5611 21
 Lamport’s Distributed Mutual Exclusion Algorithm – cont.

09/13/20 COP5611 22
 Lamport’s Distributed Mutual Exclusion Algorithm – cont.

09/13/20 COP5611 23
 Lamport’s Distributed Mutual Exclusion Algorithm – cont.

• Performance analysis
– Number of messages per CS
– Synchronization delay
– Throughput
– Response time

09/13/20 COP5611 24
 Ricart-Agrawala Algorithm

09/13/20 COP5611 25
Ricart-Agrawala Algorithm – cont.

09/13/20 COP5611 26
Ricart-Agrawala Algorithm – cont.

09/13/20 COP5611 27
 Ricart-Agrawala Algorithm – cont.
• Performance analysis
– Number of messages per CS
– Synchronization delay
– Throughput
– Response time

09/13/20 COP5611 28
 A Simple Toke Ring Algorithm
• When the ring is initialized, one process is
given the token
• The token circulates around the ring
– It is passed from k to k+1 (modulo the ring size)
– When a process acquires the token from its
neighbor, it checks to see if it is waiting to enter its
critical section
• If so, it enters its CS
– When exiting from its CS, it passes the token to the next
• Otherwise, it passes the token to the next
09/13/20 COP5611 29
A Simple Toke Ring Algorithm – cont.

a) An unordered group of processes on a network.

b) A logical ring constructed in software.

09/13/20 COP5611 30
A Simple Toke Ring Algorithm – cont.

• Performance analysis
– Number of messages per CS
– Synchronization delay
– Response time
– Problems
• Lost token
• Process crash

09/13/20 COP5611 31
 Suzuki-Kasami’s Algorithm
• Data structures
– Each site maintains a vector consisting the largest
sequence number received so far from other sites
– The token consists of a queue of requesting sites
and an array of integers, consisting of the
sequence number of the request that a site
executed most recently

09/13/20 COP5611 32
Suzuki-Kasami’s Algorithm – cont.

09/13/20 COP5611 33
Suzuki-Kasami’s Algorithm – cont.
• Performance analysis
– Number of messages per CS invocation
– Synchronization delay
– Response time
– System throughput

09/13/20 COP5611 34
 Singhal’s Heuristic Algorithm
• In this algorithm, each site maintains
information about the state of other sites in
the system
– The site only sends the request to a subset of sites
that most likely have the token will in a near
future
– This reduces the number of messages per CS
execution

09/13/20 COP5611 35
Raymond’s Tree-Based Algorithm
• In this algorithm, sites are logically arranged
as a directed tree

09/13/20 COP5611 36
 Comparison of Distributed Mutual Exclusion Algorithms

09/13/20 COP5611 37
 Summary
• Mutual exclusion is one solution to the
critical section problem
• Due to the absence of shared memory,
distributed mutual exclusion algorithms are
message-based
– Centralized algorithms
– Non-token-based algorithms
– Token-based algorithms

09/13/20 COP5611 38
