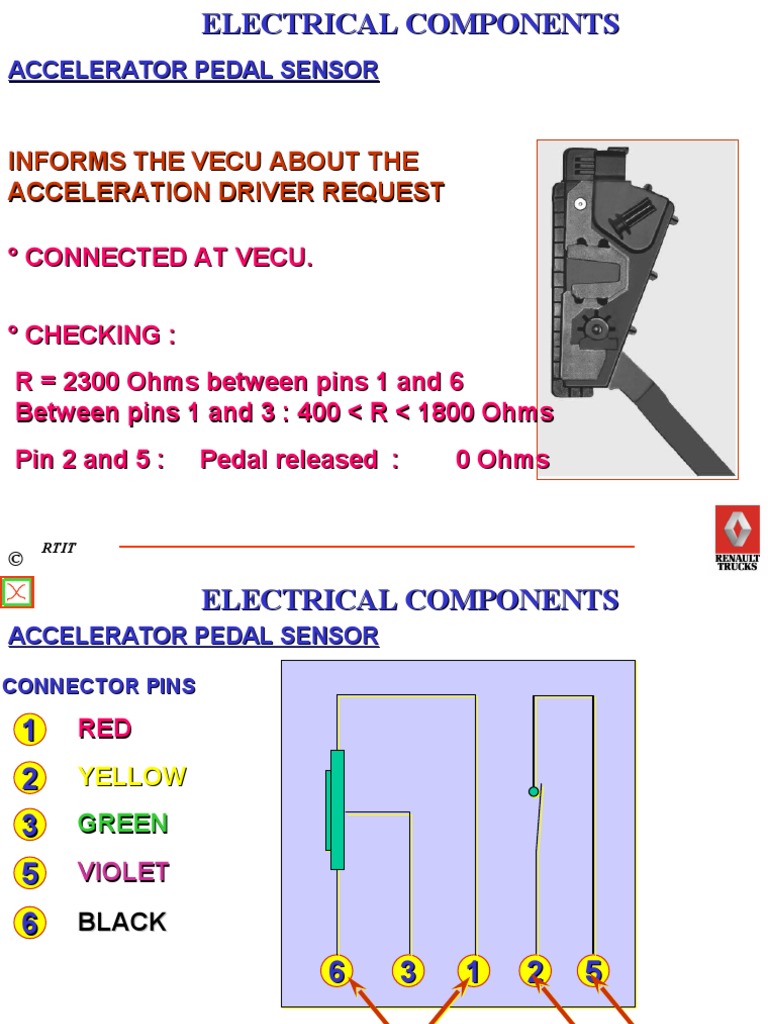

    ELECTRICAL COMPONENTS

    ACCELERATOR PEDAL SENSOR

    INFORMS THE VECU ABOUT THE


    ACCELERATION DRIVER REQUEST

    ° CONNECTED AT VECU.

    ° CHECKING :
    R = 2300 Ohms between pins 1 and 6
    Between pins 1 and 3 : 400 < R < 1800 Ohms
    Pin 2 and 5 : Pedal released : 0 Ohms

    RTIT
    ©
    ELECTRICAL COMPONENTS
    ACCELERATOR PEDAL SENSOR

    CONNECTOR PINS

    1 RED

    2 YELLOW
    3 GREEN

    5 VIOLET

    6 BLACK

    6 3 1 2 5

    POWER SUPPLY PEDAL RELEASED


    5 VOLTS CONTACT
    RTIT
    ©
