AVTE 326
Introduction

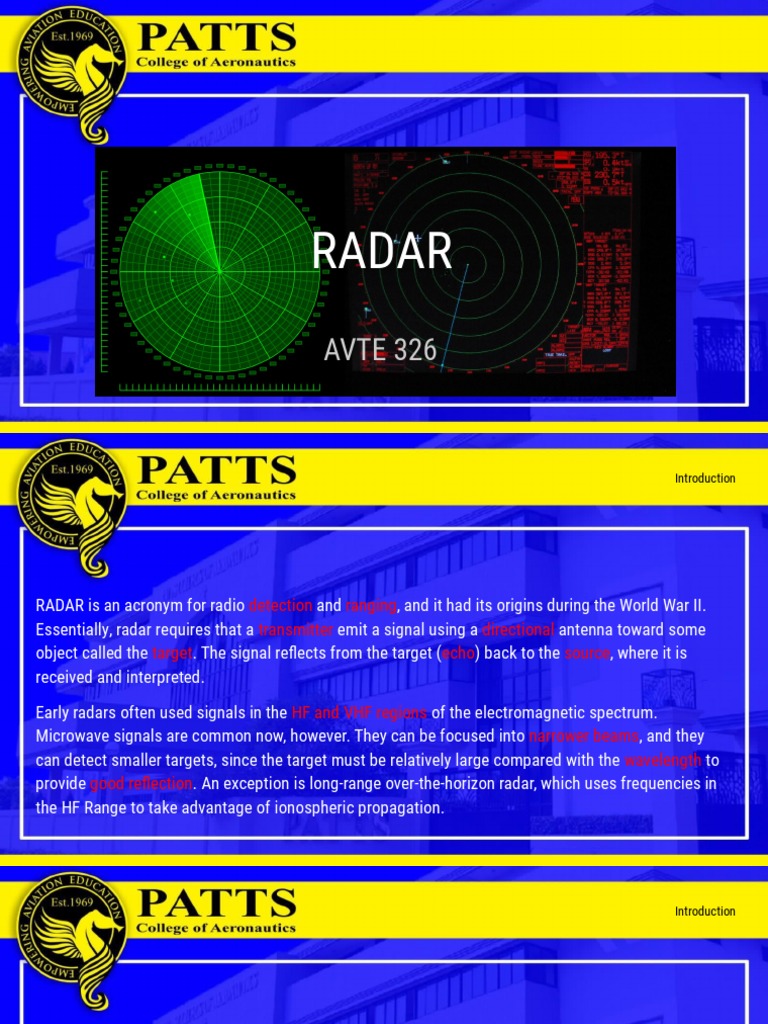

RADAR is an acronym for radio detection and ranging, and it had its origins during the World War II.
Essentially, radar requires that a transmitter emit a signal using a directional antenna toward some
object called the target. The signal reflects from the target (echo) back to the source, where it is
received and interpreted.
Early radars often used signals in the HF and VHF regions of the electromagnetic spectrum.
Microwave signals are common now, however. They can be focused into narrower beams, and they
can detect smaller targets, since the target must be relatively large compared with the wavelength to
provide good reflection. An exception is long-range over-the-horizon radar, which uses frequencies in
the HF Range to take advantage of ionospheric propagation.
Introduction
● Detection - to ascertain the existence of an object within a certain area; limited to the
technical specifications of the RADAR Design.
● Ranging - to determine the direct distance between the source and the detected object.
Introduction
Radar equipment can be divided into two main categories. Pulse Radar works by
transmitting a short burst of microwaves called a pulse, which reflects from the target and
is received at a later time. The time between the transmitted and received pulses gives
distance information (Range). Continuous Wave (CW) radar [Doppler Radar] transmits
continuously and compares the frequency of the received echo with that of the transmitted
signal. Relative motion between the radar and the target can cause a change of frequency
(the Doppler Effect), from which velocity information can be obtained. There are also radars
that combine pulse and Doppler techniques. (To get the Distance and Velocity).
PULSE RADAR
Pulse RADAR
Determining the direction from the radar antenna to a target can be very simple. Either the
antenna is moved physically, or, in the case of a phased-array antenna, its radiation pattern
is moved electronically. When the received signal is strongest, the main lobe of the antenna
is pointed at the target. The type of antenna and the way in which it is moved depend on the
target characteristics. For instance, radar on a ship intended to locate shoreline features
and other ships need only scan in azimuth (that is, horizontally), while radar on an airplane
designed to track other airplanes has to scan in both azimuth and elevation. The angular
resolution depends on the beamwidth of the antenna.
Pulse RADAR
● The Celestial Sphere - Imagine the sky as a dome towering above you, its edges resting
on the horizon. This is the backdrop the horizontal coordinate system uses to map the
sky and describe the positions of its objects.
● The Celestial Horizon- The horizontal line separating the two hemispheres is called the
celestial horizon. It is a continuation into space of the imaginary plane created
between you and the horizon around you. If the Earth were flat, the celestial horizon
would follow the terrestrial plane.
Pulse RADAR
The measured time is that for a round trip to the target and back, so the one-way distance is
found by dividing by two. Assuming free space propagation,
Pulse RADAR
Example No. 1: A pulse sent to a target returns after 15µs. How far away is the target?
https://jamboard.google.com/d/1Tj6IYRgpYj3geY7gOABP-LQlhB_zN8rN5lQOL7OZU9E/edit?usp=sharing
Pulse Radar
Example No. 2: An object 5km away from a radar station was detected. How much time did
it take for the radar pulse to reach the target?
https://jamboard.google.com/d/1hxV9YWgt_-Kw1wbItTRsB3eXp7xjFEEBOV7sQ9El5o0/edit?usp=sharing
Pulse Radar
It is also important to note that some of the time taken may be time spent by the signal
getting from the electronics to the antenna and back. If significant, this time would have to
be subtracted from the total time to get the time for the signal to travel from the antenna to
the target and back. It is this net time that is called for in example no. 1.
A problem can arise with pulse radar if the period between pulses is less than the time
taken for a pulse to return from the target.
Pulse Radar
Where:
c = velocity of light
T = pulse period
There is another difficulty. The transmitted pulse has a finite pulse duration, also called as
the pulse width. If the echo returns while the pulse is still being transmitted, it will not be
detected by the receiver. The minimum usable range for the radar then, is one-half the
distance the signal can travel during the time it takes to transmit the pulse:
Pulse Radar
Example No. 3: A pulse radar emits pulses with a duration of 1µs and a repetition rate of
1kHz. Find the maximum and minimum range for this radar.
https://jamboard.google.com/d/1U_3w5SntjC3cimR-ZhlLq_U_hk9RA1ydBSakNxTh-dk/edit?usp=sharing
Pulse Radar
The use of short pulses improves that performance of radar at short range. It also improves
the ability of the system to separate targets that are in the same direction but at different
ranges. Short pulses also result in a lower duty cycle for the transmitter, reducing the
average power requirement for a given pulse power. The disadvantage of short pulses is
that they increase the bandwidth of the signal. A wider signal bandwidth requires a wider
receiver bandwidth, reducing the signal-to-noise ratio, and also increases the congestion of
the spectrum.
Doppler Radar
Doppler Radar/CW Radar
Pulse radar can measure velocity only in an indirect way: by finding the position of a target
at two different times and calculating how far it has moved in a given time interval. It is
possible to use radar to measure velocity directly, with certain limitations. Radars that do
this use the Doppler effect, which causes the frequency of an echo to differ from that of the
transmitted signal when there is a relative motion between the radar and the target, along a
line joining the two. Motion that closes the gap between source and target raises the
frequency of the reflection, and motion in the other direction reduces it.
Doppler Radar/CW Radar
Consider a wave from the source impinging on a reflecting plane that is moving towards the
source. As soon as wave front reaches the surface, it reflects. Since the surface is moving
in the opposite direction to that of the wave, peak reaches the surface after a shorter
interval that it would have had the target been stationary. As soon as wave peak reaches
that target, it reflects. Thus, the period of the reflected wave has been reduced. Since the
speed of propagation does not change, this means that the frequency of the reflected wave
has correspondingly increased. A similar logic shows that the frequency of the reflection
will decrease if the target is moving away from the source.
Doppler Radar/CW Radar
Vr = relative velocity of the source and the target along a line between them; it
is positive if the two are closing (getting closer)
C = velocity of light
Doppler Radar/CW Radar
Example No. 4: Find the Doppler Shift caused by a vehicle moving toward a radar at 60 mph,
if the radar operates at 10 GHz.
https://jamboard.google.com/d/1TJ-SBvUxSIu7zsrOkQ2p6b-zwVJYfB2aQuqeGIcvpaE/edit?usp=sharing
Doppler Radar/CW Radar
Since the transmitted and received frequencies are different, Doppler radars can use either
CW or pulse techniques. Police speed radars, for instance, are CW. The transmitted and
received signals are separated by a circulator. A small portion of the transmitted signal is
allowed to mix with the received signal to produce a difference signal at the Doppler
frequency. A frequency counter measures this frequency, and the result is converted into a
speed readout in kilometers or miles per hour. Circuitry can also be provided to take the
speed of the vehicle in which that radar is mounted into account, since of course it is the
relative speed between police and target vehicle that is measured by the radar.
Doppler Radar/CW Radar
When applied to pulse radar, Doppler techniques allow the velocity of a target, as well as its
position and direction, to be estimated. They also allow the elimination of stationary objects
called clutter from the display.
The Radar Equation
The Radar Equation
Because a radar target does not transmit a signal but merely reflects it, the returning signal
may be quite weak. Its strength is subject to square-law attenuations (inverse square law)
both as it travels to the target and on the return trip to the receiver. Thus, for radar, the
received signal power is inversely proportional to the fourth power of the distance, rather
than the second power as in a normal communications system.
The Radar Equation
The power of the return signal is also affected by the size, shape, and composition of the
target. Targets are assigned a radar cross section that is defined as the area of a perfectly
conducting flat plate, facing the source, that would reflect the same amount of power
toward the receiver. Since real targets are neither perfect conductors nor flat planes with
the correct orientation, the radar cross section is smaller than the actual cross-sectional
area of the target, as seen from the radar installation.
The Radar Equation
The information given on the previous slides can be quantified and expressed in a
propagation equation called the radar equation:
The Radar Equation
Example No. 5: A radar transmitter has a power of 10kW and operates at a frequency of
9.5GHz. Its signal reflects from a target 15km away with a radar cross section of 10.2
square meters. The gain of the antenna is 20dBi. Calculate the received signal power.
https://jamboard.google.com/d/1TRX_hbRzw9smJnVQItMWagUR_ZkhES-8wsZgmvlIsw8/edit?usp=sharing
Transponders
Transponders
Radar echoes are generally simple reflections of the original pulse, not by any means images of
the target. By using narrow beams, frequency sweeps during the pulse and a large amount of
computing power, it is sometimes possible to make some inferences about the target from its
radar signature. In the case of friendly targets, however, the whole process can be made much
more efficient by installing a transmitter-receiver, called a transponder, on the target, usually an
airplane. The transponder responds to a radar pulse by transmitting a signal that can identify
the aircraft, even down to its flight number and destination. In the case of military aircraft,
transponders are part of an “identification friend or foe” (IFF) system designed to prevent
friendly aircraft from being attacked.
Stealth
Stealth
There are times when it would be better for an airplane not to appear on radar, for example,
if the airplane is military and the radar belongs to an enemy anti-aircraft battery. The
techniques for avoiding detection by radar are collectively known as stealth, and the details
are of course kept secret. Still, the general ideas behind stealth are well known and easily
understood.
Stealth
The two basic ways of escaping radar detection are, first, to absorb radar waves rather than
reflect them, and second, to scatter any reflected signals as widely as possible to avoid
returning a strong signal to the hostile radar. Achieving the first result involves the use of
resistive materials in the body of the aircraft; sharp angeles help to achieve the second.
In practice, stealth also involves reducing the heat signature of the aircraft, since some
missiles use the hot exhaust gas from a jet engine to track their target.
Conversions
Conversions
● Metric System
● English System
○ Statute Mile
○ Nautical Mile
○ Radar Mile
Conversion Factors
https://jamboard.google.com/d/1_YbmI5UvJl1wLoVtvTsGkuVR3BVSDW9DWVZ3YrJuopg/edit?usp=sharing
